Zennio IDAC User Manual

Access controller for installation in door
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

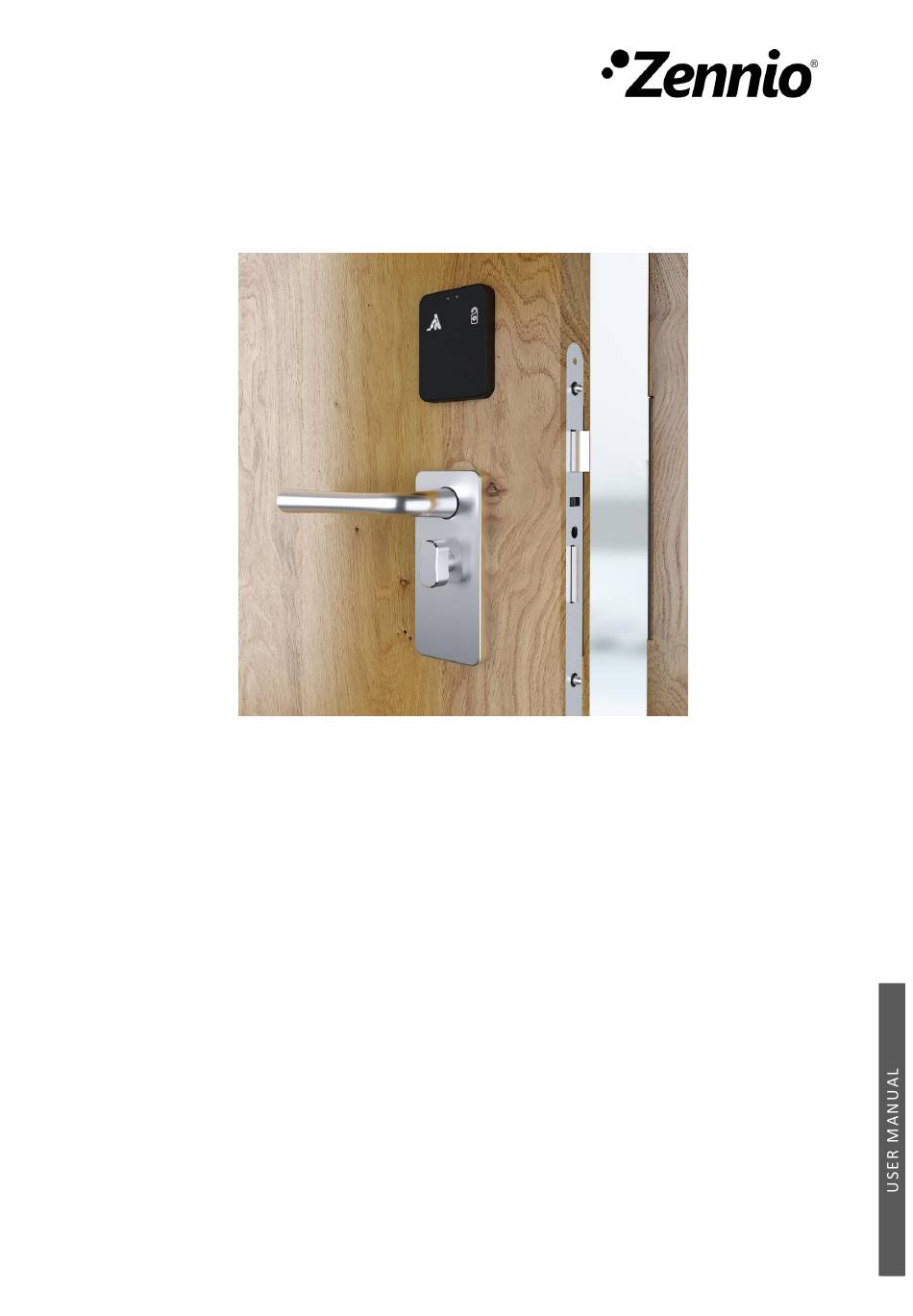

IDAC
Access Controller for Installation in Door
ZVIIDAC
dsñkmfroi
Application Program Version: 2.0
User manual edition: [2.0]_a
www.zennio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDAC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zennio IDAC

Summary of Contents for Zennio IDAC

  • Page 1 IDAC Access Controller for Installation in Door ZVIIDAC dsñkmfroi Application Program Version: 2.0 User manual edition: [2.0]_a www.zennio.com...

  • Page 2: Table Of Contents

    IDAC CONTENTS Contents ............................2 Document Updates ........................3 Introduction ..........................4 1.1 IDAC ..........................4 1.2 Installation ........................5 1.3 Start-Up and bus KNX power failure or open door ............6 Configuration .......................... 7 2.1 General ..........................7 2.2 Indoor Module ......................... 9 2.2.1 Configuration ......................

  • Page 3: Document Updates

    IDAC DOCUMENT UPDATES Version Changes Page(s) Changes in the application program: • Updating of the access control module: o BLE (Buetooth Low Energy) module. o New object to inform the language and region after the correct reading of a NFC card or BLE key data: "[Access] Locale".

  • Page 4: Introduction

    IDAC 1 INTRODUCTION 1.1 IDAC IDAC from Zennio is a KNX interface presented as an access control system to rooms or other parts of the installation through reading ID cards. The most notable features of this device are: Product consisting of: ➢...

  • Page 5: Installation

    IDAC Possibility of setting a press detection delay. Heartbeat. 1.2 INSTALLATION IDAC connects to the KNX bus through the on-board KNX connector. This device requires an external 24V DC power supply. Access LED indicator. Luminosity and proximity sensor. Touch area.

  • Page 6: Start-Up And Bus Knx Power Failure Or Open Door

    IDAC 1.3 START-UP AND BUS KNX POWER FAILURE OR OPEN DOOR After the device start-up (due to a device reset or programming), it requests date and time through the object “[Access] Request Date and Time”. The group address of this object is the one that must be indicated in Z-Access to respond to the request.

  • Page 7: Configuration

    IDAC 2 CONFIGURATION After importing the corresponding database in ETS and adding the device into the topology of the desired project, the configuration process begins by entering Parameters tab of the device. 2.1 GENERAL The "General" tab contains general settings, those that are independent of the internal and external modules.
  • Page 8 “[General] Tampering – Date and Time”: 8-byte object that is sent when the enveloping is removed, informing the date and time of the action. Please refer to the “Access Control” user manual, available under the IDAC product section at www.zennio.com, for detailed information about the rest of the available objects.

  • Page 9: Indoor Module

    IDAC 2.2 INDOOR MODULE This module is installed inside the room, embedded in the door. It consists of a pair of pushbuttons or an individual pushbutton (depending on the model) to control the state of the room. In addition, it has a proximity sensor and an ambient luminosity sensor that will allow the device to react to different situations of presence or illumination.
  • Page 10 “[In] Proximity Sensor”, “[In] External Proximity Detection” and “[In] Proximity Detection”: 1-bit object whose functionality is tied to the proximity sensor. For further information, please refer to the user manual “Proximity and Luminosity Sensor” (available in the IDAC product section at the Zennio homepage, www.zennio.com). https://www.zennio.com/ Technical Support: https://support.zennio.com/...

  • Page 11: Backlight

    The Indoor Module allows the brightness of its LED to be managed according to two operating modes: normal and night mode. Please refer to the specific manual “Brightness” (available in the IDAC product section at the Zennio website, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters.

  • Page 12: Touch Locking

    IDAC Figure 4. Room State Buttons Control Type [Do Not Disturb / Double]: depending on the type of control selected, one or two buttons will be enabled, located in the central area or on both sides, respectively. Press Detection Delay [1…2…255] [x 1 ds]: during this time, no press will be considered.

  • Page 13: Sounds

    ➢ Unlock: Scene Number (0 = Disabled) [0/1…64]: scene number that unlocks the buttons. 2.2.5 SOUNDS The Indoor Module of IDAC emits two types of sounds, depending on the action performed: Sending Confirmation: a short and sharper beep that indicates the sending of an object to the bus as a result of a press.
  • Page 14 IDAC The range of sounds emitted when these actions are performing will be different depending on the sound type selected (see section 2.1). Enabling and disabling the button sounds can be done in parameters or through an object, being also possible to set in parameters whether the button sounds should be initially enabled or not.

  • Page 15: Ambient Luminosity Sensor

    LEDs can be adjusted according to the current luminosity of the room. Please refer to the specific manual “Luminosity and Proximity Sensor” (available in the IDAC product section at the Zennio homepage, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters.

  • Page 16: Outdoor Module

    IDAC 2.3 OUTDOOR MODULE This module will be installed outside the room, embedded in the door, to allow access to authorized persons. For this purpose, it has an NFC reader and an BLE module for reading the access cards and keys of the users.
  • Page 17 “waking up” the device when detecting presence through the proximity sensor Please refer to the user manual “Proximity and Luminosity Sensor” (available in the IDAC product section at the Zennio homepage, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters.

  • Page 18: Access Control

    “Proximity and Luminosity Sensor” (available in the IDAC product section at the Zennio homepage, www.zennio.com). 2.3.2 ACCESS CONTROL IDAC incorporates a functional module for access control to rooms or other areas of a building by reading identification elements (NFC cards and BLE keys) issued to each user.
  • Page 19 IDAC ETS PARAMETERIZATION Figure 9. External Module Backlight – Access LED. Access LED ➢ Duration of Notifications [2…3…5] [x 1 s]: time that the access LEDs will be on when trying to access the room. ➢ States Configuration. For each state of the room, which will depend on the value of the objects "[Access] Room State: Status"...
  • Page 20 IDAC • Access Denied • Read Error • Do Not Disturb • Make Up Room + Occupied • Make Up Room + Not Occupied • Normal + Occupied • Normal + Not Occupied In addition, considering the parameters set in Action When State is "Do not disturb"...

  • Page 21: Doorbell Button

    IDAC Please refer to the specific manual “Brightness” (available in the IDAC product section at the Zennio website, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters Note: This parameter will only be available if Doorbell Button is enabled in the "Configuration"...

  • Page 22: Touch Locking

    Functionality analogous to that described for the Outdoor Module (see section 2.2.4). 2.3.6 SOUNDS The Outdoor Module of IDAC emits two types of sounds, depending on the action performed: Sending Confirmation: a short and sharper beep than the previous one. It indicates the sending of an object to the bus as a result of a press.
  • Page 23 IDAC Enabling and disabling the button sounds can be done in parameters or through an object, being also possible to define in parameters whether the buttons sounds should be initially enabled or not. ETS PARAMETERIZATION After enabling the Customize Sounds in “Configuration” screen, in Outdoor Module, (see section 2.3.1), a new tab will be incorporated into the tree on the left.

  • Page 24: Ambient Luminosity Sensor

    IDAC 2.3.7 AMBIENT LUMINOSITY SENSOR Functionality analogous to that described for the Outdoor Module (see section 2.2.6). https://www.zennio.com/ Technical Support: https://support.zennio.com/...

  • Page 25: Annex I. Communication Objects

    IDAC ANNEX I. COMMUNICATION OBJECTS “Functional range” shows the values that, with independence of any other values permitted by the bus according to the object size, may be of any use or have a particular meaning because of the specifications or restrictions from both the KNX standard or the application programme itself.
  • Page 26 IDAC [Access] Welcome Scenes: Guest First 1 Bit C - W - - DPT_Ack 1 = Guest First Access Access 1 Bit C - W - - DPT_State [In] Activity 0 = Inactivity; 1 = Activity 1 Bit C - W - -...
  • Page 27 IDAC 1 Bit C - - T - DPT_Start [In] Proximity Detection Send 1 when Proximity is Detected 1 Bit C - - T - DPT_Bool [In] Luminosity (1-Bit) 0 = Over Threshold; 1 = Under Threshold 1 Bit C - - T -...
  • Page 28 IDAC 1 Bit C - W - - DPT_Enable [Out] Proximity Sensor 0 = Disable; 1 = Enable 1 Bit C - W - - DPT_Start [Out] External Proximity Detection 1 = Detection 1 Bit C - - T -...
  • Page 29 Join and send us your inquiries about Zennio devices: https://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo. Spain Tel. +34 925 232 002 www.zennio.com info@zennio.com...
