LI-COR LI-600 Quick Start Manual

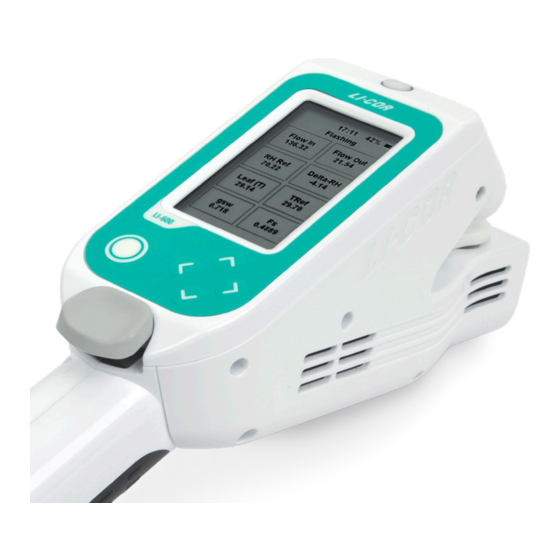

LI-600 Porometer/Fluorometer
Online Resources
Computer
Configuration and data management, calibration, barcode generator:
Software
Support Manual, software, videos, FAQs, tech tips, application notes, and more:
Instruction
Comprehensive instructions, operating theory, and maintenance
Manual
Aperture. Active measurement site, surrounds the leaf
1
gasket
Porometer. Measures stomatal conductance
2
3 Fluorometer. (Optional) Measures PAM chlorophyll a
fluorescence
Enter button. Powers on, selects options, initiates or
4
logs a measurement
USB port. Charges and connects to a computer with a
5
micro-USB cable
Charge the battery
The LI-600 arrives partially charged. Connect the LI-600 to a power source with the USB cable and charge to 100%.
Take a measurement in auto mode
The following instructions are for the preloaded Auto configuration on the instrument.
Step 1: Power on the LI-600. Press and hold the Enter button.
Step 2: Select a configuration.
The Select Configuration screen will appear with two configurations. Select the Auto configuration and press the Enter button.
Step 3: Take a measurement and view the data.
The LI-600 will match and go to the Measurement screen. Clamp onto a leaf at the prompt. The LI-600 will search for stability, then log a meas-
urement and beep. Unclamp the leaf and view your data on the display. Press the Enter button to initiate a new measurement, or press the left
arrow twice to navigate to Settings to shut down the instrument.
Step 4: Download the data.
To download data, install the LI-600 computer software. Connect the LI-600 to the computer via USB and download the data to the computer soft-
ware. Then export the data from the software as a .zip file that contains .csv files of your data.
Quick Start Guide
licor.com/600software
licor.com/600support
