LI-COR LI-600N Quick Start Manual

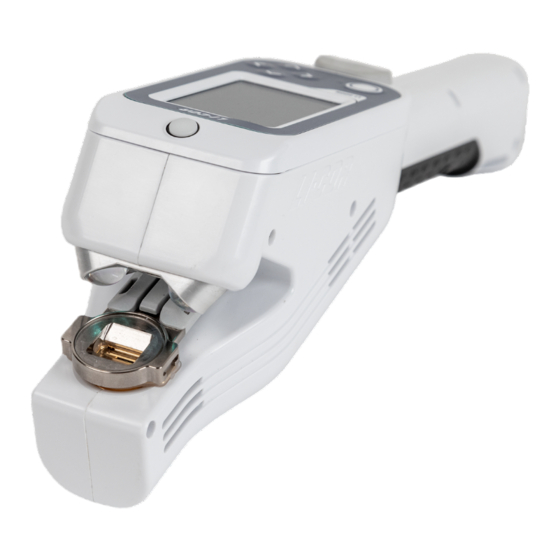

LI-600N Porometer/Fluorometer
Online Resources
Computer
Configuration and data management, calibration, barcode generator:
Software
Support Manual, software, videos, FAQs, tech tips, application notes, and more:
Instruction
Comprehensive instructions, operating theory, and
Manual
Chamber. Active measurement site
1
2 Porometer. Measures stomatal conductance
Fluorometer. Measures PAM chlorophyll a fluorescence
3
4 Enter button. Powers on, selects options, initiates or
logs a measurement
5 USB port. Charges and connects to a computer with a
micro-USB cable
Charge the battery
The LI-600N arrives partially charged. Connect the LI-600N to a power source with the USB cable and charge to 100%.
Take a measurement
The following instructions are for the gsw+F configuration preloaded on the instrument.
Step 1: Press and hold the Enter button to power on the LI-600N.
Step 2: Select the preloaded gsw+F configuration and press the Enter button.
Step 3: The LI-600N will enter match mode. Respond to the prompt. When matched, it will beep and go to the Measurements screen.
Step 4: Clamp to a needle or leaf. Watch for stability in the g
stable. After the LI-600N displays Logged and beeps, unclamp the needle or leaf. View the data from the measurement on the screen.
Step 5: Press the Enter button (New) to start another measurement, or press the left arrow twice to navigate to Settings to Shutdown.
Step 6: Download the data. Install the LI-600N computer software. Connect the LI-600N to the computer via USB and download the data to
the computer software. Export the data from the software as a .zip file that contains .csv and Excel files.
Quick Start Guide
maintenance: licor.com/600Nmanual
variable. Press the Enter button (Log) to log the measurement when g
sw
licor.com/600Nsoftware
licor.com/600Nsupport
is
sw
