PEAKnx Controlmicro Getting Started page 13

Audioassistant of the TKS Communicator

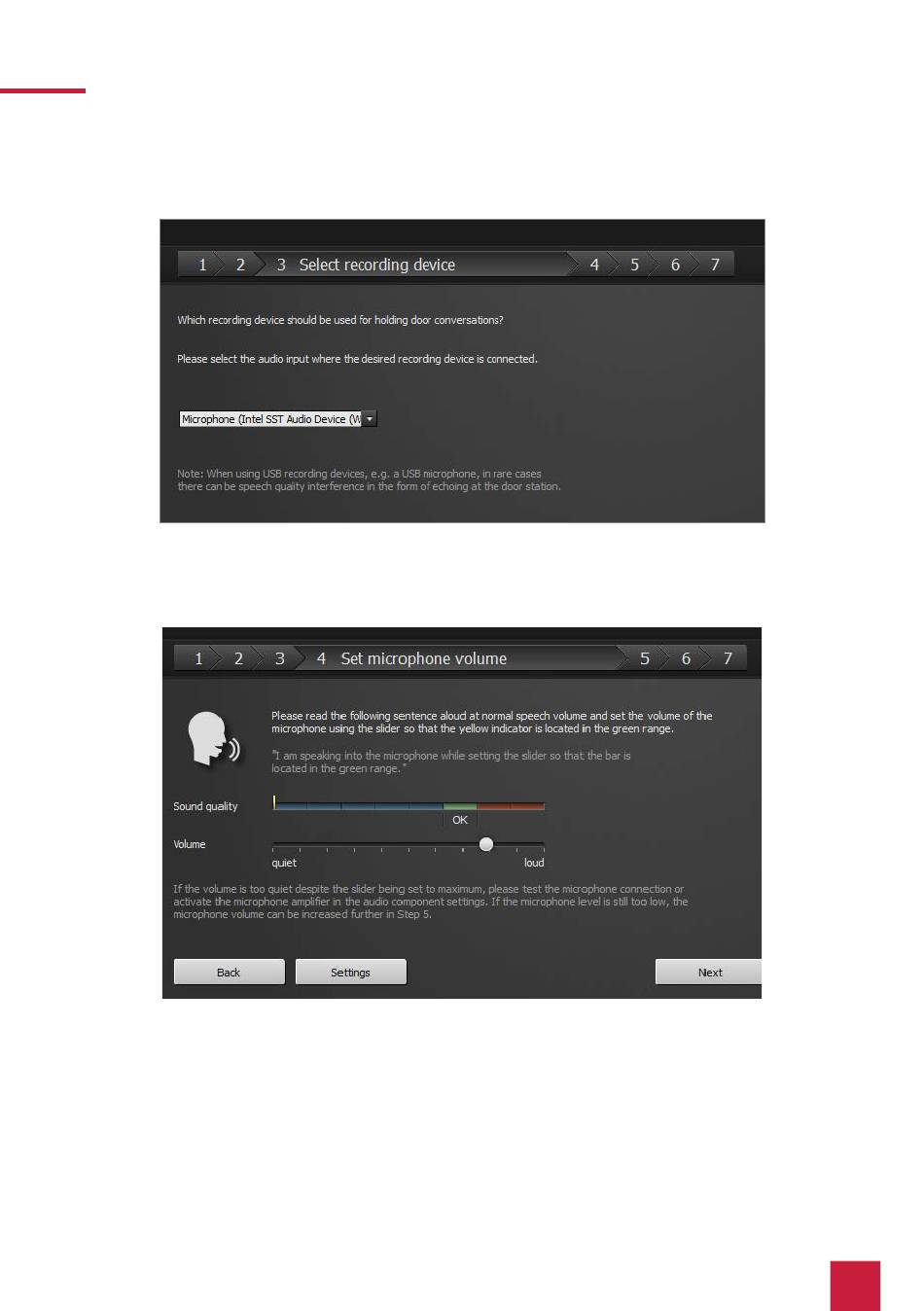

3. Select recording device
− Select the option „Microphone (Intel SST Audio Device(WDM))" here.
4. Adjusting the microphone volume
− Do the speech test and move the slider to the second line from the right.
− Select „Settings" at the bottom of the window.
− In the next window double-click on the microphone with the green tick.
− Here you can now set the gain under the „Level" tab.
− Adjust the microphone volume (Microphone) to the middle.
− Set the microphone boost to +12.0 dB.
