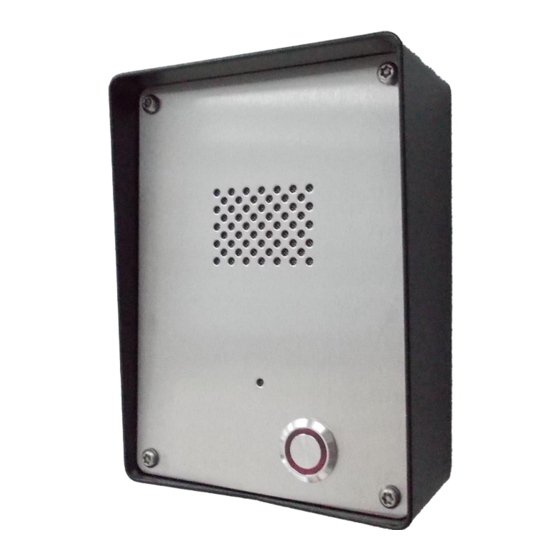

- Page 1 SOLO–NX COMPACT GSM DOOR ENTRY UNIT WITH 1 to 4 CALL BUTTONS INSTALLATION MANUAL Version: Solo-NX-Installation-Manual_V4_0-22092015.doc Valid from SW release: “SOLO_PCK_20141224_v_2_2_6”.
-
Page 2: Table Of Contents
INTRODUCTION ..............................4 FEATURES AND APPLICATIONS ........................4 START UP ................................5 LED DISPLAY ................................ 6 CLEAR ALL PROGRAMMED DATA FROM SOLO-NX ................6 CONNECTION DIAGRAM ..........................7 PROGRAMMING SOLO-NX ..........................7 THE SOLO-NX PARAMETERS .......................... 8 ALARM SUPPORT ................................8 OUTPUT MANAGEMENT .............................. - Page 3 Table 20: LOG parameters......................... 24 Table 21: LOG parameters example....................24 Table 22: SMS commands......................... 25 Table 23: SMS commands example....................25 Table 24: SOLO-NX default settings....................33 Table 25: SOLO-NX parameters print out commands..............34 Page 3...
-
Page 4: For Your Safety
INTRODUCTION SOLO-NX is a simple GSM intercom communication system that is designed to ensure low-cost, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom and Caller ID recognition – CLIP support. -
Page 5: Start Up
Insert SIM card to be used for SOLO-NX in your personal mobile phone. ERASE THE PIN CODE! IMPORTANT Insert SIM card in SOLO-NX device. The unit must be switched OFF when you insert the SIM! Connect inputs and outputs to SOLO-NX. -
Page 6: Led Display
OFF. CLEAR ALL PROGRAMMED DATA FROM SOLO-NX This is highly recommended when a SIM card you are going to use for the SOLO-NX is not new and it already has some data stored in the phone book memory. By sending this SMS to SOLO-NX all programmed parameters and numbers are cleared: ;SDCLR;... -
Page 7: Connection Diagram
You can program SOLO-NX remotely by sending text commands - SMS commands. You can program SOLO-NX with USB key and SIM manager. You can program SOLO-NX with direct USB connection, with the use of configuration software running on PC To receive configuration software for PC please contact your local distributor. -
Page 8: The Solo-Nx Parameters
SOLO-NX INSTALLATION MANUAL THE SOLO-NX PARAMETERS To support versatile functionality of SOLO-NX different parameters are used. The parameters are divided in logical sections and are described in the following chapters. 9.1 ALARM SUPPORT Alarm reporting is supported by group of different parameters. First section is used to define the relations needed for alarm to be trigged. -
Page 9: Table 1: In, Id And Dd Parameters
Table 2: IN, ID, DD parameters example Remote programming by SMS ;IN1=0;IN2=4;ID1=10;ID2=0;DD1=0;DD2=15; 9.1.2 REMOTE REPORTING ALARM EVENTS Parameters used to define the way to report the alarm event. SOLO-NX device send SMS messages for reporting alarm events. NOTE Page 9... -
Page 10: Table 3: Remote Alarm Reporting Parameters
9.1.2.3 LOT parameter LOT parameter is used to define the time control for voice calls. The start of voice connection starts the LOT timer. If the voice connection is still ON when the LOT timer expires SOLO-NX disconnects voice connection. -
Page 11: Table 4: Remote Alarm Reporting Example
9.1.3 CONTROLING OUTPUTS WITH DTMF SOLO-NX can control the outputs with the use of DTMF. This is very useful function in the intercom application. To control the outputs the user must press the combination of 2 digits. First digit is used to select the output (1 to 2), the second digit is used to activate (1) or deactivate (0) the output. -
Page 12: Output Management
SOLO-NX INSTALLATION MANUAL 9.2 OUTPUT MANAGEMENT SOLO-NX supports the possibility to report alarms from inputs and any other events locally via 2 outputs. The behavior is defined using next parameters 9.2.1 OS parameter SOLO-NX device has 2 dedicated relay supported outputs. Outputs can be configured to different behavior: ... -
Page 13: Security Level - Sl
SL parameter from 0 to 5 defines which telephone number stored in the phone book from TN1 – TN5 can enter into programming and remote control of the SOLO-NX (dialing the SOLO-NX phone number or sending the SMS). NOTE When the SL level is 0, an access to the SOLO-NX is possible from any phone! Page 13... -
Page 14: Prepaid Card Credit And Validity Information
;SL=3; 9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION SOLO-NX can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, SOLO-NX offers the possibility of automatic checking mechanism for credit and time expiration. -
Page 15: Table 10: Prepaid Card Validity Parameters
SOLO-NX INSTALLATION MANUAL 9.4.1 Programming prepaid card credit and validity string To be able to support credit and time validity checking different parameters are used. 9.4.1.1 LCV and SCV parameter LCV is used to set the limit for low credit event. If the credit on prepaid SIM cards falls below this limit SMS is send. -
Page 16: Set-Up Parameters
SOLO-NX device. The default value is set to “1” which means that the number is displayed. 9.5.2 ESC parameter Parameter is used to define the input used to cancle the outgoing call from the SOLO-NX device. 9.5.3 UDC parameter Parameter is used to synchronise SOLO-NX clock to GSM network clock. User must enter here the number of the SOLO-NX SIM card (Telephone number of SOLO-NX device). - Page 17 INSTALLATION MANUAL 9.5.5 TST parameter A test SMS is sent periodically. SOLO-NX can send the test message in the interval ranging from 1 hour to 240 hours. Example: To send test SMS TST value is set to 12, the numbers linked to “LN5” receive a test message every 12 hours.
-
Page 18: Table 12: Set-Up Parameters
4 - Dutch 5 - German 6 - Spanish 9.5.14 BUZ parameter Parameter is used to control buzzer functionality on SOLO-NX. Buzzer is used to audio support some events on SOLO-NX device. 9.5.15 Table of parameters Name Comment Tel. -
Page 19: Sms Messages Editor
Direct programming on the SIM card SOLO-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Hidden telephone number of the SOLO-NX device 29340 Manual fixing of the GSM provider (Simobil) Switch on Italian language Microphone volume level Speaker volume level... -
Page 20: Gsm Intercom
Intercom functionality is supported by a set of parameters, used to tweak the functionality to each user needs. For each button SOLO-NX incorporates a group of parameters. There are up to 8 groups of parameters. SOLO-NX is capable of supporting up-to 4 call buttons. The current... - Page 21 XTN1-XTN5 call list. 9.7.3 DTMF auto dial functionality This function is used to provide a support for SOLO-NX device to be able select extended numbers via DTMF command. 9.7.3.1 SDNx parameter Parameter is used to set the DTMF number in auto self-select function.
-
Page 22: Table 16: Intercom Parameters
TZSD Button 4, time zone start period. TZED Button 4, time zone end period. Table 16: Intercom parameters. Example: Direct programming on the SIM card SOLO-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description ATN1 040713470 Button 1, Telephone number 1. -
Page 23: Caller Id Recognition - Clip
CLIP input activation condition CLP1 CLIP number 1 CLP100 CLIP number 100 Table 18: CLIP parameters. Example: Direct programming on the SIM card SOLO-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description CLPEN Enable CLIP functionality CLPOU CLIP control output 2... -
Page 24: Event Logging
Parameter is used for defining the number of events printed out on PLOG request. 9.9.2 LOGI parameter Parameter is used to define the media used for logging of events on SOLO-NX. User can select between nonvolatile memory on SOLO-NX or select USB to transfer events directly via USB to LOGI=0 Logging is OFF ... -
Page 25: Special Sms Commands
9.10.4 CLPCLR command Command is used to delete all CLP numbers. 9.10.5 MRES command Command is used to manually restart GSM module on SOLO-NX device. 9.10.6 SSRES command Command is used to manually restart SOLO-NX device. 9.10.7 Table of parameters... -
Page 26: Print-Out Of The Parameters
10 PRINT-OUT OF THE PARAMETERS The user can check the settings of ALL parameters on the SOLO-NX. 10.1 RECEIVE ALL PARAMETERS (PALL) By sending this command to SOLO-NX you receive SMS messages with all parameters that are currently programmed in the unit: ;PALL;... -
Page 27: Receive Input Filter Value (Pid)
SOLO-NX INSTALLATION MANUAL 10.7 RECEIVE INPUT FILTER VALUE (PID) By sending this command to SOLO-NX you receive SMS message with all currently programmed Input filters (ID1 – ID4): ;PID; 10.8 RECEIVE OUTPUT FILTER VALUE (POD) By sending this command to SOLO-NX you receive SMS message with all currently programmed direct output links (OD1 –... -
Page 28: Receive Credit Pars Parameters (Pcref)
SOLO-NX INSTALLATION MANUAL 10.14 RECEIVE CREDIT PARS PARAMETERS (PCREF) By sending this command to SOLO-NX you receive SMS message with all currently programmed credit parse parameters (CREF, CVODA…): ;PCREF; 10.15 RECEIVE ALL CLIP PARAMETERS (PCLP) By sending this command to SOLO-NX you receive SMS message with all currently programmed CLIP functionality related parameters (CLPEN, CLPOU, CLPI, CLPx): ;PCLP;... -
Page 29: State Of The Credit For The Prepaid Card
;PORC; 10.5 MANUAL GSM MODULE RESTART (MRES) By sending this command to SOLO-NX shuts down GSM module and after a few second it switches the power of the GSM module ON again. The unit reboots all parameters from the SIM card. -
Page 30: Changing Parameters Using The Sms Commands
CRE and would like to receive confirmation SMS, try next example: ;+TN1=+38640713470;IN1=1;IN2=1;OS1=15;OS2=1;ID1=120;LN1=1; Send SMS message to SOLO-NX telephone number and in a few seconds you receive SMS message from SOLO-NX. The sentence of the SMS must be the same as the one you have sent to SOLO-NX before. Page 30... -
Page 31: Default Settings On Solo-Nx
SOLO-NX INSTALLATION MANUAL 12 DEFAULT SETTINGS ON SOLO-NX SOLO-NX PROGRAMMING TABLE Name Default Value Short Description Telephone number 1 Empty Telephone number 1 Empty Empty Telephone number 2 Empty Telephone number 3 Empty Telephone number 4 Input 1 control Input 2 control... - Page 32 SOLO-NX PROGRAMMING TABLE Name Default Value Short Description Input used as cancel button Empty Tel. number of SOLO-NX device Hidden telephone number Auto answer ring number SIM card time validity Periodic test SMS timeout TSTT Periodic test SMS start time...
-
Page 33: Table 24: Solo-Nx Default Settings
DTN5 Empty Button 4, Telephone number 5 RTND Ring time, Button 4 SDND DTMF number to send SDDD Delay for DTMF to send TZSD Time zone start interval TZED Time zone end interval Table 24: SOLO-NX default settings. Page 33... -
Page 34: Parameters Print-Out Commands
SOLO-NX PROGRAMMING TABLE Name Short Description Prints all parameters available on SOLO-NX. PALL Prints SW version of SOLO-NX. Prints GSM network signal quality of SOLO-NX. Prints TNx numbers. Prints LNx links. Prints INx parameters. Prints IDx parameters. Prints ODx parameters. -
Page 35: Technical Specifications
Y (max. *100 mA) 12,0 – 20,0 V AC or 12,0 – 24,0 V DC Power Supply input Anti-tamper protection optional 15 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 4000 KRANJ SLOVENIA TEL: 00 386 4 280 74 00 E-MAIL: info@mars-commerce.si WEB SITE: www.mars-commerce.com...
