MARS COMMERCE SOLO–NX User Manual

Compact gsm door entry unit with 1, 2 or 4 call buttons, ext
Hide thumbs Also See for SOLO–NX:
Table of Contents

Advertisement

Quick Links

SOLO–NX
EXT

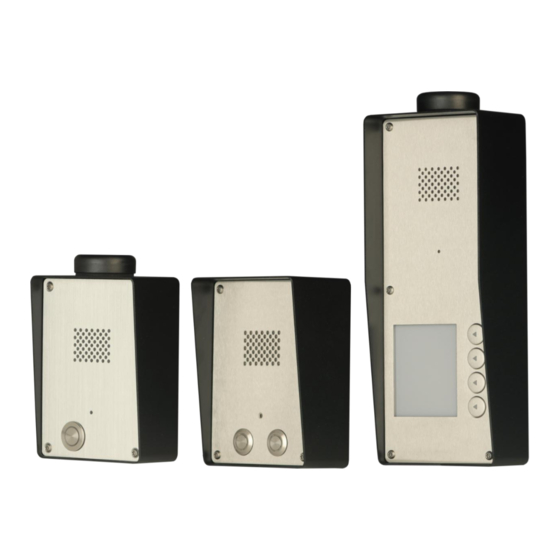

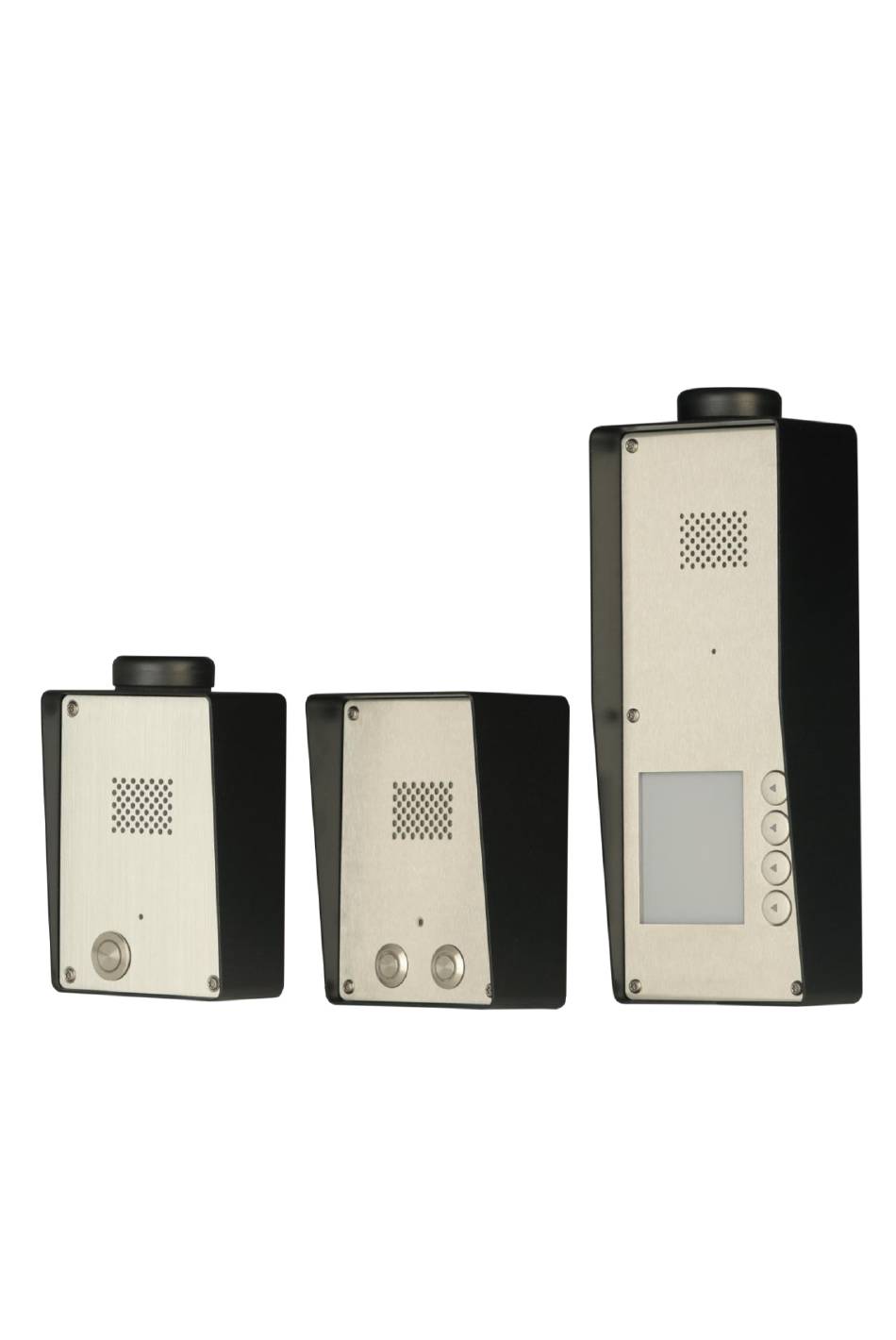

COMPACT GSM DOOR ENTRY UNIT WITH 1, 2 or 4 CALL BUTTONS
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLO–NX and is the answer not in the manual?

Questions and answers

Related Manuals for MARS COMMERCE SOLO–NX

Summary of Contents for MARS COMMERCE SOLO–NX

  • Page 1 SOLO–NX COMPACT GSM DOOR ENTRY UNIT WITH 1, 2 or 4 CALL BUTTONS USER MANUAL...

  • Page 2: Table Of Contents

    SOLO-NX USER MANUAL Contents FOR YOUR SAFETY .............................. 3 INTRODUCTION ..............................4 SOLO-NX FEATURES AND APPLICATIONS ....................5 START UP................................. 6 LED INDICATION ..............................7 CONNECTION DIAGRAM ............................ 8 SOLO-NX UNIT MANAGEMENT ........................9 SOLO-NX FUNCTIONS WITH PROGRAMMING INSTRUCTIONS ............10 WEB SERVER - LOG IN ..............................
  • Page 3 SOLO-NX USER MANUAL Figures Figure 1: SOLO-NX: Connection diagram ..................8 Figure 2: WEB Server-Sign In page ....................10 Figure 3: WEB Server-Main page select ADD mode ................ 11 Figure 4: WEB Server-Main page adding SOLO-NX units .............. 12 Figure 5: WEB Server-Unit management window ................13 Figure 6: WEB Server-Intercom settings.

  • Page 4: For Your Safety

    SOLO-NX USER MANUAL FOR YOUR SAFETY SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. INTERFERENCE All wireless phones and units may be susceptible to interference, which could affect performance. SWITCH OFF IN HOSPITALS Follow any restrictions.

  • Page 5: Introduction

    SOLO-NX USER MANUAL INTRODUCTION SOLO-NX (SOLO) is a simple GSM intercom communication system designed to ensure low-cost, simple to install/use, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom, pin code access, caller ID control and Wiegand access support.

  • Page 6: Solo-Nx Features And Applications

    SOLO-NX USER MANUAL SOLO-NX FEATURES AND APPLICATIONS Features:  Built-in 4 (2G) or 5 (3G) band GSM module  Up-to 4 intercom call button support (5 numbers each)  Caller ID numbers control (up-to 1000 caller ID numbers)  Up to 100 temporary SPIN access codes ...

  • Page 7: Start Up

    SOLO-NX USER MANUAL START UP SOLO-NX unit accepts a standard GSM SIM cards from any network. VERY USE A MICRO SIM CARD IMPORTANT WARNING DO NOT Insert or remove the SIM card while the unit is powered ON!! Before inserting SIM card to unit make sure the PIN code is IMPORTANT removed!! ...

  • Page 8: Led Indication

    SOLO-NX USER MANUAL LED INDICATION Blue LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) GSM module Activity Yellow LED (LED3) Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM network.

  • Page 9: Connection Diagram

    SOLO-NX USER MANUAL CONNECTION DIAGRAM Before connection the SOLO-NX please take a look at connection diagram. Figure 1: SOLO-NX: Connection diagram DO NOT USE Power out (12V AUX) for electric lock driving! Use IMPORTANT separate power source for door electric lock! Page 8...

  • Page 10: Solo-Nx Unit Management

    SOLO-NX USER MANUAL SOLO-NX UNIT MANAGEMENT Unit supports different types of management (programming):  Unit can be programmed directly by USB connection, with the use of configuration software running on PC (EasySet).  Unit can be programmed remotely by using WEB server access. ...

  • Page 11: Solo-Nx Functions With Programming Instructions

    SOLO-NX USER MANUAL SOLO-NX FUNCTIONS WITH PROGRAMMING INSTRUCTIONS As mentioned in previous chapters SOLO-NX unit can be programmed in various ways, this document will focus on most common programming way: WEB programming. SIM card in the SOLO-NX unit MUST have DATA PLAN to be able to use IMPORTANT WEB programming! 8.1 WEB SERVER - LOG IN...

  • Page 12: Web Server - Adding Units To User Profile

    SOLO-NX USER MANUAL 8.2 WEB SERVER – ADDING UNITS TO USER PROFILE After login the user will be diverted to WEB server main window. This page is used to add/remove/search for SOLO-NX units from the user’s profile. Select “+” sign to select ADD SOLO-NX units to user’s profile. Figure 3: WEB Server-Main page select ADD mode Page 11...

  • Page 13: Figure 4: Web Server-Main Page Adding Solo-Nx Units

    SOLO-NX USER MANUAL Figure 4: WEB Server-Main page adding SOLO-NX units User than provides required data: • Name: Name for the added unit - mandatory information. • IMEI: Identification number of the unit, can be found in the enclosure of the unit - mandatory information.

  • Page 14: Web Server-Unit Management

    SOLO-NX USER MANUAL 8.3 WEB SERVER-UNIT MANAGEMENT After the SOLO-NX unit is added to user database, the user can change the configuration of the specific unit. All changes made by the user are listed in the Change Log window. By clicking Send to device button ALL changes are sent to the unit.

  • Page 15: Intercom Configuration

    SOLO-NX USER MANUAL 8.4 INTERCOM CONFIGURATION Primary function of the SOLO-NX unit is intercom support. Selecting (calling) apartment number is achieved pressing the call button beside appropriate name plate. This actions will start a voice call procedure from Phone number 1 till Phone number 5. After the call is answered the called user has the option to trigger the output by pressing “11”...
  • Page 16 SOLO-NX USER MANUAL Voice call setting • Microphone level: Increasing the level will increase the sensitivity of the unit microphone decreasing will decrease the sensitivity. • Speaker level: Increasing the level will increase the volume of the unit speaker, decreasing will decrease the level of the speaker.

  • Page 17: Wiegand Access

    SOLO-NX USER MANUAL 8.5 WIEGAND ACCESS SOLO-NX unit has onboard support for 2 Wiegand output based device. With the user of external replicator more Wiegand devices can be connected to the unit. Configuration of first Wiegand interface is found in Digital interface tab. First Wiegand interface can be found on board with a dedicated Wiegand connector and cables.

  • Page 18: Figure 8: Web Server-Wiegand Interface Support

    SOLO-NX USER MANUAL Second Wiegand interface is shared with alarm input lines, user must select Wiegand in Input operation mode found in the Inputs tab. Additional settings for Wiegand interface input are found in Wiegand input 2 configuration section. Figure 8: WEB Server-Wiegand interface support. •...

  • Page 19: Figure 9: Web Server-Adding Wiegand Devices With Permanent Use

    SOLO-NX USER MANUAL Permanent use: devices are added in Pin access tables. They are placed in two tables. For each table user can define which output they will trigger. Figure 9: WEB Server-Adding Wiegand devices with permanent use. Temporary pin codes are placed in Temporary pin access tab. Figure 10: WEB Server-Adding Wiegand devices with temporary use.

  • Page 20: Caller Id Access

    SOLO-NX USER MANUAL • SPIN entry: For each SPIN entry user need to select PIN code value, Counter value which defines how many time the PIN code will be valid and optional a User name. Counter will be decreased each time SPIN code will be used. 8.6 CALLER ID ACCESS Caller ID access is a very simple way to control relay output defined in Caller ID output setting.

  • Page 21: Outputs Settings

    SOLO-NX USER MANUAL Selection Caller ID always ON will allow anybody with the knowledge of the NOTE unit number to trigger the output by calling the unit. Use this setting with caution. 8.7 OUTPUTS SETTINGS The behavior on the outputs is defined in the Output tab. Figure 12: WEB Server-Output setting Output 1 - Settings for output 1: •...
  • Page 22 SOLO-NX USER MANUAL Normally open-In idle mode output pins are in open position. Normally closed-In idle mode output connections are closed. Output 2 - Settings for output 2: • Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode.

  • Page 23: Solo-Nx Wiegand Output Integration

    SOLO-NX USER MANUAL 8.8 SOLO-NX WIEGAND OUTPUT INTEGRATION SOLO-NX unit can be integrated into a bigger access system using a Wiegand interface. In this case number's calling the SOLO-NX unit will be transferred, over Wiegand interface, to access system. Figure 13: WEB Server-Wiegand Output settings. Configuration of the Wiegand output interface •...

  • Page 24: Timer-Timed Controled Output

    SOLO-NX USER MANUAL 8.9 TIMER-TIMED CONTROLED OUTPUT SOLO-NX unit features 2 timers that can be used to control the ouputs on the unit. Timers can run in day or week mode depending on the selected setting. For each timer user can select which output it will control.
  • Page 25 SOLO-NX USER MANUAL Timer settings: • Timer: Parameter is used to enable and disable the timer function. • Mode: User can select between day or week mode. In day mode the timer will control on the day table which is the same for all week. In week mode the user can define different setting for each day in the week.

  • Page 26: Administration

    SOLO-NX USER MANUAL 8.10 ADMINISTRATION Administration tab allows user to enable advanced settings: notification of unauthorized access, periodic test messages, lock down of the unit… Figure 16: WEB Server-Notification numbers • Phone number, User name: Phone number and user name of the user that will be receiving notification messages.
  • Page 27 SOLO-NX USER MANUAL • Unauthorized call: In case of unauthorized call the unit can notify user. To enable notification SMS tick the check box in corresponding position. • Administration allowed to remote program by SMS: By selection this option the user can “Lock down”...

  • Page 28: Event Loging

    SOLO-NX USER MANUAL 8.11 EVENT LOGING SOLO-NX unit itself supports a 20000 log event entry. These log events can be pull up to the server by clicking Read Log button in the “Event Log” tab. Events are listed in the table. Figure 18: WEB Server-Log event Each event is equipped with the event type, time, output if triggered and the user name of the user responsible for the event.

  • Page 29: Miscellaneous

    SOLO-NX USER MANUAL 8.12 MISCELLANEOUS This tab is split into 2 sections. Figure 19: WEB Server-Misc General settings can be found: • SMS text Language: define the language of the SMS information send out. User can select appropriate language in drop-down menu. •...

  • Page 30: Pin Access Notification Function

    SOLO-NX USER MANUAL 8.13 PIN ACCESS NOTIFICATION FUNCTION This function is used to notify administrator when a selected pin code is being used. Notification is done by SMS send to the selected administrator numbers. Global enabling of the notification function is done in 2. steps. STEP 1: User has to select Enable option in the Enable Pin Notificaiton function.

  • Page 31: Figure 21: Web Server-Selecting Administrator Numbers For Notification

    SOLO-NX USER MANUAL The last step is selecting a number that will be reciving the notification SMS. Selecting is done in the Administraton tab. In the Notify PIN column put a tick in the check box for the appropriate phone number, multiple choices are possible. Figure 21: WEB Server-Selecting administrator numbers for notification.

  • Page 32: Wiegand Input Data Formats

    SOLO-NX USER MANUAL WIEGAND INPUT DATA FORMATs SOLO-NX supports standard Wiegand interface, it will work with Wiegand 26bit and Wiegand 30bit protocol. On each Wiegand protocol SOLO unit support 4 different data formats, they all can be selected through all possible management systems. Selecting the appropriate data format for FIRST Wiegand interface is done by connecting the WEB server, selecting the Digital interface and in Input section selecting proper Mode option.

  • Page 33: Wiegand 26 Bit, Different Data Formats

    SOLO-NX USER MANUAL 9.1 WIEGAND 26 BIT, DIFFERENT DATA FORMATS Possible data format: Mode 0: All 24bit of data are used a decimal representation, no option for facility code Parity Parity 24Bit card number Limits Card Number 0 - 16777215 Facility Number None Table 1: Wiegand 26: Mode 0.

  • Page 34: Wiegand 30 Bit, Different Data Formats

    SOLO-NX USER MANUAL 9.2 WIEGAND 30 BIT, DIFFERENT DATA FORMATS Possible data format: Mode 0: All 30bit of data are used a decimal representation, no option for facility code Parity 28Bit card number Parity Limits Card Number 0 - 268435455 Facility Number None Table 5: Wiegand 30: Mode 0.

  • Page 35: Contacts

    SOLO-NX USER MANUAL 10 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 4000 KRANJ SLOVENIA TEL: 00 386 4 280 74 00 E-MAIL: info@mars-commerce.com WEB SITE: www.mars-commerce.com TEHNICAL SUPPORT Tomaz HRIBAR Email: tomaz@mars-commerce.com SALES Uros STARE Email: sales@mars-commerce.com Page 34...
