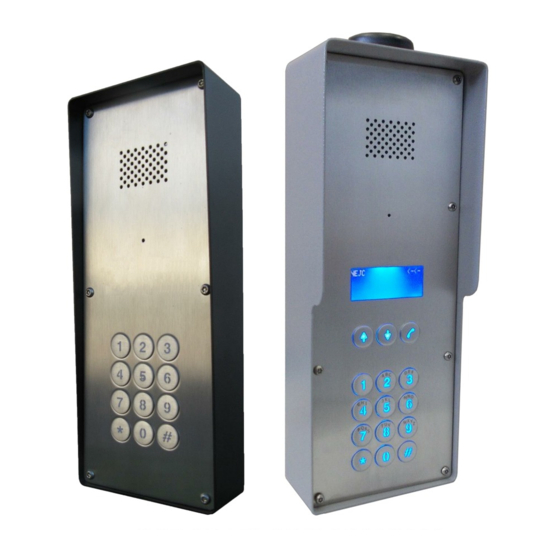

Compact multi-apartment gsm door entry unit
Hide thumbs Also See for SOLO-KP:
Table of Contents

Advertisement

Quick Links

SOLO–KP
SOLO–KP LCD
COMPACT MULTI-APARTMENT GSM DOOR ENTRY UNIT
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLO-KP and is the answer not in the manual?

Questions and answers

Related Manuals for MARS COMMERCE SOLO-KP

Summary of Contents for MARS COMMERCE SOLO-KP

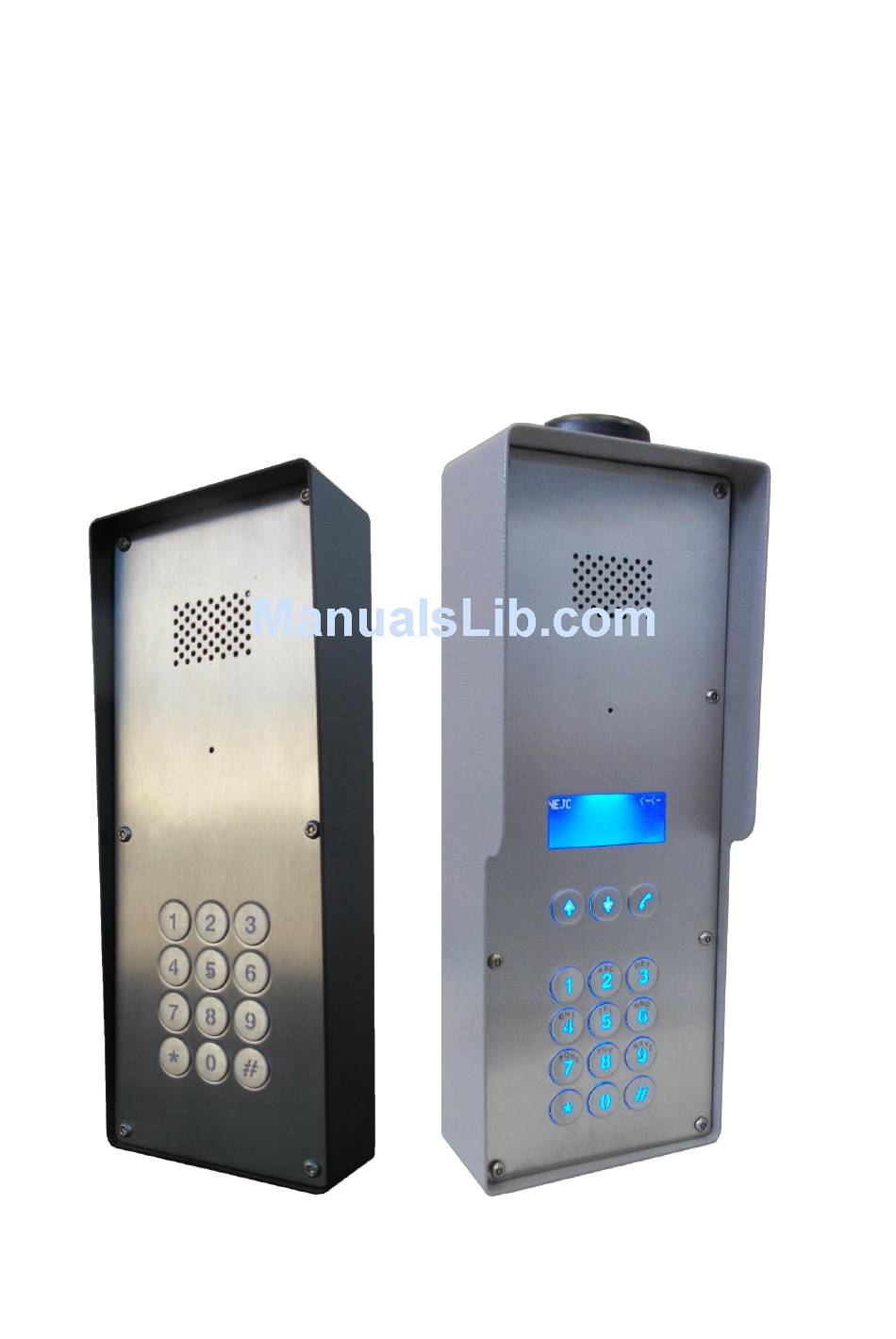

  • Page 1 SOLO–KP SOLO–KP LCD COMPACT MULTI-APARTMENT GSM DOOR ENTRY UNIT USER MANUAL...

  • Page 2: Table Of Contents

    SOLO-KP (LCD) USER MANUAL Contents FOR YOUR SAFETY ............................. 3 INTRODUCTION ..............................4 SOLO-KP (LCD)-LCD, SOLO-KP (LCD)-40 FEATURES AND APPLICATIONS ........5 START UP ................................6 LED INDICATION ..............................7 CONNECTION DIAGRAM ..........................8 SOLO-KP (LCD) MANAGEMENT ........................9 SOLO-KP (LCD) FUNCTIONS WITH PROGRAMMING INSTRUCTIONS ..........10 WEB SERVER - LOG IN ..............................
  • Page 3 Figure 2: WEB Server-Sign In page....................10 Figure 3: WEB Server-Main page select ADD mode ................ 11 Figure 4: WEB Server-Main page adding SOLO-KP (LCD) units ........... 12 Figure 5: WEB Server-Unit management window................13 Figure 6: WEB Server-Intercom settings................... 14 Figure 7: WEB Server-Keypad PIN Access: Permanent PIN codes.

  • Page 4: For Your Safety

    SOLO-KP (LCD) USER MANUAL FOR YOUR SAFETY SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. INTERFERENCE All wireless phones and units may be susceptible to interference, which could affect performance.

  • Page 5: Introduction

    USER MANUAL INTRODUCTION SOLO-KP (SOLO-KP LCD) is a simple but powerful GSM intercom communication system designed to ensure low-cost, simple to install/use, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom, pin code access, caller ID control and Wiegand access support.

  • Page 6: Solo-Kp (Lcd)-Lcd, Solo-Kp (Lcd)-40 Features And Applications

     Built-in 4 (2G) or 5 (3G) band GSM module  Keypad call support (up-to 200 or 1000 apartments)  LCD screen for user called (only valid in SOLO-KP LCD)  Keypad Access entry support (up-to 2000 PIN codes)  Caller ID numbers control (up-to 500 or 2100 caller ID numbers) ...

  • Page 7: Start Up

    IMPORTANT removed!!  Insert SIM card in SOLO-KP (LCD) unit.  Connect power cable to SOLO-KP (LCD) unit (YOU MUST POWER THE SOLO-KP (LCD) UNIT WITH THE POWER SUPPLY INCLUDED. Do not power with any other power supply.  Power up the unit.

  • Page 8: Led Indication

    SOLO-KP (LCD) USER MANUAL LED INDICATION Blue LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) GSM module Activity Yellow LED (LED3) Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM network.

  • Page 9: Connection Diagram

    SOLO-KP (LCD) USER MANUAL CONNECTION DIAGRAM Before connection the SOLO-KP (LCD) please take a look at connection diagram. Figure 1: SOLO-KP (LCD) Connection diagram. DO NOT USE Power out (12V AUX) for electric lock driving! Use IMPORTANT separate power source for door electric lock!

  • Page 10: Solo-Kp (Lcd) Management

    SOLO-KP (LCD) USER MANUAL SOLO-KP (LCD) MANAGEMENT Unit supports different types of management (programming):  Unit can be programmed directly by USB connection, with the use of configuration software running on PC (EasySet).  Unit can be programmed remotely by using WEB server access.

  • Page 11: Solo-Kp (Lcd) Functions With Programming Instructions

    SOLO-KP (LCD) FUNCTIONS WITH PROGRAMMING INSTRUCTIONS As mentioned in previous chapters SOLO-KP (LCD) unit can be programmed in various ways, this document will focus on most common programming way: WEB programming. SIM card in the SOLO-KP (LCD) unit MUST have DATA PLAN to be able...

  • Page 12: Web Server - Adding Units To User Profile

    After login the user will be diverted to WEB server main window. This page is used to add/remove/search for SOLO-KP (LCD) units from the user’s profile. Select “+” sign to select ADD SOLO-KP (LCD) units to user’s profile. Figure 3: WEB Server-Main page select ADD mode...

  • Page 13: Figure 4: Web Server-Main Page Adding Solo-Kp (Lcd) Units

    The IMEI is located on the cellular chip and also should be on the card board box of the SOLO-KP (LCD).  Phone Number: The telephone number of the SIM card in the SOLO-KP (LCD) unit - mandatory data.

  • Page 14: Web Server-Unit Management

    USER MANUAL 8.3 WEB SERVER-UNIT MANAGEMENT After the SOLO-KP (LCD) unit is added to user database, the user can change the configuration of the specific unit. All changes made by the user are listed in the Change Log window. By clicking Send to device button ALL changes are send to the unit.

  • Page 15: Intercom Configuration

    Intercom management parameters:  Apartment number: Dial code of the apartment.  Phone number 1 & Phone number 2: 2 Numbers that the SOLO-KP (LCD) unit will call when appropriate apartment is selected on the keypad or selected on the LCD screen.
  • Page 16 SOLO-KP (LCD) USER MANUAL  Driver output: The output that will be triggered if the user with Phone number 1 or Phone number 2 will call the unit (Caller Id function)  Delay between calls: Ring time (in seconds) for Phone number 1 and Phone number 2.

  • Page 17: Keypad Pin Entry - Access

    SOLO-KP (LCD) USER MANUAL 8.5 KEYPAD PIN ENTRY – ACCESS Secondary use of on-board keypad is access by entering PIN codes. Pin codes must be at least 4 digits. Pin codes can be defined in two sections. First section is permanent pin code and second is temporary pin codes which are limited by the consecutive time they are entered.

  • Page 18: Wiegand Access

    SPIN code will be used 8.6 WIEGAND ACCESS SOLO-KP (LCD) unit has onboard support for 1 Wiegand output based device. With the use of external replicator more Wiegand devices can be connected to the unit. Wiegand interface is shared with alarm input lines, user must select Wiegand in Input operation mode found in the Inputs tab.

  • Page 19: Figure 10: Web Server-Adding Wiegand Devices With Permanent Use

    SOLO-KP (LCD) USER MANUAL Wiegand devices can be defined in two sections. First section is permanent use and second is temporary use which is limited by the consecutive time they are used. Permanent use: devices are added in Pin access tables.

  • Page 20: Figure 11: Web Server-Adding Wiegand Devices With Temporary Use

    SOLO-KP (LCD) USER MANUAL Temporary pin codes are placed in Temporary pin access tab. Figure 11: WEB Server-Adding Wiegand devices with temporary use.  Temp PIN codes activate output: Selecting the output that will be triggered in case of correct SPIN code.

  • Page 21: Caller Id Access

    Caller ID access is a very simple way to control relay output defined in Caller ID output setting. User will by calling in the SOLO-KP (LCD) unit trigger defined output. Settings for this function are found in the Caller id # tab.

  • Page 22: Outputs Settings

    SOLO-KP (LCD) USER MANUAL 8.8 OUTPUTS SETTINGS The behavior on the outputs is defined in the Output tab. Figure 13: WEB Server-Output setting Output 1- Settings for output 1:  Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode.
  • Page 23 SOLO-KP (LCD) USER MANUAL Output 2 - Settings for output 2:  Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode. First Caller ID or PIN entry will activate the output, second Caller ID or PIN entry will deactivate the output.

  • Page 24: Solo-Kp (Lcd) Wiegand Output Integration

    SOLO-KP (LCD) USER MANUAL 8.9 SOLO-KP (LCD) WIEGAND OUTPUT INTEGRATION SOLO-KP (LCD) unit can be integrated into a bigger access system using a Wiegand interface. In this case numbers calling the unit will be transferred, over Wiegand interface, to access system.

  • Page 25: Timer-Timed Controlled Output

    8.10 TIMER-TIMED CONTROLLED OUTPUT SOLO-KP (LCD) unit features 2 timers that can be used to control the ouputs on the unit. Timers can run in day or week mode depending on the selected setting. For each timer user can select which output it will control.
  • Page 26 SOLO-KP (LCD) USER MANUAL Timer settings:  Timer: Parameter is used to enable and disable the timer function.  Mode: User can select between day or week mode. In day mode the timer will control on the day table which is the same for all week. In week mode the user can define different setting for each day in the week.

  • Page 27: Service Button

    Service button is a dedicated button that is used to directly call numbers or directly triggers defined output on the SOLO-KP (LCD) unit. In case of Call mode is selected in the Service button mode, unit will call number defined. If needed it is possible to define work hour schedule.

  • Page 28: Figure 18: Web Server-Service Button Settings (Direct Access)

    SOLO-KP (LCD) USER MANUAL In case of Direct access mode is selected in the Service button mode, service button press will activate output defined. Figure 18: WEB Server-Service button settings (Direct access). Direct access settings  Select output: The output that will be triggered if service button is pressed ...

  • Page 29: Administration

    SOLO-KP (LCD) USER MANUAL 8.12 ADMINISTRATION Administration tab allows user to enable advanced settings like notification of unauthorized access, periodic test messages, lock down of the unit… Figure 19: WEB Server-Notification numbers.  Phone number, User name: Phone number and user name of the user that will be receiving notification messages.
  • Page 30 SMS tick the check box in corresponding position.  Administration allowed to remote program by SMS: By selection this option the user can “Lock down” the SOLO-KP (LCD) unit, preventing any unauthorized user to change any configuration on the unit.

  • Page 31: Event Loging

    USER MANUAL 8.13 EVENT LOGING SOLO-KP (LCD) unit itself supports 20000 log event entries. These log events can be pull up to the server by clicking Read Log button in the “Event Log” tab. Events are listed in the table.

  • Page 32: Miscellaneous

    SOLO-KP (LCD) USER MANUAL 8.14 MISCELLANEOUS This tab is split into 2 sections. Figure 22: WEB Server-Misc. General settings can be found:  SMS text Language: define the language of the SMS information send out. User can select appropriate language in drop-down menu.

  • Page 33: Contacts

    SOLO-KP (LCD) USER MANUAL CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 4000 KRANJ SLOVENIA TEL: 00 386 4 280 74 00 E-MAIL: info@mars-commerce.com WEB SITE: www.mars-commerce.com TEHNICAL SUPPORT Tomaz HRIBAR Email: tomaz@mars-commerce.com SALES Uros STARE Email: sales@mars-commerce.com Page 32...
