MARS COMMERCE SOLO-KC Installation Manual

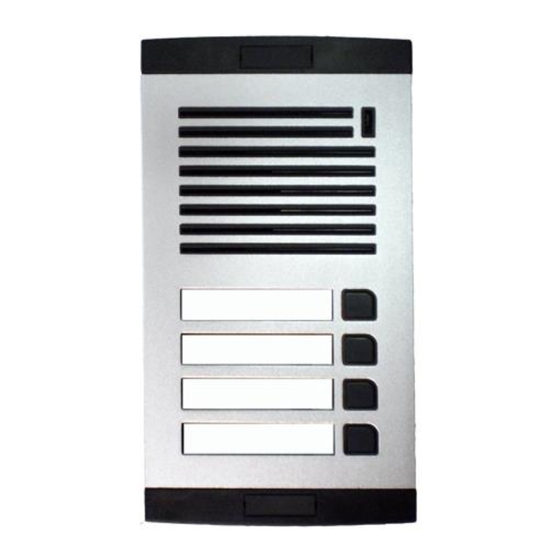

Compact gsm door entry unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

SOLO-KC
COMPACT GSM DOOR ENTRY UNIT
INSTALLATION MANUAL
Version: SOLO_KC_Manual_V2_0-15092015.docx
Valid from SW release: "SOLO_PCK_20150914_v_2_5_1.hex".

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLO-KC and is the answer not in the manual?

Questions and answers

Related Manuals for MARS COMMERCE SOLO-KC

Summary of Contents for MARS COMMERCE SOLO-KC

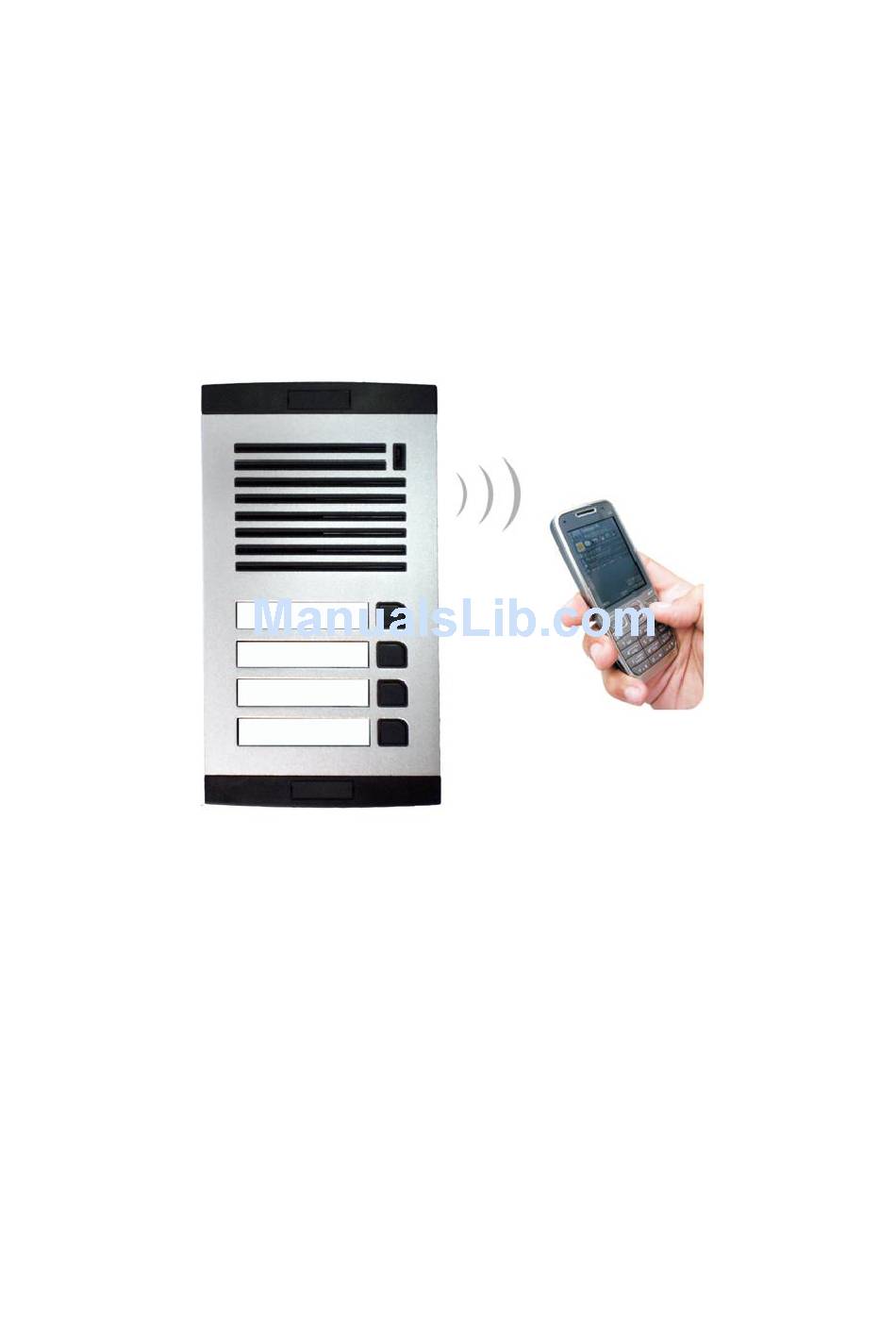

  • Page 1 SOLO-KC COMPACT GSM DOOR ENTRY UNIT INSTALLATION MANUAL Version: SOLO_KC_Manual_V2_0-15092015.docx Valid from SW release: “SOLO_PCK_20150914_v_2_5_1.hex”.

  • Page 2: Table Of Contents

    LED DISPLAY ................................ 6 CLEAR ALL PROGRAMMED DATA FROM SIM ..................6 CONNECTING DIAGRAM ..........................7 PROGRAMMING SOLO-KC ..........................7 THE SOLO-KC PARAMETERS .......................... 8 ALARM SUPPORT ................................8 OUTPUT MANAGEMENT .............................. 10 SECURITY LEVEL - SL ..............................11 PREPAID CARD CREDIT AND VALIDITY INFORMATION ..................12 SET-UP PARAMETERS ..............................
  • Page 3 TECHNICAL SPECIFICATIONS ........................34 CONTACTS ................................34 Figures Figure 1: Enclosures options ........................ 5 Figure 2: SOLO-KC Connection diagram ................... 7 Tables Table 1: Remote alarm reporting parameters ..................8 Table 2: Remote alarm reporting example ..................9 Table 3: DTMF control example ......................9 Table 4: Output management parameters ..................

  • Page 4: For Your Safety

    Use only in the normal position as explained in the product documentation. Do not touch the antenna unnecessarily. INTRODUCTION SOLO-KC is a simple GSM intercom communication system that is designed to ensure low-cost, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom and CLIP support.

  • Page 5: Start Up

     Insert SIM card to be used for SOLO-KC in your personal mobile phone. ERASE THE PIN CODE! IMPORTANT  Insert SIM card in SOLO-KC device. The unit must be switched OFF when you insert the SIM!  Connect output to SOLO-KC.  Connect (screw) the antenna to antenna connector.

  • Page 6: Led Display

    OFF. CLEAR ALL PROGRAMMED DATA FROM SIM This is highly recommended when a SIM card you are going to use for the SOLO-KC is not new and it already has some data stored in the phone book memory. By sending this SMS to SOLO-KC all programmed parameters and numbers are cleared: ;SDCLR;...

  • Page 7: Connecting Diagram

    PROGRAMMING SOLO-KC SOLO-KC device supports different types of programming:  To program SOLO-KC parameters put the SIM card into your personal GSM phone. Add programming parameters in SIM Card “Phone Book”.  You can program SOLO-KC remotely by SMS command.

  • Page 8: The Solo-Kc Parameters

    Table 1: Remote alarm reporting parameters Note: When telephone number (calling or messaging SOLO-KC) is not on the CLIP list, not acknowledge event occurs (NAC). The telephone number responsible for this event will be send to TN user for notification.

  • Page 9: Table 2: Remote Alarm Reporting Example

    9.1.4 CONTROLING OUTPUTS WITH DTMF SOLO-KC can control the outputs with the use of DTMF. This is very useful function in the intercom application. To control the outputs the user must press the combination of 2 digits. First digit is used to select the output, the second digit is used to activate (1) or deactivate (0) the output.

  • Page 10: Output Management

    SOLO-KC INSTALLATION MANUAL 9.2 OUTPUT MANAGEMENT SOLO-KC supports the possibility to report ongoing functions and any other events locally via 1 output. The behavior is defined using next parameters 9.2.1 OS parameter SOLO device has 1 dedicated relay supported output. Output can be configured to different behavior: ...

  • Page 11: Security Level - Sl

    TN5 can enter into programming and remote control of the SOLO-KC (dialing the SOLO-KC phone number or sending the SMS). NOTE When the SL level is 0, an access to the SOLO-KC is possible from any phone! Before any SL number is programmed the SOLO-KC can accept ALL CALLS. IMPORTANT...

  • Page 12: Prepaid Card Credit And Validity Information

    ;SL=3; 9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION SOLO-KC can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, SOLO-KC offers the possibility of automatic checking mechanism for credit and time expiration.

  • Page 13: Table 8: Prepaid Card Validity Parameters

    String for parsing replay message from CC2 number CTIM String for parsing replay message from CC3 number Table 8: Prepaid card validity parameters Example:  Direct programming on the SIM card SOLO-KC PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description *448# Si.mobil...

  • Page 14: Set-Up Parameters

    9.5.4 TST parameter A test SMS is sent periodically. SOLO-KC can send the test message in the interval ranging from 1 hour to 240 hours. Example: To send test SMS TST value is set to 12, the numbers linked to “LN5” receive a test message every 12 hours.
  • Page 15  3 - Croatian  4 - Dutch  5 - German  6 - Spanish 9.5.13 BUZ parameter Parameter is used to control buzzer functionality on SOLO-KC. Buzzer is used to audio support some events on SOLO-KC device Page 15...

  • Page 16: Table 10: Set-Up Parameters

    Parameter is used to define head of the SMS message. It is used by the user to uniquely define the name of the SOLO-KC device. This name will be put in front of every SMS the user will receive. The text for a name if written together with the parameter name.

  • Page 17: Table 11: Set-Up Parameters Example

     Direct programming on the SIM card SOLO-KC PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Hidden telephone number of the SOLO-KC device 29340 Manual fixing of the GSM provider (Si.mobil) Switch on Italian language Microphone volume level Speaker volume level...

  • Page 18: Intercom

    9.6.3 DTMF auto dial functionality This function is used to provide a support for SOLO-KC device to be able select extended numbers via DTMF command. 9.6.3.1 SDNx parameter Parameter is used to set the DTMF number in auto self select function.
  • Page 19 SOLO-KC INSTALLATION MANUAL 9.6.4 Time zone Time zone supported when both time limits are set (TZSx and TZEx). When the current time is in the limits of the time zone parameters the button event calls the number from xTN1 to xTN4, else button event calls xTN5.

  • Page 20: Table 12: Intercom Parameters

    SOLO-KC INSTALLATION MANUAL Name Comment DTN3 Button 4, Telephone number 3. DTN4 Button 4, Telephone number 4. DTN5 Button 4, Telephone number 5. RTND Button 4, time out control for voice connection. SDND Button 4, DTMF number to send. SDDD Button 4, delay for DTMF number to send.

  • Page 21: Clip

    SOLO-KC INSTALLATION MANUAL Example:  Direct programming on the SIM card SOLO-KC PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description ATN1 040713470 Button 1, Telephone number 1. ATN2 +38643364850 Button 1, Telephone number 2. RTNA Button 1, time out control for voice connection.

  • Page 22: Event Loging

    Logging to USB interface 9.8.3 ALC parameter Parameter is used to control behavior when log on SOLO-KC is full. User can select between auto log clear or manual clear of log.  ALC=0 Automatically delete buffer when memory is FULL ...

  • Page 23: Special Sms Commands

    9.9.2 SDCLR command SDCLR command is used to delete all parameters and SMS on SIM card. After delete process is completed the system will be restarted. Now SOLO-KC will be loaded with factory default settings. 9.9.3 LCRL command Command clears log on SOLO-KC device.

  • Page 24: Table 18: Sms Commands

    9.9.4 CLPCLR command Command is used to delete all CLP numbers. 9.9.5 MRES command Command is used to manually restart GSM module on SOLO-KC device. 9.9.6 SSRES command Command is used to manually restart SOLO-KC device. 9.9.7 Table of parameters...

  • Page 25: Print-Out Of The Parameters

    10 PRINT-OUT OF THE PARAMETERS The user can check the settings of ALL parameters on the SOLO-KC. 10.1 RECEIVE ALL PARAMETERS (PALL) By sending this command to SOLO-KC you receive SMS messages with all parameters that are currently programmed in the unit: ;PALL;...

  • Page 26: Receive Access Telephone Numbers (Psl)

    SOLO-KC INSTALLATION MANUAL 10.7 RECEIVE ACCESS TELEPHONE NUMBERS (PSL) By sending this command to SOLO-KC you receive SMS message with programmed SL level: ;PSL; 10.8 RECEIVE OUTPUT PARAMETERS (POS) By sending this command to SOLO-KC you receive SMS message with all currently programmed Outputs parameters (OS1 ): ;POS;...

  • Page 27: Receive Intercom Button 1 Parameters (Pdea)

    ;PCLP=1,30; Prints first 30 CLIP numbers 10.14 RECEIVE INTERCOM BUTTON 1 PARAMETERS (PDEA) By sending this command to SOLO-KC you receive SMS message with all currently programmed button 1 group parameters (ATN1, ATN2, ATN3, ATN4, ATN5, RTNA, SDNA, SDDA, TZSA, TZEA): ;PDEA;...

  • Page 28: Receive Intercom Button 6 Parameters (Pdef)

    TZEH): ;PDEH; 10.22 STATE OF THE CREDIT FOR THE PREPAID CARD By sending this command to SOLO-KC you receive SMS message with Credit amount on your prepaid SIM card: ;PCCx; Where x is the number of programmed prepaid function in use.

  • Page 29: Changing Parameters Using The Sms Commands

    ;PTN; Return SMS is (example): ;TN1=0;TN2=0; If you would like to enter telephone numbers in to SOLO-KC you can use the following example: ;TN1=040713470;TN2=+38643364850; If you would like to receive confirmation SMS write “+” before SMS command: ;+TN1=040713470;TN2=+38643364850;...

  • Page 30: Default Settings On Solo-Kc

    SOLO-KC INSTALLATION MANUAL 12 DEFAULT SETTINGS ON SOLO-KC SOLO PROGRAMMING TABLE Name Default Value Short Description Telephone number 1 Empty Telephone number 1 Empty Empty Telephone number 2 Empty Telephone number 3 Empty Telephone number 4 Output 1 mode NAC indication...
  • Page 31 SOLO-KC INSTALLATION MANUAL SOLO PROGRAMMING TABLE Name Default Value Short Description SIM card starting position CLPEN Enable CLIP functionality CLPOU Control output pin when CLIP event CLP1 Empty CLIP number 1 CLP100 Empty CLIP number 100 ATN1 Empty Button 1, Telephone number 1...

  • Page 32: Table 20: Solo Default Settings

    SOLO-KC INSTALLATION MANUAL SOLO PROGRAMMING TABLE Name Default Value Short Description TZSD Time zone start interval TZED Time zone end interval ETN1 Empty Button 5, Telephone number 1 ETN2 Empty Button 5, Telephone number 2 ETN3 Empty Button , Telephone number 3...

  • Page 33: Parameters Print-Out Commands

    SOLO-KC INSTALLATION MANUAL 13 PARAMETERS PRINT-OUT COMMANDS SOLO PROGRAMMING TABLE Name Short Description Prints all parameters available on SOLO. PALL Prints SW version of SOLO. Prints GSM network signal quality of SOLO. Prints TNx numbers. Prints LNx links. Prints ODx parameters.

  • Page 34: Technical Specifications

    Built-in Antenna SMA Weight 470 g Alarm inputs Alarm outputs (relay) 12,0 – 18,0 V DC 15 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 4000 KRANJ SLOVENIA TEL: + 386 4 280 74 00 E-MAIL: info@mars-commerce.si WEB SITE: www.mars-commerce.com SALES E-MAIL: sales@mars-commerce.com...
