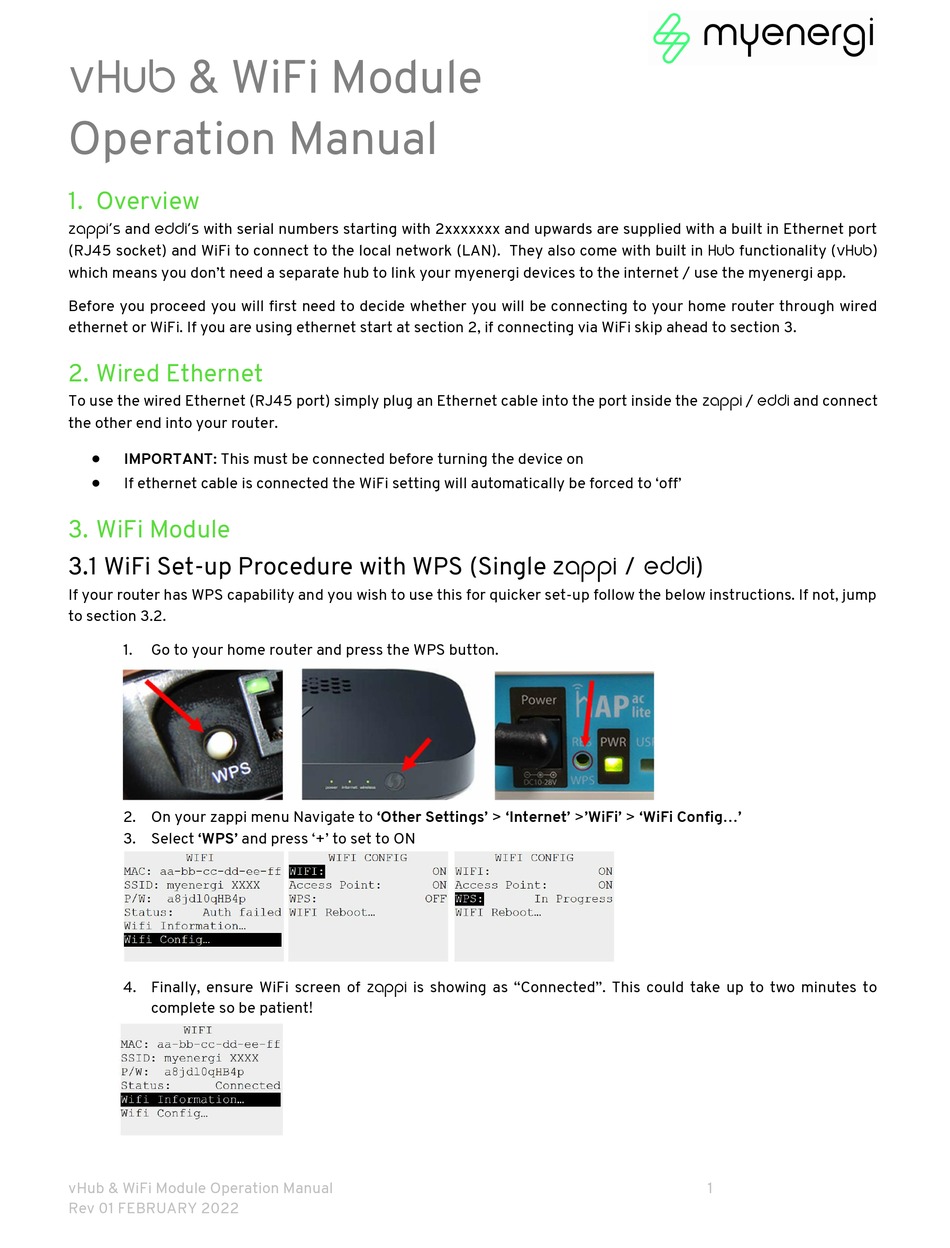

vHub & WiFi Module
Operation Manual

1. Overview

zappi's and eddi's with serial numbers starting with 2xxxxxxx and upwards are supplied with a built in Ethernet port
(RJ45 socket) and WiFi to connect to the local network (LAN). They also come with built in Hub functionality (vHub)
which means you don't need a separate hub to link your myenergi devices to the internet / use the myenergi app.
Before you proceed you will first need to decide whether you will be connecting to your home router through wired
ethernet or WiFi. If you are using ethernet start at section 2, if connecting via WiFi skip ahead to section 3.

2. Wired Ethernet

To use the wired Ethernet (RJ45 port) simply plug an Ethernet cable into the port inside the zappi / eddi and connect
the other end into your router.

IMPORTANT: This must be connected before turning the device on

If ethernet cable is connected the WiFi setting will automatically be forced to 'off'

3. WiFi Module

3.1 WiFi Set-up Procedure with WPS (Single zappi / eddi)

If your router has WPS capability and you wish to use this for quicker set-up follow the below instructions. If not, jump
to section 3.2.
1. Go to your home router and press the WPS button.
2. On your zappi menu Navigate to 'Other Settings' > 'Internet' >'WiFi' > 'WiFi Config...'
3. Select 'WPS' and press '+' to set to ON
4. Finally, ensure WiFi screen of zappi is showing as "Connected". This could take up to two minutes to
complete so be patient!
