Removing the CPU Board
Removing the CPU Board
1 Remove the CPU board retaining screw, as shown in Figure 3.

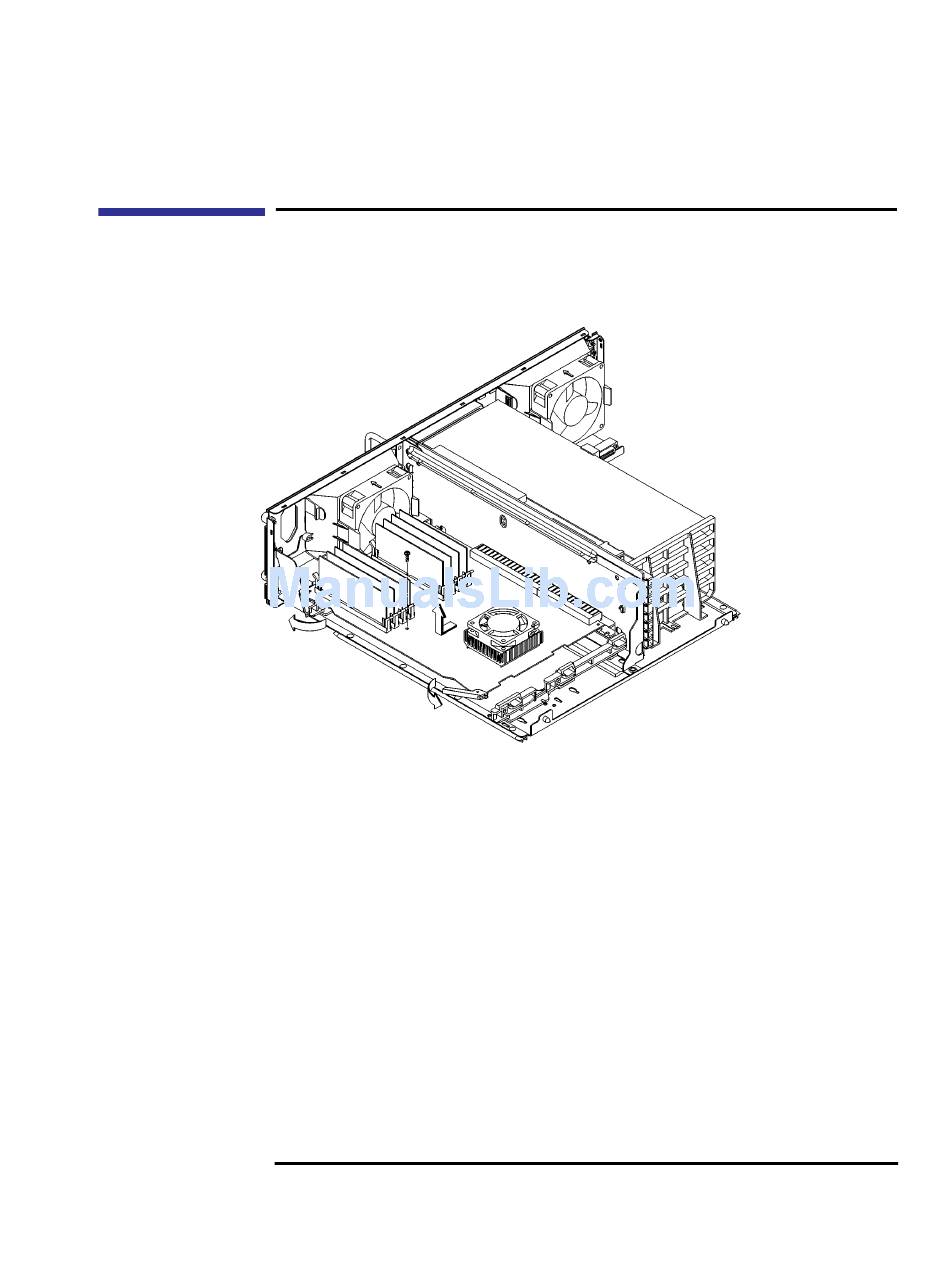

Figure 3
Removing the CPU Board
2 Pull the two ejector handles at the same time, as shown in Figure 3.
3 Slide the CPU board out approximately one inch, then lift it straight up to remove
it.
