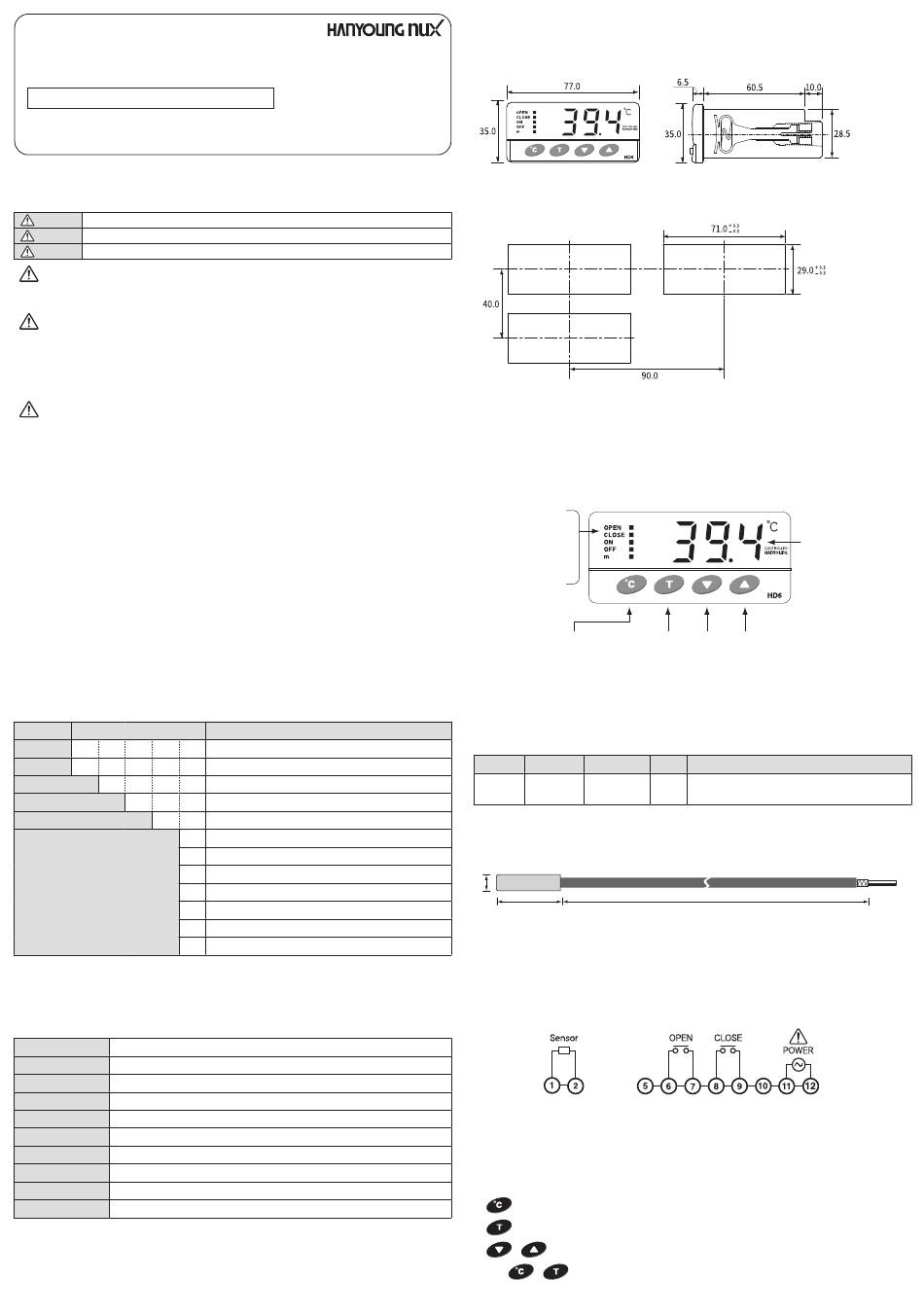

HANYOUNG NUX HD6 Instruction Manual

HD6

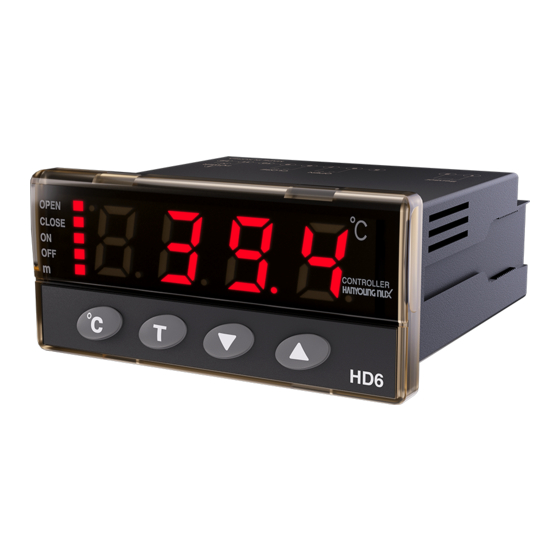

Digital temperature controller
INSTRUCTION MANUAL
Thank you for purchasing Hanyoung Nux products. Please read the instruction
manual carefully before using this product, and use the product correctly.
Also, please keep this instruction manual where you can view it any time.
▍ Safety information
Please read the safety information carefully before the use, and use the product correctly.
The alerts declared in the manual are classified into
DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor injury or properties damage
DANGER
• The electric shock may occur in the input/output terminal so please never let your body and/or conductive
substance to be contacted by the input/output terminal.
WARNING
• Failure or abnormality of this product may lead to a serious accident. In this case,
install an appropriate protection circuit outside.
• In case of use other than the method specified by the manufacturer, loss may occur.
• To prevent damage and breakdown of this device, supply the power voltage appropriate to the rating.
• There is a risk of electric shock, so use this product while it is installed on the panel while it is energized.
CAUTION
• The contents of this manual are subject to change without prior notice or notice.
• Check whether there is any damage or abnormality in the product during transportation.
• Use in a place where vibration or impact is not applied directly to the body.
• Use in a place free from water, oil, chemicals, steam, dust, salt, iron, etc.
• Avoid places where inductive obstacles are large and static electricity and magnetic noise are generated.
• The characters on the display may not be visible in outdoor sunlight or in a brightly lit indoor environment.
• For thermocouple input, use a prescribed compensation wire.
(In case of using general conductor, temperature error occurs.)
• In the case of RTD input, use one with a small lead wire resistance and no difference in resistance between three wires.
• Separate the input signal line and the output signal line from each other. If separation is not possible,
use a shielded line for the input signal line.
• Use a non-grounded sensor for thermocouples.
(If a ground sensor is used, the device may malfunction due to a short circuit.)
• If there is a lot of noise from the power, it is recommended to use an insulation transformer and a
noise filter. The noise filter must be attached to a grounded panel, etc., and the wiring between the noise
filter output side and the power supply terminal of the instrument must be short.
• When mounting this device to a panel, use a switch or circuit breaker approved by IEC60947－1 or IEC60947－3.
• The warranty organization for this device including accessories is 1 year under normal use.
• When the power is turned on, a preparation period for contact output is required. When used as a signal for an
external interlock circuit, etc., use a delay relay together.
• Before using the temperature controller, there may be a deviation from the measured value (PV) of the
temperature controller and the actual temperature, so please use it after correcting the temperature deviation.
▍ Suffix code
Model Code
HD6－ ⃞ ⃞ ⃞ ⃞－ ⃞
Control type F
Input N
Control output M
Power supply voltage P4
Option
10
15
20
▍ Specification
Power supply voltage 100 - 240 V a.c. 50 - 60 Hz
Power consumption 2 VA max.
Input TH-540N (103ET : -40.0 ~ 90.0 ℃, 2 m ~ 20 m)
Indicate accuracy ±1 ％ of FS +1 Digit
Control output (Relay) OPEN OUT : 250 V a.c. 5 A , CLOSE OUT : 250 V a.c. 5 A
Control operation ON/OFF control (Control by temperature and time)
Setting method Digital method by FND and button
Ambient Temperature 0 ~ 50 ℃
Ambient Humidity 85 ％ R.H. max.
Weight 116 g
HANYOUNGNUX CO.,LTD
28, Gilpa-ro 71beon-gil, Michuhol-gu,
Incheon, Korea TEL : +82-32-876-4697
http://www.hanyoungnux.com
'DANGER', 'WARNING' and 'CAUTION' based on its importance
Description
Green house open / close motor control only
ON / OFF Control
TH-540N(103ET)
Relay
100 - 240 V a.c.
0 None sensor
2 2 m Incloud sensor
3 3 m Incloud sensor
5 5 m Incloud sensor
10 m Incloud sensor
15 m Incloud sensor
20 m Incloud sensor
▍Dimension and panel cutout
MA0608KE210429
▍Part name
Open operation
Close operation
Relay on
Relay off
Running time (sec/min)
Temperature setting
and program setting
█ Sensor (NTC)
• HD6 uses only this sensor.
Name Sensory type
TH540N Thermistor
※ Caution : Extension of sensor length or modification will cause malfunction.
※ When sensor length is based on 2m
Ø5.0
40
▍Connection diagram
▍Custom Mode
█ Key operation function description
: Keys for temperature setting and program setting
: KEY for time setting
, Increase/decrease key setting for setting value change
Press ,
If there is no key input, the mode automatically exits after 10 seconds.
Time decrease Increase
setting
Range(℃) Accuracy
Max ± 3.5 ℃ temperature deviation may be happen
-40.0 ~ 90.0 ±1.5 ℃
(± 1.5 ℃ sensor deviation & ± 2 ℃ controller deviation)
1,960
for 3 seconds to save the changed data.
[ Unit : ㎜ ]
Output indicate
Remark
White
Black
