Model 570LX-701-C1-10 Dual Current Output DC-Powered L
Tel: (248) 624-1541
FAX: (248) 624-9234
is a trademark of Echelon
ORKS
Page
INTRODUCTION:
1
below. Supplementary sheets are attached for units with special
1
2
options or features.
4
4
Table 1:
A. Model Number Format :
6
6
B. Typical Model Number: 570L1-701-C1-10-NCR
Series/Network
570L1
7
570L3
7
8
Notes (Table 1):
8
1. Consult the factory for current information on agency (e.g.
Canadian Standards Association, etc.) approvals.
DESCRIPTION:

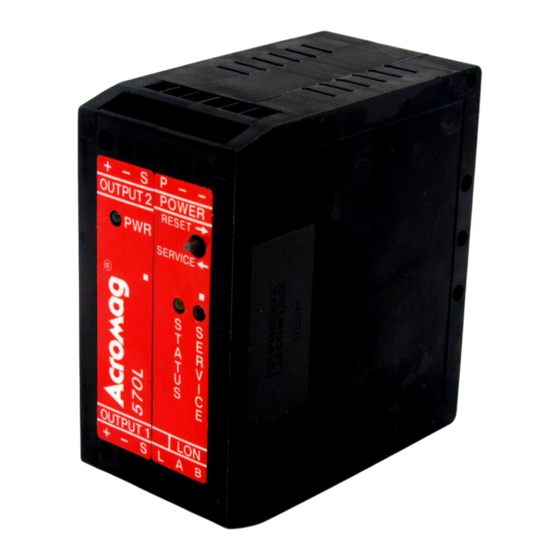

The Series 570L is a member of the Acromag SmartPack
family. It converts two independent network variables to two
corresponding 4-to-20mA output signals. Each analog output has
a watchdog timer that can optionally reset the output to 4 mA in
the event of a communications failure.
All SmartPack modules are designed for harsh industrial
environments. They feature RFI and EMI protection, a wide
operating temperature range, and isolation between power,
network and I/O. They are DC powered, DIN-rail mountable, and
available with either a twisted pair (TP/XF-78) or free topology
(TP/FT-10) transceiver. Up to 64 modules can be connected on
a single network segment. Multiple segments may be connected
using repeaters to increase the number of modules and distance.
SmartPacks are interoperable with L
other manufacturers that use standard network variable types
(SNVTs). Module calibration, configuration and network
management are performed using a Windows™ configuration
program on a PC.
- 1 -
User's Manual: SmartPack Series 570L
ON
570L1-Function-Outputs-Power-Certification
-Function
-Inputs
-701
-C1
-701
-C1
W
ON
W
Module
ORKS
-Power
-Cert.
-10
-NCR
-10
-NCR
products from
ORKS
Advertisement
Table of Contents
Related Manuals for Acromag 570L 701-C1-10 Series
Summary of Contents for Acromag 570L 701-C1-10 Series
- Page 1 1. Consult the factory for current information on agency (e.g. Canadian Standards Association, etc.) approvals. DESCRIPTION: The Series 570L is a member of the Acromag SmartPack family. It converts two independent network variables to two IMPORTANT SAFETY CONSIDERATIONS corresponding 4-to-20mA output signals. Each analog output has a watchdog timer that can optionally reset the output to 4 mA in the event of a communications failure.
- Page 2 Series 570LX-701-C1-10 SmartPack User's Manual Dual Process Current Output ___________________________________________________________________________________________ SPECIFICATIONS: NOTE: To prevent false compliance fault indications, the DEFINITION: This family of isolated, DC-powered, SmartPack Output (+) and (-) terminals of unused analog outputs should modules converts two independent network variables, using be shorted together or connected to a load resistance of standard network variable types (SNVT), to two 4-to-20mA 525Ω...
- Page 3 Series 570LX-701-C1-10 SmartPack User's Manual Dual Process Current Output ___________________________________________________________________________________________ LED Indicators: Power LED (Green): Indicates power applied to unit. EMI Resistance: Less than ±0.25% of input span effect with Service LED (Red): LED blinks at a 1/2 Hz rate for an unconfigured node.
- Page 4 Series 570LX-701-C1-10 SmartPack User's Manual Dual Process Current Output ___________________________________________________________________________________________ "G" Rail (32mm), Type EN50035: To attach a module to this NETWORK VARIABLES: style of DIN rail, angle the unit so that the upper groove of the adapter hooks under the top lip of the rail. Firmly push the To provide interopretability, standard network variable types unit towards the rail until it snaps solidly into place.
- Page 5 Series 570LX-701-C1-10 SmartPack User's Manual Dual Process Current Output ___________________________________________________________________________________________ Output mA Power-up/Reset Value ST_OFF nvo_wd_comp_fault[ x ]: Compliance Fault Status Declaration network output SNVT_lev_disc nvo_comp_fault[ 2 ]; Description This output network variable contains the status of the internal compliance fault monitor for the corresponding analog output.
- Page 6 It is highly recommended that a non-functioning module be corresponding to the nominal 20 mA or 100% output. See returned to Acromag for repair, since Acromag makes use of the Calibration section for a complete description of its use.
