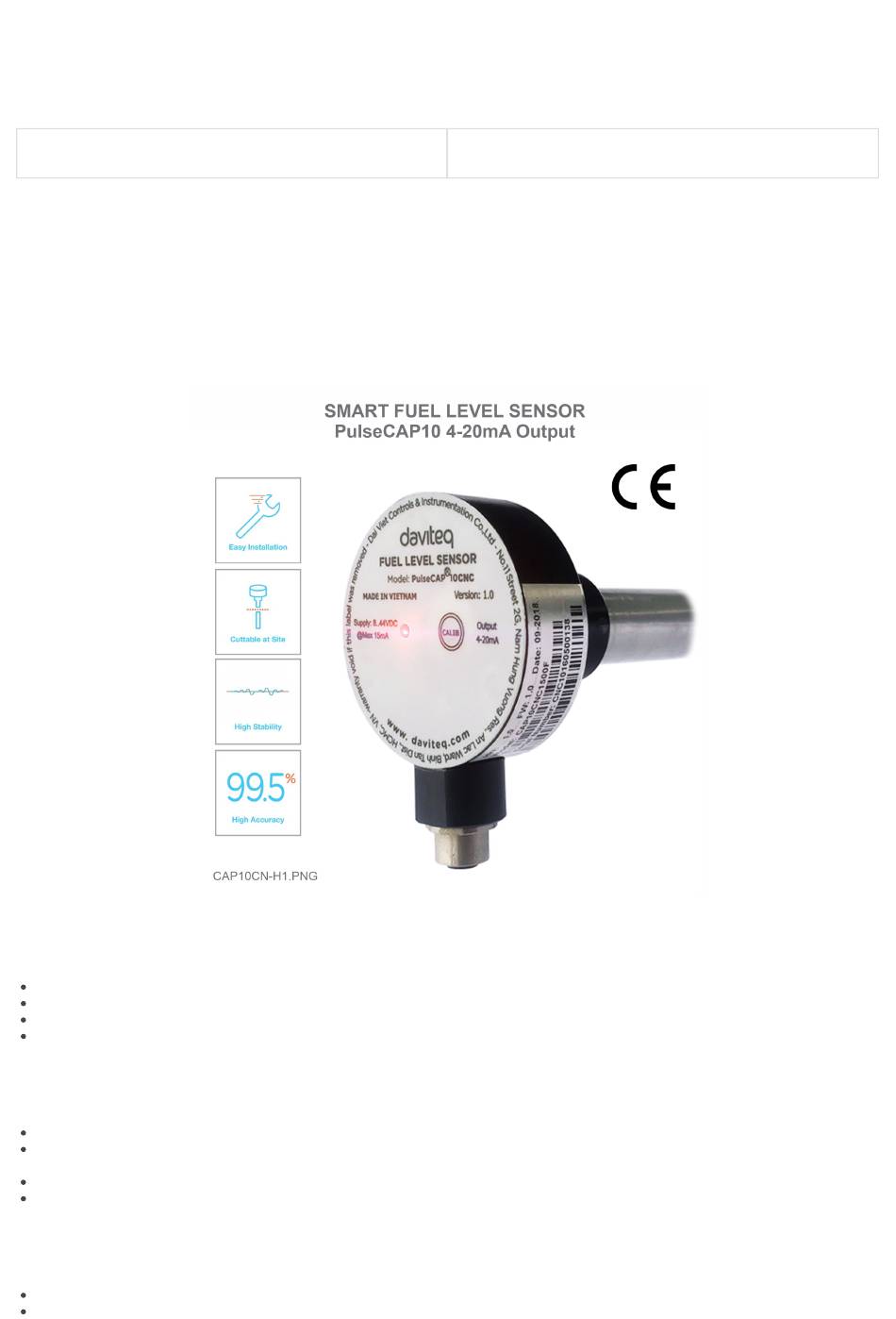

USER GUIDE FOR FUEL LEVEL
SENSOR CAP10CNC
CAP10CNC-MN-EN-01
This document is applied for the following products
1. Introduction

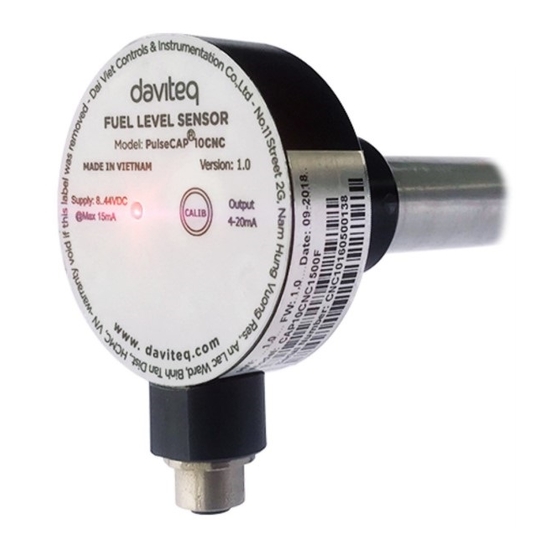

CAP10CN is industrial version of PulseCAP10, designed for industrial applications like generator, stationary fule tank in
factory, building, construction site...CAP10CN has 4-20mA output or RS485/ModbusRTU output, can be connected
easily to any industrial devices like PLC, IoT Gateway, iConnector... CAP10CN has very high accuracy 0.1% of span, can
be used for tank up to 30.000 liters volume.
2. Notes
The technicians who install sensor, must be graduated from college of mechanic or electric.
The mechanical installation staff (drill, cut, grind, etc.) must have skills in mechanical engineering.
The electrical installation staff (connect, etc.) must have skills in electrical engineering.
The technician must be trained before using.
3. Safety
CAP10CNC is intended to use with Diesel Oil, Vegetable Oil.
CAP10CNC must not be used with other flammable fluid such as Gasoline, Alcohol, Ethanol, Acetone, Toluene or
other solvents.
Be careful while drilling, cutting, grinding, etc. The fuel tank or other flammable fluid.
Daviteq is not responsible for compensation in case of explosion to bodily injury or property damage.
4. Note Before Installation
Read specifications thoroughly and make sure that its output are suitable to reading devices.
Power supply must be in the permitted range.
JUN-2020
Advertisement
Table of Contents
Related Manuals for daviteq CAP10CNC
Summary of Contents for daviteq CAP10CNC
- Page 1 3. Safety CAP10CNC is intended to use with Diesel Oil, Vegetable Oil. CAP10CNC must not be used with other flammable fluid such as Gasoline, Alcohol, Ethanol, Acetone, Toluene or other solvents. Be careful while drilling, cutting, grinding, etc. The fuel tank or other flammable fluid.
-
Page 2: Specification
Make sure all the necessary tools are ready before the installation. CAP10CNC be equipped with screws. We advise customers should use stainless steel rivets to fasten the plastic flange onto tank for all type of tanks and only using screws for the thick and hard ones. - Page 3 7. Tools Tool Name Tool Name Drilling machine Drill (Φ38) Pump Silicone gasket Rivet clippers Twist drill 4 mm (In case of using stainless steel (In case of using stainless steel rivet) rivet) Tube cutter Electrical tape Swivel Blade Cutting pliers Hacksaw Phillips screwdriver...
- Page 4 File Pencil Tape measures Multi Meter Allen key 2 mm Calibration can 8. Sensor Installation Guidance Step Discription Note Some tank have been welded with oil filter and have float level sensor installed, so it is Remove fuel: Remove all fuel from the tank. necessary to take out the float level sensor before removing the fuel.
- Page 5 Sensor cutting: After flange installation, we determine the length of the sensor to be installed as picture below: C = L+20+20-(H+14) => C = L+26-H (mm) C: Length to be cut. L: Original length of the sensor. H: Height of the tank. *Example: Sensor length is L = 2000, H = 1700 mm =>...
- Page 6 Calibration: After cutting, make sure the sensor tube is clean. Re-plug the Filter footer and tighten the screw. PLEASE FOLLOW THESE STEPS IN ORDER: GET ZERO (4mA): After cutting, clean the probe, put the probe in the media at expected level near the bottom or leave the probe at dry condition, press CALIB button in 0.2 - 3 seconds, the LED will always ON in this press time.=>...
- Page 7 Each cable includes wires which are marked labels according to types of connection. (user should not cut these labels before installation to avoid confusing) 10.3 Follow Wire Colors Red: PWR+(8...50VDC) Black: PWR-(OVDC) Green: Not Using White: Output 4-20mA Recommend to use 24VDC power. The signal cable from sensor should be protected by corrugated hose or the Φ16 plastic tube, keep the cable avoid high temperature areas.
-
Page 8: Troubleshooting
13. Periodic Cleaning Guidance 1. Periodically clean the oil tank 2, 3 or 6 months depending on usage and contamination. 2. Periodically clean the sensor and filter footer 2, 3 or 6 months by: Cover a sensor's vent before using the air sprayer for another. Remove and clean the filter footer. -
Page 9: Warranty
15. Warranty Warranty is applied for CAP10CNC fuel level sensor manufactured by Daviteq. CAP10CNC fuel level sensor will be warranted for a period of eighteen (18) months from date of delivery. 15.1 Free Warranty Condition: 1. Manufacturer undertakes to guarantee within 18 months. - Page 10 Daviteq Technologies Inc No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam. Tel: +84-28-6268.2523/4 (ext.122) Email: info@daviteq.com | www.daviteq.com Revision #2 Created Thu, Feb 17, 2022 1:35 AM by Kiệt Anh Nguyễn Updated Thu, Feb 17, 2022 6:15 AM by Kiệt Anh Nguyễn...
