USER GUIDE FOR WIRELESS CO2
SENSOR WITH HUMIDITY &
TEMPERATURE WS433-CO2
WS433-CO2-MN-EN-01
This document is applied for the following products
SKU
WS433-CO2
Item Code
WS433-CO2-01
1. Functions Change Log
HW Ver.
2.5
2. Introduction
WS433-CO2 sensor utilizes CMOSens® Technology for IR detection enables carbon dioxide measurements of the
highest accuracy at a competitive price. Along with the NDIR measurement technology for detecting CO2 comes a
best-in-class humidity and temperature sensor integrated on the same sensor module. Ambient humidity and
temperature can be measured by special algorithm expertise through modelling and compensating of external heat
sources without the need of any additional components. The wireless portion is Sub-GHz technology from Texas
Instruments allows long range transmission at ultra-low power consumption. It will connect 2-way wirelessly to the
wireless co-ordinator WS433-CL to send data and receiving the configuration. It can be configured the operation
parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software
(thru the WS433-CL). Its default data rate is 50 kbps, can be switched to 625 bps to increase the communication range.
The sensor can last up to 5 years with 2 x AA battery.
HW Ver.
2.5

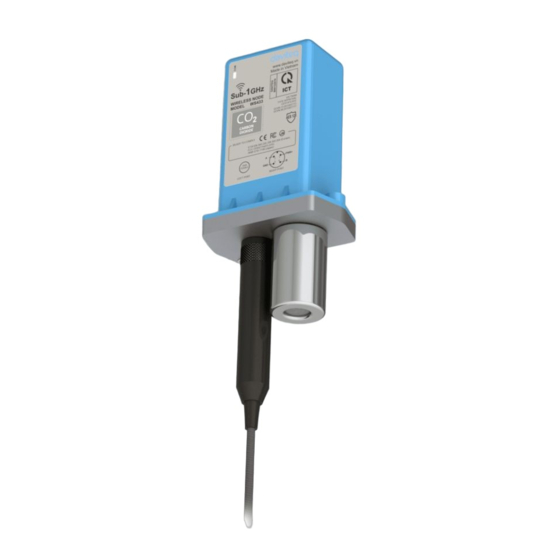

WIRELESS CARBON DIOXIDE GAS SENSOR, 433MHZ, 0-40.000PPM, 2 X AA 1.5 VDC BATTERY, IP67
FW Ver.
5.1
FW Ver.
Release Date
MAY-2021
Innitial FW
JUN-2021
5.0
Functions Change

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS433-CO2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for daviteq WS433-CO2

Summary of Contents for daviteq WS433-CO2

  • Page 1 Innitial FW 2. Introduction WS433-CO2 sensor utilizes CMOSens® Technology for IR detection enables carbon dioxide measurements of the highest accuracy at a competitive price. Along with the NDIR measurement technology for detecting CO2 comes a best-in-class humidity and temperature sensor integrated on the same sensor module. Ambient humidity and temperature can be measured by special algorithm expertise through modelling and compensating of external heat sources without the need of any additional components.

  • Page 2: Specification

    3. Specification SENSOR SPECIFICATION CO2 Sensor technology NDIR sensor CO2 range/resolution/accuracy 0-40.000 ppm / 1ppm / (+/- 30ppm + 3% reading) Repeatability +/- 10ppm Temperature Stability +/- 2.5ppm / ℃ in range 0-50 ℃ Temperature range/resolution/accuracy -40..+70 ℃ / 0.1 ℃ / ± 0.5 °C in range 0-50 ℃ Humidity range/resolution/accuracy 0-100%RH / 0.1%RH /+/- 3.0%RH in range 25-100% RH Sensor Filter...

  • Page 3: Operation Principle

    ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB International Compliance STD-T108 (Japan) Vietnam Type Approval Certification QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019) Security Standard AES-128 Operating temperature of PCB -40oC..+60oC (with AA L91 Energizer) Housing/Protection...
  • Page 4 We solve the equation to get a and b. Then we configure parameters a1 and b1 into the sensor. Use the offline configuration tool to configure sensor. Write in the sensor the parameters a1 and b1. if a1 and b1 in sensor are different from a1=1 and b1=0 then write down a1 and b1 numbers in excel template configuration file Refer to Section 4.4...

  • Page 5: Button Function

    You can download Modbus Memmap of WS433-CL with the following link: https://filerun.daviteq.com/wl/?id=WBbGm89AToHWyvIyMOc780N1KmjfUr3Y 4.2.2 Add sensor node into WS433-CL-04 (1) through intermediate WS433-CL-04 (2) and Modbus In case the sensor need to be added to WS433-CL-04 (1) has been installed in a high position, the sensor cannot be brought close to WS433-CL-04 (1).
  • Page 6 Reset default WS433: Frequency: 433.92 MHz RF transmit power: 15 dBm RF data rate: 50 kbps 4.4 Configuration First, you need to prepare Num of Node will indicate the number of nodes managed by WS433-CL. Every time a node is added, the Num of Node will increase by 1. Every time a node is deleted, the Num of Node is reduced by 1.
  • Page 7 Step 2: Open Modbus tool on PC You can download Daviteq Modbus Configuration Tool with the following link: https://filerun.daviteq.com/wl/?id=qK0PGNbY1g1fuxTqbFW9SXtEvCw7bpc6 Template File: https://filerun.daviteq.com/wl/?id=ItFaeQgtCmXN98J7GaPdeZvKK5eS1Dd1 How to use the Modbus configuration software Unzip file and run file application "Daviteq Modbus Configuration Tool Version"...
  • Page 8 Choose COM Port (the Port which is USB cable plugged in) Set the BaudRate: 9600, Parity: none Click “ Connect “ untill the Status displays “disconnected” to “connected“. It means the WS433-CL-04 is being connected with computer; Next, we need to import the configuration file for WS433-CL-04 by importing the csv file: Go to MENU: FILE / Import New / =>...
  • Page 9 You can download Modbus Memmap of WS433-CL with the following link: https://filerun.daviteq.com/wl/?id=BKEaUzdArkoc0Hc7nfpRShdPVToVrqQZ In the memmap file, refer to the Memmap of WS433-CO2 sheet to configure the sensor's operating parameters accordingly. The reference memmap addresses are based on the order of the sensors added in the Memmap file...
  • Page 10 Every time interval of Cycle_wakeup, sensor node would ONLY send data to co- ordinator if the new measured value was Cycle_wakeup changed 1-3600(s) uint16 Read/Write more than the Delta value of the last measured value. Default Cycle_wakeup is 120 seconds Every time interval of Cycle_healthsta,...

  • Page 11: Installation Location

    Just exchange the sensor module but node has not been reset ==> please take out the battery for 20s then install it again to reset node to recognize the new sensor module Error, sensor port shorted to GND Error, sensor port shorted to Vcc Error, sensor port shorted each other Lo-Byte is sensor type Error code...

  • Page 12: Antenna Installation

    NOTE: Integrated WS433-CL / iConnector Coordinator The coordinator must be placed at least 4 meters above the ground and the sensor clearly visible. 6.2 Dimensions 6.2 Antenna Installation...

  • Page 13: Bracket Mounting

    6.3 Bracket mounting 6.4 Filter WARNINGS: Please make sure that the operating ambient temperature is right for the sensor.

  • Page 14: Battery Installation

    Prepare the professional tools for installation. The inappropriate tools may cause damage to the sensor. Please avoid contaminating the sensor's filter to ensure accurate measurement 6.4 Battery installation Steps for battery installation: Step 1: Using L hex key to unscrew M4 screws at the side of the housing and carefully pull out the top plastic housing in the vertical direction...
  • Page 15 Step 2: Insert 02 x AA 1.5VDC battery, please take note the poles of the battery ATTENTION: REVERSED POLARITY OF BATTERIES IN 10 SECONDS CAN DAMAGE THE SENSOR CIRCUIT ! Step 3: Insert the top plastic housing and locking by L hex key ATTENTION: When reinstalling the cover, pay attention to put the PCB edge into the middle slot of the box inside as shown below)

  • Page 16: Troubleshooting

    Distributor in Australia and New Zealand Manufacturer Daviteq Technologies Inc No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam. Templogger Pty Ltd Tel: +84-28-6268.2523/4 (ext.122) Tel: 1800 LOGGER Email: info@daviteq.com | www.daviteq.com Email: contact@templogger.net...
  • Page 17 Revision #12 Created Wed, Jun 2, 2021 4:45 AM by Kiệt Anh Nguyễn Updated Fri, Jun 25, 2021 2:48 AM by Kiệt Anh Nguyễn...
