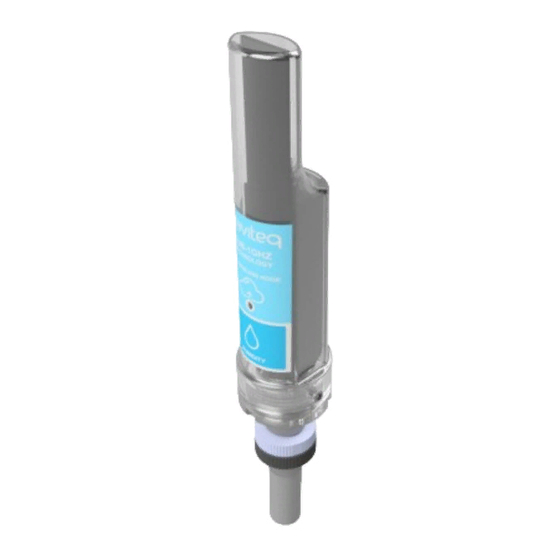

USER GUIDE FOR WIRELESS
AMBIENT HUMIDITY &
TEMPERATURE SENSOR WS433-
M12F-ATH
WS433-M12F-ATH-MN-EN-01
This document is applied for the following products
SKU
WS433-M12F-ATH
Item Code
WS433-M12F
ATH-11
ATH-12-300
Notes
* Must order for both wireless transmitter and sensor module
1. Functions Change Log
HW Ver.
2.5
2. Introduction
Wireless Ambient Humidity & Temperature Sensor is a combination of wireless sensor transmitter WS433-M12F and
sensor ATH, it utilises Digital capacitance humidity sensor to deliver high accuracy and stable measurement. The
wireless portion is Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power
consumption. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the
configuration. It can be configured the operation parameters like data sending interval, health check cycle...remotely
from Globiots platform or via ModbusRTU software (thru the WS433-CL). Its default data rate is 50 kbps, can be
switched to 625 bps to increase the communication range. It can last up to 10 years with a single AA battery. There are
a lot of applications as environment monitoring for office, warehouse, data center, hospital, agriculture...
HW Ver.
2.5
Wireless Sensor Transmitter 433Mhz, compatible with all DULP sensor modules, AA 1.5VDC
battery, IP67
Compact ambient Humidity & Temperature Sensor DULP module, M12-male connector
300mm Cable type ambient Humidity & Temperature Sensor DULP module, M12-male connector
FW Ver.
5.04
FW Ver.
Release Date
NOV-2019
FEB-2020
5.04
Functions Change
Change RF data rate by
button
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for daviteq WS433-M12F-ATH
Summary of Contents for daviteq WS433-M12F-ATH
- Page 1 USER GUIDE FOR WIRELESS AMBIENT HUMIDITY & TEMPERATURE SENSOR WS433- M12F-ATH WS433-M12F-ATH-MN-EN-01 FEB-2020 This document is applied for the following products WS433-M12F-ATH HW Ver. FW Ver. 5.04 Wireless Sensor Transmitter 433Mhz, compatible with all DULP sensor modules, AA 1.5VDC Item Code...
-
Page 2: Specification
01 x AA 1.5-3.6VDC, up to 10-year operation, depends on configuration Frequency Band ISM 433Mhz, Sub-GHz technology from Texas Instrument, USA ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB International Compliance STD-T108 (Japan) Vietnam Type Approval Certification QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019) -
Page 3: Product Pictures
Security Standard AES-128 Operating temperature of PCB -40oC..+60oC (with AA L91 Energizer) Housing Poly-carbonate, IP67 L-type bracket SUS304 , by M4 screws or double-sided 3M tape Installation method (included) Product dimensions & weight 125x30x30mm, < 60g (without battery) Box dimension & gross weight 190x50x50mm, <... -
Page 4: Operation Principle
5. Operation principle Process of measurement When the sensor sampling time interval is reached, for example 2 minutes, the node will wake up and switch ON the power supply to supply the energy to external sensor to start the measurement. Depends on the type and characteristic of external sensor, the sensor will take a certain time to finish the measurement. - Page 5 b: constant (default value is 0) By default a= 1 and b=0 ==> Y=X The Y value will be compared with Lo and Hi threshold. Status bytes of sensor Node Hi-Byte is error code Error code Description No error Just exchange the sensor module but node has not been reset ==> please take out the battery for 20s then install it again to reset node to recognize the new sensor module Error, sensor port M12F shorted to GND...
-
Page 6: Mounting Bracket Installation
Take off the sensor cover like Step 1 and press the button until you see LED flashes 2 times for 625 kps option 6.3 Wireless sensor configuration with co- ordinator You can configure the wireless sensor with the co-ordinator by following the steps in the link below: http://www.daviteq.com/en/manuals/books/long-range-wireless-co-ordinator-ws433-cl/page/user-guide- for-long-range-wireless-co-ordinator-ws433-cl 7. Installation 7.1 Mounting bracket installation Locate the place where the wireless sensor is mounted, from that locate the position to mount the bracket;... -
Page 7: Installation Location
7.2 Installation location The bracket will be fixed on the wall or surface by 2 x M4 screws (supplied by customer) or double-sided 3M tape (included in accessory bag in carton box); DO NOT install the wireless module inside a complete metallic box or housing. The RF signal can not pass through metallic wall;... - Page 8 The sensor module has M12-male connector which is matched with M12-female connector on wireless module; Carefully plug the sensor module onto wireless module, using HAND to tighten slowly until stop; Note: please DO NOT over tightening by hand or other tool, it can damages the M12 connector; 7.4 Power Supply &...
- Page 9 NOTE: Because of O-ring, it requires to have much pulling force at the beginning, therefore please do it carefully to avoid the damage of circuit board which is very thin (1.00mm); Insert the AA battery, please take note the poles of battery Insert the top plastic housing and locking by M2 screw...
-
Page 10: Troubleshooting
No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam. Tel: +84-28-6268.2523/4 (ext.122) Templogger Pty Ltd Email: info@daviteq.com | www.daviteq.com Tel: 1800 LOGGER Email: contact@templogger.net Revision #8 Created Thu, Mar 5, 2020 3:02 AM by Kiệt Anh Nguyễn...
