USER GUIDE FOR SIGFOX NODE
PROCESS PRESSURE SENSOR
WSSFC-PPS
WSSFC-PPS -MN-EN-01
This document is applied for the following products
SKU
WSSFC-PPS
WSSFC-PPS-9-10
Item Code
WSSFC-PPS-8-10

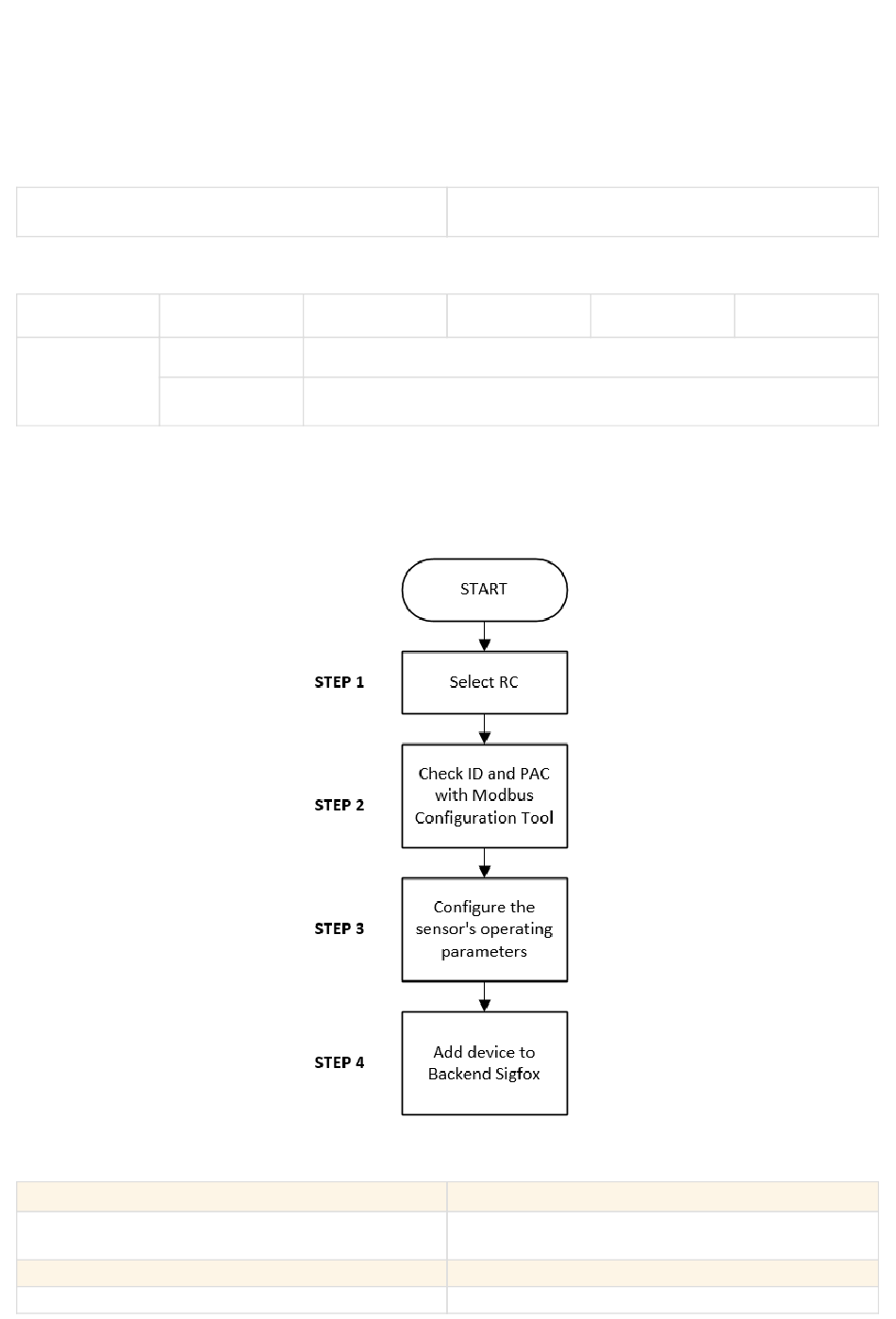

0. Configuration Check List
STEP 1: Select RC
1. Select RC zone
STEP 2: Check ID and PAC
Use Modbus Configuration Cable to read the ID and PAC values
HW Ver.
1.2
Sigfox Node Gage Process Pressure Sensor, Internal antenna, range 0-10 barg, accuracy 0.5%,
process connection G1/4-male, 304SS, Type AA battery 1.5VDC, IP67, RC2-RC3-RC4-RC5 zones
Sigfox Node Gage Process Pressure Sensor, Internal antenna, range 0-10 barg, accuracy 0.5%,
process connection G1/4-male, 304SS, Type AA battery 1.5VDC, IP67, RC1-RC6-RC7 zones
RC zones selection 1, 2, 4,... is RCZ1, RCZ2, RCZ4,... (refer to
5)
Refer to register address 8 and 10 (DEC)
FW Ver.
1.2
SEP-2020
section
