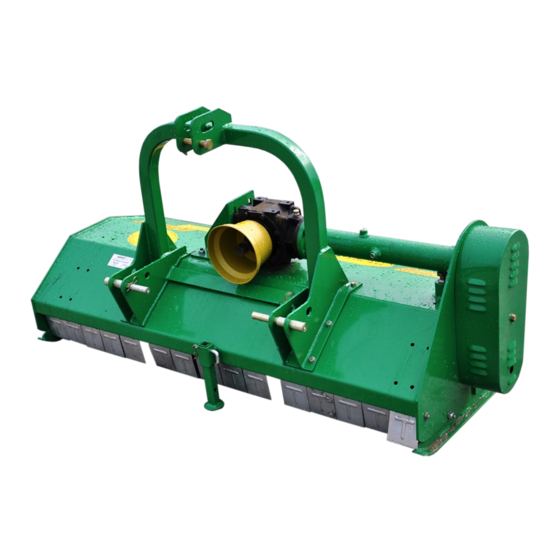

- Page 1 FLAIL MOWER BE-DP(S)XXX OPERATIONS & PARTS MANUAL FOR MODELS: • BE-DPS125 • BE-DP(S)155 • BE-DP(S)175 • BE-DP(S)205 • BE-DP(S)220 PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INTRODUCTION ASSEMBLY & SET-UP OPERATING INSTRUCTIONS ADJUSTMENTS MAINTENANCE TROUBLESHOOTING & APPENDIX EXPLODED VIEWS & PARTS LISTS... - Page 3 Safety at all times Thoroughly read the instructions given in this manual before operation. Refer to the “Safety Decals” and read the instructions given in this manual before operation. Refer to the “Safety Decals” and read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment.
- Page 4 Transport Machinery Safely • Comply with state and local laws. • Maximum transport speed for implement is 20 mph. Do not exceed. Never travel at a speed which does not allow adequate control of steering and stopping. Some rough terrain a slower speed. •...
-
Page 5: Introduction
within a few hours or gangrene may result. Safety Labels Safety Labels Your Flail Mower comes equipped with all safety labels in place. They are designed to help you Your Flail Mower comes equipped with all safety labels in place. They are designed to help you safely your implement. -
Page 6: Assembly & Set-Up
Definitions Note: A special point of information that the operator must be aware of before continuing. Important: A special point of information related to its preceding topic. The intention is that this information should be read and noted before continuing. Owner Assistance The Warranty Registration card should be filled out by the dealer at the time of purchase. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Transporting Note: Always disengage PTO before raising mower to transport position. 1. When raising the mower to transport position, be sure that driveline does not contact tractor or mower. Adjust and set the tractor 3PT hitch lift height so that the driveline does not contact mower deck in the fully raised position. -
Page 8: Adjustments
ADJUSTMENTS Leveling the Mower Note: Tractor and mower should be on level ground. Leveling can be adjusted at the tractor’s 3PT arms and center link. Cutting Height Adjustment The machine’s cutting height depends on the position of the rear roller. 1. - Page 9 MAINTENANCE & LUBRICATION Proper servicing and adjustment are the key to the long life of any farm implement. With careful and systematic inspection, you can avoid costly maintenance, time and repair. CAUTION! For safety reasons, each maintenance operation must be performed with tractor PTO disengaged, Mower lowered completely to ground and tractor engine shut off with ignition key removed.
- Page 10 Check oil level in gearbox by removing the plug located on the right hand side. Oil should be level with bottom of plug hole. Add oil if necessary by removing top fill plug and side plug. Add oil until it flows from side plug hole.
- Page 11 TROUBLESHOOTING PROBLEM SOLUTION APPENDIX Unplug and clean mower deck. Belt Slipping Remove belt guard shields and clean sheaves. Replace belt. Bolt Torque Mow at full throttle (540 PTO RPM) Check PTO speed and tractor engine. Shift transmission to a lower gear. Patches Of Uncut Grass Tighten belts.
-
Page 12: Exploded Views & Parts Lists
EXPLODED VIEW & PARTS LISTS DPS FLAIL MOWER ASSEMBLY BE-DP(S)XXX USER MANUAL... - Page 13 DPS FLAIL MOWER ASSEMBLY REF PART NUM DESCRIPTION REF PART NUM DESCRIPTION GB13871- DPS175.013 The cover weldment Oil seal FB55X80X8 94/55X80X8 GB1152-89/M8X1 Oil cup M8X1 EFGC125.116 Oil-sealing sleeve GB6184-86/M12 Locking nut M12 BM30.102 Pin for lifting GB5783-86/ Bolt M12x30 DPS175.011 Hanging weldment M12X30 DP175.015...
- Page 14 DP FLAIL MOWER PARTS LIST BE-DP(S)XXX USER MANUAL...
- Page 15 DP FLAIL MOWER PARTS LIST REF PART NUM DESCRIPTION REF PART NUM DESCRIPTION DP175.013 The cover weldment GB5785-2000/M16X1.5X90 Bolt M16X1.5X90 (DP155) GB1152-89/M8X1 Oil cup M8X1 (DP175) GB6184-86/M12 Locking nut M12 (DP205) GB5783-86/M12X30 Bolt M12x30 GB13871-94/55X80X8 Oil seal FB55X80X8 DP175.015 Base plate (R) EFGC125.116 Oil-sealing sleeve DP175.021...
- Page 16 DP(DPS) FLAIL MOWER GEARBOX ASSEMBLY REF PART NUM DESCRIPTION TS50.300Z.02 Gearbox assembly GB1096-79/A10X70 Key A10X70 EFGC125.166 Paper gasket EFGC125.167 Connected sleeve GB1096-79/A10X40 Key A10X40 DP175.155 Shaft GB/T276-94/6207 Bearing 6207 GB893.1-86/72 Circlip 72 GB13871-94/35X72X10 Oil seal 35×72×10 ZBT 32001.3-87 Retainer DP175.023 Shaft tube weldment EFGC125.169 Bolt of plug screw ZG3/8"-19 1...
- Page 17 DP (DPS) FLAIL MOWER GEARBOX LIST REF PART NUM DESCRIPTION GB9877.1-88/35X72X10 Oil seal 35×72×10 GB894.1-89/35 Circlips for shaft 35 TS50.300Z.01.110 Washer (S) 0.7 GB297-94/30207 Bearing 30207 GB297-94/32207 Bearing 32207 GB1096-79/10X65 Key 10X65 EFGC125.169 Bolt of plug screw ZG3/8"-19 1 TS50.300Z.01.111 Bevel gear shaft TS50.300Z.01.101 Gearbox complete...
- Page 18 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-DP(S)XXX USER MANUAL...
