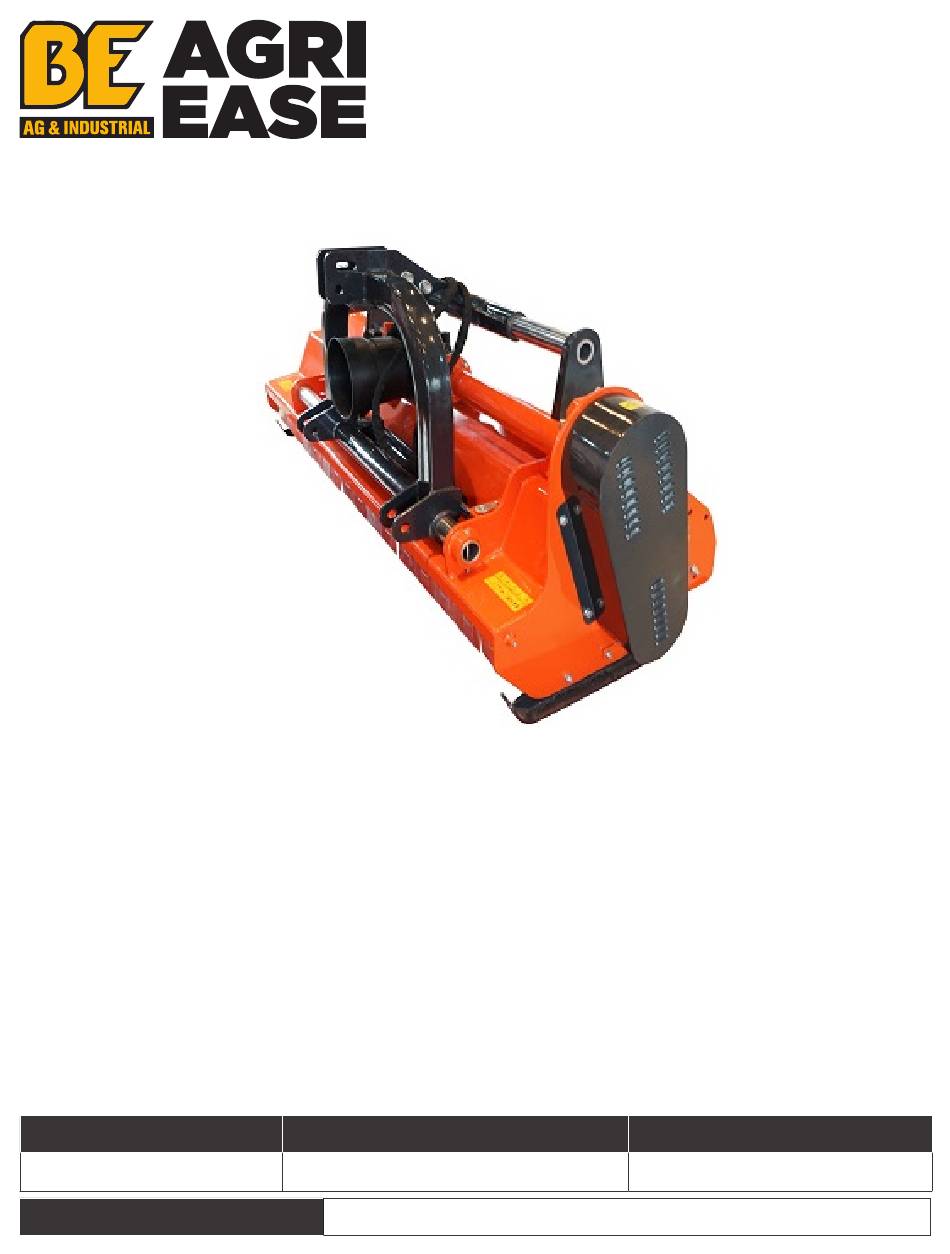

- Page 1 FLAIL MOWER BE-AGMZXXX OPERATIONS & PARTS MANUAL FOR MODELS: • BE-AGMZ200 • BE-AGMZ220 • BE-AGMZ240 PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
- Page 2 TABLE OF CONTENTS INTRODUCTION & SAFETY ASSEMBLY TRANSPORT STORAGE & MAINTENANCE EXPLODED VIEWS & PARTS LISTS...
-
Page 3: Safety Labels
INTRODUCTION The AG Flails are primarily designed to mow grass, weeds and light brush. The mowers are assembled for operation with 1000 RPM tractor input only (rated PTO up to 45 HP) and supplied standard with Cat 1 lift pins for tractor attachment. The mowers can fit Cat 1 quick attach hitch, by using suitable bushing to adapt diameters of lift pins. - Page 4 Keep a minimum safety distance of 70 m from the machine. 7. WARNING It is forbidden to go on the machine when it is in movement. 8. WARNING Danger of catching and dragging. Do not approach the hands to the transmission shaft in motion. 9.
-
Page 5: Safety In The Workplace
16. Use the requested individual Protection Devices. 17. Greasing points. SAFETY Allowed Use: Ag flail mowers, as described in this instruction and maintenance booklet, have been specifically designed to mow grass, weeds and light brush up to 1” diameter. Any other use jeopardizes the operator’s safety and the machine’s integrity. -
Page 6: Work Clothing
WORK CLOTHING: When working and especially when executing repair or maintenance activities, it is necessary to wear the following clothing and safety accessories: • Overalls or other comfortable clothing, not too loose to prevent the possibility that parts of them might get caught in the moving parts. -
Page 7: Attachment To The Tractor
• Do not unexpectedly call an operator while he is working if not necessary; it is forbidden as well to frighten or throw objects at the operator, even if just for fun. • Watch out for those who are present, especially the children! •... -
Page 8: Driveline Attachment
Adjust the third point so that the upper part of the frame is parallel to the ground. Lock all connections parts with the special sway chains or tie rods. It is always good to make sure that the central gearbox axis is parallel to the ground thus reducing the stresses on the power take-off and extending the working life of the equipment. -
Page 9: Working Height Adjustment
WORKING HEIGHT ADJUSTMENT The machine’s working height is determined by the position of the rear roller. Lifting the roller, the cutters get close to the soil, whereas lowering it, the cutters get further from it. After a modification of the working height be sure that the cutters skim the ground;... -
Page 10: Drive Belt Adjustment
DRIVE BELT ADJUSTMENT Loosen the Screw A and B that locks the support shaft and loosen the counter nut C. Loosen the screws that lock the gear box on the mounting plate D. Adjust the drive belt tension. The correct belt tension is achieved when the belt can be deflected by the belt thickness about 10mm at the center point between the pulleys. -
Page 11: Pre-Season Check
STORAGE If your shredder will not be used for a long period of time, respect the following suggestions: 1. Wash the machine thoroughly and dry it. 2. Lubricate all bearings with enough grease to eliminate any cavities where water condensation may occur and cause damage. -
Page 12: Gearbox Maintenance
EVERY 50 HOURS OF WORK • Check the correct tension of the driving belt. • Check that all bolts and nuts are tightened. • Check the cutters/hammers for wear. • Check the over-gear unit oil level through plug A (Picture 5). EVERY 500 HOURS OF WORK •... - Page 13 10. Insert the tabs through the slots and seat in the groove. 11. Check that each guard turns freely on the shaft. 12. Assemble the shaft. 13. Check that the shaft telescopes easily. 14. Replace any components that are damaged or worn. 15.
-
Page 14: Exploded View And Parts List
EXPLODED VIEW & PARTS LIST BE-AGMZXXX USER MANUAL... - Page 15 REF PART NUM DESCRIPTION PART NUM DESCRIPTION VM200-DZZJ-PJ VM (AGM) 200 Blade Axle 26-2 EFAG220.017 (220) Roller VM220-DZZJ-PJ VM (AGM) 220 Blade Axle 26-3 EFAG240.017 (240) Roller VM240-DZZJ-PJ VM (AGM) 240 Blade Axle 4J-220H-136 Big Pulley GB6184-86 M12 Nut EFAG140.020 Plate GB97.1-85 12 Washer...
- Page 16 REF PART NUM DESCRIPTION GB5783-86 M12x35 Bolt GB93-87 12 Washer GB97.1-85 12 Washer GB1152-89 M6 Grease Nipple VM190.110 Bearing Seat GB894.1-86 45 Cir Clip GB/T281-94 1309 Bearing GB893.1-86 100 Cir Clip GB13871-94 65x100x10 Oil Seal 10-1 VM200.017 (200) Axle 10-2 VM220.017 (220) Axle 10-3...
- Page 17 REF PART NUM DESCRIPTION GB1096-79 A10X70 Key AG20.01.C00 Gearbox GB893.1-86 33 Cir Clip G2-150.110 Sleeve GB1096-79 A12x50 Key VM190.109 Transmit Shaft GB/T278-94 6308ZZ Bearing GB893.1-86 90 Cir Clip GB13871-94 40x90x10 Oil Seal ZBT 32001.3-87 ZG3/8”-19 Bolt FM120.00.199A Bolt VM190.020 PTO Cover GB70.1-85 M12x35 Bolt GB93-87...
-
Page 18: Gearbox Assembly
GEARBOX ASSEMBLY BE-AGMZxxx GEARBOX ASSEMBLY REF PART NUM DESCRIPTION REF PART NUM DESCRIPTION AG20.01.C02 CFW-35x80x10 AG20.01.C03 JB4342-35(2.5mm) ZBT32001.3-ZG3/8-19” TZDP-48-35-1 48x35x1 GB96-10 GB297-30307 GB5783-M10x25 GB297-32307 CFW-35x90x10 TZDP-48-35-2 48x35x2 TZDP-100-89-0.4 100x89x0.4 AG20.01.C01 GB276-6407 GB894.1-42 AG20.01.C04 GB276-6308 AG14.01.C07 TZDP-90-79-0.4 90x79x0.4 AG14.01.C06 GB893.1-90 AG14.01.C05 NFG-RCA-90x10 90X10 CBW-00-011B... - Page 19 BE-AGMZx RTS BREAKDOWN REF PART NUM DESCRIPTION REF PART NUM DESCRIPTION AGM200.014 Cylinder GB6184-86 M16 Nut GB1152-89 M6 Grease Nipple GB97.1-85 16 Washer EFAG140.010 Pipe AGMZ-200.014 Plate GB3451-83 12 Bronze Washer GB5783-86 M16x50 GB3451-83 M12x1.25 Bolt AGZ-200.104 Rail Guide EFAGL125.103 GB6184-86 M24 Nut GB93-87...
- Page 20 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-AGMZXXX USER MANUAL...
