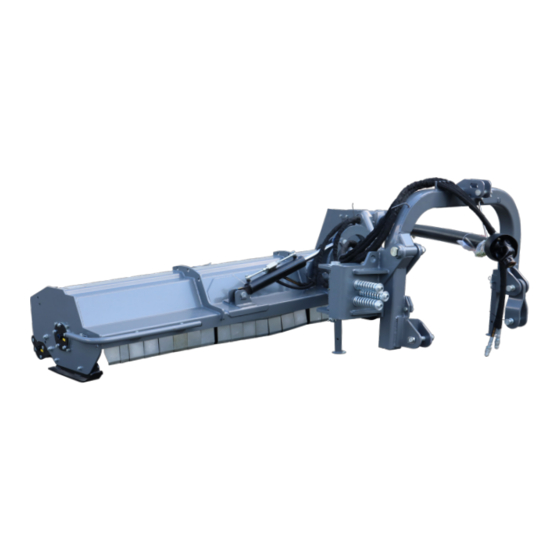

- Page 1 VERGE FLAIL MOWER BE-VBM220 OPERATIONS & PARTS MANUAL FOR MODELS: • BE-VBM220 PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INTRODUCTION ASSEMBLY, SET-UP & OPERATING INSTRUCTIONS ADJUSTMENTS MAINTENANCE AND LUBRICATION SPECIFICATIONS & CAPACITIES TROUBLESHOOTING & APPENDIX EXPLODED VIEW & PARTS LIST... - Page 3 IMPORTANT SAFETY INFORMATION Safety At All Times Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal” and read all instructions noted. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment.
- Page 4 Transport Machinery Safely • Comply with state and local laws. • Maximum transport speed for implement is 20 mph. Do not exceed. Never travel at a speed which does not allow adequate control of steering and stopping. Rough terrain requires a slower speed. •...
- Page 5 Safety Labels Your Flail Mower comes equipped with all safety labels in place. They were designed to help you safely operate your mower. Read and follow their directions. 1. Keep all safety labels clean and legible. 2. Replace all damaged or missing labels. To order new labels contact Braber Equipment at 1-877-588-3311. 3.
- Page 6 BE-VBM220 USER MANUAL...
-
Page 7: Introduction
Introduction Braber Equipment welcomes you to the growing family of new product owners. This implement has been designed with care and was built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the machine. Application The Flail Mowers are designed for Category 1 - Three point hitch or Quick-Hitch System mounting. - Page 8 ASSEMBLY AND SET-UP Tractor Requirements This mower is designed with a 3-Point category one hitch. Tractor horse power rating should not exceed 80 PTO horse power. Assembly Refer to the parts illustration. Tractor Hook-Up 1. Be certain that the tractor draw bar will not interfere. Move the draw bar ahead or remove if required. The draw bar should also be checked for clearance when unit is being raised for the first time.
-
Page 9: Adjustments
Mowing Instructions 1. Clear area to be mowed of objects and debris that might be picked up and thrown by the mower blades. 2. Grass is best cut when it is dry. Mowing wet grass can cause clogging resulting in grass clumps behind the mower. -
Page 10: Maintenance And Lubrication
Belt Tension CAUTION Belt drive system under spring tension; use care to avoid bodily harm! The belt tension should be checked after the first 20 hours of use, and then every 40 hours of use. 1. Tension on the belt can be adjusted with the belt tension bolt. Turn the bolt until desired tension is achieved. -
Page 11: Specifications & Capacities
Storage At the end of the working season or when the mower will not be used for a long period, it is good practice to clean off any dirt or grease that may have accumulated on the mower and any of moving parts. 1. - Page 12 TROUBLESHOOTING CAUTION Do not try to clean rear discharge area when mower is running. Bodily harm may occur! PROBLEM SOLUTION Unplug and clean mower deck. Belt slipping Remove belt guard shields and clean sheaves. Replace belt. Mow at full throttle (540 PTO rpm), check PTO speed and tractor engine. Shift transmission to a lower gear.
- Page 13 METRIC TORQUE SPECIFICATIONS BOLT TORQUE BOLT DIAMETER 10.9 N.M. LB-FT N.M. LB-FT 1050 1495 1103 2100 1550 2600 1917 3675 2710 Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise specified. Therefore, do not grease or oil bolts or cap screws unless otherwise specified in this manual. When using locking elements, increase torque values by 5%.
-
Page 14: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST Flail Mower Assembly BE-VBM220 USER MANUAL... - Page 15 62 56 BE-VBM220 USER MANUAL...
- Page 16 REF PART NUM DESCRIPTION REF PART NUM DESCRIPTION GB/T 70.3 Bolt M12*35 Gearbox GB/T 5782 Nut M16 VBMD220.40 Gearbox mounting plate VBMD220.48 Connection plate for rear 1 roller R GB/T 5783 Bolt M12*30 GB/T 5782 Locknut AGF220.41 Bottom belt cover GB/T 97.1 Plain washer 16 GB13871-94...
- Page 17 REF PART NUM DESCRIPTION VBMD220.11 Shaft pin 01 washer GB/T 6178 Nut M30 GB/T 91 Cotter 8*80 AGF140.106 Short pin VBMD220.2 Bracket weldment VBMD220.8 Spring washer VBMD220.9 Spring for anti-shock SF-2 Bushing Ø44XØ40X50 VBMD220.7 Connection weldment GB/T 5782 Lock nut M24 AGF140.019 Back arm weldment VBMD220.13...
