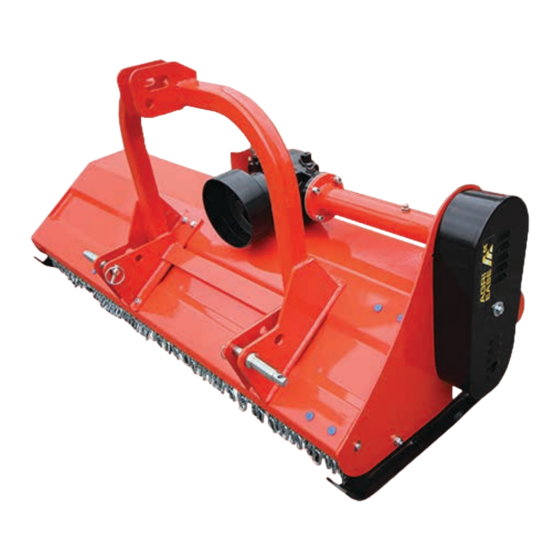

- Page 1 BE-EFGCxxxF Flail Mower Operations & Parts Manual For Models: • BE-EFG95F • BE-EFGC145F • BE-EFGC175F • BE-EFGC105F • BE-EFGC155F • BE-EFGC200F • BE-EFGC125F • BE-EFGC165F Purchase Date Model No. Serial No. Dealer...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS BE-EFGxxxF Before operating the Flail Mower read the following safety instructions. Failure to comply with these warnings may result in serious injury or death. Congratulations On the purchase of your new BE Flail Mower. This information is to assist you in preparing, operating and maintaining your Flail Mower. Please read and understand the information completely before operating your mower, paying special attention to all the safety details. -
Page 3: General Safety
GENERAL SAFETY BE-EFGxxxF Read the operator’s manual and all safety signs carefully before operating, maintaining, adjusting or removing the Flail Mower. Do not allow passengers to ride on the Flail Mower. Operate only at a safe distance from bystanders. Clear the area of people, especially children, before starting. Stop PTO before dismounting tractor. -
Page 4: Operating Safety
OPERATING SAFETY BE-EFGxxxF Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting, repairing or removing. Do not allow riders. Install and secure all guards and shields before starting or operating. Keep hands, feet, hair and clothing away from moving parts. Place all controls in neutral, stop tractor engine, set park brake, remove ignition key and wait for all moving parts to stop before servicing, adjusting, repairing, attaching or removing. -
Page 5: Storage Safety
STORAGE SAFETY BE-EFGxxxF Store the machine in an area away from human activity. Do not permit children to play on or around the stored machine Store the machine in a dry, level area. Clean grease and oil as required and protect it from the elements. MAINTENANCE SAFETY Good maintenance is your responsibility. - Page 6 SAFETY PRECAUTIONS BE-EFGxxxF 1. Blade axle 2. Blade axle cover 3. Combined fender 4. Stand 5. Gear box 6. Top Link Bracket 7. Transmission shaft 8. Belt & Pulley Cover PTO Shaft Safety Guard Universal Joint Grease Nipple...
- Page 7 SAFETY & MODEL DECALS BE-EFGxxxF The position of safety decals are shown in the illustration below. Good safety requires that you familiarize yourself with the various safety signs and increase your SAFETY AWARENESS. EFGC Model EFGCH Model...
- Page 8 SAFETY & MODEL DECALS (CONTINUED) BE-EFGxxxF EFG-125 Model No. Description/ Information Date Country of Origin Serial No.
- Page 9 SAFETY & MODEL DECALS (CONTINUED) BE-EFGxxxF...
-
Page 10: Product Specifications
PRODUCT SPECIFICATIONS BE-EFGxxxF Product No. FLAIL MOWER MODELS: EFGC - Flail Mower, Medium Duty EFGCH - Hydraulic Side Shift Flail, Medium Duty Implement Specifications IMPLEMENT SPECIFICATIONS MODELS EFGC-105 EFGC-115 EFGC-125 EFGC-135 EFGC-145 EFGC-155 EFGC-165 EFGC-175 Tractor HP 18 - 25 18 - 25 25 - 30 25 - 30... - Page 11 IMPLEMENT SPECIFICATIONS (CONTINUED) BE-EFGxxxF Uses: • Perfect for use after storms when debris is scattered throughout areas usually maintained with normal mowers • Multi-purpose machines for mulching foliage and sticks • Ideal for thick grass, sticks, undergrowth and light vine mulching •...
-
Page 12: Adjusting The Height
CHECKING BEFORE OPERATING BE-EFGxxxF Before operating the machine, the following areas should be checked o : 1. Before starting up the machine, check and lubricate all grease points on the machine and drive shaft. 2. Use only an agricultural tractor with horsepower within limits of the implement. 3. -
Page 13: Drive Belt Adjustment
FLAIL MOWER ADJUSTMENT BE-EFGxxxF 1. On a flat piece of ground, attached the Flail Mower to the Tractor using the three point linkage. 2. Use a solid adjustable top link. 3. Lower three point linkage to its lowest position. 4. With the roller at the rear in contact with the ground, adjust the length of the top link so that the lower edge at the side of the flail mower is parallel with the ground. - Page 14 FLAIL MOWER ADJUSTMENT BE-EFGxxxF Before starting the machine, check and adjust the following items: • Drive belt tension • Gearbox oil level • Grease nipples on bearing and PTO shaft • All bolts, nuts and screws Storage Operating Position Position In order to keep the machine stable, lower the adjustment stand when the machine is stopped (see drawing above).
-
Page 15: Hydraulic Connection
HYDRAULIC CONNECTION BE-EFGxxxF Switch the engine o , set the handbrake and remove ignition key. Push the hydraulic lever to release pressure at the remotes. Connect the implement’s hydraulic hoses to the remotes using the quick couplers, having checked the quick couplers are clean and in good condition. Start the engine and activate the hydraulics to check the connection. -
Page 16: Service And Maintenance
SERVICE AND MAINTENANCE BE-EFGxxxF Fluids and Lubricants Grease: • Use a multi-purpose lithium based grease. Gearbox: • Use SAE 90 gear oil. Storing Lubricants: Your machine can operate at top e ciency only if clean lubricants are used. Use clean containers to handle all lubricants. Store them in an area protected from dust, moisture and other contaminants. -
Page 17: Pto Shaft Maintenance
SERVICE AND MAINTENANCE BE-EFGxxxF The oil should be drained out and replaced after the first 50 hours of operation, then the oil should be changed every 250 hours, or at least once a year. Drain oil from the gearbox thoroughly. Check and clean it. Fill with new gear oil up to the dedicated oil level. The draining procedure is as follows: Remove the draining bolt under the gearbox, so that the oil drains o . -
Page 18: Gearbox Maintenance
GEARBOX MAINTENANCE BE-EFGxxxF The gearbox used on the Flail Mower will give many years of trouble-free service with minimal maintenance requirements. Maintain the gearbox by following this procedure: Oil Level: • Remove the level plug from the rear or side of the gearbox. •... -
Page 19: Troubleshooting Guide
TROUBLE SHOOTING GUIDE BE-EFGxxxF PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Excessive vibration of the machine. Broken flails. Replace Broken flail. Flails can be replaced by a competent operator. In other cases, replacement must be done by specialized sta . Broken rotor support. Replace rotor support with original parts. - Page 20 FLAIL MOWER ASSEMBLY - EFG SERIES BE-EFGxxxF PART NO. DESCRIPTION SPECIFICATION 503010763 DIN985-M12 506010057 Washer GB97.1-12 Suspension Bracket 801680014 EFGCHM120.014B 105-175 EFGCM105-175 Suspension Bracket 801740006 EFGCHM200.014 200-220 EFGCM200-220 802480066 (140-180 Model) Pin Shaft EFAG140.014 701680001 Small Plate EFGCHM120.101 501011127 Bolt GB5783-M12x35 700920107 Fender...
- Page 21 PART NO. DESCRIPTION SPECIFICATION (125 Model) Fender Shaft 10-3 700960009 EF120.00.123 EFGCM125 (135 Model) Fender Shaft 10-4 700970005 EF130.00.123 EFGCM135 (145 Model) Fender Shaft 10-5 700980005 EF140.00.123 EFGCM145 (155 Model) Fender Shaft 10-6 700990019 EF150.00.123 EFGCM155 (165 Model) Fender Shaft 10-7 701000005 EF160.00.123...
- Page 22 PART NO. DESCRIPTION SPECIFICATION 801240022 Base Plate EFGC120.014 501011126 Bolt GB5783-M12x30 701160033 Small Plate EFG120.103 506030037 Washer GB93-12 21-1 701160006 Small Pulley EFG120.105A (EFGCM200 - EFGCM220) 21-2 701160034 EFG120.105B Small Pulley 701240046 U Cover EFGC120.138 105-175 23-1 701250006 (H=100) Blet Cover EFGC120.111 200-220 23-2...
- Page 23 PART NO. DESCRIPTION SPECIFICATION 506010055 Washer GB97.1-8 503010761 DIN985-M8 39-1 801140004 (105 Model)(L=1027) Roller EFG100.012 39-2 801150004 (115 Model)(L=1127) Roller EFG110.012 39-3 801160017 (125 Model)(L=1227) Roller EFG120.012 39-4 801170004 (135 Model)(L=1327) Roller EFG10.012 39-5 801180004 (145 Model)(L=1427) Roller EFG140.012 39-6 801190004 (155 Model)(L=1527) Roller EFG150.012...
-
Page 24: Gearbox Assembly
GEARBOX ASSEMBLY BE-EFGxxxF PART NO. DESCRIPTION SPECIFICATION 510020640 GB13871-FB-35x72x12 FB35x72x12 Oil Seal 510020405 GB13871-FB-40x80x10 FB40x80x10 Oil Seal 506060188 GB893.1-72 72 Cir Clip 506060191 GB893.1-80 80 Cir Clip (200, 220) 511021666 GB276-6207-2Z 6207 Bearing 511021529 GB276-6208-2Z 6208 Bearing (200, 220) 701220003 EFGC100.133A (EFGC105-115 Model) Shaft 701240003... - Page 25 BLADE AXLE SUBASSEMBLY (EFGC105-175) BE-EFGxxxF PART NO. DESCRIPTION SPECIFICATION 705380014 RK120.109A Oil Seal Cover 510020417 GB13871-FB-55x80x8 FB55x80x8 Oil Seal 511040032 UC207 Bearing Seat 90207 801140010 EFG100.013A Blade Shaft 100 801150010 EFG110.013A Blade Shaft 110 801160038 EFG120.013A Blade Shaft 120 801170010 EFG130.013A Blade Shaft 130 801180010...
- Page 26 BLADE AXLE SUBASSEMBLY (EFGC200-220) BE-EFGxxxF PART NO. DESCRIPTION SPECIFICATION 702080005 G2-150.105 Oil Seal Cover 510020397 CFW-60x85x8 FB60x85x8 Oil Seal 511040009 UC208 Bearing Seat 90208 802080080 EFG200.013A-G2 Blade Shaft 200 802080085 EFG220.013A Blade Shaft 220 503010740 DIN985-M16x1.5 M16x1.5 Lock Nut 701240008 EFGC120.103 Spacer Bush 701240009...
- Page 27 BLADE AXLE SUBASSEMBLY (EFGC200-220) BE-EFGxxxF PART NO. DESCRIPTION SPECIFICATION 510020638 GB13871-FB-35x80x10 FB Oil Seal Hexagon Socket 516010003 ZBT32001.3-ZG3/8-19” Tapered Plug 501011112 GB5783-M10x25 Screw Bolt 702480003 AG14.01.C03 311 Shell Cap 506060191 GB893.1-80 A Check Ring 511022654 GB276-6307 Deep Groove Ball Bearing 506060322 GB894.1-42 A Shaft Check Ring...
