Heart of House Durham 477/9959 Assembly Instructions

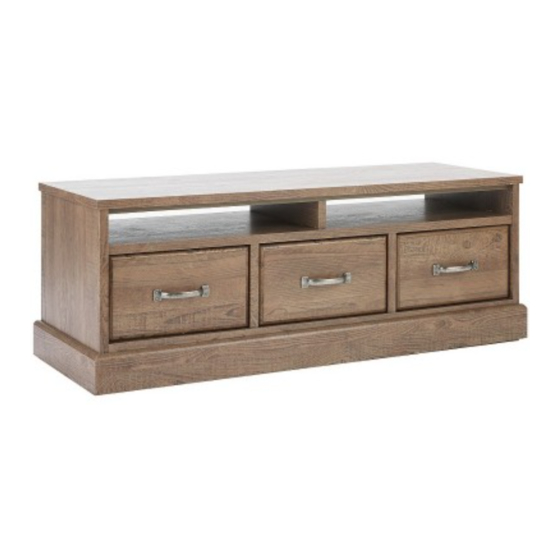

Coffee table

Durham - Coffee Table

477/9959

- Please keep for future reference

Dimensions

Width - 12.3cm

Depth - 44cm

Height - 45.1cm

Important

– Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6403030

BK05000 - Issue 1 - 17/11/2015

Table of Contents

Need help?

Do you have a question about the Durham 477/9959 and is the answer not in the manual?

Page 1 Durham - Coffee Table Assembly Instructions 477/9959 - Please keep for future reference Dimensions Width - 12.3cm Depth - 44cm Height - 45.1cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6403030 BK05000 - Issue 1 - 17/11/2015...
Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Assemble on a soft level • We do not components and tools listed on surface to avoid damaging the recommend the pages 2 and 3.
Page 3 Components - Panels If you have damaged or missing components, 0345 6403030 call the Customer Helpline: Please check you have all the panels listed below Coffee table (53 x 90 x 51.7cm)
Page 4 Components - Fittings Please check you have all the ﬁ ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more ﬁ ttings may be supplied than are required. The following components are pre-ﬁ tted and are illustrated for reference only. D handle x 3 20mm Handle screw x 6 Tools required...
Page 5 Assembly Instructions Step 1 Remove and replace handles Position the unit in the required position. The D handles are ﬁ tted to the inside the unit, using a Philips screwdriver unscrew the 20mm handle screws in each handle and remove both the 20mm handle screw and the D handles.
