osaka
abingdon
23465758
4020897
dimensions
width: 40,0 cm
width: 131.5 cm
depth: 40,0 cm
depth: 50.0 cm
height 59,6 cm
height: 189.9 cm
assembly instructions -
if you need help or have damaged or missing parts, call the argos customer helpline: 03456 400 800
350807-01
please keep for future reference
issue 1 - 08-06-2015
Advertisement

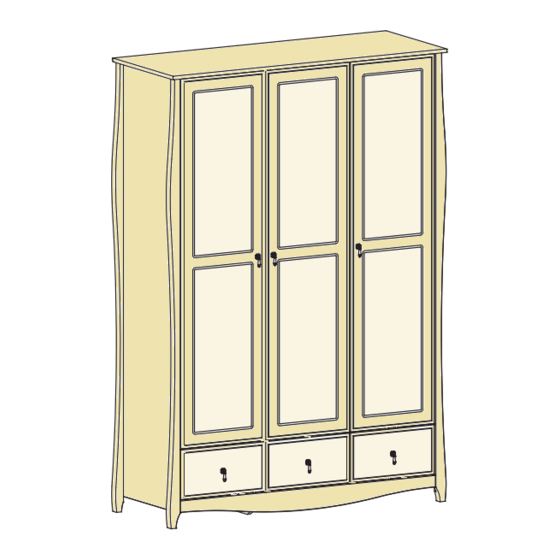

Related Manuals for Heart of House Abingdon 4020897
Summary of Contents for Heart of House Abingdon 4020897
- Page 1 osaka abingdon 23465758 4020897 dimensions width: 40,0 cm width: 131.5 cm depth: 40,0 cm depth: 50.0 cm height 59,6 cm height: 189.9 cm assembly instructions - please keep for future reference if you need help or have damaged or missing parts, call the argos customer helpline: 03456 400 800 issue 1 - 08-06-2015 350807-01...
- Page 2 ! safety and care advice important - please read these instructions fully before starting assembly • assembly should be carried • make sure you have enough out by a competent adult space to layout the parts only. before starting. • check you have all the •...
- Page 3 components - panels if you have damaged or missing components, call the argos customer helpline: 03456 400 800 please check you have all the panels listed below divider, small bottom (31,9 cm x 46,4 cm) (121,5 cm x 46,4 cm) (130,4 cm x 50 cm) h-profile (154,5 cm x 1,7 cm)
-
Page 4: Tools Required
components - fittings please check you have all the panels listed below note: the quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø7.8 x 40mm wooden dowel x ø3.5 x 35mm screw x ø3 x 12mm screw x ø15 x 10.5mm cam x 41... - Page 5 assembly instructions step 1 assembly of the wardrobe. step 1.1 fix the posts ø4 x 25mm screw x onto the sides using screws into the holes indicated. the top of the posts and the sides must be flush. 350807-05...
- Page 6 assembly instructions step 1.2 knock the dowels ø7.8 x 40mm wooden dowel x ø5 x 8, cc34mm bolt x 8 into the holes indicated on the sides use a small hammer. screw the bolts into the holes indicated on the sides step 1.3 fix the crossplates...
- Page 7 assembly instructions step 1.4 fix the drawer runners 450mm drawer runner, left, side x 450mm drawer runner, right, side x to the sides using screws through the holes ø5.8 x 19mm Screw x ø18 x 9mm Spacer x and the spacers indicated.
- Page 8 assembly instructions step 1.6 fix the drawer runner 450mm drawer runner, left, side x 450mm drawer runner, right, side x to the right hand side of the dividers using screws ø5.8 x 8mm screw x 12 through the holes as indicated.
- Page 9 assembly instructions step 1.9 fix the crossplates support for hanger rail - 15mm x ø3 x 12mm screw x to the divider using the pre-mounted screws. position the crossplates exactly as shown. 0mm crossplate x fix the support for hangerrail to the left hand side of the divider using screws...
- Page 10 assembly instructions step 1.11 screw one of the bolts m4, cc34mm bolt x 4 ø5 x 8, cc34mm bolt x 2 into each of the threaded tubes push the bolt + the m4 / ø5 x 12mm threaded tube x 2 tube into the holes indicated on the...
- Page 11 assembly instructions step 1.13 place the dividers ø15 x 10.5mm cam x 4 onto the back rail place the back rails onto the dividers push cams into the holes indicated on the back rails arrows pointing towards the dividers turn the cams to the right to fix the back rails...
- Page 12 assembly instructions step 1.15 place the front rail ø15 x 10.5mm cam x 2 onto the dividers push cams into the holes indicated on the dividers arrows pointing towards the front rail. turn the cams to the right to fix the front rail step 1.16 place the sides ø15 x 10.5mm cam x 8...
- Page 13 assembly instructions step 1.17 place the top onto ø15 x 10.5mm cam x 9 the sides and the divider push cams into the holes indicated on the sides and the divider , arrows pointing towards the turn the cams to the right to fix the top step 1.18 place the front rail...
- Page 14 assembly instructions step 1.19 place two of the backs ø3 x 12mm screw x 1.2 x 15mm nail x into the rabbet on the top and onto the divider back fitting - 14 x 19mm x important! make sure the angle between the top and the...
- Page 15 assembly instructions step 1.20 place the remaining ø3 x 12mm screw x 1.2 x 15mm nail x back into the rabbet on the top , into the h-profile , onto the post back fitting - 14 x 19mm x fix the back to the and the posts using nails...
- Page 16 assembly instructions step 1.21 important! the wardrobe is heavy. lift with care. wall strap and instruction x 1 its recommended that the wardrobe is fixed to the wall. use the fittings follow the instructions included with the fittings. 350807-16...
- Page 17 assembly instructions step 2 assembly of the drawers. step 2.1 fix the drawer sides ø3.5 x 35mm screw x to the drawer back as shown, using screws step 2.2 knock the dowels ø7.8 x 40mm wooden dowel x into the holes indicated on the drawer sides using a smal hammer.
- Page 18 assembly instructions step 2.4 slide the drawer bottom into the drawer sides step 2.5 push the drawer front ø15 x 10.5mm cam x 12 onto the drawer sides place cams into the holes indicated, arrow pointing towards the front. turn the cams to the right to fix the front.
- Page 19 assembly instructions step 2.7 place the drawer runners ø3 x 12mm screw x 450mm drawer runner, left x onto the drawer sides and push them onto the back of the front 450mm drawer runner, right x fix the drawer runners to the drawer sides using screws into the holes indicated.
- Page 20 assembly instructions step 3 Door, center Door, left Door, right assembly of the doors. step 3.1 place the cup hinges ø3 x 12mm screw x ø26mm cup hinge x into the holes indicated on the doors ø26mm cup hinge x fix the hinges using Large screws...
- Page 21 assembly instructions step 3.2 slide the cup hinges 54mm handle x self adhesive bumper, ø10 x 3mm x onto the crossplates fix the hinges using the premounted screw in the m4 x 20mm screw x crossplates. see details below on how to fit the cup hinge onto the cross plate fix the metal knobs...
- Page 22 assembly instructions step 3.3 adjusting the doors left/right. to adjust the door towards the left hand side - turn the adjusting screw to the right. to adjust the door towards the right hand side - turn the adjusting screw to the left. adjusting the doors forwards/backwards.
- Page 23 A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
