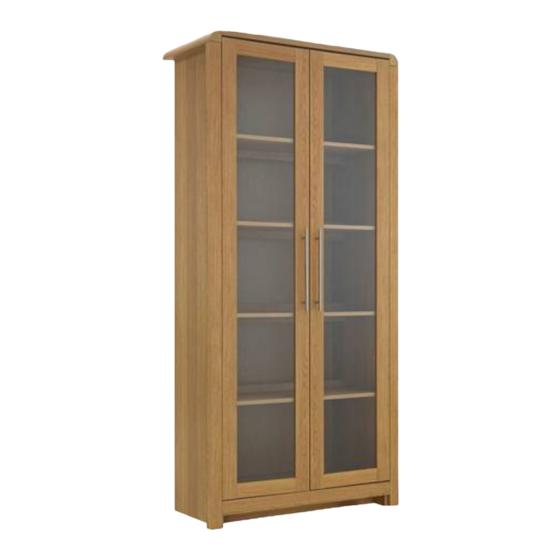

Elford - Full Display
Dimensions
Width - 90cm
Depth - 41cm
Height - 189.5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6403030
- Please keep for future reference
246/7854
224/9072
424/1889
BK02510 - Issue 1 - 29/05/2014
Advertisement
Table of Contents
Related Manuals for Heart of House Elford
Summary of Contents for Heart of House Elford
- Page 1 Elford - Full Display Assembly Instructions 246/7854 - Please keep for future reference 224/9072 424/1889 Dimensions Width - 90cm Depth - 41cm Height - 189.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline:...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Assemble on a soft level • We do not components and tools listed on surface to avoid damaging the recommend the pages 2 and 3.
- Page 3 If you have damaged or missing components, call the Components - Panels Argos = 0345 6403030 Customer Helpline: Please check you have all the panels listed below Display unit (189.5 x 90 x 41cm)
- Page 4 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 15mm Screw x 1 15mm Washer x 2 Wall strap x 1 Multi socket adapter x 1...
- Page 5 Assembly Instructions Step 1 Remove and replace handles Position the unit in the required position. The large bar handles are fi tted to the inside the unit, using a Philips screwdriver unscrew the 20mm handle screws in each handle and remove 20mm Handle screw both the 20mm handle Philips screwdriver...
- Page 6 Assembly Instructions Step 2 Connecting display lights a: The display light is fi xed to the light pelmet inside the display cabinet. Push the the fi tting on the end of the cable through the hole in the back panel. connection from display light b: Connect the socket on the dispaly light into the...
- Page 7 Assembly Instructions Step 3 Fixing to wall It is recommended that the unit is fi xed to a wall Fix wall strap to the back of the unit using 15mm screw 15mm washer Warning: The Back Panel 15mm screw Unit Top is for fi...
- Page 8 Customer Helpline: If you need help or have damaged or missing parts, call the Argos = 0345 6403030...
