Summary of Contents for Heart of House Somersham 404/6895

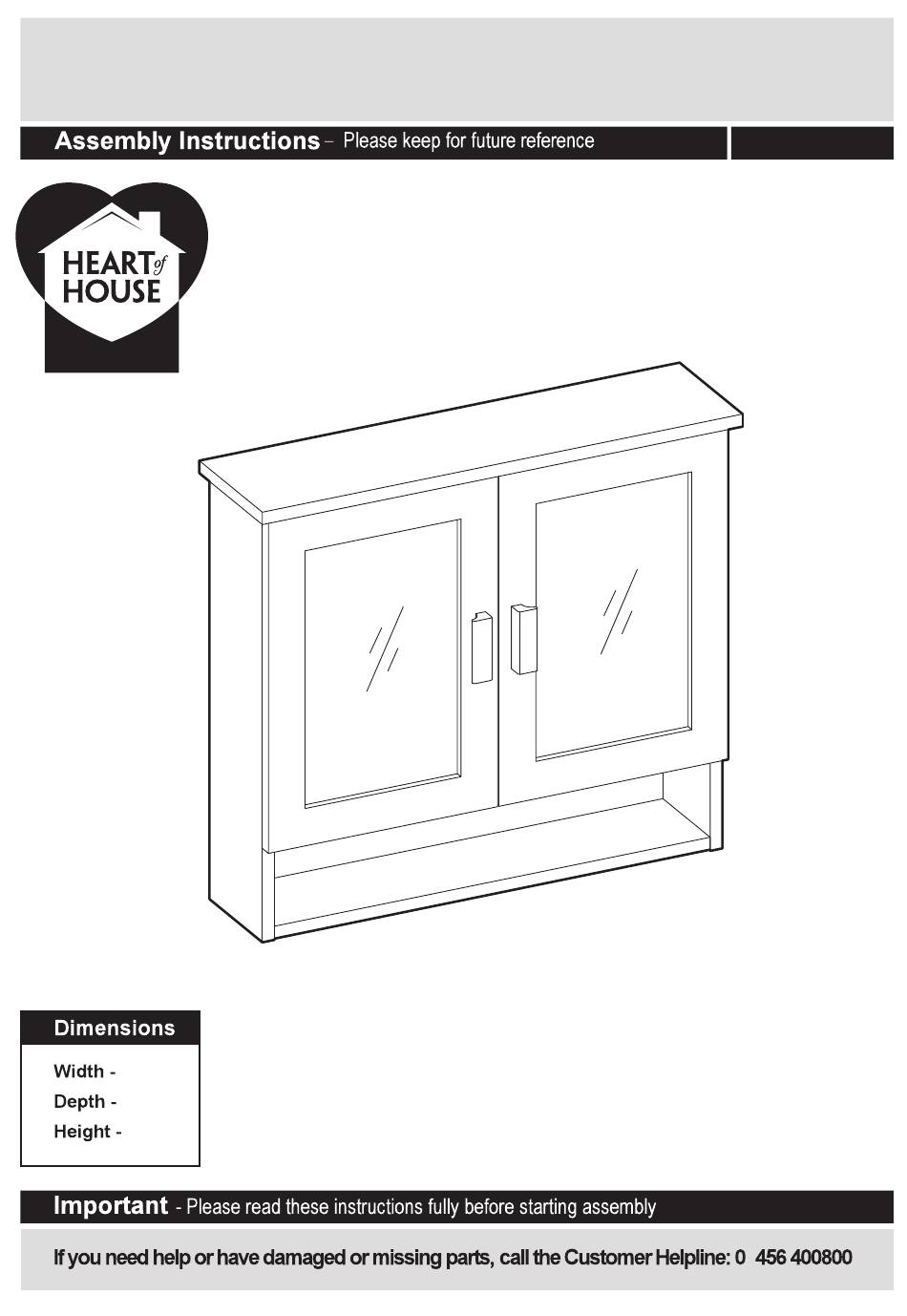

- Page 1 Somersham Oak Bathroom Wall Cabinet 404/6895 59cm 15.5cm 53cm Issue 1 - 03/16/15...
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:03456 400800 Please check you have all the panels listed below Left side panel Bottom panel Right side panel Shelf Top panel Adjustable shelf Back panel 8 Back rail Door panel x 2...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more fittings may be supplied than are required. Locking Pin x 4 Locking Nut x 4 Hinge x 4 Wooden handle x 2 Metal Support x 4... - Page 5 Assembly Instructions Step 1 Fitting locking pin Screw 4 x locking pin into top panel , left side panel right side panel Step 8 Step 2 Assembling side panel NOTE:It would be useful to ask someone to help you at this stage. Insert wooden dowel to bottom panel...
- Page 6 Assembly Instructions Step 3 Assembling back panel and top panel NOTE:It would be useful to ask someone to help you at this stage. Insert wooden dowels to lelf side panel and right side panel Slide down back panel along grooves in lelf side panel and right side panel .
- Page 7 Assembly Instructions Step 8 Step 5 Assembling door panel NOTE:It would be useful to ask someone to help you at this stage. Use 12mm screws to fix hinges onto door panel Use 30mm screws to fix handle onto door. Carefully attach door panel to the unit by fixing hinge onto side panel with 12mm screws Adjust the door up or down, left or...
- Page 8 Assembly Instructions Step 8 Step 6 Finishing the unit NOTE:It would be useful to ask someone to help you at this stage. Use cam caps to cover the visible cams as shown. Use screw caps to cover the visible screws as shown. Use screw covers to cover the visible screws of door panel as...
-
Page 9: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit. -
Page 10: Safety Warning Information
SAFETY WARNING INFORMATION BS7449 : 1991 404/6895(D) Keep these instructions for future use: Catalogue Number: Manufacture date: Apr. 23th, 2015 Retailer: Argos Retailer address: 489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes WARNINGS Bucks, MK9 2NW *Do not place very hot or very cold items against or in close proximity to glass surface unless an adequately This unit contains film backed...
