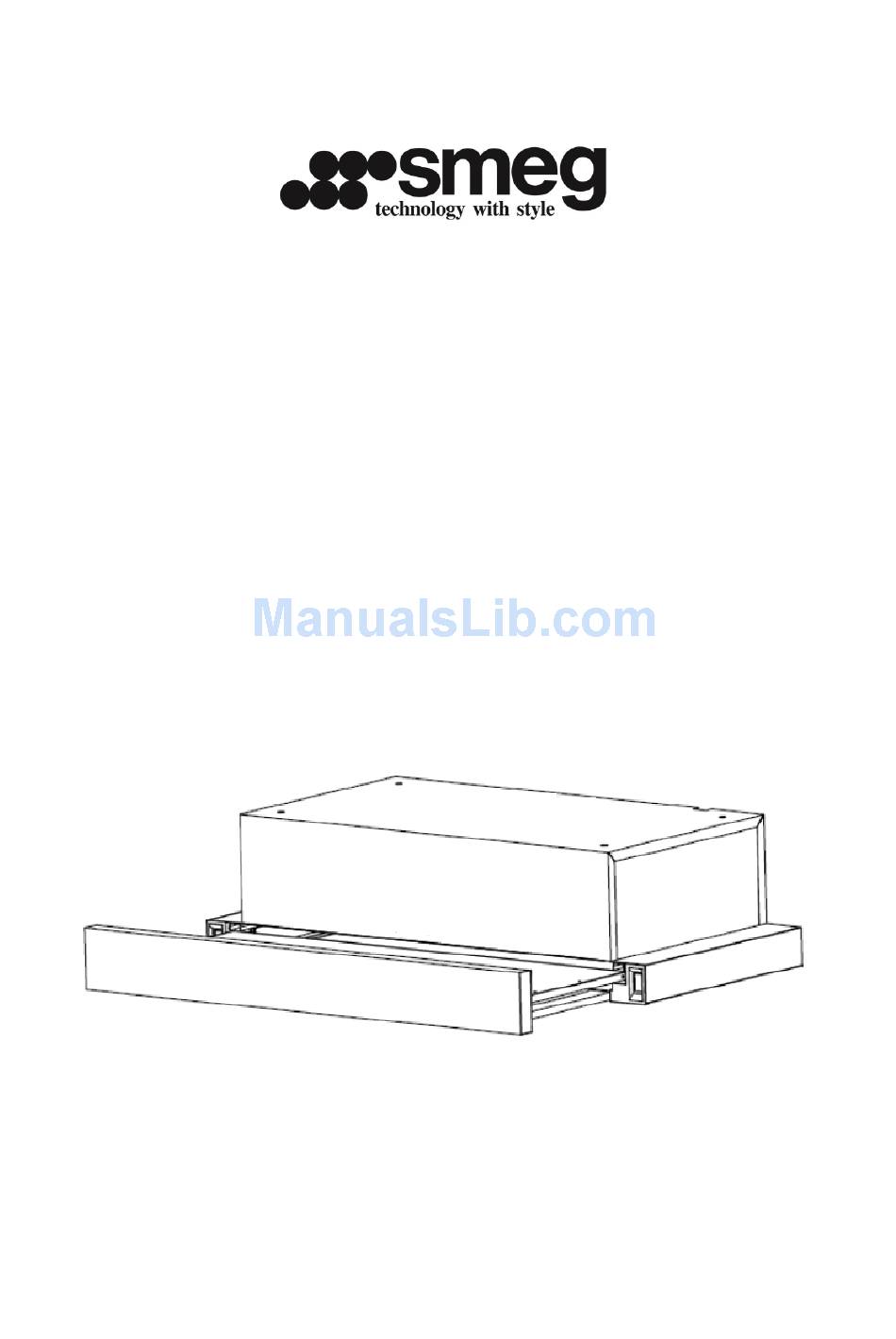

- Page 1 USER MANUAL FOR SAH461SS SAH462SS SAH491SS SAH492SS CONTENT …………………………………………………………GENERAL...
-
Page 2: Table Of Contents
…………………………………………………………SAFETY PRECAUTION …………………………………………………………WARNING!! ………………………………………………………….INSTALLATION INSTRUCTIONS ………………………………………………………….ATTENTION ………………………………………………………….OPERATION ………………………………………………………….USE AND MAINTENANCE …………………………………………………………………………….……WARRANTY 1. GENERAL A) Carefully read the following important information regarding installation safety and maintenance before using the hood. Keep this information booklet accessible for further reference. -
Page 3: Safety Precaution
2. SAFETY PRECAUTION A) Make sure the room is properly ventilated when using the hood with gas appliances or open fires burning B) The hood will not function correctly in negative air flow C) Provide adequate ventilation in the environment for a safe operation for the cooker hood. D) Follow the local laws and regulation applicable for external air evacuation E) The extracted air must not be routed into a duct used to discharge fumes of gas operated appliances... -
Page 4: Installation Instructions
RECYCLING hood (recycling of the filtered air) The MINIMUM distance between the cooker and the lower part of the hood must be 650mm. This is as per regulation. If installed at a height greater than 750mm the hood may not perform as it is designed. - Page 5 4.2 To install onto the wall drill 4 holes of Ø8mm on a suitable place according with the Centre distance of hole in the back of the cooker hood. 4.3 Insert the wall plugs the holes. 4.4 Insert the screws into the wall plugs and screws 4.5 Put up the cooker hood onto the screws and tighten 4.6 Put the one way valve onto the cooker hood.
- Page 6 SAH461SS SAH491SS: DIMENSIONAL DRAWING 60CM DIMENSIONAL DRAWING 90CM...
-
Page 7: Use And Maintenance
6. OPERATION 6.1 Connect the plug into the power. 6.3Push the switch ① into “I”, the lamp is on; push into “0”, the lamp is off. 6.4Push the switch ②into “I、 II、 III”, the motor will be on “low、 mid、 high”(three speeds) push into “0”, the motor will be off. - Page 8 If the appliance is not in use, please turn off. Do not use the range hood if it is damaged.. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Don’t immerse the appliance in liquid.
