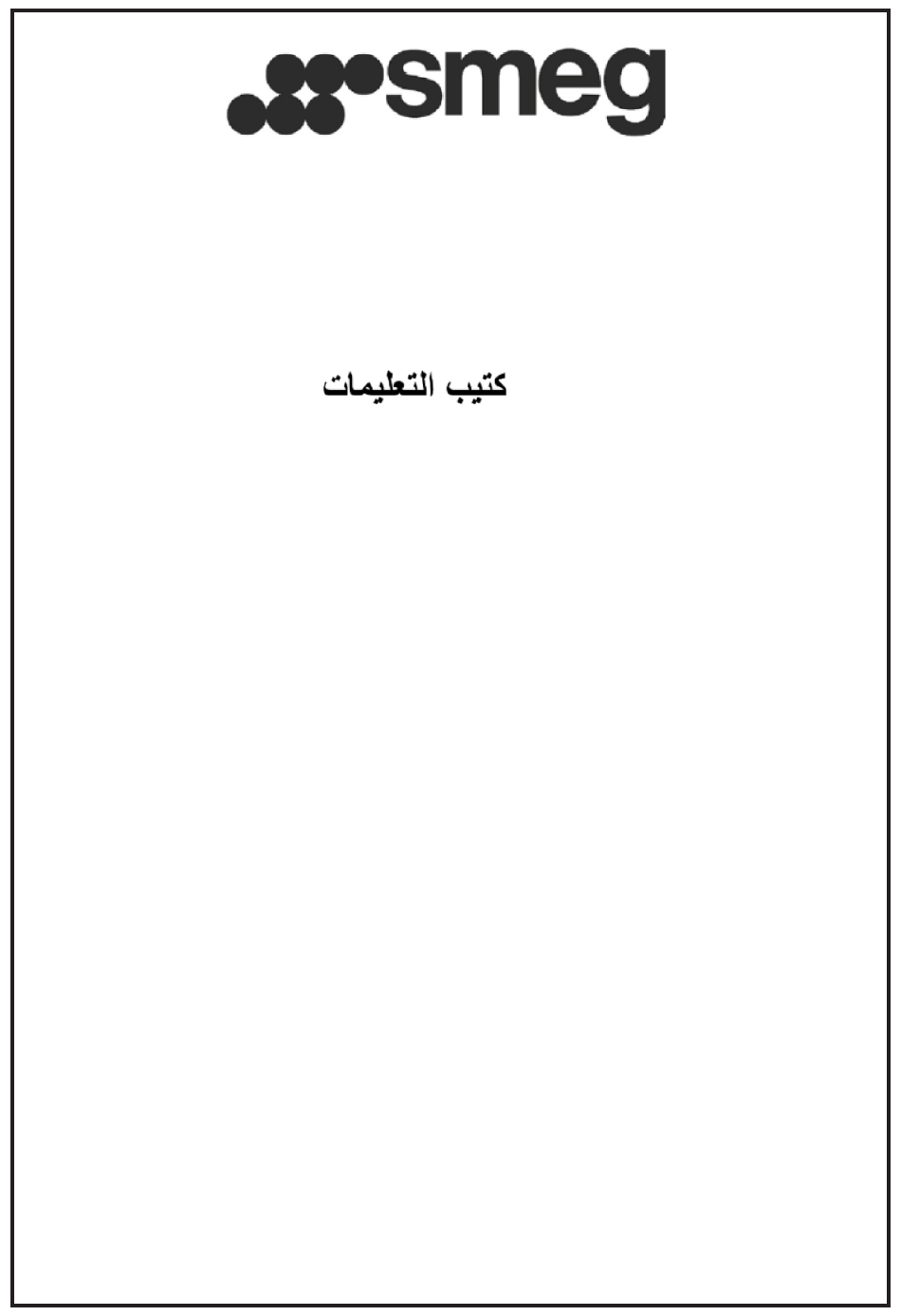

- Page 1 Libretto di Istruzioni (IT) Instruction booklet (EN) (AR) Mode d’emploi (FR) Bedienungsanleitung (DE) Instruktionsvejledning (DA) Manual de instrucciones (ES) Instrukcja (PL) Manual de lnstruções (PT) Instructiehandleiding (NL) Bruksanvisning (NO) Руководство по эксплуатации (RU) Instruktionshandbo (SV) Ohjekirja (FI)
-
Page 2: Installation
• The manufacturer will not be held liable for damage caused by installation that is incorrect or not up to standard. • We recommend that all installation and adjustment procedures are carried out by trained personnel. • When the hood is taken out of its packaging inspect it to ensure that it is intact. If the product is damaged, do not use it and contact the Smeg assistance service. • Before making any connections, make sure that the mains voltage corresponds to the voltage shown on the label located inside the appliance. -
Page 3: Maintenance
been given instructions on safe use of the appliance and are familiar with the dangers it entails. • Children must be supervised to ensure that they do not play with the appliance • “ATTENTION: The accessible parts can become very hot if they are used with cooking equipment."... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS: The hood is supplied with all the accessories necessary for its installation. The minimum distance between the lower surface of the hood and the hob must be at least 750 mm for gas hobs and 650mm for electric hobs (Fig. 1 ). If the motor inlet is equipped with a non-return valve for fumes, make sure it can open and close freely. For easy installation it is recommended to follow the procedures described below: 1) The hood must be centred with respect to the hob surface. 2) There are different installation procedures depending on the hood model. Choose one of the following fixing systems (Fig.2): a) 2 levelling hooks that fasten on with the supplied... - Page 5 Leave the motor inlet free. Install the active carbon filters as shown on page 8. If the hood is not supplied with an active carbon filter you must buy it separately at your nearest authorised Smeg dealer. For some models there is a standard set of fittings (fig.5) to be fixed to the wall by expansion plugs at a suitable height in order to channel the airflow in correspondence with the flue slits. Insert laterally the...
- Page 6 USER INSTRUCTIONS: • CONTROLS UNIT For an optimal and efficient use of the product it is advisable to start the hood a few minutes before you start cooking and to keep it on for at least 15min after you have finished cooking or until steam and odours have completely disappeared. To start the hood, identify the command type of the hood and then follow the relative indications: SLIDER: Slider (A) lighting ON/OFF Slider (B) with four positions: Pos.0: Motor OFF Pos1/2/3: ON/Speed selection ELECTRO-MECHANICAL PUSHBUTTON PANEL: Lights ON/OFF key Motor OFF key Power key/hood speed selection KNOBS: - Knob (A): lighting ON/OFF (0-1) - Knob (B): 0 Motor OFF position 1-2-3 Hood speed selection Start timed intensive speed Timed intensive speed: The timed intensive function is that mode of service for which the hood, for a limited time, works at its maximum capacity. The timed intensive speed of the hood is activated by turning the knob (B) clockwise from position 3. Once the timed intensive speed is activated, the knob automatically turns to position 3. The intensive speed can be switched off by turning the control (B) counter-clockwise again. When the intensive...
- Page 7 speed timer has expired it returns to the third speed by default. 2-DIGIT 10-KEY CAPACITIVE PUSHBUTTON BOARD: Control panel Function Display Turns the suction motor on / off. Displays the set speed Decreases the operation speed. Displays the set speed Increases the operation speed. Displays the set speed Activates the Intensive speed from any speed even with the Displays alternately HI motor off, this speed is timed.
- Page 8 Keyboard lock command: you can lock the keyboard, for example, to clean the glass surface, when the Hood has the motor and lights switched off. By pressing key D for about 5 seconds, you can enable or disable the keyboard lock which is always confirmed with: “- -” Keyboard lock On. 1-DIGIT CAPACITIVE PUSHBUTTON BOARD: CONTROL PANEL FUNCTION DISPLAY SWITCH THE SUCTION MOTOR ON / OFF.
-
Page 9: Optional Functions
the intensive speed timer has expired it returns to the third speed by default. OPTIONAL FUNCTIONS: - TIMED AUTO POWER OFF: By pressing one of the motor speed keys (2-3), twice, you will activate the function "Timed Auto Power Off" which turns off both lights and hood motor after 10 mins. Activating this function is demonstrated by the LED immediately above the pressed button flashing. - FILTER CLEANING SIGNAL: the simultaneous flashing of the 4 LEDs, (programmed to run every 200h of operation), is to indicate the need to clean /replace the filters. By pressing the Reset button , the 200h time can be reset. N.B. Accidentally pressing the reset button before the 200h operation cycle does not result in the filter being reset in the filter cleaning memory. It is good practice to clean the grease filters and replace the active carbon filters every 200h of operation. FUNCTIONS AND MAINTENANCE: Before performing any maintenance and/or cleaning always disconnect the hood from the power supply Regular cleaning guarantees good operation and a long appliance service life. The grease filters and filter hoods with carbon filters require special care. N.B. The accumulation of grease inside the filter panels as well as affecting the performance of the extractor, can also create a fire hazard. EXTERNAL CLEANING: The external and internal cleaning of the hood must be carried out using a damp cloth and mild liquid detergent. Completely avoid the use of solvents or abrasives. It is recommended to use specific products, following the instructions on the product. It is advisable to clean the hood by always rubbing the steel in the direction of the surface finish. - Page 11 METAL FILTER CLEANING: Particular attention should be paid to the metal grease filter panels. The accumulation of grease inside the filter panels as well as affecting the performance of the extractor, can also create a fire hazard. In order to minimise the risk of fire, the filters must be cleaned regularly, at least once a month or with greater frequency in the case of a particularly intensive use of the appliance. After identifying your hood model, remove one filter at a time as shown in the next figure. Thoroughly wash filters with a mild detergent either by hand...
-
Page 12: Replacement Lamps
In the case of a cartridge filter blocked with a bracket and threaded knob, (fig. C), unscrew the knob, remove the locking bracket and then remove the active carbon filter. Replace the carbon filters and the metal non-grease filters by performing the operations in inverse order Note: only the electronically-controlled hood can the filter cleaning warning function be reset by pressing the specific filter reset button REPLACEMENT LAMPS: Before performing any maintenance and/or cleaning always disconnect the hood from the power supply Depending on the model, the hood can be equipped with different types of lighting, with LED or halogen lamps: a) WITH LED LIGHTS: The LED lights guarantee a significant number of hours of operation. Should it be replace due to being worn or faulty, the entire spotlight must be replaced. In this case, contact qualified Technical Support. This appliance is equipped with Class 1M white LED light, in accordance with EN standard 60825-1:... -
Page 13: Weee Disposal
WEEE DISPOSAL: Pursuant to art. 26 of the Italian Legislative Decree dated 14 March 2014, no. 49 "Implementation of directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)" The crossed out wheeled bin symbol on the equipment or its packaging indicates that the product at the end of its useful life must be collected separately from other waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specializing in separate collection of waste electrical and electronic equipment. As an alternative to autonomous disposal, the device you want to dispose of can be given back to the retailer at the time of purchasing new similar equipment. At electronic product retailers with a sales area of at least 400 m2, it is possible to return, without any obligation to buy, electronic products to dispose of with dimensions below 25 cm free of charge. The separate collection for the deliver of the equipment to recycling, to treatment and environmentally compatible disposal helps avoid possible negative effects on the environment and health and promotes the reuse and/or recycling of materials that make up the equipment.
