Kyoritsu Electrical Instruments Works 8124 Instruction Manual

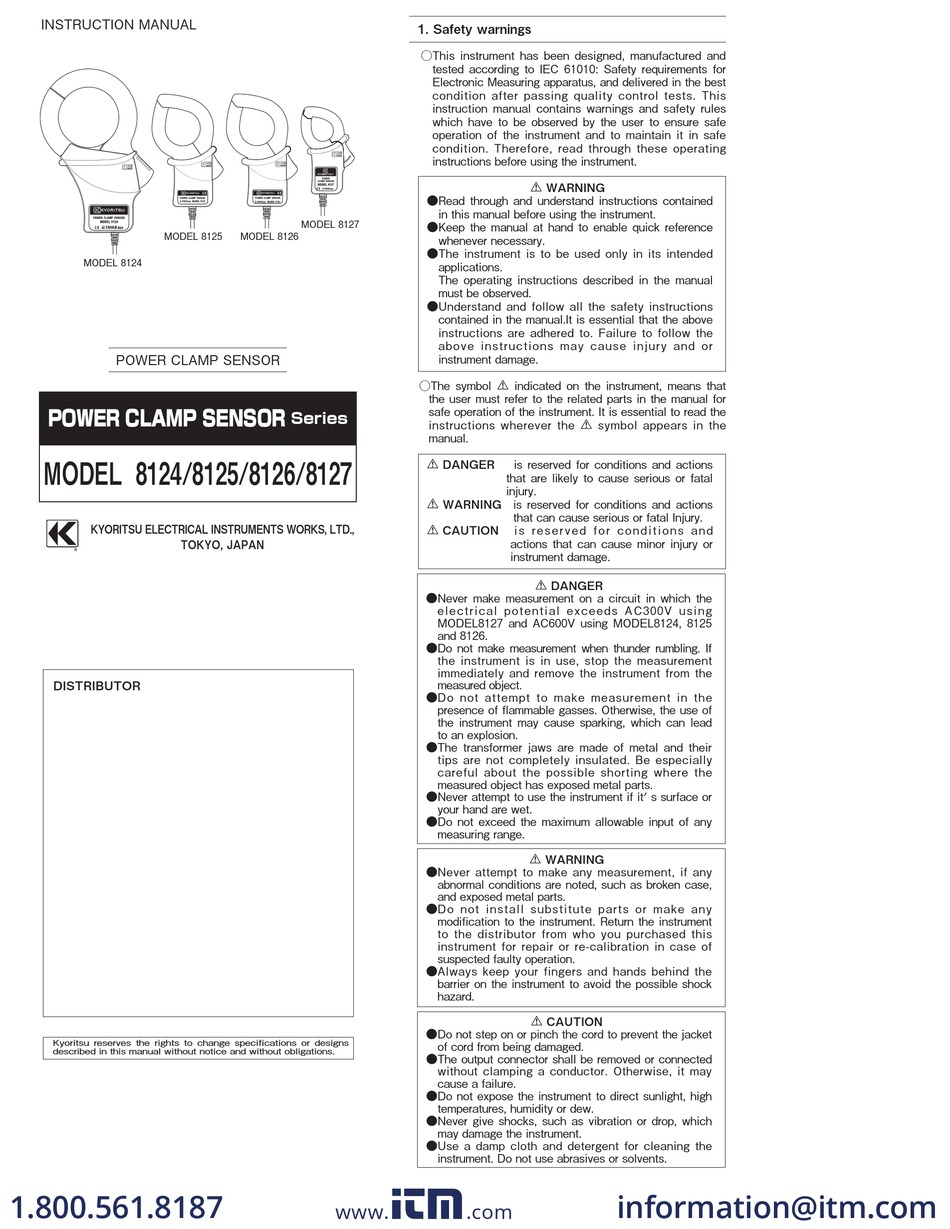

INSTRUCTION MANUAL
MODEL 8125
MODEL 8124

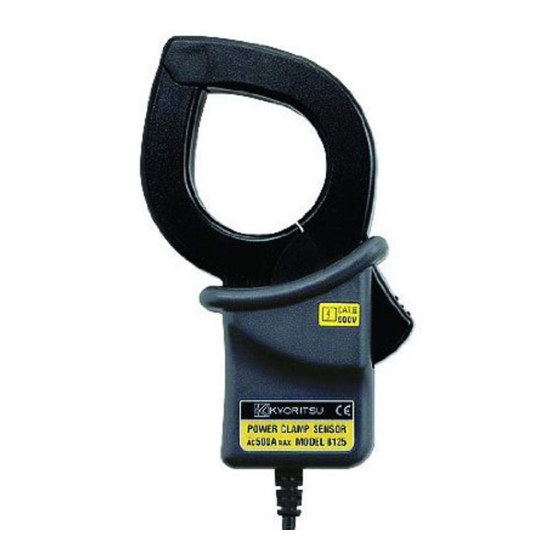

POWER CLAMP SENSOR
POWER CLAMP SENSOR
MODEL 8124/8125/8126/8127
KYORITSU ELECTRICAL INSTRUMENTS WORKS, LTD.,
TOKYO, JAPAN
DISTRIBUTOR
Kyoritsu reserves the rights to change specifications or designs
described in this manual without notice and without obligations.
1.800.561.8187
1. Safety warnings
○ T his instrument has been designed, manufactured and
MODEL 8127
MODEL 8126
○The symbol # indicated on the instrument, means that
Series
www.
tested according to IEC 61010: Safety requirements for
Electronic Measuring apparatus, and delivered in the best
condition after passing quality control tests. This
instruction manual contains warnings and safety rules
which have to be observed by the user to ensure safe
operation of the instrument and to maintain it in safe
condition. Therefore, read through these operating
instructions before using the instrument.
# WARNING
● R ead through and understand instructions contained
in this manual before using the instrument.
● K eep the manual at hand to enable quick reference
whenever necessary.
● T he instrument is to be used only in its intended
applications.
T he operating instructions described in the manual
must be observed.
● U nderstand and follow all the safety instructions
contained in the manual.It is essential that the above
instructions are adhered to. Failure to follow the
a b o v e i n s t r u c t i o n s m a y c a u s e i n j u r y a n d o r
instrument damage.
the user must refer to the related parts in the manual for
safe operation of the instrument. It is essential to read the
instructions wherever the # symbol appears in the
manual.
# DANGER is reserved for conditions and actions
that are likely to cause serious or fatal
injury.
# WARNING i s reserved for conditions and actions
that can cause serious or fatal Injury.
# CAUTION i s r e s e r v e d f o r c o n d i t i o n s a n d
actions that can cause minor injury or
instrument damage.
# DANGER
● N ever make measurement on a circuit in which the
e l e c t r i c a l p o t e n t i a l e x c e e d s A C300V u s i n g
MODEL8127 and AC600V using MODEL8124, 8125
and 8126.
● D o not make measurement when thunder rumbling. If
the instrument is in use, stop the measurement
immediately and remove the instrument from the
measured object.
● D o not attempt to make measurement in the
presence of flammable gasses. Otherwise, the use of
the instrument may cause sparking, which can lead
to an explosion.
● T he transformer jaws are made of metal and their
tips are not completely insulated. Be especially
careful about the possible shorting where the
measured object has exposed metal parts.
● N ever attempt to use the instrument if it' s surface or
your hand are wet.
● D o not exceed the maximum allowable input of any
measuring range.
# WARNING
● N ever attempt to make any measurement, if any
abnormal conditions are noted, such as broken case,
and exposed metal parts.
● D o n o t i n s t a l l s u b s t i t u t e p a r t s o r m a k e a n y
modification to the instrument. Return the instrument
to the distributor from who you purchased this
instrument for repair or re-calibration in case of
suspected faulty operation.
● A lways keep your fingers and hands behind the
barrier on the instrument to avoid the possible shock
hazard.
# CAUTION
● D o not step on or pinch the cord to prevent the jacket
of cord from being damaged.
● T he output connector shall be removed or connected
without clamping a conductor. Otherwise, it may
cause a failure.
● D o not expose the instrument to direct sunlight, high
temperatures, humidity or dew.
● N ever give shocks, such as vibration or drop, which
may damage the instrument.
● U se a damp cloth and detergent for cleaning the
instrument. Do not use abrasives or solvents.
