Instruction Manual for Model 8112 BNC
INTRODUCTION

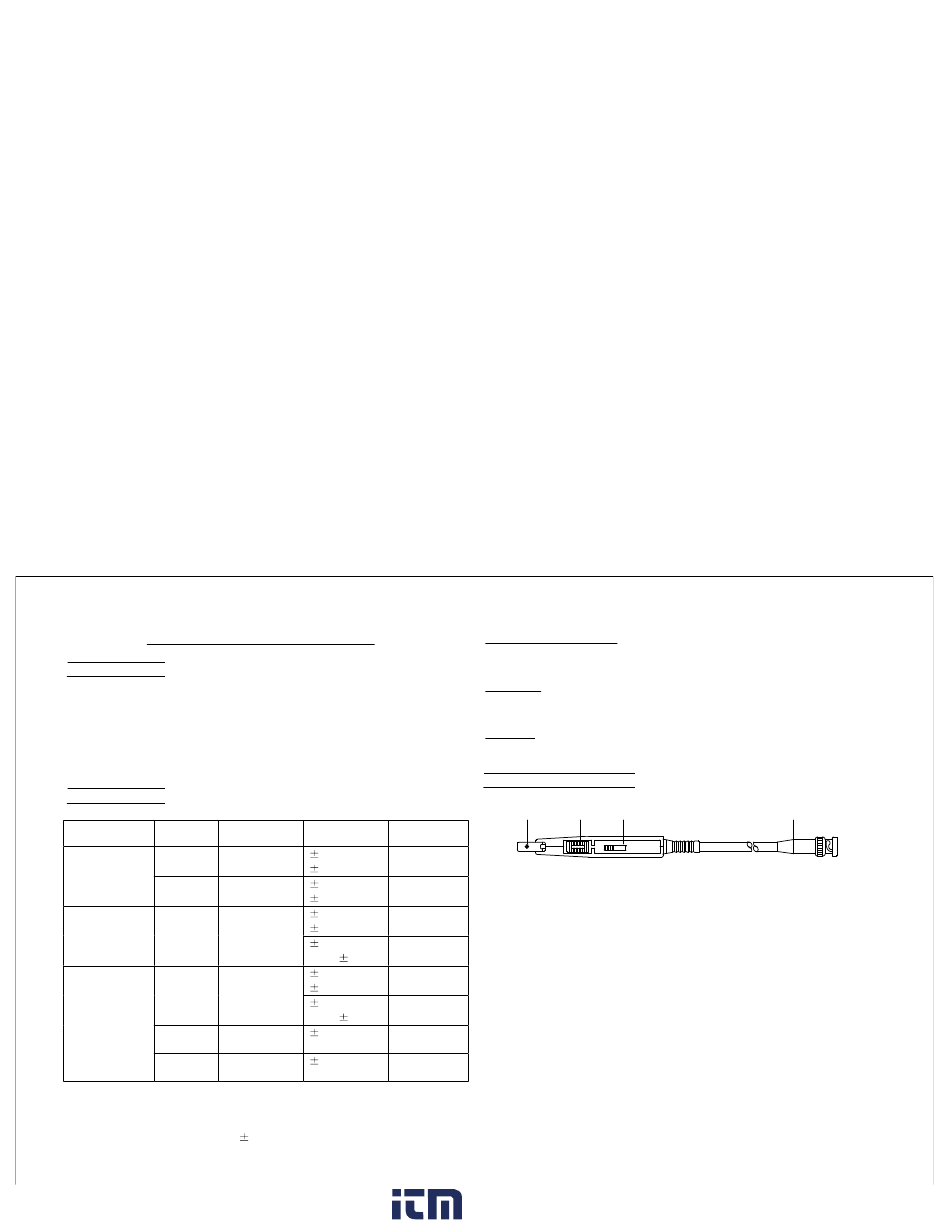

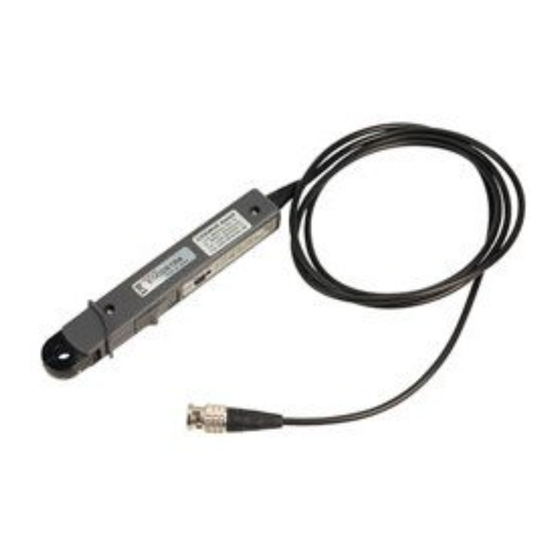

Model 8112BNC is a small sized, high sensitivity clamp – on AC current probe
designed for use with an oscilloscope. The differential coil incorporated permits
a wide range of current measurements with the minimum effect of the external
magnetic field. Jaws can be opened or closed simply by sliding the knob.
Three current ranges can be switch selected.
SPECIFICATIONS
Range Switch
Input
Position
0-0.5A AC
200mA/200mV
(1mA/mV)
0-1A AC
2A/200mV
0-20A AC
(10mA/mV)
0-20A AC
20A/200mV
(100mA/mV)
20-40A AC
40-80A AC
Output Impedance – 2k ohms
Frequency Characteristics – Within
1.800.561.8187
Frequency
Output Accuracy
2% of output
0-500mV AC 100Hz-1kHz
0.2mV
4% of output
0-1000mV AC 50Hz-10kHz
0.4mV
1% of output
40Hz-1kHz
0.2mV
0-2000mV AC
1.5% of
1kHz-10kHz
output 0.2mV
1% of output
40Hz-1kHz
0.1mV
0-200mV AC
1.5% of
1kHz-10kHz
output 0.2mV
200mV-400mV 2.5% of
50Hz-10kHz
AC
output
2.5% of
400mV-800mV
100Hz-10kHz
AC
output
3dB at 30Hz to 100kHz
www.
Size of conductor under test
8mm maximum
Output cord
Approx. 1.5mm long coaxial cable with a connector
Accessory
Pouch
MEASUREMENT METHOD
(1) Jaws (2) Knob
Range
(1) Connect the connector (4) of the adaptor to the vertical input terminal
of the oscilloscope.
(2) Slide the knob (2) backward to open the jaws and clamp on a current
carrying conductor (refer to Fig.2). In example (a), output voltage
selected by the range selector will be obtained. In case of (b), output voltage
twice the value selected by the range selector will be obtained since two
turns of the conductor is clamped as illustrated.
(3) Arrow mark on the jaws indicates polarity relative to the current flowing
through the conductor. When the current flows in the arrowed direction, output
will be positive (+).
(4) Select a desired range according to the current flowing through the conductor.
(5) Where the current waveform is affected by noise, clip the earth lead onto
the earth terminal of the probe and connect it to the circuit under test.
.com
(3) Range Selector (4) Connector
Fig.1
