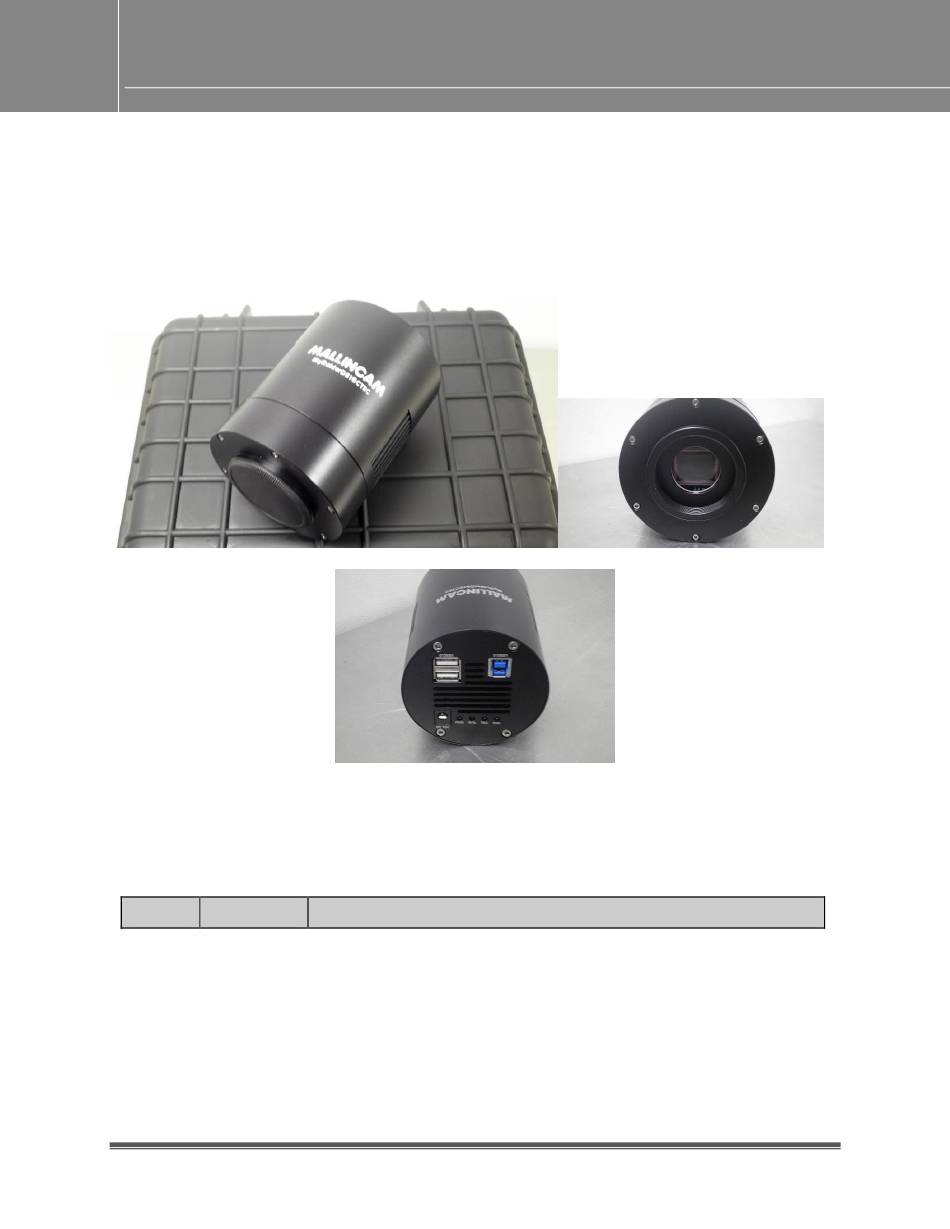

Page 1 Revision Description SkyRaider DS16C/M TEC User Manual This document will quickly introduce you to the wonders of the MallinCam SkyRaider DS16C/M TEC Camera. It will include instructions on how to install the Software and Drivers and how connect the SkyRaider to your computer along with explanations of the camera’s major settings.
Page 2 Revision Sheet 03/31/2019 Template Creation SkyRaider DS16C/M TEC User Manual Page ii...
Page 3: Table Of Contents
SkyRaider DS16C/M TEC User Manual July 14, 2018 Table of Contents Contents Revision History ............................. i Table of Contents .......................... 1 Introduction ..........................6 The Contents of the DS16C/M TEC Package ..............7 Specifications: ............................7 System Requirements: ........................... 8 In the Box...............................
Page 4 SkyRaider DS16C/M TEC User Manual July 14, 2018 More Detailed Work-Flow Procedures .................. 31 Quick Workflow for MallincamSky ....................31 Detailed Workflow of Video Imaging Planetary Objects ..............35 Detailed Workflow of Video Imaging Deep Sky Objects ..............41 The SkyRaider Software Controls ..................51 Top Menu Line .........................
Page 5 SkyRaider DS16C/M TEC User Manual July 14, 2018 Image ..............................75 Mode ..............................75 Adjust ............................... 76 Rotate ............................... 81 Crop ..............................82 Scale… ............................. 83 Histogram ............................84 Process ..............................86 Image Stacking ..........................89 Options ..............................91 Window ..............................97 Close All ............................
Page 6 Sharpen ........................... 142 Misc ............................142 Preset ............................142 Installing Optional Software ....................145 Installing DirectShow Driver ....................146 Installing Mallincam ASCOM Driver .................. 148 Appendix ..........................150 Imaging in SharpCap ......................150 Imaging in MaximDL ......................153 AstroToaster and MallinamSky.................... 155 AstroLive USB and the SkyRaiderDS16CTEC ..............
Page 7 SkyRaider DS16C/M TEC User Manual July 14, 2018 How Do I … ..........................167 How do I get rid of the Green Exposure Rectangle? ................167 How do I Select a part of the Image and Zoom in? ................167 How do I automatically save 1 image every 30 seconds? ..............
Page 8: Introduction
This cooling system is unique to MallinCam and not found on other astronomical imaging cameras. Since the Panasonic 16MP class 1 CMOS sensor of the MallinCam DS16cTEC / DS16mTEC is cooled via convection, thermal shock to it and its associated circuitry is reduced.
Page 9: The Contents Of The Ds16C/M Tec Package
SkyRaider DS16C/M TEC User Manual July 14, 2018 The Contents of the DS16C/M TEC Package Specifications: • PC Win XP, Win7, Win 8, Win 10. Mac. • Convection Cooling • Refrigeration Chamber • Vacuumed Sealed Chamber • Linear Cooling • Built-in Heater for Optical Window Dew Removal and Chamber Temperature Control •...
Page 10: System Requirements
➢ 12 volts dc, AC power supply. High Grade Carrying Case. ➢ MallinCam Software MallinCam SKY ➢ Updated Software and Drivers can be down-loaded at the Software Downloads Window located in the Support Tab at www.mallincam.net SkyRaider DS16C/M TEC User Manual Page 8...
Page 11: Installing Driver And Software
Installing the Software Visit the Software Downloads Page in the Support Tab located on the website: Step 1 www.mallincam.net Select the Blue Click Here Button to download the Drivers and MallincamSky Step 2 Software for a Windows PC (there is a Click Here that contains a non-stacking version along with ASCOM drivers).
Page 12 SkyRaider DS16C/M TEC User Manual July 14, 2018 Place your mouse on the zipped file, Right-Click to pop-up an Action Window, Step 3 and choose Extract All … Just Click on the Extract button, when the next Window pops-up. Windows should now open up the actual folder that contains the software to install.
Page 13 SkyRaider DS16C/M TEC User Manual July 14, 2018 The installation program now wants to know where you would like to install the software. Either choose your own location or select the default. Click on Install to proceed. Step 7 Windows may again ask for permission to install the device software. Step 8 Click on Install to accept.
Page 14 SkyRaider DS16C/M TEC User Manual July 14, 2018 Optionally (see Installing the ASCOM Driver for more in-depth details), Double- Step Click on ASCOM DRIVER folder, then Double-Click on the ASCOMMallincamSetup program and follow the instructions to install the ASCOM driver. Step 11 Optionally, (see Installing the DIRECTSHOW Driver for more in-depth details), Double-Click on the DIRECTSHOW DRIVER Folder to open it up, then Double-Click...
Page 15: Connecting The Skyraider
SkyRaider DS16C/M TEC User Manual July 14, 2018 Connecting the SkyRaider Connecting the SkyRaider-DS16C/MTEC to your Computer Un-screw the plastic dust cover from the front of the SkyRaider-DS16C/MTEC camera (place it back in the box for safe keeping). Screw in the T2 -2” eyepiece adapter ( to the front M 42 x 0.75 mm) of the SkyRaider-DS16C/MTEC.
Page 16 SkyRaider DS16C/M TEC User Manual July 14, 2018 Connect 12V power plug to AC source and attach the 12V power cable to the camera. Attach the 5 metre USB 3.0 Cable from the back of the SkyRaider DS16C/MTEC to a free USB 3.0 (or USB 2.0) port on your computer. The SkyRaider DS16C/MTEC has some strict power and thru-put requirements, and not all computers are created equal.
Page 17 SkyRaider DS16C/M TEC User Manual July 14, 2018 Start the MallincamSky software program by double-clicking on its icon. You can determine if MallincamSky recognizes the camera (and thus the drivers) Hint by noticing the SkyRaiderDS16C/MTECC name in the Camera List Tab (see Chapter 3 for detailed instructions).
Page 18: Using The Usb 2.0 Ports On The Skyraider-Ds16C/Mtec
SkyRaider DS16C/M TEC User Manual July 14, 2018 Using the USB 2.0 Ports on the SkyRaider-DS16C/MTEC The USB 2.0 HUB on the SkyRaider-DS16C/MTEC can be used to connect with various accessories, such as a guide camera, filter wheel, or electronic focuser. This will allow you better management of your cables.
Page 19: Using Mallincamsky Software
SkyRaider DS16C/M TEC User Manual July 14, 2018 Using MallincamSky Software The MallincamSky Window ① ② ④ ⑤ ③ The MallincamSky Software Window is segmented into a few regions to make viewing and adjusting the SkyRaider camera easy and intuitive. ①...
Page 20: Skyraider Quick Setup And Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 SkyRaider Quick Setup and Pictorial Work-Flow A typical workflow when using the SkyRaider DS16C/M TEC with MallincamSky. Start Mallincam Deep Sky Object Planetary Start Trigger Video Mode to Image Mode then Take Dark Field...
Page 21: Live Stack Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Live Stack Pictorial Work-Flow A typical workflow when Live-Stacking with MallincamSky. Expose Object Choose and Activate Video Mode or Trigger Mode Live Stack Choose type of Stacking Adjust Image Save and Record SkyRaider DS16C/M TEC User Manual Page 19...
Page 22: Dark Field Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Dark Field Pictorial Work-Flow A typical workflow when taking a Dark Field with MallincamSky. Determine Maximum Exposure Choose and Activate Video Mode or Trigger Mode with Maximum Exposure Choose Quantity and Click Dark Field Capture to Take Check Enable Box...
Page 23: Flat Field Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Flat Field Pictorial Work-Flow Determine Flat Field Exposure Choose and Activate Video Mode or Trigger Mode with Maximum Exposure Required. Click on Loop Prepare Telescope Choose Quantity and Click for Flat Field on Capture to take Flats Check Enable Box Apply Flat Field...
Page 24: Histogram Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Histogram Pictorial Work-Flow A typical workflow when using the Histogram Command with MallincamSky. Expose Object Select Histogram Increase Left number Increase Right number or Move Left Bar in or Move Right Bar in Darkens Brightens Select Exposure...
Page 25: Roi Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 ROI Pictorial Work-Flow A typical workflow when using the ROI Command with MallincamSky. Expose Object Trigger Mode Video Mode Video Mode Trigger Mode SkyRaider DS16C/M TEC User Manual Page 23...
Page 26: Save Image Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Save Image Pictorial Work-Flow A typical workflow on how to Save an Image with MallincamSky. Expose Object SkyRaider DS16C/M TEC User Manual Page 24...
Page 27: Record Video Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Record Video Pictorial Work-Flow A typical workflow on how Record a Video with MallincamSky. Expose Object Video Mode to Image Enter File Location, Format, Options->Preferences… Prefix, Type, Number of Seconds Number of Videos, Time between each Video If No Time Limit Set SkyRaider DS16C/M TEC User Manual...
Page 28: Batch Record Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Batch Record Pictorial Work-Flow A typical workflow on how to Batch Record a series of Videos with a single Click. Expose Object Enter File Location, Format, Prefix, Type, Number of Seconds Number of Videos, Time between each Video Done SkyRaider DS16C/M TEC User Manual...
Page 29: Auto Capture Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Auto Capture Pictorial Work-Flow A typical workflow on how to Auto Capture a series of Images with a single Click. Expose Object Choose Exposure Time Enter File Location, Format, Prefix, Type, Capture Mode, Total number of Images from : Options/Preferences Done...
Page 30: Save Sequence Of Images Pictorial Work-Flow (Trigger Mode)
SkyRaider DS16C/M TEC User Manual July 14, 2018 Save Sequence of Images Pictorial Work-Flow (Trigger Mode) A typical workflow on an alternative method to Save a Sequence of Images with the Sequence Command in Trigger Mode with MallincamSky. Expose Object Stop Looping Choose Location Select Number...
Page 31: Digital Binning
SkyRaider DS16C/M TEC User Manual July 14, 2018 Digital Binning A typical workflow on applying Digital Binning. Choose a Method (usually Additive), now select a Binning Number from 1 (default) to 4. Notice the video window will decrease in size, so you may need to increase the Zoom factor. Choose Binning Method and Number Start Exposing SkyRaider DS16C/M TEC User Manual...
Page 32: Sharpen Pictorial Work-Flow
SkyRaider DS16C/M TEC User Manual July 14, 2018 Sharpen Pictorial Work-Flow Determine Flat Field Exposure Choose and Activate Video Mode or Trigger Mode with Maximum Exposure Select Sharpen Choose percentage with Value slider SkyRaider DS16C/M TEC User Manual Page 30...
Page 33: More Detailed Work-Flow Procedures
Imaging Workflow, and finally a more detailed section on Workflow on Imaging Deep Sky Objects. The Mallincam SkyRaider DS16C/M TEC Cameras provide a processing technique called Dark Field Correction (see the Section Dark Field Explanation in the Appendix for a complete description of Dark Field Correction).
Page 34 SkyRaider DS16C/M TEC User Manual July 14, 2018 Step 4 Select an Exposure Time for Dark Field Correction With the Camera Tab selected on the Left SideBar, Left-Click on the Capture & Resolution. The Exposure & Gain Window will expand select the exposure time for the Dark Field. You must determine what you believe will be the maximum exposure for this session.
Page 35 SkyRaider DS16C/M TEC User Manual July 14, 2018 Once the Dark Fields have been taken, you have the option of saving (so you can use then again on another night) them with the Export button in the Dark Field Correction Tab. You can import previously saved Dark Fields by using the Import Button.
Page 36 SkyRaider DS16C/M TEC User Manual July 14, 2018 Step 8 Adjust the Parameters Choose a parameter from the Camera Tab on the Left SideBar and see what you can adjust, and how it affects your image. You will have to wait until the next image is exposed to see how your adjustments look (keep an eye at the bottom of the screen to see when the next adjusted image will appear).
Page 37: Detailed Workflow Of Video Imaging Planetary Objects
SkyRaider DS16C/M TEC User Manual July 14, 2018 Detailed Workflow of Video Imaging Planetary Objects The following instructions will guide you in setting up your SkyRaider camera for imaging Solar, Lunar, or Planetary Objects. For planetary objects, the exposure setting will be very small (as the objects themselves are usually very bright).
Page 38 SkyRaider DS16C/M TEC User Manual July 14, 2018 Activate TEC from the Cooling tab to cool camera (set Step 3 about 30 below ambient temperature). Have your telescope pointed to the Planetary Object of interest, and it is Step 4 recommended that you use a Barlow Lens attached to your Telescope to provide a “Larger (Longer Focal Length)”...
Page 39 SkyRaider DS16C/M TEC User Manual July 14, 2018 Since you have chosen a High Resolution and a Large Bit Count, this will slow down the Frames per Second rate at which the MallincamSky can process the images (huge amounts of data moving through the system). We will make an adjustment in a later step that will increase the Frames per Second rate.
Page 40 SkyRaider DS16C/M TEC User Manual July 14, 2018 So, let’s get started: ➢ Set your exposure to a small value, say 10ms as a starting point (we are using a small time, but the actual exposure amount depends upon the f/ratio, size of telescope, filters, seeing conditions, ...).
Page 41 SkyRaider DS16C/M TEC User Manual July 14, 2018 Read the appropriate section in the User Manual (it is great reading, if I do say so Hint myself) to obtain more information what each particular setting does in the White Balance and Color Adjustment Tabs in MallincamSky. There is no precise value for every user, as we all use different equipment.
Page 42 SkyRaider DS16C/M TEC User Manual July 14, 2018 For any Exposure over 3 seconds (3000 ms), you can determine how long your Hint camera’s exposure time has left by looking at the bottom of the MallincamSky’s Window, near the middle. It will provide a real-time indicator that informs you of the time used of the exposure time that you had previously set.
Page 43: Detailed Workflow Of Video Imaging Deep Sky Objects
SkyRaider DS16C/M TEC User Manual July 14, 2018 Detailed Workflow of Video Imaging Deep Sky Objects The following instruction will guide you in setting up your SkyRaider DS16C/M TEC camera for imaging Deep Sky Objects (DSO). For Deep Sky Objects, the exposure setting will be very large (as the objects themselves are usually very dim).
Page 44 SkyRaider DS16C/M TEC User Manual July 14, 2018 Activate TEC from the Cooling tab to cool camera (set Step 3 about 30 below ambient temperature). Since you will want to “push” the capabilities of the SkyRaider in displaying the Deep Sky Object, you will require the highest resolution that your particular SkyRaider can produce, along with the largest bits of data (for color or shades of Back and White) for each pixel that the SkyRaider is able to produce.
Page 45 SkyRaider DS16C/M TEC User Manual July 14, 2018 If you are going to be saving and processing images taken with the SkyRaider, Step 5 you may want to increase the Bit depth to the highest value your particular SkyRaider camera supports. Due to the Large Exposure times you will be using in imaging Deep Sky Objects, the SkyRaider (in fact every camera no matter what the cost) will sometimes display noise such as, warm pixels and amp glow.
Page 46 SkyRaider DS16C/M TEC User Manual July 14, 2018 Select an Exposure Time for Dark Field Correction Step 8 With the Camera Tab selected on the Left SideBar, Left- Click on the Capture & Resolution (if you are in Video Mode, a Green Rectangle with the word Exposure will appear in your Video Window).
Page 47 SkyRaider DS16C/M TEC User Manual July 14, 2018 Select 5 for the Quantity, then Left-Click on the Capture Button (which will change its name to Stop, in case you need to abort the Dark Field capture). The Software will display its progress above the selected Quantity.
Page 48 SkyRaider DS16C/M TEC User Manual July 14, 2018 We will use a small exposure, so we can verify that the object is someplace in the field of view (if in using 1 second the star or object is too dim, increase exposure to 2 seconds).
Page 49 SkyRaider DS16C/M TEC User Manual July 14, 2018 o You can Click in the Time Unit Box and enter in an amount (30 seconds) using your Keyboard. o You can Click on the up or down arrow in the Time Unit Box of choice to move the exposure time to your required value (30 seconds).
Page 50 July 14, 2018 M57, 20 Seconds exposure, VRC 6", F/4.5 M57, 20 Seconds exposure, VRC 6", F/4.5 with MallinCam 0.5X focal reducer, NO with MallinCam 0.5X focal reducer, One Dark Field Correction. No processing, as Single DARK FIELD CORRECTION APPLIED seen live on monitor.
Page 51 SkyRaider DS16C/M TEC User Manual July 14, 2018 To finely adjust the image characteristics, open Step 15 the Histogram Tab, and either enter in the Left and Right values, or Left-Click-Hold and Drag the two Vertical Bars so that you are not clipping data, on either side of the window.
Page 52 You will also notice the Video Screen image size is reduced to match the “digital resolution” of the Mallincam Camera when the Digital Binning is applied. You need only increase the Zoom factor to increase the size of the window.
Page 53: The Skyraider Software Controls
SkyRaider DS16C/M TEC User Manual July 14, 2018 The SkyRaider Software Controls This Chapter of the User Manual will describe in exact detail what each control on both the Top Line Menu and the Icon Toolbar does. This Chapter is best read on a rainy day or can be used to jump to the specific section that describes how to use a particular control.
Page 54: Open Image
SkyRaider DS16C/M TEC User Manual July 14, 2018 Open Image The Open Image command is used to open an existing image file. This command can also be used to preview an image in small size, or to view its statistics and information without actually opening the image itself.
Page 55: Open Video
SkyRaider DS16C/M TEC User Manual July 14, 2018 Open Video Use the Open Video Command to open an existing video on your computer. The Open Video command is only enabled when no SkyRaider Camera is present when MallincamSky is started. Only a single video can be opened at a time.
Page 56: Save
SkyRaider DS16C/M TEC User Manual July 14, 2018 Save The Save command allows you to save the updated image (not live Video) onto your computer. The command immediately stores the current window image to its filename (the filename is listed on the window's title bar) while leaving the image still active in its window.
Page 57 SkyRaider DS16C/M TEC User Manual July 14, 2018 JPEG Image quality If you save an image in JPEG format (*.jpg), you may adjust image quality in the edit box. The values range from 0 to 100. Default value is 75. Progressive The default is unchecked.
Page 58 SkyRaider DS16C/M TEC User Manual July 14, 2018 TIFF Appended Pages Determine whether the current image will be saved in multiple pages’ style or not. Compression Specifies a method for compressing the composite image data. For saving a 32-bit TIFF file, one can specify that the file be saved with predictor compression.
Page 59: Batch Save
SkyRaider DS16C/M TEC User Manual July 14, 2018 Compression Choose Lossless or JPG (Lossy) Image Quality If choosing Compressions as "JPEG", the Image quality can be adjusted by the slider bar. The values range between 0 and 100. The Default value is 75. Save these setting as defaults When saving a file, the current settings will be saved as defaults for the next file save...
Page 60 SkyRaider DS16C/M TEC User Manual July 14, 2018 Directory: Enter the name of the drive and directory where your captured images will be saved. You may either type the path information or use the Browse button to locate it from a standard Browse Folder dialog. Name Format: The year, month, date, hour, minute and second or a number nnnn (sequence) are used as part of the filename.
Page 61: Paste As New File
SkyRaider DS16C/M TEC User Manual July 14, 2018 Paste as New File The File>Paste as New File command will be enabled when there is valid image data on the clipboard first (see the Edit>Copy command). If there is no image data on the clipboard, the File>Paste as New File command will be disabled.
Page 62: Exit
SkyRaider DS16C/M TEC User Manual July 14, 2018 Exit Choosing the File>Exit command will close video, all of the image windows and Browse window and remove their windows from the screen. After all of the windows are closed, MallincamSky will end itself. If an image has been modified before attempting to Exit, MallincamSky will issue a warning to ask if user wants to save the images or not.
Page 63: Copy
SkyRaider DS16C/M TEC User Manual July 14, 2018 Copy This Edit>Copy command can be used to copy a selected part of your image (see Select Image command) to the Windows Clipboard. Then you can use another software’s Paste Command to place this selected image inside that software, or File>Paste as New File to paste into a new MallincamSky Window.
Page 64: Select None
SkyRaider DS16C/M TEC User Manual July 14, 2018 Select None This command can be used to De-Select the image that was selected using either the Image Select or the Select All commands. View This Drop-Down Menu will allow you to Browse folders, Display or Remove Tabs from the Sidebar, Activate Grids or Reticles on the Video Window, Change the Video Window Size to match your computer real-estate, and Allow you to move...
Page 65: Thumbnail
SkyRaider DS16C/M TEC User Manual July 14, 2018 You can close the Browse Tab in the Video Window by Right-Clicking on the Hint Tab’s Title (Browse), then choosing Close. Thumbnail The Thumbnail control opens an image tab and displays small (thumbnail) images of all of your current loaded or snapshotted images you have taken during this session.
Page 66: Histogram
SkyRaider DS16C/M TEC User Manual July 14, 2018 Histogram Selecting the Histogram Control splits the image screen with your live image on the top half and a live Histogram on the bottom half. You have an option to view the Histogram data as linear or logarithmic. Clicking on the Histogram Control again, closed the Histogram window.
Page 67 SkyRaider DS16C/M TEC User Manual July 14, 2018 Left-Click on the Grids option on the left of the Preferences Window and adjust the Style (No Grid, Auto Grid, and Manual Grid), Line Style (Solid, Dash, Dot, or DashDot), and Color that you are interested in. Left-Click on the Apply button to display the Grid, then Left-Click on OK to accept.
Page 68 SkyRaider DS16C/M TEC User Manual July 14, 2018 Manual Grids Choosing this control will display two small Blue Right Arrow and Down Arrows overlaid on the top of the Vertical Ruler and on the left of the Horizontal Ruler as shown below: Use the Left-Click Hold and Drag technique to move the Blue Down Arrow along the Horizontal Ruler to where ever you want.
Page 69: Best Fit
SkyRaider DS16C/M TEC User Manual July 14, 2018 No Grids The No Grids control can be used to temporarily remove the grid overlay from the video/Image. If you re-select Manual Grids, your previous designed Grid Lines will re-appear. Remove All Grids This will remove the Grid Overlay from your video/image.
Page 70: Reticles
SkyRaider DS16C/M TEC User Manual July 14, 2018 Left-Click and Hold (the Open Hand will change to a Closed Hand). Now drag the image around inside the video/image Window If the video/image size is smaller than the video/image Window size, then the track operation will be disabled.
Page 71: Sort
SkyRaider DS16C/M TEC User Manual July 14, 2018 Sort This control allows you the option of rearranging the image files via a variety of choices (Name, Type, size, Width, and Height. All in either Ascending or Descending order.). Just Left-Click on the choice that best suits your needs and MallincamSky will automatically rearrange the files.
Page 72: Setup
SkyRaider DS16C/M TEC User Manual July 14, 2018 Setup This Top Menu Line Command is used to provide you information about the SkyRaider DS16C/M TEC Camera activated thru MallincamSky, as well as test the ST4 port on the camera. You can also pause the Video image on the Video Window from here.
Page 73: Capture
SkyRaider DS16C/M TEC User Manual July 14, 2018 Capture This Top Menu Line command allows you a more in-depth capture routine of either a still image or a video stream. This command will offer connection to Night Skies Network (NSN) in future releases.
Page 74: Start Record
SkyRaider DS16C/M TEC User Manual July 14, 2018 Start Record… First you must set up the location, File Format, Prefix, and duration required for the video in the Options>Preferences Tab (see OPTIONS Tab for more detail). To start the capturing process, just Click on this Tab or press the F9 Function key. Note: The Tab name will change to Stop Capture, so Click on it to stop the process.
Page 75: Batch Record
SkyRaider DS16C/M TEC User Manual July 14, 2018 Batch Record This command will allow you to save a sequence of video onto your computer. You will need to have already chosen the location, number and duration of the videos in the Option->Preferences…...
Page 76 SkyRaider DS16C/M TEC User Manual July 14, 2018 By Clicking on the Red STOP symbol, MallincamSky will only abort the current Video, but will continue with the next sequence. MallincamSky will also provide you in a status on how the recording are going by displaying a Status Information line on the bottom of its window.
Page 77: Image
SkyRaider DS16C/M TEC User Manual July 14, 2018 Image The Image menu will allow you to adjust the properties or any captured image in an active Image Tab in MallincamSky video/image window. You can use the SideBar’s Undo/Redo Tab to revert any correction back to a Hint previous state.
Page 78: Adjust
SkyRaider DS16C/M TEC User Manual July 14, 2018 Adjust The Adjust menu will allow you to adjust the Brightness and Contrast of the image. You will be able to modify the RGB Color balance, as well as the High Lights, MidTones and Shadows values.
Page 79 RGB images use three channels to reproduce up to 16.7 million colors on-screen. In addition to being the default mode for new Mallincam images, the RGB mode is used by computer monitors to display colors. This means that when working in color modes other than RGB, such as CMYK, MallincamSky uses RGB mode for display on-screen.
Page 80 SkyRaider DS16C/M TEC User Manual July 14, 2018 The CMYK mode is based on the light-absorbing quality of ink CMYK printed on papers. As white light strikes translucent inks, certain visible wavelengths are absorbed while others are reflected back to the eyes. In theory, pure cyan (C), magenta (M), and yellow (Y) pigments should combine to absorb all light and produce black.
Page 81 SkyRaider DS16C/M TEC User Manual July 14, 2018 The values beside the slider bar show the color changes in various color channels. • The RGB channel values can range from -100 to +100. The Default values are 0. • The CMYK channel values, they can range from -100 to +100. The Default values are 0.
Page 82 SkyRaider DS16C/M TEC User Manual July 14, 2018 Filter Color… Select the Image>Adjust>Filter Color command to filter out a special color channel from a color image. Check either Red, Green, or Blue color to filter. For Example, if Red color is checked, then only information about the Red channel will be discarded.
Page 83: Rotate
SkyRaider DS16C/M TEC User Manual July 14, 2018 Detail Enhance This filter works by identifying sharp edge boundaries in the image, such as the edge between a subject and a background of a contrasting color and increasing the image contrast in the area immediately around the edge.
Page 84: Crop
SkyRaider DS16C/M TEC User Manual July 14, 2018 This control also allows you to flip your image Horizontally or Vertically. Flip Horizontal reverses the image in the application area so that the top right corner of the original image is now the top left, and the top left corner of the original image is now the top right corner.
Page 85: Scale
SkyRaider DS16C/M TEC User Manual July 14, 2018 Scale… Select the Image>Scale••• command to change the image to a specified size. This process actually changes spatial resolution by adding (replicating) or removing (decimating) pixels to achieve the specified dimensions. Width and Height: When choosing the Image Scale command;...
Page 86: Histogram
SkyRaider DS16C/M TEC User Manual July 14, 2018 Histogram A Histogram illustrates how pixels in an image are distributed by graphing the number of pixels at each color intensity level. The Histogram shows detail in the shadows (shown in the left part of the histogram), mid-tones (shown in the middle), and highlights...
Page 87 SkyRaider DS16C/M TEC User Manual July 14, 2018 If the image is RGB true color, choose R, G and B to display a composite Histogram of the individual color channels in color. Do one of the following: ➢ To view information about a specific pixel value, place the mouse pointer in the Histogram.
Page 88: Process
SkyRaider DS16C/M TEC User Manual July 14, 2018 Process MallincamSky provides some very advance image processing tools. You can apply these tools to your image to tweak the final output. It would take a novel to explain each of these standard graphical enhancement tools. So I will leave it up to you to Google Search the enhancement type to see if it is something you could use.
Page 89 SkyRaider DS16C/M TEC User Manual July 14, 2018 You can modify the color effectiveness range with the Range control to color sharpen your image. You can modify the image the pixel/no pixel count with the Binary control SkyRaider DS16C/M TEC User Manual Page 87...
Page 90 SkyRaider DS16C/M TEC User Manual July 14, 2018 You can examine the image as a 3-D color contour map with the 3-D setup control You can apply the Pseudo Color application tools to turn a Black and White image into color tones. SkyRaider DS16C/M TEC User Manual Page 88...
Page 91: Image Stacking
SkyRaider DS16C/M TEC User Manual July 14, 2018 Image Stacking Image Stacking control will allow you to select a saved video file, then it will do an elementary stacking process on the file. In the Image Stacking process, MallincamSky takes the first frame as the reference image, this means the first frame is very important and should be assure the first frame to be the right image scene and the subsequent frames have a greater overlap region with the first frame.
Page 92 SkyRaider DS16C/M TEC User Manual July 14, 2018 MallincamSky will Open an Image Stacking Progress Bar to inform you of the process. Once completed, the stacked image will appear in the Video/Image window. You can now apply other processing techniques to this image which has a large signal to noise ratio.
Page 93: Options
SkyRaider DS16C/M TEC User Manual July 14, 2018 Options The Options Menu provides 9 Tabs in the Preference Window. They are: Record, Batch record, Auto Capture, File, Grids, Video, and Misc. The Options/Preference/Record tab will allow you to set the location, File Format, File Prefix, File Type, duration or Frame Limit for the Video recording of the current SkyRaider camera.
Page 94 SkyRaider DS16C/M TEC User Manual July 14, 2018 The Options->Preferences…->Batch Record tab will allow you to set the number of Video recordings in the batch, plus the time interval between each separate recording. Clicking on OK accepts the settings. The Options->Preferences…->Auto Capture tab will allow you to set the location, file format, type, interval and number or required images for the Auto Capture (F7) function of MallincamSky.
Page 95 SkyRaider DS16C/M TEC User Manual July 14, 2018 Directory: The file Directory can be select by Left- Clicking the Browse button (…). You can also set a subfolder as a specific name such as the Target name. File: The File Name; This can be a combination of Name of Format, File Prefix, and File Type as shown in the Sample.
Page 96 SkyRaider DS16C/M TEC User Manual July 14, 2018 One can check a File Extension for the specified file Format and its Abbr. (abbreviation), to determine whether or not it will be displayed in the Browse window or not (The checked Format can be displayed in the Browse window).
Page 97 SkyRaider DS16C/M TEC User Manual July 14, 2018 The Grids Tab allows you to determine if you would like a Grid displayed, and if so how should it be draw. Grids can also be used to define the color of the Reticle that can be drawn over the image.
Page 98 SkyRaider DS16C/M TEC User Manual July 14, 2018 This control allows you to determine what metadata is embedded inside the FITS and EXIF files when they are saved. File views that read FITS or EXIF images can then display details about how that image was taken, equipment and telescope used.
Page 99: Window
SkyRaider DS16C/M TEC User Manual July 14, 2018 Window The menu control will close all open windows (Tabs), and can reset the lays back to its default settings. Close All Selecting the Closes All command will close all of the pictures opened or captured inside MallincamSky’s frame.
Page 100: Windows
SkyRaider DS16C/M TEC User Manual July 14, 2018 Windows… Choosing the Windows>Windows••• control will open a dialog box that lets you manage the currently opened windows. The dialog allows you to manage large lists of open windows by assigning them into groups.
Page 101: Mallincamsky Toolbar
SkyRaider DS16C/M TEC User Manual July 14, 2018 MallincamSky Toolbar Open The Open Image command is used to open an existing image file. This command can also be used to preview an image in small size, or to view its statistics and information without actually opening the image itself.
Page 102: Save
SkyRaider DS16C/M TEC User Manual July 14, 2018 Save The Save Icon allows you to save an image onto your computer. The command immediately stores the current window image to its file (the filename is listed on the window's title bar) while leaving the image still active in its window. If the image is untitled or titled with a digit, MallincamSky will issue the File>Save As dialog automatically.
Page 103: Thumbnail
SkyRaider DS16C/M TEC User Manual July 14, 2018 As you get deeper into the Browse Window, you can Back-Out or Move Deeper into the File Folders via the Green Left or Right Arrow in the Browse Window. The Blue Right Arrow will take you to your computer’s Root Directory. Left-Double Clicking on a Folder will open up a Window Tab in the Video Window (this Window will be labeled Browse).
Page 104: Image Type
SkyRaider DS16C/M TEC User Manual July 14, 2018 Image Type This icon allows you to designate the type of image you are saving. This is only for your reference. Just select an image type from the drop-down list Auto Capture This icon activates the Auto Capture routine in MallincamSky.
Page 105: Open Video Folder
SkyRaider DS16C/M TEC User Manual July 14, 2018 Open Video Folder This icon will allow you to open up and view either the default Record or the default Image folder. This way you can examine the results of the recording. Zoom The Zoom Icon allows you to Zoom-In or Zoom-Out while viewing a Video/image window.
Page 106: Histogram
SkyRaider DS16C/M TEC User Manual July 14, 2018 (make sure to choose a location outside a Region of Interest rectangle. You may need to close the ROI rectangle if necessary) on the actual video/image. Left-Click and Hold (the Open Hand will change to a Closed Hand). Now drag the image around inside the video/image Window If the video/image size is smaller than the video/image Window size, then the track operation will be disabled.
Page 107: St4 Test
(this stops the camera). Then choose File->Open Video and Hint select the ser format video to view. The icons will now become active. You can now restart the Mallincam camera if required. Stitch When the Video Window is active, choosing the Stitch Icon will invoke the video...
Page 108: Panorama Straighten
SkyRaider DS16C/M TEC User Manual July 14, 2018 The purpose on this control is to stich (glue) together images to create a panoramic view (image) so plan ahead with this control; are you going to create a horizontal panoramic image, or a vertical panoramic image. ➢...
Page 109: Seam Finder
SkyRaider DS16C/M TEC User Manual July 14, 2018 MallincamSky provides four Sean Finding Seam Finder: algorithms: None, Voronoi Diagram, Graph Cut Color, or Graph Cut Color Grad. This is used to minimize the exposure differences Exposure Compensation: between the stitched images. Compensation algorithms available are: None, Gain, and Blocks Gain.
Page 110 SkyRaider DS16C/M TEC User Manual July 14, 2018 MallincamSky will work thru the Snaps (and apply the choices you have made) and will place the final result in an image window for your viewing pleasure. You can try other Stitching decision by having the Stitched imaged active in your Video Window and Left Clicking on the Stitch Icon again.
Page 111: Preferences
SkyRaider DS16C/M TEC User Manual July 14, 2018 Preferences This icon opens up the preferences window. This icon is identical to the Main Tab line Options->Preferences… . See above in the Options Tab. SkyRaider DS16C/M TEC User Manual Page 109...
Page 112: Controlling The Skyraider
SkyRaider DS16C/M TEC User Manual July 14, 2018 Controlling the SkyRaider Once you have a connection to the SkyRaider Camera, your next task will be to adjust the controls that make it possible to improve the image the SkyRaider is capturing. These controls are located on the Left SideBar Menu on MallincamSky.
Page 113: Capture And Resolution
SkyRaider DS16C/M TEC User Manual July 14, 2018 Capture and Resolution The Capture and Resolution Tab allows you to adjust the resolution (the current SkyRaider DS16C/M TEC has a fixed resolution), modify the Gain, and choose the type of Exposure Mode that you require for the camera. Resolution Located at the top of this control is the Resolution Command.
Page 114: Record
SkyRaider (you will now be able to see the image being recorded as the Record Button will activate the camera). When the Mallincam SkyRaider is recording, the Icon will change to a Red STOP Symbol. By Clicking on the Stop Icon, MallincamSky will terminate the Video recording process.
Page 115: Gain
Gain at about 5. Exposures The Mallincam SkyRaider DS16C/M TEC camera provides two different types of exposures. Video Mode, where exposures up to 5 seconds are taken, and Trigger Mode were exposures from 25us to 16 minutes and 40 seconds can be taken.
Page 116 SkyRaider DS16C/M TEC User Manual July 14, 2018 Video Mode is activated by Left-Clicking the Video Mode Radial Button. Exposure Target MallincamSky uses the image contained in the Green Rectangle to aid in determining the best method to match the Exposure target. To use Exposure Target, Auto Exposure must be checked.
Page 117 SkyRaider DS16C/M TEC User Manual July 14, 2018 Exposure Time The current Exposure time is displayed above the Exposure Time slider. MallincamSky will display the exposure time in ms, from 0 ms to 5000 ms. To use Exposure Time, Auto Exposure must be unchecked. You can modify the Exposure Time in three different ways: ➢...
Page 118: Trigger Mode
(it will change its name to Stop, so you can again Click on the button to stop the Looping). To capture a sequence of images using the Mallincam SkyRaider DS16C/M TEC, there is are a series of command controls available for you.
Page 119 SkyRaider DS16C/M TEC User Manual July 14, 2018 Options Clicking on this Button opens up the Sequence Options Window. This Window allows you to either display the sequence of automatic captures in a window on MallincamSky (not recommended… too many windows), or Save the sequence images to a file.
Page 120: Bit Depth
SkyRaider DS16C/M TEC User Manual July 14, 2018 Bit Depth Pixel Bit Depth relates the number of bits assigned to produce a color (or shade of Gray). The larger the number of bits, the larger the number of assigned colors (or shades of Gray) that the camera can produce.
Page 121: Color Adjustment
SkyRaider DS16C/M TEC User Manual July 14, 2018 To adjust the Red, Green, or Blue components of Color Balance use the Left- Click-Hold and Drag technique to mode the sliders or Left-Click on a slider (to activate it), then use your Left and Right Keys on your Keyboard to move the sliders.
Page 122: Saturation
SkyRaider DS16C/M TEC User Manual July 14, 2018 You can either use the Left-Click-Hold and Drag technique to move the slider to the left or right, or just Left-Click on the Hue’s slider (this selects it), then use your Left and Right arrow keys on your Keyboard to adjust the value (small Hue adjustments are easier with this technique).
Page 123: Gamma
SkyRaider DS16C/M TEC User Manual July 14, 2018 Gamma This command controls the Gamma of the Video image. Gamma adjusts the mid-tones in a non-linear manner. That is, rather than make the image look brighter; it can increase the brightness of the shadows and mid-tones, without affecting the highlights in the image (This control is like adjusting the mid-tone slider on a histogram.
Page 124: Color/Gray
SkyRaider DS16C/M TEC User Manual July 14, 2018 Color/Gray This control contains commands allow the SkyRaider DS16C/M TEC to display its displayed images I color (these colors can be adjusted using the commands seen above) or display the image in shades of grey. Some uses prefer the subtle contrast variations that a grey image provides, especially when imaging the Moon.
Page 125: Sampling
SkyRaider DS16C/M TEC User Manual July 14, 2018 Sampling This control contains commands that are only enabled on those SkyRaider Cameras that support binning, currently the DS16C/M TEC does not support Binning. If you require to Bin or Skip your video sampling rate from the SkyRaider Camera, then this control allows you to select and/or change the current setting.
Page 126 SkyRaider DS16C/M TEC User Manual July 14, 2018 You can then resize the New Video Window by either the Drop-Down Size command in the MallincamSky Tool Bar or by scrolling the wheel on your mouse (if your mouse has a scroll wheel). This command allows you to Zoom in on a specific area of your original Video image.
Page 127: Histogram
SkyRaider DS16C/M TEC User Manual July 14, 2018 Histogram A Histogram illustrates how pixels in an image This is are distributed by graphing the number of your Data pixels at each color intensity level. The Histogram shows detail in the shadows (shown in the left part of the histogram), mid-tones (shown in the middle), and highlights (shown in the right part).
Page 128 SkyRaider DS16C/M TEC User Manual July 14, 2018 Set the exposure so that the Peak of the Histogram is some place between 50 and 100. To illustrate what you can do with the Histogram, I have (thanks to Jim Meadow’s amazing images) included some before and after pictures.
Page 129: Digital Binning
Digital Binning This process allows you to increase the sensitivity of the Mallincam Camera by providing you the option of combining sensor cells together to increase the photon capture area. For example, a 2 x 2 binning will link 4 cells (in a 2 by 2 array) together so you have about 4 times the capture area than one cell.
Page 130: Method
SkyRaider DS16C/M TEC User Manual July 14, 2018 Method You have two choices here, either Additive or Average. For Deep sky objects you will choose Additive. For Planets and the moon, try Average to see if it improves your image. Number You now have the choice of the type of binning you would: None:...
Page 131: Dark Frame Subtraction In Digital Binning
SkyRaider DS16C/M TEC User Manual July 14, 2018 Dark Frame subtraction in Digital Binning You must make dark frames with the same Digital Binning settings, else, weird looking images will occur. We suggest saving a set of Darks for each of the binning modes.
Page 132: Dark Field Correction
SkyRaider DS16C/M TEC User Manual July 14, 2018 Dark Field Correction What makes the Mallincam SkyRaider series of cameras unique is the built-in ability to take Dark Fields. The best explanation of what a Dark Field is came from Simon Hanmer. See Appendix for his explanation.
Page 133 SkyRaider DS16C/M TEC User Manual July 14, 2018 Take Dark Field Correction Step 3 Ensure that the cover is either on the SkyRaider Camera or the Telescope itself is covered, then Left-Click on the Dark Field Correction Line. The Dark Field Correction Line will open up allowing you to select the Quantity of Dark Fields and the option to start the Dark Field Capture process.
Page 134: Flat Field Correction
SkyRaider DS16C/M TEC User Manual July 14, 2018 Flat Field Correction Introduction: When imaging using a CCD/CMOS device, and when trying to use those images for scientific purposes, it is essential to reduce the amount of unwanted signal and unwanted noise from each image frame. The optical path “noise” (some of which is actually signal), is such a problem that many astronomers had to suffer with.
Page 135: Taking Flats
SkyRaider DS16C/M TEC User Manual July 14, 2018 Taking Flats: A Flat Field is an image taken of an evenly illuminated object like the dusk sky, or a special illuminated white card hanging on the wall of the observatory or even a white T-shirt placed over the telescope.
Page 136 SkyRaider DS16C/M TEC User Manual July 14, 2018 Take Flat Field Correction Step 1 Ensure that you are pointing the telescope at your Flat Field source (dusk sky, white board), select an exposure time, then Left-Click on the Flat Field Correction Line. The Flat Field Correction Line will open up allowing you to select the Quantity of Flat Fields and the option to start the Flat Field Capture process.
Page 137: Black Level
SkyRaider DS16C/M TEC User Manual July 14, 2018 Black Level Black Level is defined as the level of brighness of the darkest (blackest) part of the image. In technical terms, the black level is the pixel level (in electrons, or volts) which corresponds to a pixel value of zero.
Page 138: Live Stack
SkyRaider DS16C/M TEC User Manual July 14, 2018 Live Stack MallincamSky comes with the ability to stack images to improve the signal to noice ratio. This feature will allow you to stack short exposures to produce an image that otherwise would of required a larger exposure time. This comman allows users whose equipment will not all for long exposures (such as Alt-Az Mount), but can also be very beneficial to all mounts.
Page 139 SkyRaider DS16C/M TEC User Manual July 14, 2018 Left-Clicking on this command will open up the Live Stack Window We wil see that there at two types of stacking (Additive and Average). You will use additive to increase the image brightness, and you will use average to decrease the noise.
Page 140 SkyRaider DS16C/M TEC User Manual July 14, 2018 Now determine if you would like the Stacking process to Align the Frames. This will Step 4 produce a better Image but will take a bit longer. The process examines the image and determines alignment stars for the process. If there isn’t enough alignment starts the command will indicate that there is a problem, and you may need to increase the gain or exposure to produce more stars for the alignment routine.
Page 141: Conversion Gain
SkyRaider DS16C/M TEC User Manual July 14, 2018 Conversion Gain Conversion Gain is not avialable on the SkyRaider DS16CTEC. A Higher Conversion Gain means higher sensitivity, as one signal electron can be more easily detected. The high-CG sensor shows a very clear responsivity advantage;...
Page 142: Cooling
The 12V power cable must be attached to the DS16CTEC for the FAN and TEC features to be available. The Mallincam SkyRaider DS16CTEC comes with both a Fan, that can aid in cooling the camera when conditions are getting warm, and a TEC (Thermoelectric Cooler).
Page 143 SkyRaider DS16C/M TEC User Manual July 14, 2018 Once activated, it will take a few minutes for the temperature inside the SkyRaider DS16CTEC to stabilize. The power capacity that the TEC inside the camera is currently using is displayed inside the TEC box. When the temperature is stabilized, this power reading should be well below 100%.
Page 144: Sharpen
SkyRaider DS16C/M TEC User Manual July 14, 2018 Sharpen This control allows you to sharpen the image. Remember that being too aggestive will induce some rough edges around youyur image. Just use the slider to sharpen the image from none to 500% Misc Currently this control will allow you todisplay the image in its inverse.
Page 145 SkyRaider DS16C/M TEC User Manual July 14, 2018 Left-Click on the Save command and MallioncamSky will open a window that will allow you to give a name to the current sessions, and then will save the current camera parameters under that name (see Management command below).
Page 146 SkyRaider DS16C/M TEC User Manual July 14, 2018 This Dialog Window will allow you to: • Rename the Preset File name • Remove the Preset File from the computer • Re-order how the Parameter names appear in the list. The Management Dialog will also allow you to export all of the Parmeter Files to a *.pgt file, so that you can send this *.pgt file (which contains all of your parameter files) to a collegue.
Page 147: Installing Optional Software
July 14, 2018 Installing Optional Software Visit the Software Downloads Page in the Support Tab located on the website: Step 1 www.mallincam.net Select the Blue Click Here Button to download the Drivers and MallincamSky Step 2 Software for a Windows PC.
Page 148: Installing Directshow Driver
SkyRaider DS16C/M TEC User Manual July 14, 2018 Double-Click on the folder to open it up, revealing the programs (or 1 program if Step 4 downloading just MallincamSky) it contains. The ASCOM DRIVER folders contains the ASCOM Drivers for the camera The DIRECTSHOW DRIVER folder contains the Direct Show Drivers for the camera The WINDOWS APPLICATION folder contains the camera control software.
Page 149 SkyRaider DS16C/M TEC User Manual July 14, 2018 Click on Install to start the installation process. Step 3 Click on Finish to close the process. Step 4 The DirectShow driver will give you the ability to display the SkyRaider video using other video display software.
Page 150: Installing Mallincam Ascom Driver
SkyRaider DS16C/M TEC User Manual July 14, 2018 Installing Mallincam ASCOM Driver You must have already installed the latest ASCOM Platform on your computer (www.ascom-standards.org). Double Click on the Driver to install it onto your computer system (Windows). Step 1 Depending upon the version of Windows, the following screen might appear.
Page 151 SkyRaider DS16C/M TEC User Manual July 14, 2018 Click in the ‘I accept the agreement’ Radial Button, then Click on Next. The Step 4 Ready to Install Window will appear. Click on Install to install the ASCOM Driver. Depending upon the version of Step 5 Windows, you may see the Following Pop-up.
Page 152: Appendix
SharpCap can be obtained at http://www.sharpcap.co.uk/ Start SharpCap Chose Cameras from the Top Heading Tab, then in the DirectShow Cameras, pick MALLINCAM. SkyRaider DS16C/M TEC User Manual Page 150...
Page 153 SkyRaider DS16C/M TEC User Manual July 14, 2018 Once you have selected, the Mallincam Directshow Driver, SharpCap will display what the SkyRaider is imaging. The controls on the right of the screen (Exposure, Gain, Gamma, …) allow you to change the settings of the SkyRaider.
Page 154 SkyRaider DS16C/M TEC User Manual July 14, 2018 You can choose the Exposure Tab in the Filter window to slide the Tab to match the exposure time in ms (divide by 1000 to get seconds). You can also Click on the Time setting on the right of the Slider to Pop-Up a window that allows you to directly enter in the time in ms.
Page 155: Imaging In Maximdl
Imaging in MaximDL MaximDL is an image acquisition and composition software tool. Start MaximDL Click on the Camera Control Icon Select Video DS from the Setup Camera button, and MALLINCAM as the Source. SkyRaider DS16C/M TEC User Manual Page 153...
Page 156 SkyRaider DS16C/M TEC User Manual July 14, 2018 You will be presented with a live video window from the DS16CTEC, just minimize this window. Chose Expose and exposure time, Binning, etc… then Click on Start to take an image. Have fun and see what you can do. SkyRaider DS16C/M TEC User Manual Page 154...
Page 157: Astrotoaster And Mallinamsky
SkyRaider DS16C/M TEC User Manual July 14, 2018 AstroToaster and MallinamSky AstroToaster is a freeware application for obtaining semi-live views of astronomical images using the SkyRaider camera. These instructions are just a quick guide to get you going, read the AstroToaster User Guide. AstroToaster uses the Deep Sky Stacker (DSS) Processing Engine.
Page 158 SkyRaider DS16C/M TEC User Manual July 14, 2018 The File List Monitoring Window manages the image files, sent by MallincamSky, used by AstroToaster. If the Monitor Button is activated, then any new files appearing in the monitoring folder will automatically appear in the FileList. AstroToaster uses color to aid in identifying the files.
Page 159 SkyRaider DS16C/M TEC User Manual July 14, 2018 Click on Monitor on AstroToaster Tab line, so it will see and analyze the file images as they are added to the Monitoring Folder. Tell MallincamSky to Save images in to the Monitoring Folder of AstroToaster. For example, if you are using Trigger Mode, after setting the exposure so that you are seeing the correct amount of detail in the Video Window.
Page 160 SkyRaider DS16C/M TEC User Manual July 14, 2018 As MallincamSky sends the images to the Monitoring Folder, you will see them appear with Yellow squares besides their name Click on the Stack Tab on AstroToaster and Viewer Tab (if not activated) to activate the automatic Stack and watch the results appear in the Viewer in real time as each image is stacked.
Page 161 SkyRaider DS16C/M TEC User Manual July 14, 2018 You will notice in the AstroToaster FileList, a file named stacked###.tif with a Green Square besides its name. This is the Stacked image that you are seeing in the AstroToaster Viewer Window. Adjust the Image in AstroToaster Click on Color Adj Tab to popup a window that will allow you to adjust the display parameters of your stacked image, as well as save the final image.
Page 162: Astrolive Usb And The Skyraiderds16Ctec
As of this writing, the Version of AstroLive USB is v1.1. This version did not have the SkyRaider series of camera in mind. But, the MALLINCAM ASCOM Driver does partly work with AstroLive USB. This allows you to do imaging, and you are able to adjust and save your images.
Page 163 ASCOM Camera Driver from the list of camera types. A popup window will appear. From the Pull-Down list select ASCOM Mallincam Driver. Click on the Properties Box to pop-up the SkyRaider Setup Control Window Make any adjustments you need, then Click on the OK Button, to Accept. You will be returned to the ASCOM Camera Chooser Window, Click on OK to return to the AstroLive USB Window.
Page 164 SkyRaider DS16C/M TEC User Manual July 14, 2018 Astrolive USB should already be talking to the DS16CTEC. We need only give an exposure time and then activate the process. Enter a time in the exposure box, choose binning, and Click on the Set button to lock this in.
Page 165: Sequence Generator Pro And Skyraiderds16Ctec
Sequence Generator pro work with ASCOM-based SkyRaiderDS16CTEC. Make sure you are using the latest version of ASCOM (both the ASCOM core and ASCOM Mallincam Driver). Start Sequence Generator Pro ASCOM Mallincam Driver...
Page 166 SkyRaider DS16C/M TEC User Manual July 14, 2018 Select the required resolution and ensure that you are using as the format. SkyRaider DS16CTEC 4640 x 3506 Running Sequences Start based on your needs. If you are using Sequence Generator Pro then you will need to save flats, biases, and darks as you would with every other camera.
Page 167: The Skyx And The Skyraiderds16Ctec
One of the capabilities is using a camera to assist in aligning (T-Point) and locking onto objects using a camera. We can have The SkyX use the Mallincam DS16CTEC for this process. Choose Video as your camera source.
Page 168 July 14, 2018 Choose Windows Video Camera Driver Then choose Settings… in the drop-down list Select MALLINCAM from the Setup Window. Click on Connect, and you will see the video image in the video control box SkyRaider DS16C/M TEC User Manual...
Page 169: How Do I
SkyRaider DS16C/M TEC User Manual July 14, 2018 How Do I … How do I get rid of the Green Exposure Rectangle? First remember the Green Exposure Rectangle is only used for the auto-exposure process, but it can be annoying when you are imaging. ➢...
Page 170: How Do I Automatically Save 1 Image Every 30 Seconds
SkyRaider DS16C/M TEC User Manual July 14, 2018 How do I automatically save 1 image every 30 seconds? ➢ Choose the Time-Lapse (Auto Capture) from the Capture Menu on the Top Menu Line. Now determine your naming convention and location. ➢...
Page 171: How Do I Pause The Video
SkyRaider DS16C/M TEC User Manual July 14, 2018 How Do I Pause the Video? You can Pause or Resume the live video by either choose Setup>Pause from the Top Menu Line, or even easier, just press on the pause key on your keyboard. How do I Undo an Operation? On the SideBar, there is an Undo/Redo Tab;...
Page 172: Upgrading My Skyraider Camera Software
Rock has his software engineering team always looking at improving the software to make it work better for you. Once an update is made available, you will be notified on the Mallincam Groups website: https://groups.io/g/MallinCam/topics. There are a variety of ways of updating the software, but the following method seems to have the best success rate when working with Windows.
Page 173: Uninstall Skyraider Directshow Drivers
Once MallincamSky is uninstalled, Windows will take you back to the MALLINCAM folder. This Folder may be empty, or if you have also installed the Mallincam DirectShow drivers you will see a folder named MALLINCAMDshow in the window. If you did not install the DirectShow drivers then jump to Step 3, else follow Step 2 to uninstall the DirectShow drivers.
Page 174 DirectShow drivers. Once the DirectShow drivers have been uninstalled, Windows will take you back to the MALLINCAM folder to show you that it is empty. If you didn’t install the ASCOM drivers, then jump to STEP 4.
Page 175: Uninstall Skyraider Ascom Drivers
Now, if you haven’t already done so, download and install the latest version of MallincamSky, the DirectShow, and the ASCOM drives at www.mallincam.net. (note: you want the latest version) Don’t forget to plug back in the SkyRaider camera after installing the software.
Page 176: First Aid For The Skyraider Series
Uninstall the current driver through the Control Panel (or if you cannot find it in the Control Panel check out the c:/PROGRAM FILES/MALLINCAM/MALLINCAMSKY folder, there is a program called uninst. Double-Click on uninst to uninstall MallincamSky and its drivers). Once uninstalled, reboot your computer, then reinstall MallincamSky again. This should fix the issue.
Page 177: Mallincamsky Acts Strange After Update
SkyRaider DS16C/M TEC User Manual July 14, 2018 MallincamSky acts Strange After Update Recommended Solution: Reset Mallincam Sky to Default Factory Settings Go to Preset and Click on the Load Button. How do I Optimize my Computer? Recommended Solution: Optimizing your windows computer sometime is a never-ending process but visit the website: https://www.youtube.com/watch?v=Hdb4iybN8gg...
Page 178: Stacking Is Going Very Slow Or Stops Completely
SkyRaider DS16C/M TEC User Manual July 14, 2018 Stacking is going very slow or Stops completely? The reason for the slowing or freezing of the stacking process is not completely understood, but it is encountered by many processes that task the usb and video processes of computers. This problem is experienced by many video gamers and the solution that resolves this problem is to select only 1 or 2 of the CPUs running the program.
Page 179 SkyRaider DS16C/M TEC User Manual July 14, 2018 Step 3 Using your mouse, Choose Task Manager from the list. This will open-up the task Manager Window. Step 4 Locate and Right-Click on mallincamsky Process located in the Task Manager. This will open up a small Selection Window, Click on Go to details in that selection window.
Page 180 SkyRaider DS16C/M TEC User Manual July 14, 2018 In the Task Manager Window locate and Right-Click on the mallincamsky.exe file and another Step 5 selection window will appear, choose Set affinity from that list. This will pop-up the Processor affinity window. Step 6 Uncheck <all Processors>...
Page 181 SkyRaider DS16C/M TEC User Manual July 14, 2018 Close the Task Manager Window Step 8 Note: you will have to repeat this every time you restart the MallincamSky, as windows doesn’t remember you selecting 1 processor from the Task Manager. SkyRaider DS16C/M TEC User Manual Page 179...
Page 182: I See A Pink Floyd Kaleidoscope Effect On My Screen
SkyRaider DS16C/M TEC User Manual July 14, 2018 I see a Pink Floyd Kaleidoscope effect on my Screen This effect has to do with star alignment difficulties when stacking images. You need bright stars to get a successful frame alignment. In other words, increase gain or increase exposure or re- adjust histogram to deliver a brighter image.
Page 183: Dark Field Explanation
SkyRaider DS16C/M TEC User Manual July 14, 2018 Dark Field Explanation The following is the best explanation of what Dark Field is, and it comes from the work of Simon Hanmer. Dark Frame vs Dark Field Dark Frame Subtraction First, take an image with the camera shutter closed or the camera/scope covered under the same conditions of exposure time and temperature as the light frames you are going to capture of your astronomical target.
Page 184 SkyRaider DS16C/M TEC User Manual July 14, 2018 Note that stacked and combined frame #10 represents information derived from all 10 frames. But hold on … we are not talking CCD imaging here – this is video. When a CCD chip is activated it cranks at full blast and requires effective cooling to prevent it from rapidly heating up beyond a user-determined temperature.
Page 185 SkyRaider DS16C/M TEC User Manual July 14, 2018 The two screen captures below demonstrate the difference that applying a Dark Field to an image can provide. 90 second exposure, lens covered. No Dark Field Applied 90 second exposure, lens covered. 10 Dark Fields Applied SkyRaider DS16C/M TEC User Manual Page 183...
Page 186: Setting Up To Broadcast On Night Skies Network
I using, and what am I trying to do this session). Remember, it’s all about having fun, and time and patience are your best friends (not to mention all the guys and gals, and the Yahoo – MallinCam site: http://tech.groups.yahoo.com/group/mallincam/messages One of the most important decisions you will need to make with broadcasting the image of the SKYRAIDER is what Video capture software are you going to use.
Page 187 SkyRaider DS16C/M TEC User Manual July 14, 2018 Step 2 Start MallincamSky Get the image of your object on the Image Window of MallincamSky, adjust the settings on the software for your planned object and size the window so you have room for other software on your monitor real-estate.
Page 188 SkyRaider DS16C/M TEC User Manual July 14, 2018 Step 4 Have KVYcam grab the window image KVYcam will display a translucent rectangle on the upper left corner of your window. By left- click and dragging and/or grabbing a side or corner and left-click and resizing overlay the sizing window on top of your MallincamSky Software Image Window.
Page 189 SkyRaider DS16C/M TEC User Manual July 14, 2018 Do not move the MallincamSky Window around your desktop when broadcasting, since KVYcam is just grabbing the real-estate location that currently your MallincamSky Software image is situated at. If you move the MallincamSky Software Window, then KVYcam will still grab the desktop location, but may not grab the whole MallincamSky Video Image.
Page 190 SkyRaider DS16C/M TEC User Manual July 14, 2018 A popup Window will appear, where you will enter your Username and Password. Click on the orange LOGIN button to accept. You will next be presented with the Channel Line Up screen for Night Skies network. Click on Login selection on the upper right-hand side of the screen.
Page 191 SkyRaider DS16C/M TEC User Manual July 14, 2018 Step 9 Allow Adobe Flash to use your KVYcam/Splitcam/WebcamMax Adobe Flash Player Settings window will pop up on your screen asking you for permission to use your camera and your microphone. Select Allow. Step 10 Turn off your Microphone Until you have your microphone figured out, it is best to initially turn it off.
Page 192 SkyRaider DS16C/M TEC User Manual July 14, 2018 When you are us and running and everything is working as it should, you will change the message to indicate, what telescope, mount, and camera you are using. For that is the most frequently asked question from the NSN viewers. Step 12 Select the Camera Now is the time to activate the camera, or in our case have NSN driver point to our...
Page 193 SkyRaider DS16C/M TEC User Manual July 14, 2018 NSN will remember what camera you chose from the last visit. So usually you only must go through this process whenever you want to change what camera device you would like the flash driver to use.
Page 194 SkyRaider DS16C/M TEC User Manual July 14, 2018 You can now re-adjust the different windows in the Night Skies Network to make the best use of your screen. You will be seeing what you are Broadcasting in the NSN View Window, you can see who has logged into your Channel in the User’s Window, and you can Participate in the Channel Chat Window.
Page 195 SkyRaider DS16C/M TEC User Manual July 14, 2018 The following is a possible arrangement scenario. You would have KVYcam select the region of the window that encloses MallincamSky. You will freeze (and I don’t mean like what Rock does when he broadcasts in winter till 3am), I mean from time to time your NSN connection will freeze for no apparent reason.
Page 196: Customizing The Screen
SkyRaider DS16C/M TEC User Manual July 14, 2018 Customizing the Screen You can customize what controls (and the defaults for most of the controls) you want active, by Left-Clicking anywhere in the Left Control Panel then choose the Settings choice to open-up a Preference Window that allows you to make various setting changes.
Page 197: Focal Reducers
Mallincam 2-inch version. The MallinCam MFR-10 (MallinCam Focal Reducer-10) is a breakthrough in optical performance only from MallinCam. You can now have a focal reducer for your larger size (up to 28.4mm diagonal) CCD or CMOS sensor astronomical camera. The large format focal reducer has a 2"...
Page 198: User Notes
SkyRaider DS16C/M TEC User Manual July 14, 2018 User Notes SkyRaider DS16C/M TEC User Manual Page 196...
