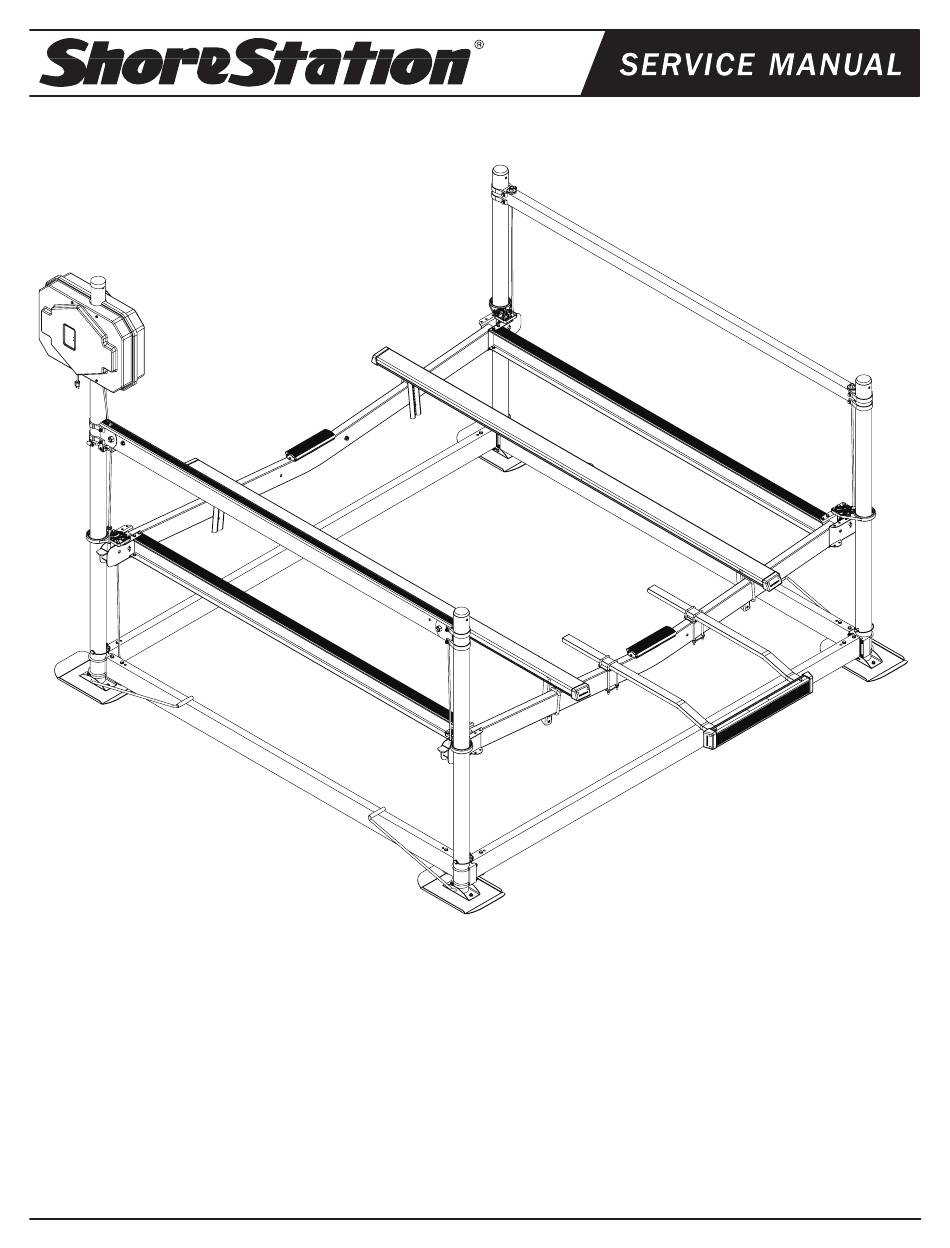

SSV40120EAC Hoist Alum SS V-Frame - EAC
69426
Hardware Box - SSV40120 Hoist
63401
Lower Frame Bundle - V40120
63402
Platform Bundle - V40120
6941501
Winch Assembly - AC - V20/V40
65021
Winch Tube Bundle - V40120
62927
Leg Bundle - V40120
HA0024
Motor Stop Bundle Alum 5" V-Frame
HA0053
Bunk Poly V30/V40108 / V30/40120
69596
Lit Packet, V40120EAC/DW
NOTE: When referencing the front of hoist, this represents the winch end. When referencing the hoist end, this represents opposite of the
winch end. Which side is also referred to the right side of the hoist.
Midwest Industries, Inc.
PAGE 1
SSV40120EAC & SSV40120EACDW
Ida Grove, IA 51445
SSV40120EAC DW Hoist Alum SS V-Frame - EAC
69426
Hardware Box - SSV40120 Hoist
63401
Lower Frame Bundle - V40120
63402
Platform Bundle - V40120
6941501
Winch Assembly - AC - V20/V40
65021
Winch Tube Bundle - V40120
67227
Leg Bundle - V40120 DW
HA0024
Motor Stop Bundle Alum 5" V-Frame
HA0053
Bunk Poly V30/V40108 / V30/40120
69596
Lit Packet, V40120EAC/DW
800.859.3028
www.shorestation.com
0003774
REV C 03/13/2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSV40120EAC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ShoreStation SSV40120EAC

  • Page 1 SSV40120EAC & SSV40120EACDW SSV40120EAC Hoist Alum SS V-Frame - EAC SSV40120EAC DW Hoist Alum SS V-Frame - EAC 69426 Hardware Box - SSV40120 Hoist 69426 Hardware Box - SSV40120 Hoist 63401 Lower Frame Bundle - V40120 63401 Lower Frame Bundle - V40120...
  • Page 2 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 2 REV C 03/13/2009...
  • Page 3 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 3 REV C 03/13/2009...
  • Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 4 REV C 03/13/2009...
  • Page 5 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 5 REV C 03/13/2009...
  • Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 6 REV C 03/13/2009...
  • Page 7 Lower Frame Assembly Winch Post Guide Post Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 7 REV C 03/13/2009...
  • Page 8 Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 8 REV C 03/13/2009...
  • Page 9 It also requires special tools during the as- sembly process. It is therefore recommended that you con- tact your local dealer should you ever have issues with the winch tube assembly. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 9 REV C 03/13/2009...
  • Page 10 AC Drive Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 10 REV C 03/13/2009...
  • Page 11 Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 11 REV C 03/13/2009...
  • Page 12 U-bolts. This allows you to change the motor stop location to best position your boat on the hoist. Once the assembly is in the proper position, tighten the nuts on the U-bolts. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 12 REV C 03/13/2009...
  • Page 13 The deep water version of this hoist can be used in deeper water depths because of the additional length of the exten- sion legs. Listed below is the amount of adjustment the vari- ous legs have. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 13 REV C 03/13/2009...
  • Page 14 3/8” x 3/4” Carriage Bolt Qty: 8 (0210100) 5/8” Flat Washer Qty: 6 (1340105) 5/8” Brass Hex Nut #7 Hitch Pin Clip Qty: 10 (1410362) Qty: 4 (1540300) Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003774 PAGE 14 REV C 03/13/2009...
  • Page 15 SSV40120EAC Decal Placement 4811319 Adj. Guage Decal 4811502 Safety Operating Decal 4811312 Clamp Arrow Decal 4850408 Not A Step Decal 4811503 Max Load Decal 4850363 Safety Decal 4811312 Clamp Arrow Decal 4811319 Adj. Gauge Decal 4850408 Not A Step Decal...
