０８／０８／０８ １７：３７：１７ ３２ＨＮ６６６０ ０００２ 

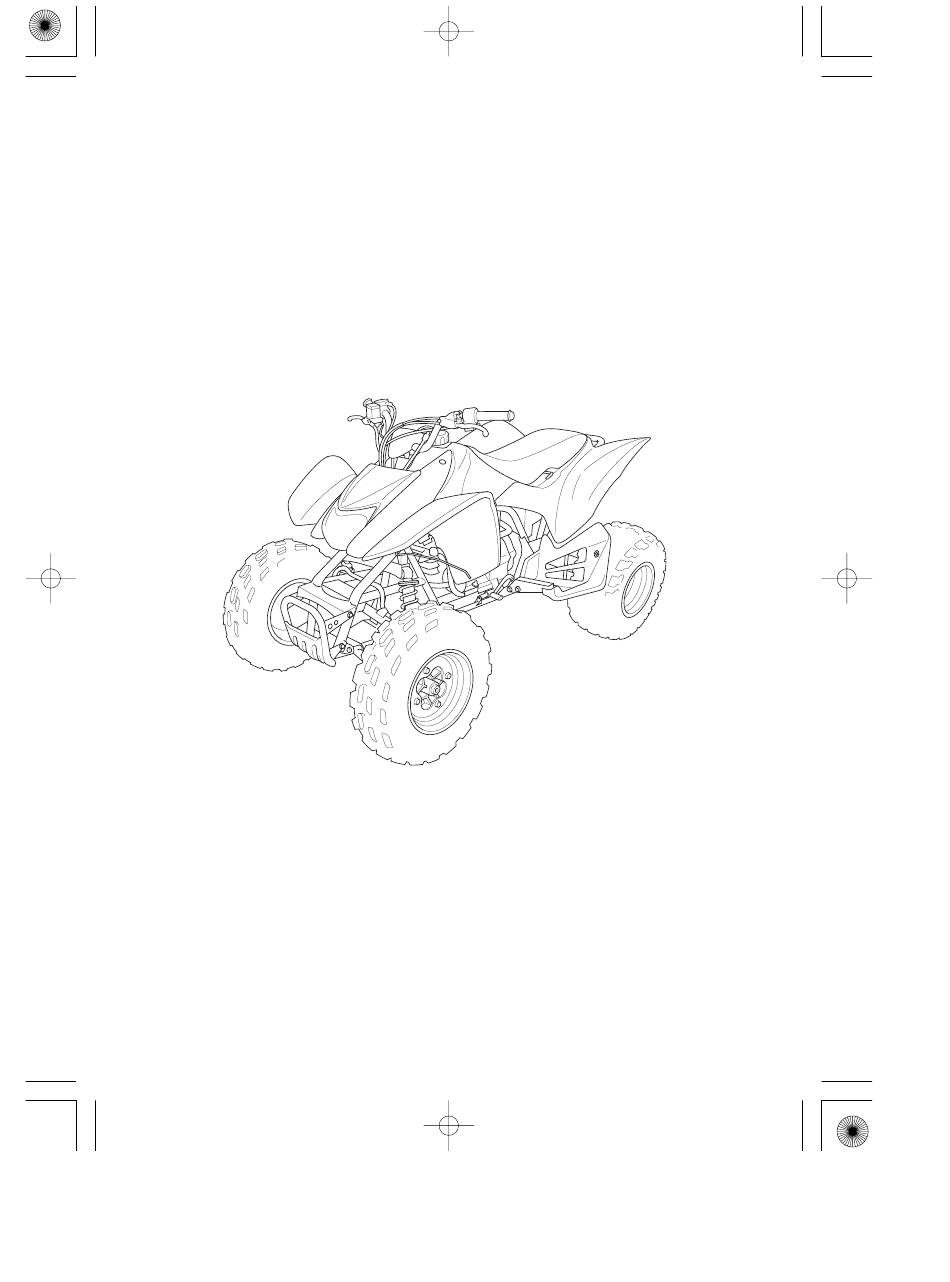

Honda TRX250X
SPORTRAX 250X
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Honda TRX250X

Summary of Contents for Honda TRX250X

  • Page 1 ０８／０８／０８ １７：３７：１７ ３２ＨＮ６６６０ ０００２  Honda TRX250X SPORTRAX 250X OWNER’S MANUAL...
  • Page 2 ０８／０８／０８ １７：３７：２４ ３２ＨＮ６６６０ ０００３  Introduction Congratulations on choosing your Honda ATV. When you own a Honda, you’re part of a worldwide family of satisfied − customers people who appreciate Honda’s reputation for building quality into every product. Your Honda was designed as a recreational ATV for off-road use by one rider only.
  • Page 3 ０８／０８／０８ １７：３７：２７ ３２ＨＮ６６６０ ０００４  Introduction If you have any questions, or if you ever need special service or repairs, remember that your Honda dealer knows your ATV best and is dedicated to your complete satisfaction. Happy riding! Introduction...
  • Page 4 ０８／０８／０８ １７：３７：３２ ３２ＨＮ６６６０ ０００５  A Few Words About Safety Your safety, and the safety of others, is very important. And operating this ATV safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
  • Page 5 ０８／０８／０８ １７：３７：３８ ３２ＨＮ６６６０ ０００６  A Few Words About Safety These signal words mean: You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions. You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions. You CAN be HURT if you don’t follow instructions.
  • Page 6 ０８／０８／０８ １７：３７：４６ ３２ＨＮ６６６０ ０００７  Contents These pages give an overview of the contents of your owner’s manual. The first page of each section lists the topics covered in that section. ATV Safety ..................Important safety information you should know, plus a look at the safety related labels on your ATV.
  • Page 7 Contents Servicing Your Honda ..............Why your ATV needs regular maintenance, what you need to know before servicing your Honda, an owner maintenance schedule, and instructions for specific maintenance and adjustment items. Tips ....................How to store and transport your ATV and how to be an environmentally responsible rider.
  • Page 8 ０８／０８／０８ １７：３７：５９ ３２ＨＮ６６６０ ０００９ ...
  • Page 9 ０８／０８／０８ １７：３８：０４ ３２ＨＮ６６６０ ００１０  ATV Safety This section presents some of the most important information and recommendations to help you ride your ATV safely. Please take a few moments to read these pages. This section also includes information about the location of safety labels on your ATV. Important Safety Information ...............
  • Page 10 ０８／０８／０８ １７：３８：１１ ３２ＨＮ６６６０ ００１１  Important Safety Information Your ATV can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet while riding. There is much that you can do to protect yourself when you ride. You’ll find many helpful recommendations throughout this manual.
  • Page 11 ０８／０８／０８ １７：３８：１７ ３２ＨＮ６６６０ ００１２  Important Safety Information Ride Off-road Only Your ATV is designed and manufactured for off-road use only. The tyres are not made for pavement, and the ATV does not have turn signals and other features required for use on public roads. If you need to cross a paved or public road, get off and walk your ATV across.
  • Page 12 So don’t drink and ride, and don’t let your friends drink and ride either. Keep Your Honda in Safe Condition It’s important to keep your ATV properly maintained and in safe riding condition. Having a breakdown can be difficult, especially if you are stranded off-road far from your base.
  • Page 13 Anyone who rides the vehicle should read and understand this information before riding. The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, contact your Honda dealer for replacements. ATV Safety...
  • Page 14 ０８／０８／０８ １７：３８：３５ ３２ＨＮ６６６０ ００１５  Safety Labels Engine net power Machine mass ATV Safety...
  • Page 15 ０８／０８／０８ １７：３８：４６ ３２ＨＮ６６６０ ００１６  Safety Labels ATV Safety...
  • Page 16 ０８／０８／０８ １７：３８：４８ ３２ＨＮ６６６０ ００１７  ATV Safety...
  • Page 17 ０８／０８／０８ １７：３８：５５ ３２ＨＮ６６６０ ００１８  Indicators & Controls This section shows the location of all indicators and controls you would normally use before or while riding your ATV. The items listed on this page are described in this section. Instructions for other components are presented in other sections of this manual where they will be most useful.

  • Page 18: Table Of Contents

    ０８／０８／０８ １７：３９：０７ ３２ＨＮ６６６０ ００１９  Indicators & Controls Controls & Features ................Fuel Valve ..................Choke Knob ..................Ignition Switch .................. Start Button ..................Engine Stop Switch ................Headlight Switch ................Headlight Dimmer Switch ..............Throttle Lever ................... Clutch Lever/Parking Brake Lever ........... Reverse Assist Lever .................
  • Page 19 ０８／０８／０８ １７：３９：１２ ３２ＨＮ６６６０ ００２０  Operation Component Locations parking brake lock lever parking brake pin headlight switch reverse assist lever choke knob headlight front brake lever dimmer switch throttle lever clutch lever/ engine stop parking brake lever switch ignition switch start button Indicators & Controls...
  • Page 20 ０８／０８／０８ １７：３９：１６ ３２ＨＮ６６６０ ００２１  Operation Component Locations rear brake pedal Indicators & Controls...
  • Page 21 ０８／０８／０８ １７：３９：１９ ３２ＨＮ６６６０ ００２２  Operation Component Locations flag pole bracket seat lock lever fuel valve shift lever Indicators & Controls...
  • Page 22 The neutral indicator will light when the transmission is in neutral and the ignition switch is ON ( If one of these indicators does not come on when it should, have your Honda dealer check for burned-out bulbs or other problems. CENTRE OF HANDLEBAR (1) reverse indicator (2) neutral indicator Indicators &...

  • Page 23: Controls & Features

    ０８／０８／０８ １７：３９：３５ ３２ＨＮ６６６０ ００２４  Controls & Features Fuel Valve LEFT SIDE (1) fuel valve The manual fuel valve ( ) is located on the left side under the fuel tank. The three-way fuel valve is used to control the flow of fuel from the fuel tank to the carburetor.

  • Page 24: Choke Knob

    ０８／０８／０８ １７：３９：４０ ３２ＨＮ６６６０ ００２５  Controls & Features Choke Knob LEFT HANDLEBAR (A) fully ON (1) choke knob (B) half way position (C) fully OFF The choke knob ( ) may be used when starting the engine. See page Indicators & Controls...

  • Page 25: Ignition Switch

    ０８／０８／０８ １７：３９：４９ ３２ＨＮ６６６０ ００２６  Controls & Features Ignition Switch The ignition switch ( ) is used for starting and stopping the engine (page ). Insert the key and turn it to the right for the ON ( position. Key Position Function ON ( Electrical circuits on.

  • Page 26: Start Button

    ０８／０８／０８ １７：３９：５７ ３２ＨＮ６６６０ ００２７  Controls & Features Start Button LEFT HANDLEBAR (1) start button START (2) engine stop switch The start button ( ) is used for starting the engine. Pushing the button in starts the engine. See Starting Procedure, page When the start button is pushed, the starter motor will crank the engine. The starter motor will operate even if the engine stop switch is in the OFF ( ) position when the start button is pushed.

  • Page 27: Headlight Switch

    ０８／０８／０８ １７：４０：０３ ３２ＨＮ６６６０ ００２８  Controls & Features Headlight Switch LEFT HANDLEBAR (1) headlight switch (2) headlight dimmer switch The headlight switch ( ) is used to turn the headlight ON ( ) or OFF ). To operate, turn the switch to ON ( ) or OFF ( Headlight Dimmer Switch The headlight dimmer switch ( ) is used to change between the high...

  • Page 28: Throttle Lever

    ０８／０８／０８ １７：４０：１０ ３２ＨＮ６６６０ ００２９  Controls & Features Throttle Lever RIGHT HANDLEBAR (1) throttle lever (A) to open the throttle The throttle controls engine rpm (speed). To increase engine rpm, press the throttle lever ( ) with your thumb. To reduce engine rpm, release pressure on the throttle lever.

  • Page 29: Reverse Assist Lever

    ０８／０８／０８ １７：４０：１７ ３２ＨＮ６６６０ ００３０  Controls & Features Reverse Assist Lever The reverse assist lever ( ), located on the right side of the fuel tank, is used to shift into reverse. To operate, pull in the clutch lever/ parking brake lever ( ) with your ATV stopped. Leaving your left hand on the clutch lever/parking brake lever, remove your right hand from throttle and turn the reverse assist lever.

  • Page 30: Front Brake Lever

    ０８／０８／０８ １７：４０：２２ ３２ＨＮ６６６０ ００３１  Controls & Features Front Brake Lever The front brake lever is used to slow or stop your ATV. To operate, pull the lever. For information on braking techniques, see page Rear Brake Pedal The rear brake pedal is used to slow or stop your ATV. To operate, depress the pedal.

  • Page 31: Parking Brake

    ０８／０８／０８ １７：４０：２８ ３２ＨＮ６６６０ ００３２  Controls & Features Parking Brake LEFT HANDLEBAR (1) lock lever (3) clutch lever/parking brake lever (2) parking brake pin (A) to lock The lock lever ( ) and parking brake pin ( ) on the clutch lever/parking brake lever ( ) allows it to be used as a parking brake. To operate, push down and hold the parking brake pin, squeeze the clutch lever/parking brake lever and then lock it with the lock lever.

  • Page 32: Flag Pole Bracket

    Flag Pole Bracket RIGHT REAR (1) flag pole bracket Flag poles are optional equipment available from your Honda dealer. To mount a pole in the bracket ( ), follow the instructions that come with the flag pole kit. Flag poles are required in some riding areas. Check local regulations before riding.

  • Page 33: Before Riding

    ０８／０８／０８ １７：４０：４６ ３２ＨＮ６６６０ ００３４  Before Riding Before each ride, you need to make sure you and your Honda are both ready to ride. To help get you prepared, this section discusses how to evaluate your riding readiness, what items you should check on your ATV, and adjustments to make for your comfort, convenience, or safety.

  • Page 34: Are You Ready To Ride

    ０８／０８／０８ １７：４０：５５ ３２ＨＮ６６６０ ００３５  Are You Ready to Ride? Before you ride your ATV for the first time, we urge you to: Read this owner’s manual and the labels on your ATV carefully. Make sure you understand all the safety messages. Know how to operate all the controls. Before each ride, be sure: You feel well and are in good physical and mental condition.
  • Page 35 ０８／０８／０８ １７：４１：０２ ３２ＨＮ６６６０ ００３６  Are You Ready to Ride? An open-face helmet offers some protection, but a full-face helmet offers more. Always wear a face shield or goggles to protect your eyes and help your vision. Operating this ATV without wearing an approved motorcycle helmet, eye protection, and protective clothing could increase your chances of severe injury or death in the event of an accident.

  • Page 36: Rider Training

    Beginning and inexperienced operators should complete the certified training course offered by Honda. They should then regularly practice the skills learned in the course and the operating techniques described in the owner’s manual.

  • Page 37: Age Recommendation

    ０８／０８／０８ １７：４１：１２ ３２ＨＮ６６６０ ００３８  Are You Ready to Ride? Age Recommendation The minimum recommended age for this ATV model is 16. For safety, never let children under 16 years old operate this vehicle. A child using an ATV that is not recommended for their age could lose vehicle control while riding, resulting in severe injury or death.

  • Page 38: No Alcohol Or Drugs

    ０８／０８／０８ １７：４１：１６ ３２ＨＮ６６６０ ００３９  Are You Ready to Ride? No Alcohol or Drugs Alcohol, drugs and ATVs don’t mix. Even a small amount of alcohol can impair your ability to operate an ATV safely. Likewise, drugs − − even if prescribed by a physician can be dangerous while operating an ATV.

  • Page 39: Is Your Atv Ready To Ride

    If your ATV has overturned or been involved in a collision, do not ride the vehicle until it has been inspected by your Honda dealer. There may be damage or other problems you cannot see. Improperly maintaining this ATV or failing to...
  • Page 40 ０８／０８／０８ １７：４１：３５ ３２ＨＮ６６６０ ００４１  Is Your ATV Ready to Ride? Tyres Use a gauge to check the air pressure. Adjust if needed. Also look for signs of damage or excessive wear (page Nuts & Bolts Check the wheels to see that the axle nuts are tightened.
  • Page 41 Move the handlebar right and left and check that there is no excessive backlash. Remember, be sure to take care of any problem you find, or have your Honda dealer correct it before you ride. Before Riding...

  • Page 42: Load Limits & Guidelines

    ０８／０８／０８ １７：４１：５４ ３２ＨＮ６６６０ ００４３  Load Limits & Guidelines Your Honda was designed as a rider-only ATV. It was not designed to carry a passenger or cargo. A passenger or cargo could interfere with your ability to move around to maintain your balance and control of the ATV.

  • Page 43: Load Limits

    ０８／０８／０８ １７：４２：００ ３２ＨＮ６６６０ ００４４  Load Limits & Guidelines Load Limits Following are the load limits for your ATV: There are limits to how much weight can be carried on your ATV. The following load limits apply to standard equipment only. Modifying your ATV, using non-standard equipment, or riding on terrain that is not flat and smooth could further reduce these limits.

  • Page 44: Loading Guidelines

    ０８／０８／０８ １７：４２：１０ ３２ＨＮ６６６０ ００４５  Load Limits & Guidelines Loading Guidelines As discussed on page , we recommend that you do not carry any cargo on this ATV. However, if you decide to carry cargo, ride at reduced speeds and follow these common-sense guidelines. Carrying cargo or pulling a trailer will affect how your ATV handles and greatly reduce its ability in accelerating, braking and making turns and other maneuvers.

  • Page 45: Accessories & Modifications

    Honda cannot test all other accessories, you must be personally responsible for proper selection, installation, and use of non-Honda accessories. Check with your Honda dealer for assistance and always follow these guidelines: Make sure the accessory does not obscure any lights, reduce ground clearance, limit suspension travel or steering travel, or interfere with operating any controls.

  • Page 46: Modifications

    ０８／０８／０８ １７：４２：２１ ３２ＨＮ６６６０ ００４７  Accessories & Modifications Modifications We strongly advise you not to remove any original equipment or modify your ATV in any way that would change its design or operation. Such changes could seriously impair your ATV’s handling, stability, and braking, making it unsafe to ride. Removing or modifying your lights, exhaust system, emission control system, or other equipment can also make your ATV illegal.

  • Page 47: Basic Operation & Riding

    ０８／０８／０８ １７：４２：３５ ３２ＨＮ６６６０ ００４８  Basic Operation & Riding This section gives basic riding instructions, including how to start and stop your engine, how to use the throttle and brakes, and what to do when you’re through riding. To protect your new engine and enjoy optimum performance and service life, refer to Break-in Guidelines (page For information about carburetor adjustment for riding at high altitude, see page...
  • Page 48 ０８／０８／０８ １７：４２：４３ ３２ＨＮ６６６０ ００４９  Basic Operation & Riding Braking ....................Riding Your ATV ................. Making Turns ..................Skidding or Sliding ................Riding Up Hills ................. Riding Down Hills ................Crossing or Turning on Hills or Slopes ..........Riding Over Obstacles ..............Riding Through Water ..............

  • Page 49: Safe Riding Precautions

    ０８／０８／０８ １７：４２：５０ ３２ＨＮ６６６０ ００５０  Safe Riding Precautions Before riding your ATV for the first time, please review the ATV Saf ety section beginning on page 1, and the Bef ore Riding section beginning on page Even if you have ridden other ATVs, take time to become familiar with how this ATV works and handles.

  • Page 50: Keep Hands And Feet On Controls

    ０８／０８／０８ １７：４２：５６ ３２ＨＮ６６６０ ００５１  Safe Riding Precautions You should never ride your ATV on public streets, roads or highways, even if they are not paved. Drivers of street vehicles may have difficulty seeing and avoiding you, which could lead to a collision. In many states it is illegal to operate ATVs on public streets, roads and highways.

  • Page 51: Control Speed

    ０８／０８／０８ １７：４３：０１ ３２ＨＮ６６６０ ００５２  Safe Riding Precautions Control Speed Riding at excessive speed increases the chance of an accident. In choosing a proper speed, you need to consider the capability of your vehicle, the terrain, visibility and other operating conditions, plus your own skills and experience. Operating this ATV at excessive speeds increases your chances of losing control of the ATV, which can result in an accident.

  • Page 52: Use Care On Unfamiliar Or Rough Terrain

    ０８／０８／０８ １７：４３：０６ ３２ＨＮ６６６０ ００５３  Safe Riding Precautions Use Care on Unfamiliar or Rough Terrain Before riding in a new area, always check the terrain thoroughly. Don’t ride fast on unfamiliar terrain or when visibility is limited. (It’s sometimes difficult to see obstructions like hidden rocks, bumps, or holes in time to react.) Failure to use extra care when operating this ATV on unfamiliar terrain could result in the ATV...

  • Page 53: Do Not Perform Stunts

    ０８／０８／０８ １７：４３：１１ ３２ＨＮ６６６０ ００５４  Safe Riding Precautions Never ride past the limit of visibility. Maintain a safe distance between your ATV and other off-road vehicles. Always exercise caution, and use extra care on rough, slippery and loose terrain. Failure to use extra care when operating on excessively rough, slippery or loose terrain could cause loss of traction or vehicle control, which could result in an accident, including an...

  • Page 54: Starting & Stopping The Engine

    ０８／０８／０８ １７：４３：２２ ３２ＨＮ６６６０ ００５５  Starting & Stopping the Engine Always follow the proper starting procedure described below. For your safety, avoid starting or operating the engine in an enclosed area such as a garage. Your ATV’s exhaust contains poisonous carbon monoxide gas which can collect rapidly in an enclosed area and cause illness or death.

  • Page 55: Starting Procedure

    ０８／０８／０８ １７：４３：３１ ３２ＨＮ６６６０ ００５６  Starting & Stopping the Engine Starting Procedure To restart a warm engine, follow the procedure for ‘‘High Air Temperature.’’ The starter motor will operate only when the transmission is in neutral. − − Normal Air Temperature 10° 35°C (50° 95°F) CENTRE OF HANDLEBAR (A) fully ON (1) choke knob...
  • Page 56 ０８／０８／０８ １７：４３：３９ ３２ＨＮ６６６０ ００５７  Starting & Stopping the Engine Immediately after the engine starts, push the choke knob down to the halfway position ( ). Warm up the engine by opening and closing the throttle slightly. After the engine has warmed up, push the choke knob down all the way to fully OFF ( ).
  • Page 57 ０８／０８／０８ １７：４３：４６ ３２ＨＮ６６６０ ００５８  Starting & Stopping the Engine Low Air Temperature 10°C (50°F) or below − Follow steps under ‘‘Normal Air Temperature.’’ Warm up the engine by opening and closing the throttle slightly. When the engine begins to run slightly rough, push the choke knob down to the halfway position ( ).

  • Page 58: Flooded Engine

    ０８／０８／０８ １７：４３：５８ ３２ＨＮ６６６０ ００５９  Starting & Stopping the Engine Flooded Engine If the engine fails to start after repeated attempts, it may be flooded with excess fuel. To clear a flooded engine: Move the engine stop switch to OFF ( Push the choke knob down all the way to fully OFF. Open the throttle fully.

  • Page 59: Shifting Gears

    ０８／０８／０８ １７：４４：０７ ３２ＨＮ６６６０ ００６０  Shifting Gears UPSHIFTING SEQUENCE To reverse: use reverse assist lever DOWNSHIFTING SEQUENCE Your ATV has five forward gears (1, 2, 3, 4 and 5). To shift the transmission, pull in the clutch lever/parking brake lever, then operate the shift lever as follows. The shift lever is located near the left footpeg.
  • Page 60 ０８／０８／０８ １７：４４：１８ ３２ＨＮ６６６０ ００６１  Shifting Gears While the engine is idling, pull in the clutch lever/parking brake lever and raise the shift lever to shift into 1st gear. Release the rear brake pedal, gradually release the clutch lever/ parking brake lever, and increase engine speed by gradually opening the throttle.

  • Page 61: Riding In Reverse

    ０８／０８／０８ １７：４４：２８ ３２ＨＮ６６６０ ００６２  Riding in Reverse If you need to ride in reverse, make sure the area behind you is clear and only operate the ATV at low speed. Improperly operating in reverse could cause you to hit an obstacle or person behind you, resulting in serious injury.
  • Page 62 ０８／０８／０８ １７：４４：３８ ３２ＨＮ６６６０ ００６３  Riding in Reverse While turning the reverse assist lever, depress the shift lever to reach the reverse gear (below neutral). Make sure that the reverse indicator ( ) comes on. Remove your right hand from the reverse assist lever. If the gearshif t lever is moved while the vehicle is moving, the transmission may be damaged.
  • Page 63 ０８／０８／０８ １７：４４：４１ ３２ＨＮ６６６０ ００６４  Riding in Reverse Applying only the rear brake abruptly when operating in reverse gear could cause the front wheels to lift off the ground and the ATV could overturn backwards. Carefully apply both the front and rear brakes when stopping in reverse gear. Basic Operation &...

  • Page 64: Braking

    ０８／０８／０８ １７：４４：４８ ３２ＨＮ６６６０ ００６５  Braking Your ATV is equipped with disc brakes on both front wheels which are hydraulically activated by operating the brake lever. A single drum brake on the rear axle housing is mechanically activated by depressing the brake pedal. As a general rule, the front braking system provides about 70 percent of total stopping power.
  • Page 65 ０８／０８／０８ １７：４４：５４ ３２ＨＮ６６６０ ００６６  Braking Your ability to brake in a turn and to brake hard in an emergency situation are important riding skills. When descending a long, steep grade, use engine compression braking by downshifting, with intermittent use of both brakes. Continuous brake application can overheat the brakes and reduce their effectiveness.

  • Page 66: Riding Your Atv

    ０８／０８／０８ １７：４４：５９ ３２ＨＮ６６６０ ００６７  Riding Your ATV Making Turns Learn how to turn your ATV properly. Practice the techniques outlined in this section on level ground and at low speeds until you are confident in making turns. Turning improperly can make the ATV go out of control, causing a collision or overturn.
  • Page 67 ０８／０８／０８ １７：４５：０５ ３２ＨＮ６６６０ ００６８  Riding Your ATV Lean your body to the inside of a turn and forward. To make a turn on level ground: Steer the handlebar and lean your body toward the inside of the turn. Leaning helps balance the vehicle, and it feels more comfortable.

  • Page 68: Skidding Or Sliding

    ０８／０８／０８ １７：４５：１０ ３２ＨＮ６６６０ ００６９  Riding Your ATV Skidding or Sliding The terrain surface can be a major factor affecting turns. Skidding during a turn is more likely to occur on slippery surfaces, such as snow, ice, mud and loose gravel. If you skid on ice, you may lose all directional control.

  • Page 69: Riding Up Hills

    ０８／０８／０８ １７：４５：１６ ３２ＨＮ６６６０ ００７０  Riding Your ATV Riding Up Hills The ATV’s ability to safely climb hills largely depends on the rider’s skill and judgment. Begin by practicing on smooth, gentle slopes. As you gain experience, you’ll learn the hazards and your own limitations. You may then proceed to ride on more difficult terrain.
  • Page 70 ０８／０８／０８ １７：４５：２３ ３２ＨＮ６６６０ ００７１  Riding Your ATV Shift weight forward when climbing hills. Always check the terrain carefully before you start up any hill. Never climb hills with excessively slippery or loose surfaces. To climb a hill, take a running start in an appropriate gear and speed for the conditions.
  • Page 71 ０８／０８／０８ １７：４５：３２ ３２ＨＮ６６６０ ００７２  Riding Your ATV Stalling the ATV and/or Rolling Backwards: If you incorrectly estimate climbing capability or terrain conditions, the ATV may not have enough power or traction to continue uphill. If this happens, the ATV can stall and/or roll backwards. Stalling, rolling backwards or improperly dismounting while climbing a hill could result in the ATV overturning.
  • Page 72 ０８／０８／０８ １７：４５：４１ ３２ＨＮ６６６０ ００７３  Riding Your ATV What to do after the ATV has stalled or rolled backwards: If the hill is too steep or too slippery, or if you have any doubt whether you can safely walk the ATV back down the hill, leave the vehicle where it is and get help.

  • Page 73: Riding Down Hills

    ０８／０８／０８ １７：４５：４８ ３２ＨＮ６６６０ ００７４  Riding Your ATV Riding Down Hills It’s usually advisable to descend hills with the ATV pointed straight downhill. Avoid angles that would cause the vehicle to lean sharply to one side. Going down a hill improperly could cause loss of control or cause the ATV to overturn.

  • Page 74: Crossing Or Turning On Hills Or Slopes

    ０８／０８／０８ １７：４５：５４ ３２ＨＮ６６６０ ００７５  Riding Your ATV When you’ve selected a safe downhill path, shift into a lower gear, shift your weight back with your arms extended and braced against the handlebar, then go down slowly with the throttle closed. Use mainly the rear brake to control speed. Avoid using either the front brake or rear brake hard or abruptly when riding down hills.
  • Page 75 ０８／０８／０８ １７：４６：０２ ３２ＨＮ６６６０ ００７６  Riding Your ATV Crossing Hills or Slopes To maintain balance and stability when riding across a slope, you need to shift weight toward the uphill side of the vehicle. To do this, move your body off the centre of the seat and lean toward the uphill side.

  • Page 76: Riding Over Obstacles

    ０８／０８／０８ １７：４６：０６ ３２ＨＮ６６６０ ００７７  Riding Your ATV Riding Over Obstacles Before operating in a new area, check for obstacles. Watch out for bumps, rain ruts, potholes and other obstacles in the terrain. When you approach any obstacle, reduce your speed and be prepared to stop. Never try to ride over large obstacles, such as large rocks or fallen logs.

  • Page 77: Riding Through Water

    ０８／０８／０８ １７：４６：１５ ３２ＨＮ６６６０ ００７８  Riding Your ATV Riding Through Water Your ATV is designed to travel through water up to approximately 254 mm (10 inches) deep. Before crossing a stream, make sure the water is not too deep or flowing too fast. The ATV tyres have some ability to float. Operating this ATV through deep or fast-flowing water may cause a loss of traction and loss of control, which could lead to an accident.

  • Page 78: Parking

    ０８／０８／０８ １７：４６：２４ ３２ＨＮ６６６０ ００７９  Parking Look for level parking area. Make sure the ground surface is firm. After bringing your ATV to a stop, hold the brakes while you shift into neutral. Set the parking brake. Turn the ignition switch OFF ( If you’re finished riding for the day, turn the fuel valve OFF. If it is necessary to start the engine when your ATV in gear and is stopped on a grade, rock the vehicle back and forth to allow shifting the transmission into neutral.

  • Page 79: Servicing Your Honda

    You’ll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking good. For information about replacing the fuse, see page Bef ore You Service Your Honda The Importance of Maintenance ............Maintenance Safety ................
  • Page 80 ０８／０８／０８ １７：４６：５１ ３２ＨＮ６６６０ ００８１  Servicing Your Honda Service Procedures Fluids & Filters Fuel ....................... Engine Oil ..................... Gear Case Oil ..................Air Cleaner .................... Engine Throttle ....................Carburetor Choke Cable & Knob ............Clutch System ................... Reverse Lock System ................ Engine Idle Speed and Air-Fuel Mixture ..........

  • Page 81: The Importance Of Maintenance

    Frequent servicing of the air cleaner is especially important to help you avoid a possible costly engine repair. If your ATV overturns or is involved in a crash, be sure your Honda dealer inspects all major parts, even if you are able to make some repairs.

  • Page 82: Maintenance Safety

    Other tasks that are more difficult and require special tools are best performed by professionals. Removing the wheels should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.

  • Page 83: Important Safety Precautions

    Keep cigarettes, sparks, and flames away from all fuel- related parts. Remember that your Honda dealer knows your ATV best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or other equivalents for repair and replacement.

  • Page 84: Maintenance Schedule

    Other items involve more extensive procedures and may require special training, tools, and equipment. We recommend that you have your Honda dealer perform these tasks unless you have advanced mechanical skills and the required tools and equipment.
  • Page 85 ) may require more technical information and tools. Consult your Honda dealer. ＊ Should be serviced by your Honda dealer, unless you have the proper tools and service data and are mechanically qualified. Refer to the official Honda Shop Manual.
  • Page 86 CENTRIFUGAL FILTER ENGINE IDLE SPEED Should be serviced by your Honda dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Shop Manual. In the interest of safety, we recommend these items be serviced only by your Honda dealer.
  • Page 87 STEERING SYSTEM − Should be serviced by your Honda dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Shop Manual. In the interest of safety, we recommend these items be serviced only by your Honda dealer.

  • Page 88: Maintenance Record

    (Miles) or Date Performed By: Notes hours 150 (100) or 1,000 (600) or 2,000 (1,200) or 3,000 (1,800) or 4,000 (2,400) or 5,000 (3,000) or 6,000 (3,600) or 7,000 (4,200) or 8,000 (4,800) or Servicing Your Honda...

  • Page 89: Maintenance Component Locations

    ０８／０８／０８ １７：４７：４９ ３２ＨＮ６６６０ ００９０  Maintenance Component Locations choke knob front brake fluid reservoir clutch lever/ parking brake lever front brake lever throttle lever fuel fill cap Servicing Your Honda...
  • Page 90 ０８／０８／０８ １７：４７：５３ ３２ＨＮ６６６０ ００９１  Maintenance Component Locations battery air pressure gauge fuse air cleaner tool kit air cleaner housing drain tube rear brakelight switch rear brake pedal front brake caliper throttle stop screw (engine idle speed) Servicing Your Honda...
  • Page 91 ０８／０８／０８ １７：４７：５７ ３２ＨＮ６６６０ ００９２  Maintenance Component Locations engine oil filler cap/dipstick spark plug owner’s manual spark arrester clutch engine oil drain bolt gear case oil filler cap gear case oil level check bolt Servicing Your Honda...

  • Page 92: Tool Kit

    The tools in the kit are sufficient to perform routine maintenance and simple repairs. Any extensive work requiring additional tools should be performed by your Honda dealer. The tool kit includes the following items: standard/Phillips screwdriver screwdriver handle...

  • Page 93: Owner's Manual Storage

    ( ) and fastened with the rubber band ( ). Be careful not to flood this area when washing your ATV. SEAT UNDERSIDE (1) owner’s manual (4) plastic document bag (2) seat (5) rubber band (3) spare fuse Servicing Your Honda...

  • Page 94: Seat Removal

    Slide the seat ( ) back and lift it. Installation Insert the front prongs ( ) into the hooks ( ) on the frame and press the studs ( ) into the grommets on the frame. Press down on the seat until locks. Servicing Your Honda...

  • Page 95: Fuel

    If pinging or spark knock occurs at a steady engine speed under normal load, change brands of petrol. If pinging or spark knock persists, consult your Honda dealer. Never use stale or contaminated petrol or an oil/petrol mixture. Avoid getting dirt, dust, or water in the fuel tank.
  • Page 96 ON position after refueling to avoid running out of fuel with no reserve. Refueling Procedure Refer to Saf ety Precautions on page (1) fuel fill cap (3) handlebar cover hole (2) breather tube (4) filler neck Servicing Your Honda...
  • Page 97 After refueling, reinstall the fuel fill cap, turning it clockwise. Insert the breather tube into the handlebar cover hole. If the fuel valve was set to RES, turn the fuel valve ON. If you replace the fuel fill cap, use only a Honda Genuine replacement part. Servicing Your Honda...

  • Page 98: Engine Oil

    Running the engine with insufficient oil can cause serious damage to the engine and transmission. Change the engine oil as specified in the maintenance schedule on page . When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule. Servicing Your Honda...
  • Page 99 SE, SF or SG viscosity (weight) SAE 10W-40 suggested oil Honda 4-stroke oil or an equivalent ＊ Motor oils intended for Service SE, SF or SG will show this designation on the container. Your ATV does not need oil additives. Use the recommended oil.
  • Page 100 There are two classes: MA and MB. Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification. (1) code number of the sales company of the oil (2) oil classification Servicing Your Honda...
  • Page 101 Do not overfill. Reinstall the oil filler cap/dipstick. Running the engine with an improper oil level can cause serious engine damage. LEFT SIDE (1) oil filler cap/dipstick (2) upper level mark (3) lower level mark Servicing Your Honda...
  • Page 102 This procedure requires mechanical skill and professional tools such as a torque wrench, as well as a means for disposing of the drained fluid (page ). If you do not have the skills or the tools, see your Honda dealer. Drain the Engine Oil: With the ATV on the level ground, remove the oil filler cap/dipstick from the left side of crankcase.
  • Page 103 If necessary, add more oil but do not overfill. Reinstall the oil filler cap/dipstick. Check that there are no oil leaks. If a torque wrench is not used for installation, see your Honda dealer as soon as possible to verify proper assembly. Servicing Your Honda...

  • Page 104: Gear Case Oil

    Gear Case Oil Oil Recommendation type hypoid gear oil viscosity (weight) SAE 80 Changing Oil Refer to Saf ety Precautions on page Change the oil with the gear case at normal operating temperature to assure complete and rapid draining. Servicing Your Honda...
  • Page 105 Remove the oil level check bolt ( ). Make sure the oil level reaches the oil level check hole ( ). Install the oil filler cap and oil level check bolt. REAR (1) oil drain plug (3) oil level check bolt (2) oil filler cap (4) oil level check hole Servicing Your Honda...

  • Page 106: Air Cleaner

    Your ATV’s air cleaner has very specific performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality. Using the wrong air cleaner may result in premature engine wear.
  • Page 107 Uncover the rubber sheet ( ) from the retainer clips ( ). Unlatch the retainer clips. Remove the air cleaner housing cover ( ). UNDER SEAT (1) rubber sheet (3) air cleaner housing cover (2) retainer clips (cont’d) Servicing Your Honda...
  • Page 108 (To keep your hands dry, place the air cleaner in a clean plastic bag before spreading the oil into the air cleaner.) UNDER SEAT (4) screws (7) air cleaner (5) air cleaner assembly (8) air cleaner body (6) clamp Servicing Your Honda...
  • Page 109 Install the air cleaner housing cover and latch the retainer clips. Dust Cover UNDER SEAT (1) dust cover (2) air cleaner housing Do not push the dust cover ( ) too far into the air cleaner housing ( ). If the dust cover is dirty, clean it. Servicing Your Honda...
  • Page 110 (3) air cleaner housing (2) clip Remove the drain tube ( ) by removing the clip ( ) under the air cleaner housing ( ). Drain the deposits. Reinstall the drain tube, securing it with the clip. Servicing Your Honda...

  • Page 111: Throttle

    Loosen the lock nut ( ). Turn the adjuster to obtain the correct freeplay. Tighten the lock nut and reinstall the sleeve. After adjustment, check for smooth operation of the throttle lever from fully closed to fully open in all steering positions. Servicing Your Honda...
  • Page 112 If the cable is kinked or chafed, have it replaced. Check the cables for tension or stress in all steering positions. Lubricate the cables with a commercially available cable lubricant to prevent premature wear and corrosion. Servicing Your Honda...

  • Page 113: Carburetor Choke Cable & Knob

    (1) choke cable (2) choke knob Check the condition of the choke cable ( ). Check the operation of the choke knob ( ). If the cable is damaged or kinked, have it replaced by your Honda dealer. Servicing Your Honda...

  • Page 114: Clutch System

    Inspection Check freeplay. Freeplay: 10 20 mm (0.4 0.8 in) − − If necessary, adjust to the specified range. Improper freeplay adjustment can cause premature clutch wear. Servicing Your Honda...
  • Page 115 Tighten the upper lock nut and pull on the dust cover. If proper adjustment cannot be obtained or the clutch does not work correctly, the cable or clutch friction discs may be worn. See your Honda dealer. Servicing Your Honda...
  • Page 116 Hold the lower adjusting nut ( ) and loosen the lower lock nut ( ) at the lower end of the cable. Turn the lower adjusting nut to obtain the specified freeplay. Hold the lower adjusting nut and tighten the lower lock nut. Check the adjustment. Servicing Your Honda...
  • Page 117 Check the clutch lever/parking brake lever and clutch cable for loose connections or other damage. If the clutch cable is worn or kinked, have it replaced by your Honda dealer. Other Inspections & Lubrication Check that the clutch lever/parking brake lever assembly is positioned properly and the securing bolts are tight.

  • Page 118: Reverse Lock System

    Check the operation of the reverse assist lever ( ) for smooth without sticking. Check the reverse assist lever and cable ( ) for loose connections or other damage. If the cable is worn or kinked, have it replaced by your Honda dealer. Servicing Your Honda...

  • Page 119: Engine Idle Speed And Air-Fuel Mixture

    ０８／０８／０８ １７：５１：４５ ３２ＨＮ６６６０ ０１２０  Engine Idle Speed and Air-Fuel Mixture The best way to assure proper carburetion is to see your Honda dealer for regularly scheduled servicing, including carburetor adjustment. Remember, idle speed adjustment is not a ‘‘cure-all’’ for other problems in your engine’s fuel-delivery system. Adjusting the idle will not compensate for a fault elsewhere.
  • Page 120 Centre the pilot screw exactly between the two extreme positions. Usually, the correct setting (between extremes of rich and lean) will be found at 2-1/4 turns open from a fully closed position. If idle speed changes after adjusting the fuel mixture, readjust the throttle stop screw. Servicing Your Honda...

  • Page 121: Spark Plug

    Disconnect the spark plug cap ( ). Take care to avoid damaging the spark plug wire when disconnecting the cap. Using a spark plug wrench provided in the tool kit, remove the spark plug. (1) spark plug cap (cont’d) Servicing Your Honda...
  • Page 122 ( ) should not be eroded. If the electrodes and insulator tip appear unusually fouled or burned, we suggest that you contact your Honda dealer. Discard the spark plug if there is apparent wear or if the insulator is cracked or chipped.
  • Page 123 An improperly tightened spark plug can damage the engine. If a plug is too loose, a piston may be damaged. If a plug is too tight, the threads may be damaged. Reinstall the spark plug cap. Take care to avoid pinching any cables or wires. Servicing Your Honda...

  • Page 124: Valves

    For those who are mechanically proficient and have the proper tools, instructions on adjusting valve clearances are given in the official Honda Shop Manual. Otherwise, the valves should be adjusted by your Honda dealer. Servicing Your Honda...

  • Page 125: Spark Arrester

    Select a well-ventilated area free of combustible materials and make sure the exhaust pipe is cool. Remove the bolts ( ), the spark arrester ( ) and the gasket ( ) from the muffler ( ). (cont’d) Servicing Your Honda...
  • Page 126 The spark arrester must be free of breaks and holes. Replace, if necessary. Check the gasket. Replace, if necessary. (5) spark arrester screen Install the spark arrester and the gasket in the muffler and tighten the bolts securely. Servicing Your Honda...

  • Page 127: Brakes

    Worn pads should be replaced. If the pads are not worn beyond the recommended limit, there is probably air in the brake system. See your Honda dealer to have the air bled from the system. Mechanical Drum Rear Brake If the clutch lever/parking brake lever or brake pedal freeplay does not...
  • Page 128 Do not add or replace brake fluid, except in an emergency. If you do add fluid, have your Honda dealer check the system as soon as possible. Brake f luid can damage plastic and painted surf aces. Handle with care.
  • Page 129 Other Inspections Make sure there are no fluid leaks. Check for deterioration or cracks in the hoses and fittings. If the hoses are worn or cracked, have them replaced by your Honda dealer. Servicing Your Honda...
  • Page 130 Check the wear indicator ( ). If the wear indicator aligns with the edge of the reference mark ( ), both pads must be replaced, see your Honda dealer for this replacement. Always inspect both pads in both the right and left front brake calipers.
  • Page 131 Measure the distance the rear brake pedal ( ) moves before the brake starts to take hold. Freeplay, measurement at the tip of the end of the pedal, should be: 15 20 mm (0.6 0.8 in) − − If necessary, adjust to the specified range. Servicing Your Honda...
  • Page 132 Turn the brake pedal adjusting nut ( ), located on the brake operating rod at the rear of the frame. Make sure the cutout on the adjusting nut is properly seated on the brake arm pin ( ). Servicing Your Honda...
  • Page 133 ０８／０８／０８ １７：５３：２３ ３２ＨＮ６６６０ ０１３４  Brakes Adjust the freeplay of the rear brake pedal. Push the brake arm ( ) then check the clearance between the brake arm and the brake arm pin. (4) brake arm Servicing Your Honda...
  • Page 134 ( ). Replace the brake shoe if the arrow aligns with the reference mark ( ) on the brake panel upon full application of the brake. If replacement is necessary, see your Honda dealer. Servicing Your Honda...
  • Page 135 Turn the brake lever adjusting nut ( ), located on the brake operating rod at the rear of the frame. Make sure the cutout on the adjusting nut is properly seated on the brake arm pin ( ). (cont’d) Servicing Your Honda...
  • Page 136 Measure the distance the clutch lever/parking brake lever has moved; the distance should be: 15 20 mm (0.6 0.8 in) − − LEFT HANDLEBAR (5) (4) 15 20 mm − (0.6 0.8 in) − (4) parking brake pin (5) clutch lever/parking brake lever Servicing Your Honda...
  • Page 137 Check the clutch lever/parking brake lever and parking brake cable for loose connections or other damages. If the parking brake cable is worn or kinked, have it replaced by your Honda dealer. Other Inspections & Lubrication Check that the clutch lever/parking brake lever assembly is positioned properly and the securing bolts are tight.
  • Page 138 Adjustment is done by turning the adjusting nut ( ). Turn the nut in direction ( ) if the switch operates too late and in direction ( ) if the switch operates too soon. RIGHT SIDE (1) brakelight switch (2) adjusting nut Servicing Your Honda...
  • Page 139 Make sure the engine is OFF and the parking brake is set. Remove the rear brake drain bolt ( ) from the bottom of the rear brake cover. If any water drains, the brake seals must be replaced by your Honda dealer as soon as possible. Servicing Your Honda...

  • Page 140: Tyres

    Always select your riding area with care. The following pages give detailed information on how and when to check your air pressure, how to inspect your tyres for wear and damage, and our recommendations for tyre repair and replacement. Servicing Your Honda...
  • Page 141 Overinflated tyres make your ATV ride harshly, are more prone to damage from surface hazards, and wear unevenly. Make sure the valve stem caps are secure. If necessary, install new caps. (cont’d) Servicing Your Honda...
  • Page 142 Be sure to check tyre pressure at the riding site, since changes in altitude can affect air pressure. The recommended ‘‘cold’’ tyre pressures are: FRONT REAR RECOMMENDED 30.0 kPa 20.0 kPa PRESSURE (4.4 psi) (2.9 psi) Servicing Your Honda...
  • Page 143 Cuts, slits, or cracks in the tyres. Replace the tyre if you can see fabric or cord. Nails or other foreign objects embedded in the side of the tyre or tread. Excessive tread wear. (cont’d) Servicing Your Honda...
  • Page 144 ( ). For best performance, you should replace a tyre before the tread depth at the centre reaches the following limits: front 4 mm (0.16 in) rear 4 mm (0.16 in) Servicing Your Honda...
  • Page 145 If you choose to have a tyre repaired, be sure the repair work is performed by a professional. If you have a tyre professionally repaired at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.
  • Page 146 When you replace a tyre, remember. Have the tyre replaced by your Honda dealer if possible. If you have a tyre professionally replaced at a non-Honda facility, we recommended that you have the work checked by your Honda dealer. Servicing Your Honda...

  • Page 147: Engine Guard & Skid Plates

    The skid plates ( ) protect the frame and rear final gear case. Check the guard and plates for cracks, damage or looseness at intervals shown in the Maintenance Schedule. Have the skid plates replaced if they are cracked or damaged. If the plate bolts are loose, tighten them securely. Servicing Your Honda...

  • Page 148: Battery

    Battery Storage, page If your battery seems weak and/or is leaking electrolyte (causing slow starting or other electrical problems), see your Honda dealer. This symbol on the battery means that this product must not be treated as household waste. An improperly disposed of battery can be harmf ul to the environment and human health.
  • Page 149 A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance. Servicing Your Honda...
  • Page 150 Remove the battery holder ( ) by removing the mount bolts ( ). Disconnect the negative ( ) terminal lead ( ) from the battery ( ) − ＋ first, then disconnect the positive ( ) terminal lead ( ). Remove the battery. Servicing Your Honda...
  • Page 151 Slow charge the battery (see following section) once every 30 days. Installation Reinstall in the reverse order of removal. ＋ Be sure to connect the positive ( ) terminal first, then the negative ( ) terminal. − Make sure all bolts and other fasteners are secure. Servicing Your Honda...
  • Page 152 However, do not intentionally leave the charger connected longer than the time period recommended in the charger’s instructions. Avoid using an automotive-type battery charger. An automotive charger can overheat an ATV battery and cause premature damage. Servicing Your Honda...

  • Page 153: Appearance Care

    ０８／０８／０８ １７：５５：５４ ３２ＨＮ６６６０ ０１５４  Appearance Care Frequent cleaning and polishing will keep your Honda looking newer longer. Frequent cleaning also identifies you as an owner who values his ATV. A clean ATV is also easier to inspect and service. General Recommendations Refer to...
  • Page 154 As a precaution, ride your ATV at a slow speed and apply the brakes several times. This will help dry the brakes and restore normal braking performance. If the inside of the headlight lens appears clouded immediately after washing, it should clear after a few minutes of riding. Servicing Your Honda...
  • Page 155 Brake dust. necessary, rub with a sponge. Rinse and dry. Apply a spray cleaner/polish and wipe with a non-abrasive cloth. Dull, corroded chrome Apply a high quality chrome/ or aluminum. aluminum polish and wipe with a non-abrasive cloth. Servicing Your Honda...
  • Page 156 After washing, rinse with plenty of water and dry with a clean cloth. Then apply a mild, commercially available spray cleaner/polish or wax. For stained or dull-looking wheels, use a quality chrome/aluminum polish to restore the finish. Servicing Your Honda...

  • Page 157: Tips

    ０８／０８／０８ １７：５６：３０ ３２ＨＮ６６６０ ０１５８  Tips Here’s helpful advice on how to prepare for an off-road adventure, how to transport and store your Honda, and how to be an environmentally responsible ATV owner. Preparing for a Ride ................What to Take to the Riding Area ..........

  • Page 158: Preparing For A Ride

    ０８／０８／０８ １７：５６：３９ ３２ＨＮ６６６０ ０１５９  Preparing for a Ride A safe and enjoyable ride begins with good planning and preparation. Always ride with at least one other person in case you have trouble, and let someone know where you’re going and when you expect to return. Before riding in an unfamiliar area, find out in advance if you need special permits, get maps so you can study the terrain, and talk to other riders who know the area.

  • Page 159: What To Take On The Trail

    ０８／０８／０８ １７：５６：４４ ３２ＨＮ６６６０ ０１６０  Preparing for a Ride What to Take on the Trail What you take with you during a ride depends on the kind of terrain, how long you expect to ride, how far you might go from your base camp or help, and how experienced you or your companions are in making repairs.

  • Page 160: Transporting Your Honda

    ０８／０８／０８ １７：５６：５０ ３２ＨＮ６６６０ ０１６１  Transporting Your Honda Do not tow your ATV behind a car or other vehicle. When you transport your ATV, we recommend that you carry the vehicle in its normal operating position (on all four wheels). Do not incline the vehicle upright on its rear end. This can damage the vehicle, and leaking petrol could be a hazard.
  • Page 161 ０８／０８／０８ １７：５６：５７ ３２ＨＮ６６６０ ０１６２  Transporting Your Honda Secure the vehicle with tie-down straps in the areas shown. Suitable tie-down straps are available from your Honda dealer. Ordinary rope is not recommended because it can stretch under load. Using tie-down straps in any other areas can damage your ATV.

  • Page 162: Storing Your Honda

    ０８／０８／０８ １７：５７：０２ ３２ＨＮ６６６０ ０１６３  Storing Your Honda If you won’t be riding for an extended period, such as during the winter, thoroughly inspect your ATV and correct any problem before storing it. That way, needed repairs won’t be forgotten and it will be easier to get your ATV running again.

  • Page 163: Preparation For Storage

    ０８／０８／０８ １７：５７：１０ ３２ＨＮ６６６０ ０１６４  Storing Your Honda Preparation for Storage Refer to Saf ety Precautions on page This procedure requires a means for draining and disposing of drained fuel (page Change the engine oil (page Fill the fuel tank. Make sure the fuel fill cap is properly installed.
  • Page 164 ０８／０８／０８ １７：５７：２０ ３２ＨＮ６６６０ ０１６５  Storing Your Honda To prevent rusting in the cylinders, perform the following: Remove the spark plug cap from the spark plug. Remove the spark plug. Do not connect the spark plug to the spark plug cap. Pour a tablespoon (15 20 cm ) of clean engine oil into the −...

  • Page 165: Removal From Storage

    (page If your ATV has been stored for more than two months − ask your Honda dealer to drain and replace the fuel. Charge the battery (page ) as required. Install the battery. Perform a pre-ride inspection (page ), then test-ride your ATV at low speeds.

  • Page 166: You & The Environment

    ０８／０８／０８ １７：５７：３４ ３２ＨＮ６６６０ ０１６７  You & the Environment Owning and riding an ATV can be enjoyable, but you must do your part to protect nature. When you show respect for the land, wildlife, and other people, you also help preserve the sport of off-road riding. Following are tips on how you can be an environmentally responsible ATV owner.

  • Page 167: Taking Care Of The Unexpected

    ０８／０８／０８ １７：５７：４３ ３２ＨＮ６６６０ ０１６８  Taking Care of the Unexpected With all the challenges you can encounter off-road, there’s a chance that sometime something may go wrong. This section gives practical advice to help you deal with a wide range of problems. Take time to read this section before you ride.

  • Page 168: General Guidelines

    ０８／０８／０８ １７：５７：５０ ３２ＨＮ６６６０ ０１６９  Taking Care of the Unexpected General Guidelines Keeping your ATV well-maintained is the best way to reduce the possibility of having a problem while riding. However, problems can arise even with well-maintained machines. Remember to take along your owner’s manual, the tool kit that came with your ATV, and any other items (such as tyre repair supplies and additional tools) that might help you solve a problem on your own.
  • Page 169 ０８／０８／０８ １７：５７：５６ ３２ＨＮ６６６０ ０１７０  Taking Care of the Unexpected Should you ever have a problem while riding, please follow these guidelines: Always put personal safety first. Take time to assess the situation and your options before deciding what to do. If the problem is relatively minor and you have the tools, supplies, and skills to make a temporary repair, be sure to have permanent repairs made as soon as possible.

  • Page 170: If Your Engine Quits Or Won't Start

    − performance the following information may help you. If you can’t correct the problem, see your Honda dealer. If your ATV won’t start, listen as you press the start button. If you don’t hear the starter motor turning, refer to the Starter motor doesn’t operate...
  • Page 171 If charging doesn’t help, see your Honda dealer. faulty starter motor If all possible causes are negative, the starter motor may be faulty. See your Honda dealer. SYMPTOM: Starter motor works, but the engine won’t start. POSSIBLE CAUSE WHAT TO DO engine stop switch Turn the engine stop switch to RUN.
  • Page 172 Check engine idle adjustment fast, stalls (page ). If the problem persists, see your Honda dealer. poor engine Ask your Honda dealer to modify the performance at carburetion with a high altitude jet. altitudes above Refer to High Altitude Carburetor...

  • Page 173: If You Have A Flat Tyre

    Follow the instructions provided with the repair kit to make a temporary repair. As soon as possible, have the tyre permanently repaired by your Honda dealer. Any tyre that cannot be repaired should be replaced. Whenever the ATV is to be operated far from service facilities or available transportation, we recommend that you carry a tyre pump and a repair kit with the vehicle.
  • Page 174 ０８／０８／０８ １７：５８：５３ ３２ＨＮ６６６０ ０１７５  If You Have a Flat Tyre Emergency Wheel Removal/Installation Refer to Saf ety Precautions on page (1) wheel nuts (2) wheel rim Removal Park your ATV on a firm, level surface. − − Loosen but do not remove the wheel nuts ( ). Raise the front (or rear) wheels off the ground and place a support block under the vehicle.
  • Page 175 64 N·m (6.5 kgf·m , 47 lbf·ft) If a torque wrench was not used for installation, see your Honda dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capability.

  • Page 176: If A Fuse Blows

    ０８／０８／０８ １７：５９：０７ ３２ＨＮ６６６０ ０１７７  If a Fuse Blows All of the electrical circuits on your ATV have a fuse to protect them from damage caused by excess current flow (short circuit or overload). If something electrical on your ATV stops working, the first thing you should check for is a blown fuse ( ).
  • Page 177 ０８／０８／０８ １７：５９：１６ ３２ＨＮ６６６０ ０１７８  If a Fuse Blows Main Fuse Access UNDER SEAT (2) fuse holder assembly (3) fuse holder To prevent an accidental short circuit, turn the ignition switch OFF ) before checking or replacing the fuses. To access the fuse, remove the seat (page Remove the fuse holder assembly ( ).

  • Page 178: If You Crash

    Sometimes, crash damage is hidden or not immediately apparent. When you get home, thoroughly check your ATV and correct any problems you find. Also, be sure to have your Honda dealer check the frame and suspension after any serious crash.

  • Page 179: If You Lose Your Key

    If you don’t know your key number, call the dealer where you purchased your Honda ATV. They may have it listed in their records. If they don’t, transport your ATV to them or the nearest Honda dealer.

  • Page 180: If The Battery Is Low (Or Dead)

    The greater amperage of an automobile battery when the car engine is running can damage your ATV’s electrical system. Bump starting is also not recommended. If you can’t charge the battery or it appears unable to hold a charge, contact your Honda dealer. Taking Care of the Unexpected...

  • Page 181: If A Component Fails

    ０８／０８／０８ １７：５９：３６ ３２ＨＮ６６６０ ０１８２  If a Component Fails The levers or pedal, control cables, and other components can be damaged as you ride in dense brush or over rocky terrain. Making a trailside repair depends on how serious the damage is and what tools and supplies you have with you.
  • Page 182 ０８／０８／０８ １７：５９：３９ ３２ＨＮ６６６０ ０１８３  Taking Care of the Unexpected...

  • Page 183: Technical Information

    ０８／０８／０８ １７：５９：４７ ３２ＨＮ６６６０ ０１８４  Technical Information This section contains dimensions, capacities, and other technical data, plus information on government requirements and how to break-in your ATV. Vehicle Identification ................ Serial Numbers ................Colour Label & Code ..............Specifications ..................Break-in Guidelines ................High Altitude Carburetor Adjustment ..........

  • Page 184: Vehicle Identification

    ０８／０８／０８ １７：５９：５５ ３２ＨＮ６６６０ ０１８５  Vehicle Identification Serial Numbers The VIN, engine serial number, and key number may be required when ordering replacement parts. Record the numbers here for your reference. The VIN ( ) is stamped on the front of the frame. FRONT (1) VIN The engine number ( ) is stamped on the right side of the crankcase.

  • Page 185: Colour Label & Code

    ０８／０８／０８ １８：００：０１ ３２ＨＮ６６６０ ０１８６  Vehicle Identification Colour Label & Code The colour label ( ) is attached to the frame under the seat. Remove the seat (page ) to check the label. The colour code is helpful when ordering replacement parts. Record the colour and code here for your reference.

  • Page 186: Specifications

    1.9 (2.0 US qt , 1.7 Imp qt) after draining: 1.6 (1.7 US qt , 1.4 Imp qt) engine oil API Service Classification SE, SF or recommendation Honda 4-stroke oil or an equivalent Capacities passenger capacity operator only maximum weight 110 kg (243 lbs)
  • Page 187 ０８／０８／２１ １５：５４：０７ ３２ＨＮ６６６０ ０１８８  Specifications Engine Specifications displacement 229 cm (14.0 cu-in) bore & stroke 68.5 × 62.2 mm (2.70 × 2.45 in) compression ratio 9.2 : 1 spark plug DPR8EA-9 (NGK) (standard) X24EPR-U9 (DENSO) spark plug DPR7EA-9 (NGK) (cold climate) X22EPR-U9 (DENSO) spark plug gap 0.80 0.90 mm (0.031 0.035 in) −...
  • Page 188 ０８／０８／０８ １８：０１：００ ３２ＨＮ６６６０ ０１８９  Specifications Chassis & Suspension caster 9.0° trail 40 mm (1.6 in) tyre size, front AT22 × 7-10 ★★ DUNLOP KT171 tyre size, rear AT22 × 10-9 ★ DUNLOP KT175 tyre pressure, front 30.0 kPa (4.4 psi) front & rear (cold) rear 20.0 kPa (2.9 psi) Electrical...

  • Page 189: Break-In Guidelines

    ０８／０８／０８ １８：０１：０４ ３２ＨＮ６６６０ ０１９０  Break-in Guidelines Help assure your ATV’s future reliability and performance by paying extra attention to how you ride during the first operating day or 25 km (15 miles). During this period, avoid full-throttle starts, rapid acceleration, and constant rpm operation. Technical Information...

  • Page 190: High Altitude Carburetor Adjustment

    For those who are mechanically proficient and have the necessary tools, installation and adjustment procedures are given in the official Honda Shop Manual available from your Honda dealer. All others should have this carburetor modification performed by a Honda dealer.

  • Page 191: Petrol Containing Alcohol

    Engine performance problems resulting from the use of fuels that contain alcohol are not covered under the warranty. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is not yet complete.

  • Page 192: Table Of Contents

    ０８／０８／０８ １８：０１：３２ ３２ＨＮ６６６０ ０１９３  Table of Contents The following presents the contents of each section of your owner’s manual. ATV SAFETY ..................Important Safety Information ............... Safety Labels ..................INDICATORS & CONTROLS ............Operation Component Locations ............Indicators ....................Reverse and Neutral Indicators ............
  • Page 193 ０８／０８／０８ １８：０１：４４ ３２ＨＮ６６６０ ０１９４  Table of Contents BEFORE RIDING ................25 Are You Ready to Ride? ............... Protective Apparel ................Rider Training ................... Age Recommendation ............... No Passengers ................... No Alcohol or Drugs ................. Is Your ATV Ready to Ride? ..............Pre-ride Inspection ................
  • Page 194 ０８／０８／０８ １８：０１：５９ ３２ＨＮ６６６０ ０１９５  Table of Contents BASIC OPERATION & RIDING ............ . 39 Safe Riding Precautions ................ Off-road Use Only ................Keep Hands and Feet on Controls ............. Control Speed ..................Use Care on Unfamiliar or Rough Terrain ........Do Not Perform Stunts ..............
  • Page 195 ０８／０８／０８ １８：０２：１７ ３２ＨＮ６６６０ ０１９６  Table of Contents SERVICING YOUR HONDA ............71 Bef ore You Service Your Honda The Importance of Maintenance ............Maintenance Safety ................Important Safety Precautions ............Maintenance Schedule ................Maintenance Record ................Service Preparations Maintenance Component Locations ............
  • Page 196 ....................149 Preparing for a Ride ................What to Take to the Riding Area ..........What to Take on the Trail ............. Transporting Your Honda ..............Storing Your Honda ................Preparation for Storage ..............Removal from Storage ..............You & the Environment ..............
  • Page 197 ０８／０８／０８ １８：０２：４２ ３２ＨＮ６６６０ ０１９８  Table of Contents TECHNICAL INFORMATION ............175 Vehicle Identification ................ Serial Numbers ................Colour Label & Code ..............Specifications ..................Break-in Guidelines ................High Altitude Carburetor Adjustment ..........Petrol Containing Alcohol ..............TABLE OF CONTENTS ..............184 INDEX ....................

  • Page 198: Index

    ０８／０８／０８ １８：０２：４６ ３２ＨＮ６６６０ ０１９９  Index accessories .................... . 37 age recommendation ................29 air cleaner, filter ....................98 housing drain tube ................102 air pressure, gauge ....................84 tyre ....................133 altitude, high ..................182 apparel, protective ................
  • Page 199 ０８／０８／０８ １８：０２：４９ ３２ＨＮ６６６０ ０２００  Index Battery ....................140 Brakes, cable ....................129 draining water from ................ . 131 fluid ....................120 front brake lever ................22 front brake pads ................122 parking ....................70 rear brake pedal ................
  • Page 200 ０８／０８／０８ １８：０２：５４ ３２ＨＮ６６６０ ０２０１  Index capacity, fuel ..................88 carburetor, altitude adjustment ............182 care, appearance ................. . 145 choke, cable ....................105 knob ....................47 cleaning, appearance care ..............145 climbing hills ..................61 clutch system ..................
  • Page 201 ０８／０８／０８ １８：０２：５８ ３２ＨＮ６６６０ ０２０２  Index engine, flooded ....................50 guard ....................139 idle speed ..................111 number ................... . 176 ..................... . 90 pinging ....................87 starting ....................46 stop switch ..................18 stopping .................... . 50 won’t start ..................
  • Page 202 ０８／０８／０８ １８：０３：０２ ３２ＨＮ６６６０ ０２０３  Index flag pole bracket ..................24 flat tyre ....................165 flooded engine ..................50 fuel, fill cap ....................88 high altitude fuel mixture adjustment ..........182 recommendation ................87 refueling ................... . 88 reserve fuel supply ................
  • Page 203 ０８／０８／０８ １８：０３：０７ ３２ＨＮ６６６０ ０２０４  Index headlight dimmer switch ............... 19 headlight switch ..................19 high altitude carburetor adjustment ............ . 182 hills, crossing or turning on hills or slopes ..........66 riding down hills ................65 riding up hills ...................
  • Page 204 ０８／０８／０８ １８：０３：１２ ３２ＨＮ６６６０ ０２０５  Index labels, safety ................... limit, weight ..................35 load limits ....................35 loading guidelines ................. 36 lubrication, engine oil ................... 90 gear case oil ..................96 maintenance, component locations ................81 importance ..................
  • Page 205 ０８／０８／０８ １８：０３：１７ ３２ＨＮ６６６０ ０２０６  Index neutral indicator ..................14 numbers, serial ..................176 obstacles, riding over ................68 oil, engine ....................90 gear case ................... . 96 operating controls ................. . 15 operation component locations ............. . 11 owner’s manual storage ................
  • Page 206 ０８／０８／０８ １８：０３：２１ ３２ＨＮ６６６０ ０２０７  Index removal, seat ..................86 reverse, assist cable ..................110 assist lever ................. 21, 110 gear, shifting into ................51 indicator ................... . 14 riding in .................... . 53 rider training ..................28 riding, basic operations ................
  • Page 207 ０８／０８／０８ １８：０３：２５ ３２ＨＮ６６６０ ０２０８  Index safety, important precautions ............... . 75 labels ....................riding precautions ................41 schedule, maintenance ................76 seat removal ..................86 serial numbers ..................176 shifting gears ..................51 skid plates ................... . 139 skidding or sliding ................
  • Page 208 ０８／０８／０８ １８：０３：２９ ３２ＨＮ６６６０ ０２０９  Index stalling on a hill ..................63 start button .................... . 18 starting, engine ....................46 troubleshooting ................162 stop switch, engine ................18 stopping engine ..................50 storage, ....................154 battery ....................
  • Page 209 ０８／０８／０８ １８：０３：３４ ３２ＨＮ６６６０ ０２１０  Index throttle, lever ................... 20, 103 stop screw ..................111 tyres, air pressure ..................133 flat ....................165 replacing ..................138 repairing ..................137 specifications .................. . 138 tread conditions ................136 tool kit ....................
