- Page 1 Corning Lambda ® ™ Plus Pipettors Single-channel, 8-channel, and 12-channel Pipettors Instruction Manual...
-
Page 2: Table Of Contents
3. Setting the Volume ..............5 4. Aspiration and Dispensing Instructions ......6 5. Pre-rinsing ................8 6. Dense and Viscous Liquids ........... 8 7. Corning® Pipet Tips ..............9 8. Recommendations ..............9 9. Recalibration .................10 10. Troubleshooting ..............13 11. -
Page 3: Product Description

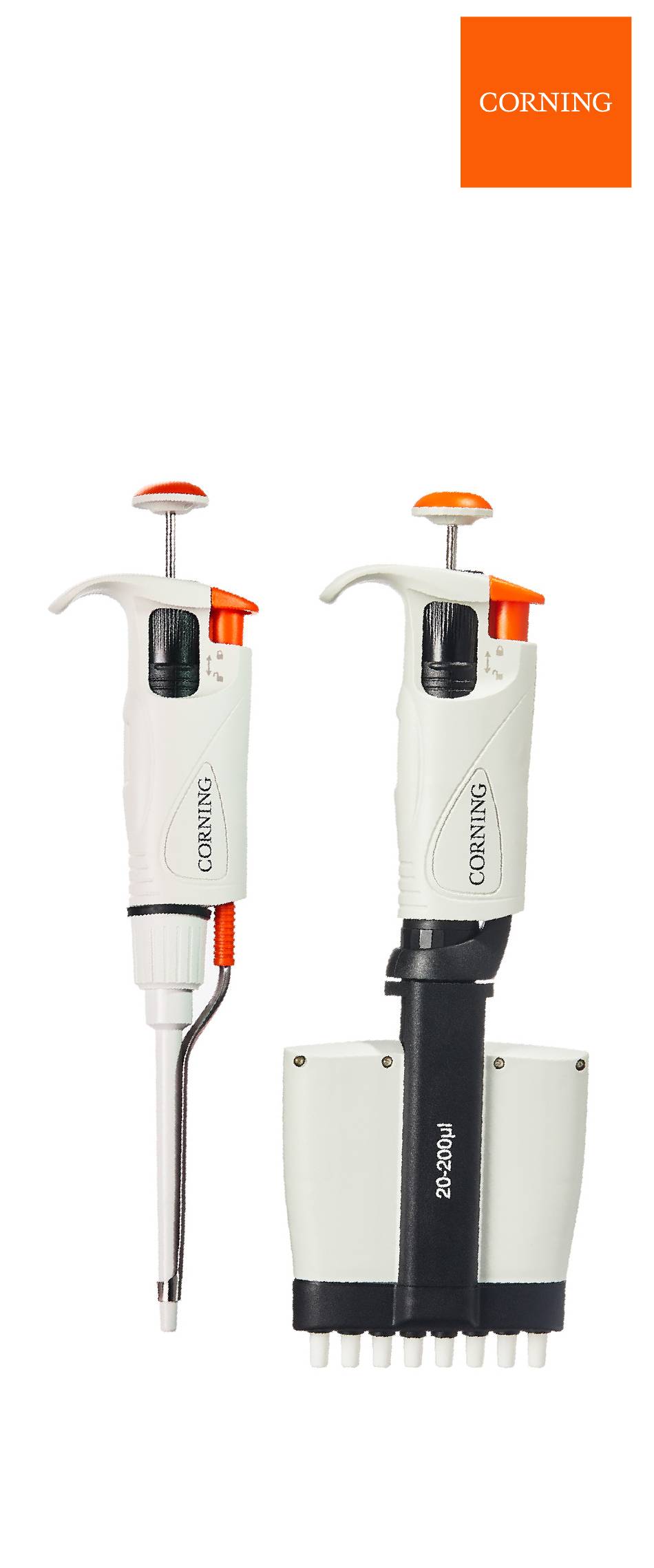

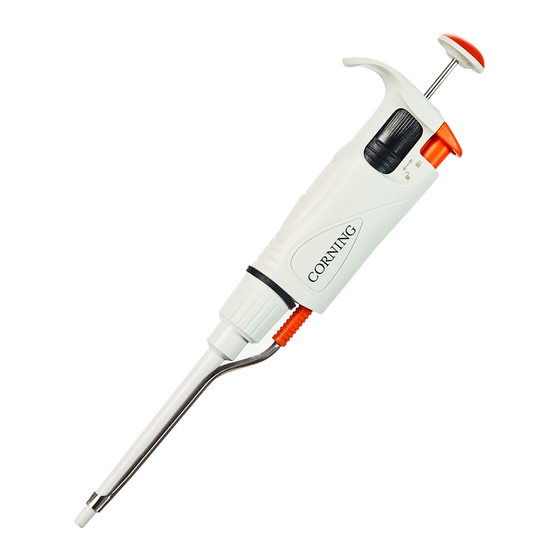

1. Product Description The Corning® Lambda™ Plus single-channel pipettor is a volumetric instrument designed to measure and transfer liquids precisely and safely. It can accommodate volumes from 0.1 μL to 1,000 μL depending on the model. Corning Lambda Plus 8-channel and 12-channel pipettors have been designed for microplate filling. - Page 4 “M” to efficiently eject certain brands of pipet tips. Simply place the cap (supplied with the pipettor) on the bottom of the pipettor shaft and slide the cap upwards until it surrounds the bottom of the tip ejector. 2 | CORNING LAMBDA PLUS PIPETTORS...
- Page 5 ±0.6 ≤0.15 The accuracy and precision are obtained gravimetrically using Corning® pipet tips, performing at least 10 measurements of distilled water at a reference temperature of 20°C ± 1°C according to EN ISO 8655 standard. 8-channel and 12-channel Pipettor Ejector The 8- and 12-channel pipettor construction allows the lower 8- and 12-channel modules to be rotated 360°.
-
Page 6: Packaging
The accuracy and precision are obtained gravimetrically using Corning® pipet tips, performing at least 10 measurements of distilled water at a reference temperature of 20°C ± 1°C according to EN ISO 8655 standard. -
Page 7: Setting The Volume
3. Setting the Volume The volume of the pipettor is set by turning the pipetting pushbutton (A2) or the black adjustment knob (B). The volume display consists of three numbers and is read from top to bottom. The three numbers indicate the volume selected and are colored black and red. -
Page 8: Aspiration And Dispensing Instructions
The rocking movement does not have to be performed to seal the pipet tips tightly. NOTE: Never handle a liquid with a pipettor which has not been fitted with a pipet tip. 6 | CORNING LAMBDA PLUS PIPETTORS... - Page 9 Rest position First stop Second stop Aspiration 1. Press the pushbutton to the first positive stop. Holding the pipettor vertically, immerse the pipet tip into the sample liquid. The depth to which the pipet tip is immersed in the sample liquid depends on the model. Model Volume Range (μL) Immersion Depth (mm) 2, 10...
-
Page 10: Pre-Rinsing
= weight of the sample γ = density of liquid Check this operation once again and correct if necessary. ◗ Note the corrected value for further pipetting of the same kind of liquid. 8 | CORNING LAMBDA PLUS PIPETTORS... -
Page 11: Corning® Pipet Tips
The accuracy and precision figures for the pipettors are only guaranteed when Corning pipet tips are used. The use of inferior quality tips will seriously degrade the performance of the pipettor. -
Page 12: Recalibration
9. Recalibration The accuracy and precision of the pipettors are obtained gravimetrically using Corning® pipet tips, performing at least 10 measurements of distilled water according to EN ISO 8655 standard. If during pipettor operation you find that the accuracy error (the difference between the real aspirated volume... - Page 13 Recalibration Procedure Set the dose volume depending on the pipettor volume ◗ according to the following tables: Volume Change ΔV for Full Turn of Nominal Range of Preset Permissible the Calibration Key Volume Pipettor Volume Volumes (24 Increments) (μL) Volumes (μL) (μL) (μL) (μL)
- Page 14 If the volume exceeds the values stated, the recalibration procedure should be repeated. When pipetting liquids with physical properties that are considerably different from those of water, follow the instructions as described in Section 5. 12 | CORNING LAMBDA PLUS PIPETTORS...
-
Page 15: Troubleshooting
10. Troubleshooting If you notice an improper pipettor operation, identify the cause and eliminate the fault. Follow the instructions in the sequence provided. Replacement of parts should be required only occasionally and should not occur under normal pipettor use. Problem Cause Solution Droplets of... - Page 16 If the problem continues after carrying out the above steps, contact your Corning representative. Before returning the pipettor, please ensure the pipettor is completely free of any chemical, radioactive, or microbiological contamination which could pose a threat during transport and repair. 14 | CORNING LAMBDA PLUS PIPETTORS...
-
Page 17: Cleaning And Sterilization
11. Cleaning and Sterilization Cleaning External surfaces of the pipetting pushbutton, the ejector pushbutton, the handgrip, the shaft nut, and the adjustment knob may be cleaned using a cloth dampened in isopropyl alcohol. The remaining parts removed from the pipettor during pipettor disassembly may be washed with distilled water or isopropyl alcohol. -
Page 18: Spare Parts
N: Ejector pushbutton P: Identification ring S: Locking ring Please contact Corning Customer Service to inquire about availability of spare parts. Pipettor model and name of the part required should be specified. The replacement of the plunger requires conducting the calibration procedure according to Section 9. -
Page 19: Limited Warranty
Corning of any such defect. Corning is not liable for any incidental or consequential damages, commercial loss, or any other damages from the use of this product. - Page 20 No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this warranty. For your reference, make a note of the model number, serial number, date of purchase, and supplier here.
- Page 21 55 (11) 3089-7400 t 65 6572-9740 Mexico Taiwan t (52-81) 8158-8400 t 886 2-2716-0338 For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners. © 2022 Corning Incorporated. All rights reserved. 3/22 CLS-LH-353DOC REV1...
