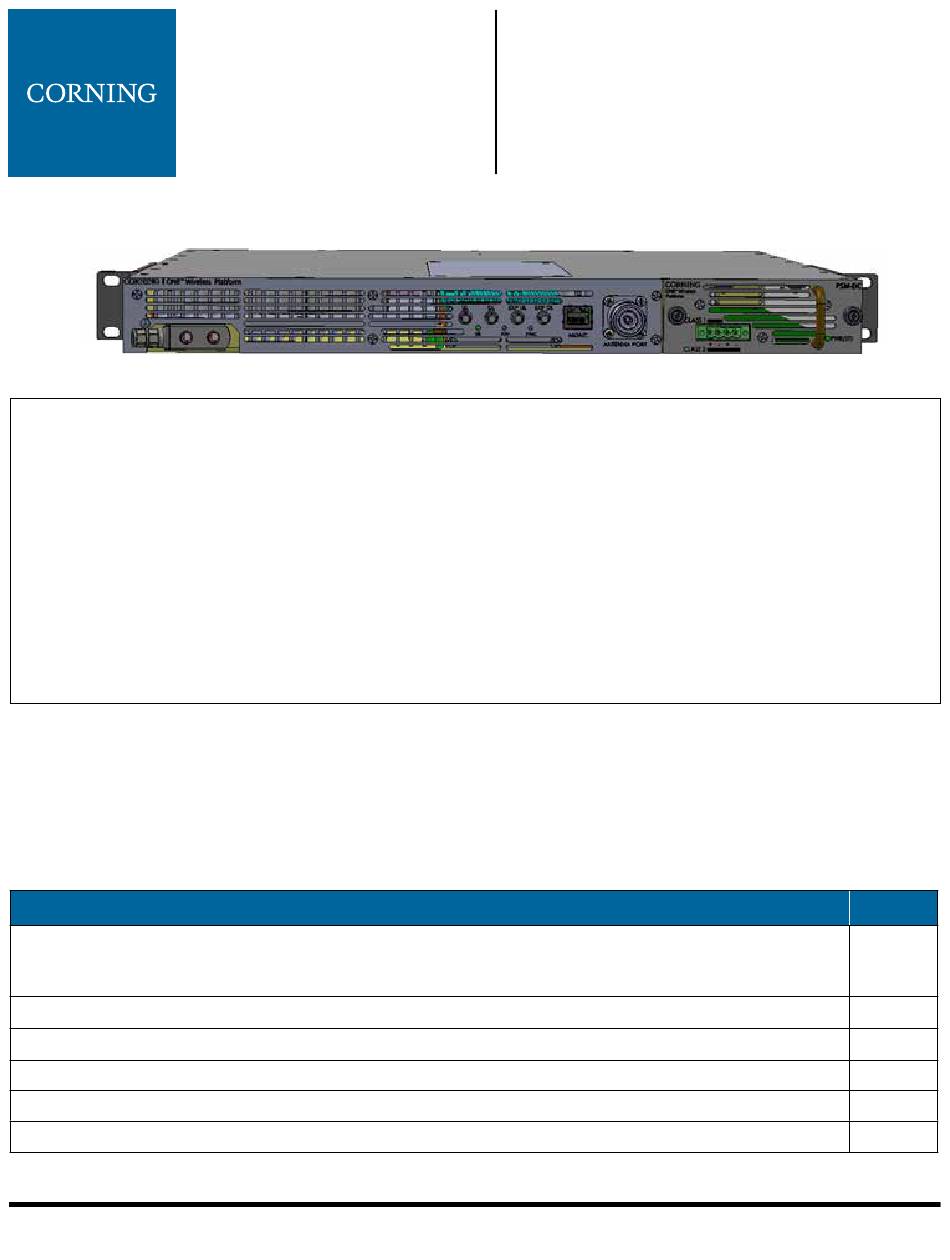

CORNING ONE MxU Quick Installation Sheet

1. THE MxU supports the 2.5 GHz TDD band and is installed in conjunction with the mid-power remote unit (MRU) (ordered
and installed separately), expanding the number of supported services to eight.
2. The MxU is installed at the remote site and interfaces the MRU.
3. Depending on the model (including AC or DC power supply module), the unit requires a 100-240 VAC or
48 VDC (30-60 VDC).
4. The MxU is intended for connection to a TN power system and IT power system of Norway only.
5. Unit is provided with two mounting options:
• 19-in rack – preassembled rack ears
• Wall-mountable – mounted onto MRU mounted on a wall (wall-mountable brackets ordered separately)
This document describes the installation and connection procedures for the Corning® optical network evolution (ONE™) solutions
mid-power expansion unit add-on (MxU).
1. PACKAGE ITEMS
The items listed in Table 1 are included in the MxU package. If any of the listed items are missing, contact your Corning
representative.
Item Description

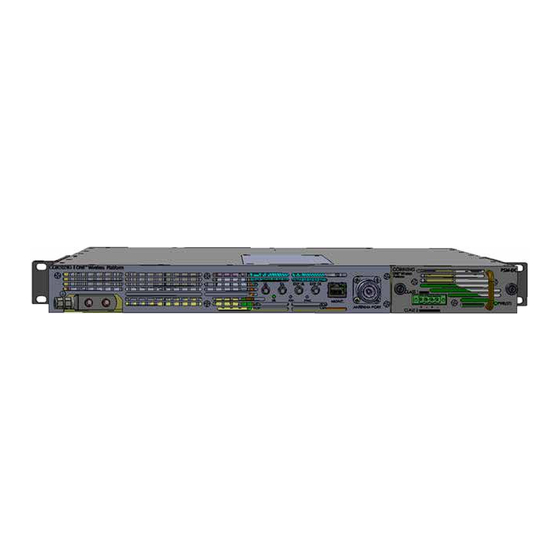

Mid-Power Expansion Unit:
MRU-ASM-AO-AC
MRU-ASM-AO-DC
Rack-Mountable Brackets (factory assembled)
QMA/QMA RF Cables — used for UL/DL RF connections
RJ45 100 Base-T Ethernet Cable (P/N: 705A055702) – used for management port connection
4.3-10 DIN RF Jumper Cable (P/N: 705A055602) – used for antenna port connection
AC Power Cable (for MxU AC models only) – straight, U.S 10 A ,UL, L = 1.8-2.5 m, black, 110 V (P/N: 705900007)
Table 1. Package Items List
Corning Optical Communications
Mid-Power Expansion Unit
(MxU) Quick Installation Sheet
CMA-597-AEN
GENERAL INFORMATION
Quantity
Quick Installation Sheet | CMA-597-AEN | Page 1
1
2
2
1
1
1
