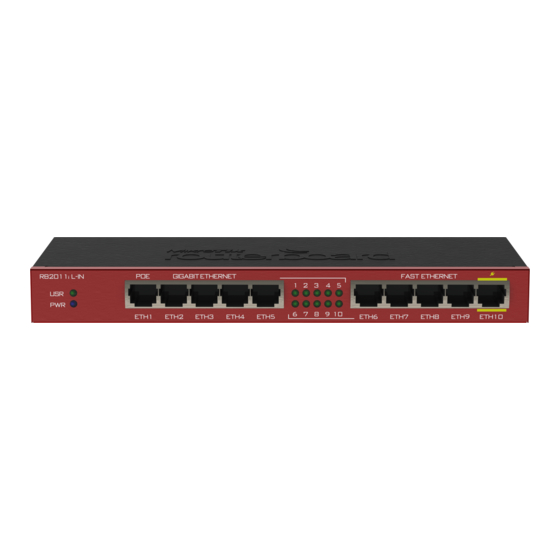

MikroTik RB2011iL-IN Operating Procedures Manual
Routerboard
Hide thumbs
Also See for RB2011iL-IN:
- Manual (5 pages) ,
- Quick start manual (53 pages) ,
- Quick manual (21 pages)
Related Manuals for MikroTik RB2011iL-IN
Summary of Contents for MikroTik RB2011iL-IN
- Page 1 MSD DIGITAL INTELLIGENCE SDN. BHD. STANDARD OPERATING PROCEDURE MIKROTIK ROUTERBOARD RB2011iL-IN V 1.0/Wi1M...
- Page 2 Cable Connection Image Eth 9 or Eth 10 Eth 1 to Eth 8 Cable Connection to AP Cable Connection from modem ETH 1 Modem 1 (192.168.1.1) ETH 2 Modem 2 (192.168.2.1) ETH 3 Modem 3 (192.168.3.1) ETH 4 Modem 4 (192.168.4.1) ETH 5 ...
- Page 3 SNTP d. Password e. NAT & Routing Interface, Port & Bridge 3. Plug in laptop or PC to eth 9 or eth 10 on Mikrotik router using network cable. 4. Run Winbox.exe and connect to the router using Mac Address...
- Page 4 5. Then, Click Files 6. Drag or copy the downloaded configuration file to File List.
- Page 5 7. Select the configuration file the click Restore then yes. Wait for a moment until the router disconnects itself. 8. Reconnect the router using Mac Address and set password “m5d1t383” m5d1t38...
- Page 6 9. Click on IP > Addresses Refer IP Address Assignment for Example “11.20.0.1/24” 10. Set Bridge_AP interface address to 10.20.0.1/24...
- Page 7 11. Click on IP > DHCP Server > DHCP Setup Select Bridge_AP Interface Gateway IP Address Network Address...
- Page 8 DHCP Range “5-250” DHCP Lease Time...
- Page 9 12. Click on IP > Firewall > Mangle *this step depend how many modem that in use for example “3 Modem” Edit only this part from number 24 to 31...
- Page 10 For example we use 3 modems need only 3 “Mark” which are “Mark 1”, “Mark 2” and “Mark3”. The other “mark” needs to be disable otherwise it will affect internet speed. Double clicks “Mark 1” > on Advanced tab > Change Per Connection Classifier from “8” to “3” ) >...
- Page 11 13. Click On System > Identity > Change the Identity or Name of the site or Site code 14. Check All Connection a. Ping all Modem IP Addresses b. Ping Interface Bridge IP Addresses c. Check Routing for each IP Addresses make sure it reachable to the right Port/ETH d.
- Page 12 Summary Important Part a. Cables Connection refer cable connection image b. Modem IP Address 192.168.X.1/24 c. Configuration File Wi1m-bonding-only.backup d. IP Address Refer IP Addresses Assignment e. Bonding Policies depend on the numbers of modem Modem Mark 1 Mark 2 Mark 3 Mark 4...
