Summary of Contents for KROHNE SHD 200
- Page 1 SHD 200 Supplementary Instructions ® Control unit for 4…20 mA/HART field devices Intrinsically safe Equipment protection level Gb Ex ia IIC T4 © KROHNE 02/2022 - 4007761102 - AD SHD 200 Ex R02 en...
-
Page 2: Table Of Contents
4.5 Other connections ......................14 5 Operation 5.1 Start-up........................... 15 5.2 Operation ........................15 5.3 Electrostatic charge ....................... 15 6 Service 6.1 Maintenance ........................16 6.2 Dismantling ........................16 7 Notes www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 3: Safety Instructions
The "X" after the certificate number refers to special conditions for safe use of the device, which have been listed in these instructions. If necessary, the UK type examination certificate can be downloaded from the manufacturer's website. 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -
Page 4: Approval According To The Iecex Scheme
The "X" after the certificate number refers to special conditions for safe use of the device, which have been listed in these instructions. If needed the IEC certificate can be downloaded from the manufacturer's website. www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 5: Approval According To North-American Standards
15 . CAUTION! Operating conditions and place of installation may require compliance with additional standards, directives or laws. The responsibility for compliance rests solely with the operator or his agent. 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -

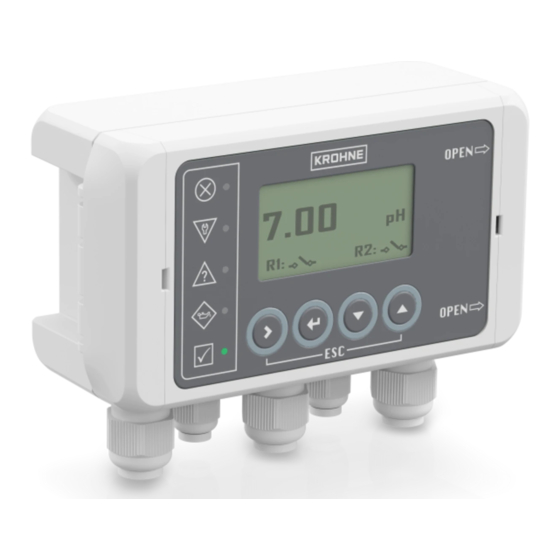

Page 6: Device Description
Handheld or HART Modem to the optional external HART adapter. Figure 2-1: Device description 1 Display 2 Operation keys 3 Cable glands 4 LEDs for NE 107 status indication www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 7: Marking
7 Order code; manufacturing date; internet address 8 Serial number; electronic revision 9 Production order INFORMATION! Look at the device nameplate to ensure that the device is in accordance with your order. 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -
Page 8: Approval For Zone Classified Locations
Gas group IIC approved, suitable for gas groups IIA, IIB, IIC Temperature class T4 approved, suitable for T4...T1 EPL Gb approved, suitable in zone 1...zone 2 Table 2-2: Components of the Ex marking and their definition www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 9: Approval For Division Classified Locations
Division 1 approved, suitable for Division 1, Division 2 Groups A to D Gas groups A, B, C, D approved Table 2-3: Components of the Ex marking and their definition 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -
Page 10: Temperature Classes
Also, when operating the indicator outside of the hazardous area, the connection must be made to an intrinsically safe circuit. When connecting to non-intrinsically safe circuits, there is a risk of damage to the safety-defining components. www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 11: Installation
Class I, Division I applications CAUTION - When supplied with Aluminium housing, care shall be taken to protect it from impact or abrasion when located in a Class I, Division I location. 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -
Page 12: Electrical Connections
(small: 3...6.5 mm / 0.12...0.25" or large: 5...10 mm / 0.20...0.39"). • Unused cable entries are to be closed (>IP66 / 67). Ensure that the gaskets and incised gasket ring are tight. www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 13: Power Supply
The cable parameters are determined by the parameters of the system to which the loop powered control unit and sensor are to be connected. INFORMATION! The device is galvanically isolated from ground and can be placed anywhere within the loop. 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -
Page 14: Grounding And Equipotential Bonding
The external HART adapter is accessible once the protection cap has been removed. ® After the external HART adapter has been disconnected, install the protection cap again. Replace faulty protection caps. www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 15: Operation
• spraying of electrons (e.g. in the vicinity of electrostatic painting systems) • pneumatically conveyed dust is exposed WARNING! Electrostatic charging of the housing surface by friction must be avoided. The unit shall be cleaned only with a moist cloth. 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... -
Page 16: Service
• Before dismantling the electrical connecting lines of the device, ensure that all the cables leading to the unit are de-energised themselves and to the reference potential of the explosive area. www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en... -
Page 17: Notes
NOTES SHD 200 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com... - Page 18 NOTES SHD 200 www.krohne.com 02/2022 - 4007761102 - AD SHD 200 Ex R02 en...
- Page 19 NOTES SHD 200 02/2022 - 4007761102 - AD SHD 200 Ex R02 en www.krohne.com...
- Page 20 Engineering, commissioning, calibration, maintenance and training services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
