Internal pull-up/down configuration
Unconnected inputs are pulled low by default to 0 V through 47 kΩ resistors via jumper
board. The pull-up/pull-down voltage is common to all 47 kΩ resistors. Complete the following steps to
configure these inputs to pull high (+5V).
Caution! The discharge of static electricity can damage some electronic components. Before removing the
device from its housing, ground yourself using a wrist strap or touch the computer chassis or other
grounded object to eliminate any stored static charge.
1.
Turn the device over and rest the top of the housing on a flat, stable surface.
2.
Peel off the four rubber feet on the bottom of the device to access the screws.
3.
Remove the four screws from the bottom of the device.
4.
Hold both the top and bottom sections together, turn the device over and rest it on the surface, then
carefully remove the top section of the case to expose the circuit board.
5.
Configure jumper

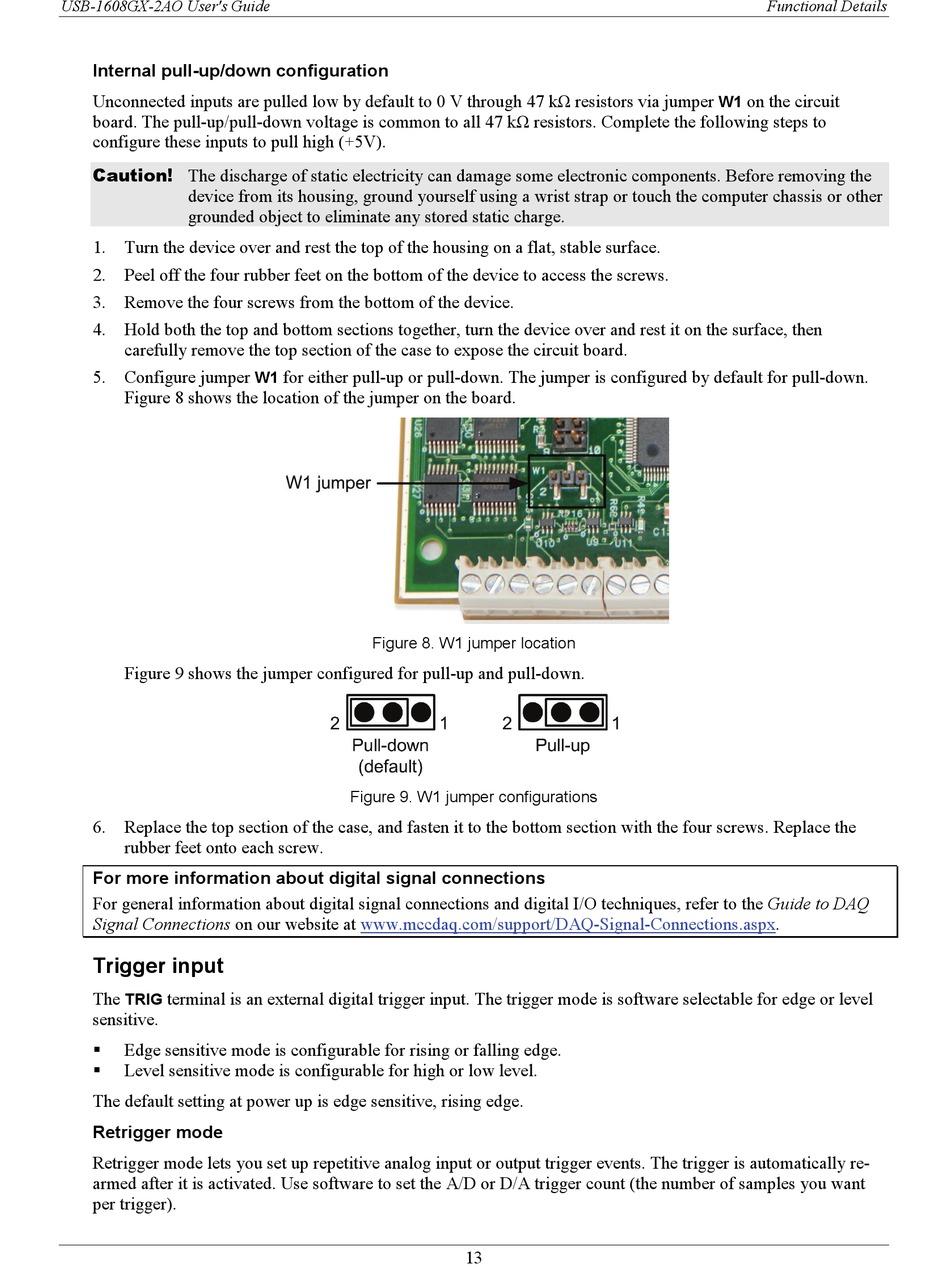

Figure 8 shows the location of the jumper on the board.
Figure 9 shows the jumper configured for pull-up and pull-down.
6.
Replace the top section of the case, and fasten it to the bottom section with the four screws. Replace the
rubber feet onto each screw.
For more information about digital signal connections
For general information about digital signal connections and digital I/O techniques, refer to the Guide to DAQ
Signal Connections on our website at www.mccdaq.com/support/DAQ-Signal-Connections.aspx.
Trigger input
The
terminal is an external digital trigger input. The trigger mode is software selectable for edge or level
TRIG
sensitive.
Edge sensitive mode is configurable for rising or falling edge.
Level sensitive mode is configurable for high or low level.
The default setting at power up is edge sensitive, rising edge.
Retrigger mode
Retrigger mode lets you set up repetitive analog input or output trigger events. The trigger is automatically re-
armed after it is activated. Use software to set the A/D or D/A trigger count (the number of samples you want
per trigger).
for either pull-up or pull-down. The jumper is configured by default for pull-down.
W1
Figure 8. W1 jumper location
Figure 9. W1 jumper configurations
13
Functional Details
on the circuit
W1
