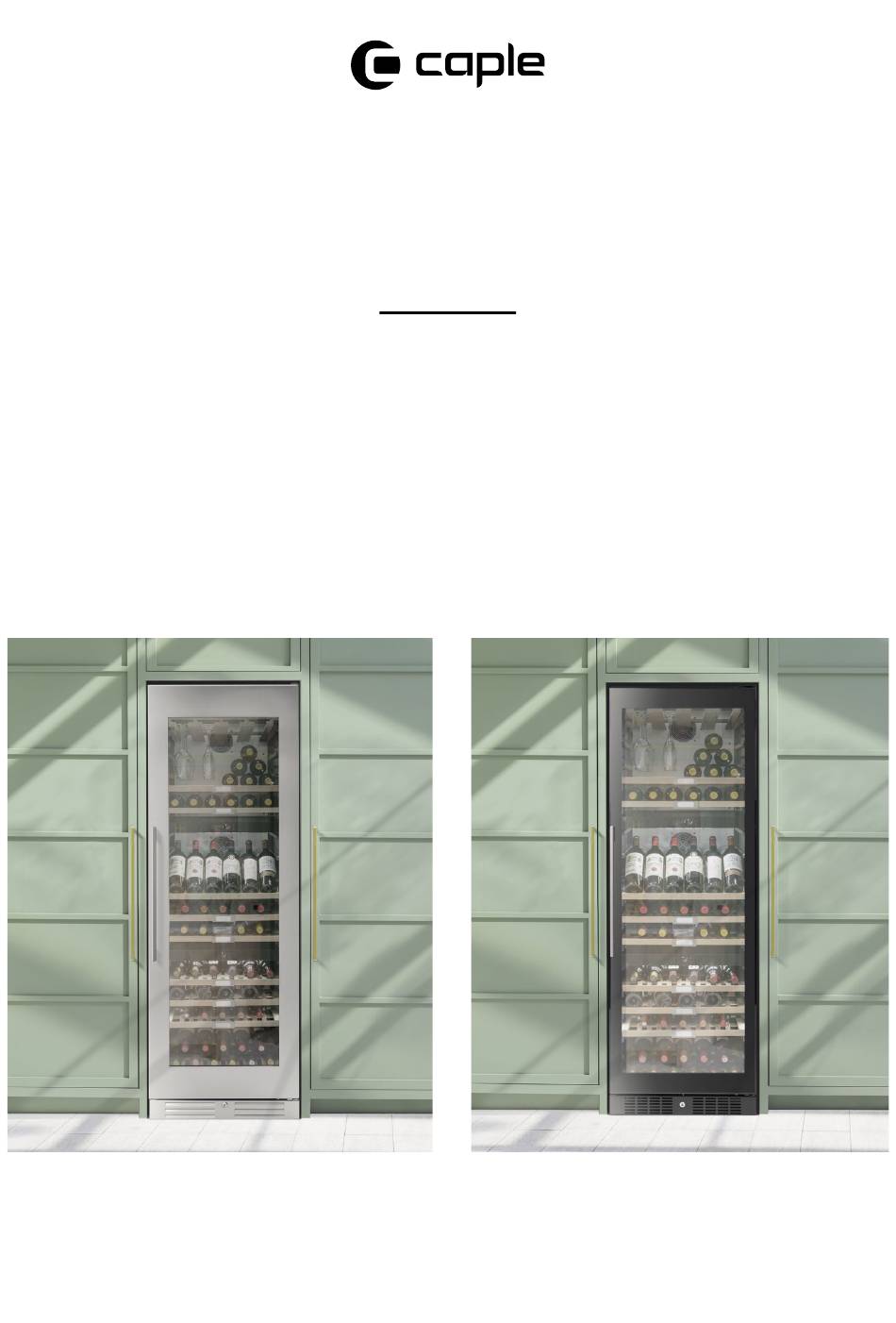

F r e e s t a n d i n g W i n e C a b i n e t I n s t r u c t i o n M a n u a l WF1552 & WF 1 553 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
How to Replace the Charcoal Filter How to Change the Door Opening Wine Bottle Stacking Installation for Built-In Purposes Care and Maintenance Troubleshooting Recommenced Temperatures Caple Contact Details Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Thank you for choosing this Caple Wine Cabinet. To ensure that you get the best results from your new wine cabinet, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble-free use.
- If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly qualified person in order to avoid a hazard. - This product is not designed for commercial use, it is a household appliance only.
Page 5
I M P O R T A N T Caple cannot be held liable for any non compliance with these instructions. E L E C T R I C A L S H O C K H A Z A R D - Read all instructions before using the wine cabinet.
Page 6
- Do not use electrical appliances inside the storage compartments of the appliance,unless they are the type recommended by the manufacturer. Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.
W F 1 5 5 2 1. Door 5. Small Bottom Shelf 2. Handle 6. Bottom Grille 3. Digital Control Panel 7. Levelling Legs 4. Large Shelves 8. Security Lock Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
› This appliance uses flammable refrigerant. Never damage the cooling pipework during transportation. › Locate the wine cabinet away from direct sunlight and sources of heat (ovens, hobs, heaters, radiators, etc.). Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 10
Caple Service. WA R N I N G Incorrect earthing can result in the risk of electric shock. 10 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
After 5 seconds the temperature will return to the set temperature. › Flashing LED = Cabinet Temperature › Steady LED = Set Temperature Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 12
If internal temperature is lower than 0°C, “LO” is shown in the display panel, the alarm sounds and the malfunction indicator lights up at the same time. 12 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
U P P E R W I N D O W Displays the temperature in the upper compartment L O W E R W I N D O W Displays the temperature in the middle compartment Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 14
L I G H T S O U R C E E N E R G Y C L A S S This product contains a light source of energy efficiency class G ℃ ℃ 14 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
To remove a shelf, first pull it outward until it stops at the notch. Then lift the edge of the shelf upward and pull out of the cabinet (shown below). To reinstall a shelf, follows the above instructions in reverse. Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
3. As per Fig B, the filter should line up with the notches as shown. 4. Pull the filter out (Fig C). 5. Insert replacement filter and twist as per Fig A to lock into position. 6. Re-install the shelves. 16 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 17
N OT E The charcoal filter should be replaced every 3-6 months depending on the unit’s exposure level to odour. Visit www.caple.co.uk to purchase the replacement charcoal filters. Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
(in the box), should you wish to reverse the hinge on your unit, follow the directions below: Fig. B Fig. A Fig. A Fig. C Fig. D 18 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 19
7. Right Lower Hinge 16. Door Movement Plate 8. Left Lower Hinge 17. Door Movement Plate screw 9. Left Upper Hinge 18. Right Door Axis Supporter Screw Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 20
To lock the door, do the reverse operation making sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping. 20 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
A C C E S S O R I E S Two extra shelves (WSHELF1) are available if you wish to have further storage in the upper zone of your wine cabinet. These can be purchased directly from www.caple.co.uk. Instruction manual WF1552 & WF1553...
I N S T A L L A T I O N F O R B U I LT I N P U R P O S E S 625mm 660mm 593mm 630mm 65mm 15mm 15mm 15mm 15mm 30mm Front View Top View Side View 22 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
LONG HOLIDAYS: turn off the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly (blocking it open if necessary). Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
Page 24
If this is not noticed, it can cause excess moisture to build up in the cabinet which in extreme cases can lead to the evaporation tray overflowing. 24 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
› The gasket is dirty. › The shelves are out of position. If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email service@caple.co.uk Instruction manual WF1552 & WF1553...
Page 26
Fill this reservoir 3/4 full with water. Check the water level occasionally and refill as necessary. 26 Instruction manual WF1552 & WF1553 Please keep this instruction manual for future reference...
