Here below we listed various faults while using the wine cooler, and the method of check-up and solve these
default, and find the information of the correspondent page.
Statement: (Fig.4 ) shows the reference figure Fig4
(→6.1.6 ) shows the reference item 6.1.6.
Warning: before attempting any cleaning or maintenance this unit MUST be disconnected from the
electrical supply, to prevent electrical shock
▲ Preparation before maintenance
○ Tools
1．Pliers
3．Process pipe
5．Amp meter (5A) (caliper cable type) 6．Electrical soldering iron
7．Wire strippers
9. Scissors
○ Equipment
1．Vacuum pump
2. Electrical circuit diagram. ------------ 4
3. Cooling system diagram. -------------- 6
4. Name and function on control panel. -------- 6
6. Disassembly -------------------- 10
7. How to maintain the default. ------------ 24

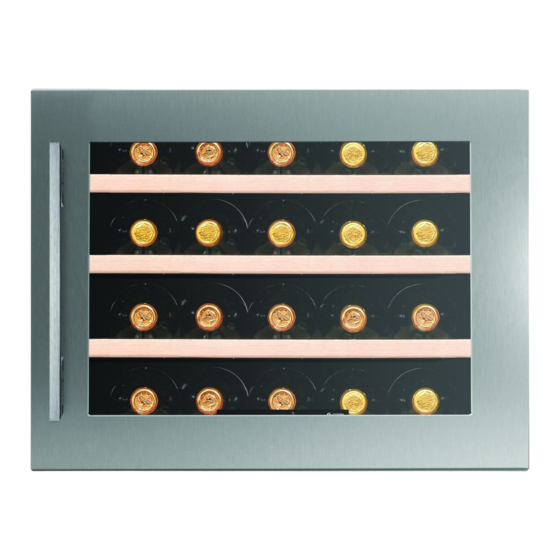

WC6400/WC6410/WC6500
Service Manual
2．Phillips head screwdrivers
4．Electrical Multi meter
8．Seal pliers
2．Soldering iron for copper pipes
1/27
3. Refrigerant meter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Caple WC6400
Summary of Contents for Caple WC6400
-
Page 1: Table Of Contents
WC6400/WC6410/WC6500 Service Manual Here below we listed various faults while using the wine cooler, and the method of check-up and solve these default, and find the information of the correspondent page. Statement: (Fig.4 ) shows the reference figure Fig4 (→6.1.6 ) shows the reference item 6.1.6. -
Page 2: Safety Rules On Operation Of Repairing
1. Safety rules on operation of repairing (Rules must be obeyed). To avoid the accident during maintain the wine cooler, and make sure the product is safety, rules must be obeyed list below. Below we list the symbols and explain the danger if ignore it. ○... - Page 3 Danger ·During repairing, the power plug should be disconnected. Before remove, install, replace parts disconnect the power plug. ·Attention don’t get electric shock. When checking current, voltage or charging never touch the connectors. When changing the parts, don’t touch the charged parts within three minutes after disconnect the plug.
-
Page 4: Electrical Circuit Diagram
·Attention the refrigerant during charge and discharge it, as it will frostbite the skin when touch it. ·Attention the burr. The burr on the metal or plastic part may hurt the hand. ·Attention the fins of the evaporator. The fins of the evaporator may hurt the hand. ·Drive up the wine cooler when moving it. - Page 5 2.2 Switching power supply PCB 5/27...
-
Page 6: Cooling System Diagram
3. Cooling system diagram. 4. Name and function on control panel. 4.1 Style A • “POWER” This LED light on means the power is on. • “ ” Press it, the upper compartment setting temp will decrease in 1. • “... -
Page 7: How To Diagnose The Fault. （E1、E2、E3、E4
4.2 Style B • “ ” Press it, the upper compartment setting temp will decrease in 1 • “ ” Press it , the lower compartment setting temp will decrease in 1 • “ ”Press it, the light on, press again, the light off, it is not effect by the door switch. •... - Page 8 If you suspect that the control system fault, you can star the self-check mode by following below: 1 >．Power on the wine cooler, it will beep one sound, the wine cooler star, within 10 seconds after it start, press the ‘▲’and‘▼’at the same time and holding, three beep will sound, the systems enter self-check mode.
- Page 9 “HI”—High temperature warning. After turning on the wine cooler ten hours, if the inner temperature is over 23ºC, the readout show HI, after it showing for one hour, the “HI” twinkling and the buzzer alarm, and twenty minutes later, the buzzer stop, the compressor stop, the readout keep twinkling. The HI alarm can be stopped by disconnect the power plug.
-
Page 10: Disassembly
●Not cooling (the compressor running) The compressor run for more than 30 minutes？ If the door opened frequently? Don’t open the door frequently If the hot goods was put into the It can be loaded with normal temperature cabinet? wine bottle If the door gasket airproof? Repair or replace the gasket Cooling system default.?（Check if any gas leakage or block ）... - Page 11 6.1.2. How to remove the air-duct board There are two structures 6.1.2.1 Style A The process of removing the air-duct board: Remove all shelves→Remove control panel film→Remove the display supporter→Remove the middle electrical box→Remove the upper and lower air duct board→Remove the back air-duct board Peel off the control panel film Remove all shelves →Remove control panel film Remove all shelves, then peel off the control panel film.
- Page 12 Fig.3 Screws Control box Screws B 3. Remove the middle electrical box The process: Remove the shelves→Remove the control panel film→Remove the screws→ Remove the display supporter→Remove the middle electrical box Remove the shelves, remove the control panel film and control box Fig.3)，Remove the (Fig.2 ,...
- Page 13 4. Remove the upper and lower air-duct board The process: Remove the shelves→Remove the control panel film→Remove the screws→ Remove the display supporter →Remove the middle electrical box→ Remove the screws →Remove the upper and lower air-duct board. Remove the shelves, remove the control panel film and control box (Fig.2, Fig.3)，Remove the four middle electrical box fixing screws, disconnect the light connecter, remove...
- Page 14 Fig.6 Inner air-duct Screws board 2）After removing the inner air-duct board, we can see suction pipe and capillary pipe joint （Fig.7） A: Capillary solder joint. B: Suction pipe solder joint C: Upper compartment fan connector D: Upper compartment sensor connector E: Heater fan connector F: Heater connector G: Defrost sensor connector...
- Page 15 Fig.7 6.1.2.2 Style B The process of removing the air-duct board: Remove all shelves→Remove control panel film →Remove the middle electrical box→Remove the display supporter→Remove the upper and lower air duct board→Remove the back air-duct board 1.Remove the middle control box The process: Remove the shelves→Remove the screws→Remove the middle electrical box Remove the shelves, Remove the middle electrical box fixing screws, disconnect the light connecter, remove the middle electrical box.
- Page 16 Remove the middle electrical box→ Remove the display supporter. Remove the shelves, after removing the control panel film(Fig.2), remove the four fixing screws, disconnect the light connector, remove the middle electrical box (Fig.7.1), and we can disconnect the connector of display and remove the display supporter. (Fig.7.2) Fig.7.2 3.
- Page 17 6.1.4. How to remove the display PCB 6.1.4.1 Style A The process: remove the display supporter→Remove the display PCB After removing the display control box（6.1.2.）, pull the hooks from the back of it, and remove the display PCB. (Fig.8 & Fig.8.1) Fig.8 Fig.8.1 Control box...
- Page 18 Fig.8.3 Hooks 挂钩 6.1.5. How to remove the inner fans The process: Remove the shelves→Remove the control panel film→Remove the screws→ Remove the display supporter →Remove the middle electrical box→ Remove the screws →Remove the upper and lower air-duct board.→ Remove the inner air-duct board→Remove the fan fixing screws→...
- Page 19 （6.1.2.） After removing the air-duct board , the heater is on the back of it, remove the fixing screws and we can remove the heater.（Fig.10） Back of the inner air-duct Screws board Heater Fig.10 6.1.7. How to remove the defrost sensors The process: Remove the shelves→Remove the control panel film→Remove the screws→...
- Page 20 and we can remove the LED light. ( Fig.12& Fig.12.1) Middle Fig.12 electrical Foam in the middle electrical LED connector Fig.12.1 LED light Nails 2. How to remove the upper compartment LED light. The process： Remove the shelves → Remove the light cover fixing screws→ Remove the light cover →Remove the LED light fixing screws→Remove the LED light.
- Page 21 6.2 Disassembly outside of the cabinet. 6.2.1． How to remove the transformer.(Not for Switching power supply PCB) The process: Remove the screws fixing power box → remove the power box → Remove the transformer. ①．Remove four power box fixing screws. ( Fig.14) ②．Remove the power box.
- Page 22 Diagram of Normal main PCB connection. ( Fig.16) Fig.16 1. Defrost sensor (T3) 2. Lower compartment sensor (T2) 3. Upper compartment sensor (T1) 4. Door switch 5. Transformer secondary 6. Compressor 9. Transformer – L 7. Power - N 8. Transformer primary - N 10.
- Page 23 1. Power - N 2. Compressor 3. Power - L 4. fan 5. LED light 6. Display PCB 7. Sensors and door switch 6.2.3．How to remove the compressor The process: Remove the electrical cover of compressor → disconnect the connectors → separate the pipe connect to the compressor →...
-
Page 24: How To Maintain The Default
7. How to overhaul the faults. It should take approximate 3 hours to reach the lowest setting temperature of about 5℃ (or 4 ℃) for an empty unit (assuming ambient temp of 32 degrees centigrade and continuous operation). If not, check the compressor, cooling fans, controller, and sensors. - Page 25 compressor process pipe after the system is charged with refrigerant. 7.4. Running test: After the procedures above finish, turn the unit on. To verify the effectiveness of the repair, monitor the unit, the compressor should automatically stop within + or - 2.5 deg centigrade of the set temperature within approx 3 hours (assuming an ambient temperature of 32℃and the unit is empty).
- Page 26 Solutions: （→7.6） 1>. Refer to 2>. If the capillary touch the inner cabinet and the air duct panel, adjust the position of the capillary and add the incabloc plastic. 7.8. Oil jammed noise Fault: intermittent and deep jet noise coming from inside of the capillary. Cause: Compressor oil flowing into the cooling system pipe work probably due to the capillary slightly out of alignment during transportation （→...
- Page 27 This malfunction is caused by the display panel’s default, replace with the same model’s display panel. （→6.2.1） 7.12. Door switch fault. 1 >．Check if the X1 well connected（Fig.16）, if it ok, replace the switch please. 2 >．Remove the switch box fixing screws, and cut the switch.（Fig.19&...
