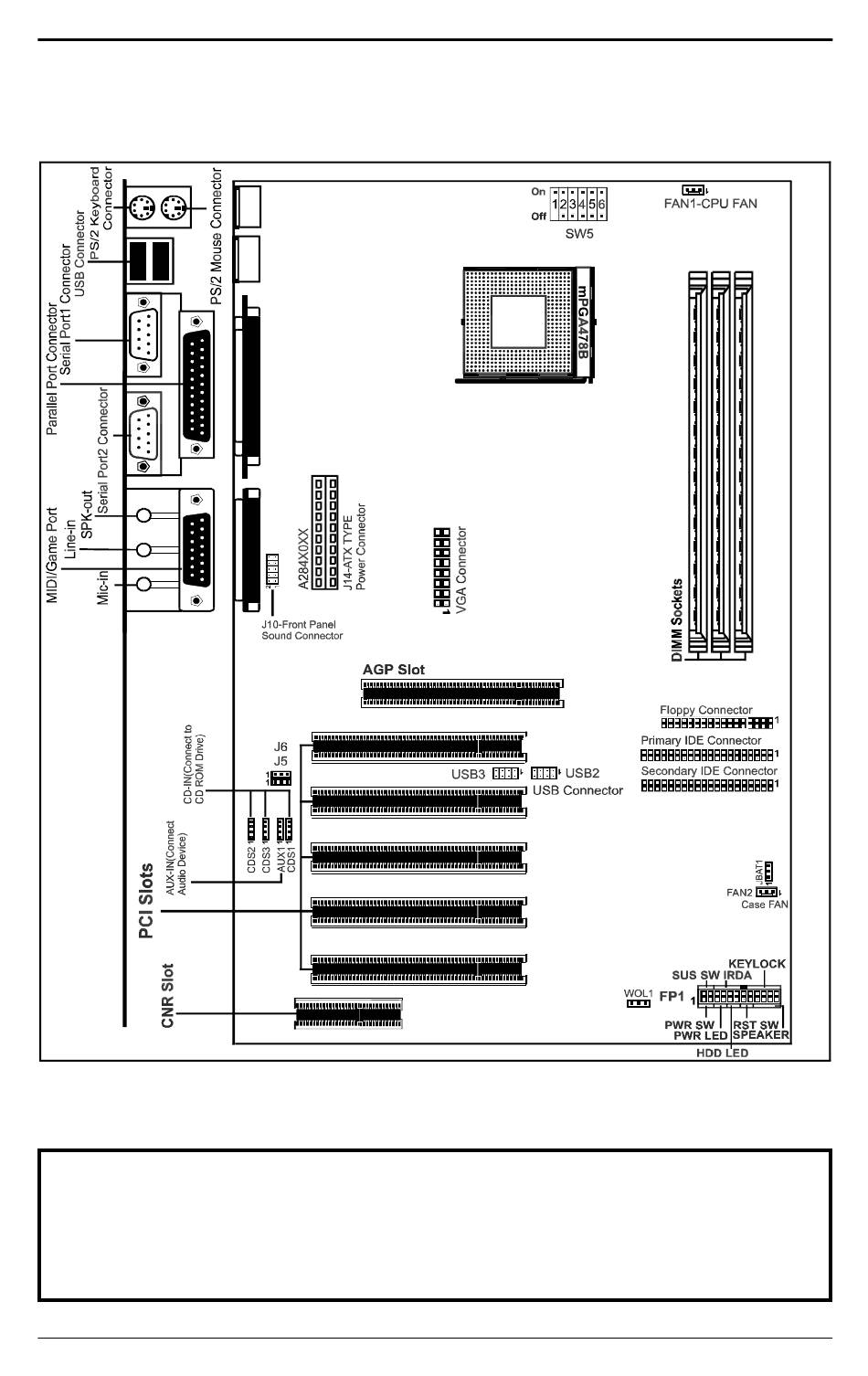

The following diagrams show the relative positions of the jumpers, connectors, major
components and memory banks on the motherboard.
# The VGA Connector is only for P4M266 chipset.
# USB3 - USB Connector is only for VT8233 chipset.
NOTE
1)
Be sure to check the cable orientation in order to match the colored strip to the pin
1 end of the connector.
2)
When you start up the system, please wait for 5 seconds after you power on AC.
3)
It is not recommended to add a metal spacer plate on the back of the Socket478.
Otherwise, some components will be short and damaged.
