Motherboard Layout

Motherboard Layout Motherboard Layout Motherboard Layout Motherboard Layout

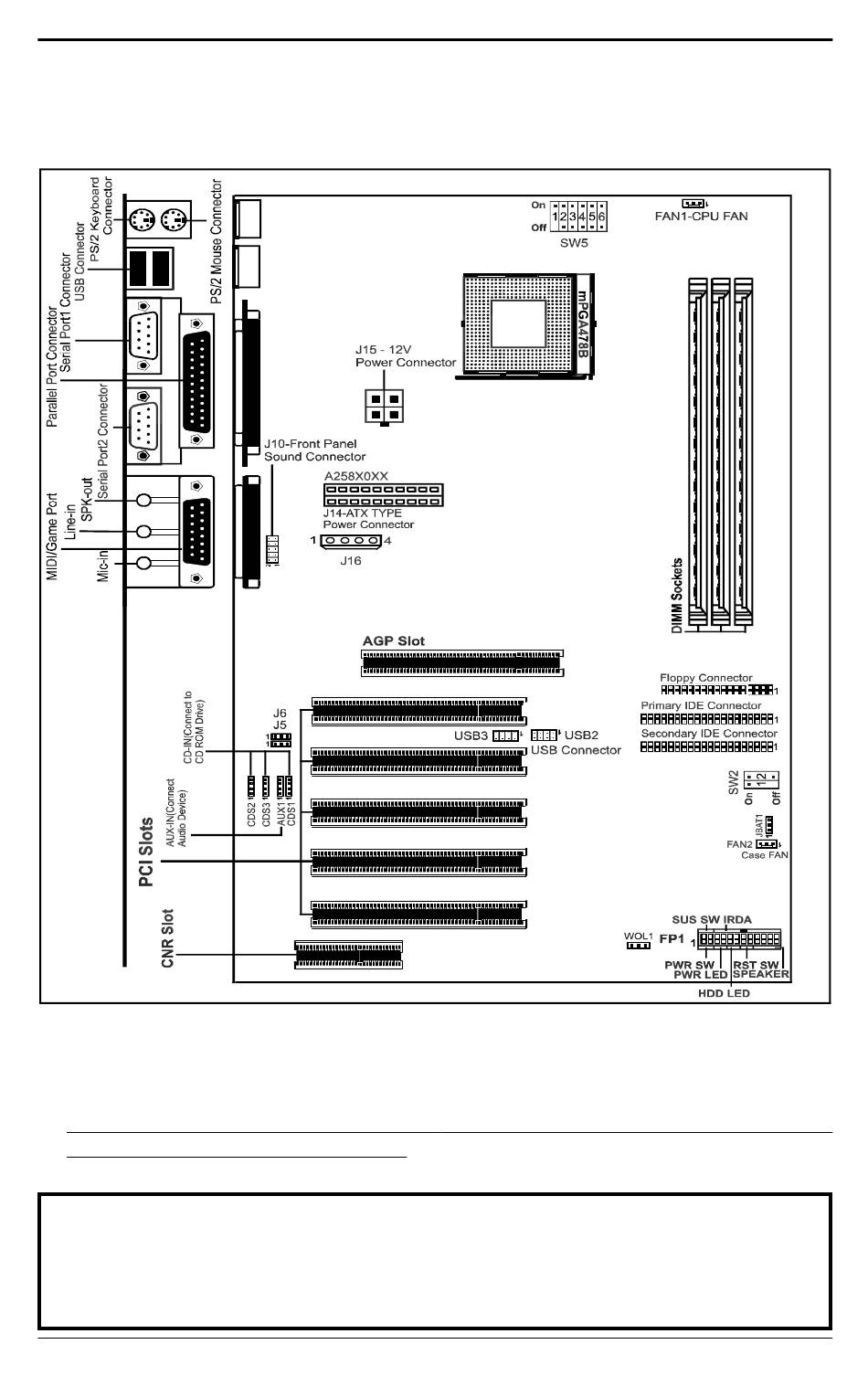

The following diagrams show the relative positions of the jumpers, connectors, major
components and memory banks on the motherboard.
# If you are using standard ATX power supply (without P4 12V power
connector), you MUST connect a peripheral power plug (the plug
supplying power to HDD / CDROM) into J16. Thus you can use either
ATX 12V power supply or standard ATX power supply for this motherboard
(Noted : NOT all kinds of standard ATX power supply are guaranteed to be
applicable in this motherboard.).
# USB3-USB Connector is only for VT8233 chipset.
NOTE
1) Be sure to check the cable orientation in order to match the colored strip to the pin
1 end of the connector.
2) When you start up the system, please wait for 5 seconds after you power on AC.
3) It is not recommended to add a metal spacer plate on the back of the Socket478.
Otherwise, some components will be short and damaged.
Hardware Configuration
