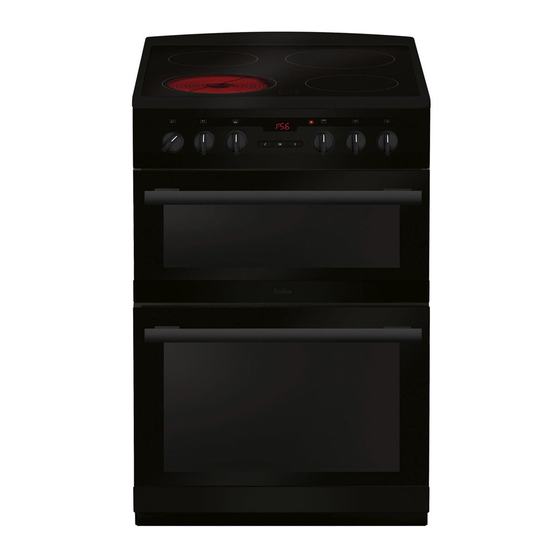

- Page 1 TYPE 6017DCE2.21HTaKDJQS 6017DCE2.21HTaKDJQW 6017DCE2.21HTaKDJQXx MODEL AFC6550BL/1 AFC6550WH/1 AFC6550SS/1 INSTRUCTION MANUAL ELECTRIC COOKER DOUBLE OVEN IO-CFS-1755 / 8509684 (01.2022 / v4)
- Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 9 Installation ..........................11 Operation ........................... 13 Baking in the oven – practical hints ................21 Cleaning and maintenance ....................23 Technical data ........................28 Product Fiche ........................29... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... - Page 5 SAFETY INSTRUCTIONS Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock.
- Page 6 SAFETY INSTRUCTIONS Always keep children away from the cooker. While in operation direct contact with the cooker may cause burns! Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob as the insulation material of this equipment is usually not resistant to high temperatures.
- Page 7 HOW TO SAVE ENERGY Using energy in a respon- Make use of residual heat from the sible way not only saves oven. money but also helps the If the cooking time is greater than 40 environment. So let’s save minutes switch off the oven 10 minutes energy! And this is how you before the end time.
- Page 8 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
-
Page 9: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 3, 4 5, 6 1 Temperature control knob - main oven 2 Temperature control knob - top oven 3, 4, 5, 6 Heating zone control knobs 7 Red thermostat light - main oven 8 Red thermostat light - top oven 9 Yellow operation light 10 Top oven door 11 Main oven door... - Page 10 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Baking tray Wire Shelf Grill Rack Sideracks *All images are for indication only; please refer to your individual unit for actual item.
-
Page 11: Installation
INSTALLATION Anti-tilt protection Installing the cooker CAUTION! You must install the anti-tilt pro- tection. If you do not install it, the appliance The kitchen should be dry and airy and can tilt. have effective ventilation according to the The appliance must be secured by using existing technical provisions. - Page 12 INSTALLATION Electrical connection Warning: This appliance must be earthed. The appliance must be installed by a com- petent electrician using a double pole control unit of 40 ampere minimum capacity with 3 mm minimum contact separation at all poles. We recommend that the appliance is con- nected by a qualified electrician who is mem- ber of the N.C.E.I.C.
-
Page 13: Operation
OPERATION Important! Before first use In cookers equipped with the electronic pro- Remove packaging, clean the interior of grammer, the time “0.00” will start flashing the oven and the hob. in the display field upon connection to the power supply. The programmer should be set with the cur- ... - Page 14 OPERATION Operate the control panel Minute Minder You can active the Minute Minder at any time, regardless of the status of other functions. The Minute Minder can be set from 1 minute up to 23 hours and 59 minutes. To set the Minute Minder: press the button, then the display will show flashing...
- Page 15 OPERATION Timed operation set the function selector knob and the temperature selector knob to preferred To set the appliance to switch off after a settings. The functions are now specific duration: active. The appliance will switch on at set the function selector knob and the End Time minus Duration (i.e.
- Page 16 OPERATION Adjust display brightness You can adjust display brightness 1 to 9, where 1 is the darkest and 9 is the brightest. The brightness setting applies to an inactive control panel, i.e. when none of controls are used 7 seconds. You can adjust display brightness as follows: simultaneously press the <...
- Page 17 OPERATION Controlling the heating zones of the ceramic hob. Choice of cookware Choose a pan with a diameter that is at least as large as the heating zone. Do not use pans with a concave or convex base. Always remember to put a proper cover on the pan. We recommend the use of pans with thick, even bases.
- Page 18 OPERATION Zone heating indicator If the temperature of a heating zone exceeds 50°C this is signalled by an indicator which lights up for that zone. When the heating indicator lights up it warns the person using the cooker against touching a hot heating zone.
- Page 19 OPERATION Top oven functions and operations Top and bottom heaters on, the oven door is closed. 100-250 The thermostat enables the user to set Natural convection oven (conventional). the temperature within a range from The oven can be warmed up using the bottom 100°C to 250°C.
- Page 20 OPERATION Main oven functions and operations Convection with ring heating ele- ment 100-250 The thermostat enables the user to Oven with automatic air circulation. set the temperature within a range The oven can be warmed up using the ring from 100°C to 250°C. The oven is heating element and rotating fan.
-
Page 21: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the accessories which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 22 BAKING IN THE OVEN – PRACTICAL HINTS Natural convection oven (conventional) Type Oven Temperature Level Time in minutes functions dish 160 - 200 2 - 3 30 - 50 160 - 180 20 - 40* 210 - 220 45 - 60 225 - 250 120 - 150 160 - 230...
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Caution! The sharp blade should always nance of your cooker you can have a sig- be protected by adjusting the cover (just nificant influence on the continuing fault-free push it with your thumb). Injuries are operation of your appliance. - Page 24 CLEANING AND MAINTENANCE Removing the inner panel Removing the Top Oven Door 1. Using a flat screwdriver unhook the up- In order to obtain easier access to the oven per door slat, prying it gently on the sides chamber for cleaning, it is possible to remove (fig.
- Page 25 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Re- move the inner panel (fig. D, D1). 4. Clean the panel with warm water with some cleaning agent added. Carry out the same in reverse order to reassemble the inner glass panel.
- Page 26 CLEANING AND MAINTENANCE Oven is equipped with easily removable wire shelf supports. To remove them for washing, pull the front catch, then tilt the support and remove from the rear catch. Removal of catalytic liners Replacing the halogen bulb in the oven Before replacing the halogen bulb, make Removing wire shelf supports sure the appliance is disconnected from...
- Page 27 OPERATION IN CASE OF EMERGENCY In the event of an emergency, you should: switch off all working units of the cooker disconnect the mains plug call the service centre some minor faults can be fixed by referring to the instructions given in the table below.
-
Page 28: Technical Data
TECHNICAL DATA Type / Model 6017DCE2.21HTaKDJQS / AFC6550BL/1 6017DCE2.21HTaKDJQW / AFC6550WH/1 6017DCE2.21HTaKDJQXx / AFC6550SS/1 Rated Voltage 230V~ Rated Frequency 50 Hz Power 10500 W Ceramic hob 6500 W Top oven 2000 W Top heater 500 W Bottom heater 1000 W... -
Page 29: Product Fiche
The information in the product data sheet is given in accordance with the Commission delegated Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. AFC6550BL/1 AFC6550WH/1 AFC6550SS/1 Model identifier 6017DCE2.21HTaKDJQS... - Page 30 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household ovens AFC6550BL/1 AFC6550WH/1 AFC6550SS/1 Model identifier 6017DCE2.21HTaKDJQS...
- Page 31 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household electric hobs AFC6550BL/1 AFC6550WH/1 AFC6550SS/1 Model identifier 6017DCE2.21HTaKDJQS...
- Page 32 Amica S.A. ul.Mickiewicza 52, 64-510 Wronki, Poland tel. +48 67 25 46 100, fax +48 67 25 40 320 www.amica.pl...
