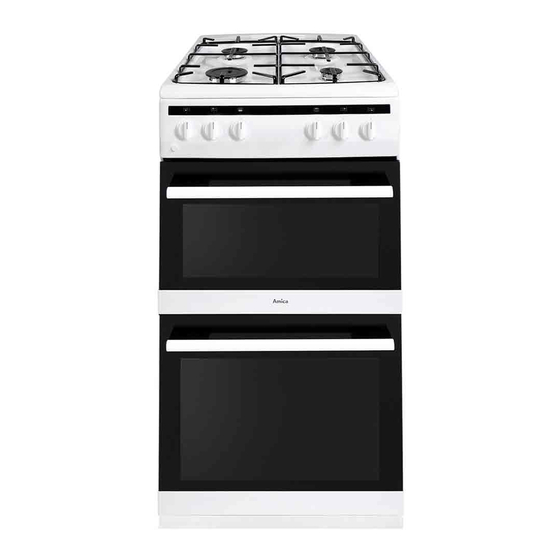

- Page 1 TYPE 507DGG2.43HmZpOFQW MODEL AFG5500WH/1 INSTRUCTION MANUAL GAS COOKER DOUBLE OVEN IO-CFS-1179 / 8504707 (09.2021 V4)
- Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ................... 10 Installation ......................... 12 Operation ........................... 18 Cleaning and maintenance ....................22 Baking in the oven – practical hints ................27 Technical data ........................29 Product fiche ......................30 Product information .....................31... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... - Page 5 SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. Before opening the cover, cleaning it of any dirt is recom- mended. The cooker hob surface should be cooled down before closing the cover.
- Page 6 SAFETY INSTRUCTIONS Do not put objects with a weight greater than 15 kg onto the open oven door. Alterations and repairs carried out by an unqualified person are not allowed. Do not open the cooker knobs before already having a lighted match or a gas lighter in your hand.
- Page 7 SAFETY INSTRUCTIONS GAS & ELECTRICAL CONNECTION MOVING THE COOKER Please refer to installation instructions for the Do not attempt to move the cooker by pulling Gas & Electrical Safety Regulations and the on the doors or handles. Open the door and Ventilation Requirements.
- Page 8 HOW TO SAVE ENERGY Using energy in a respon- Make sure the oven door is properly sible way not only saves closed. money but also helps the Heat can leak through spillages on the door environment. So let’s save seals. Clean up any spillages immediately. energy! And this is how you Do not install the cooker in the direct can do it:...
- Page 9 DISPOSAL OF THE APPLIANCE UNPACKING Old appliances should not sim- During transportation, protec- ply be disposed of with normal tive packaging was used to household waste, but should protect the appliance against be delivered to a collection and any damage. After unpacking, recycling centre for electric and please dispose of all elements electronic equipment.
-
Page 10: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 3, 4 1 Temperature control knob - main oven 2 Temperature control knob - top oven 3, 4, 5, 6 Gas burner control knobs 7 Push-button main oven light 8 Top oven door 9 Main oven door 10 Large burner 11 Medium burner 12 Medium burner... - Page 11 SPECIFICATIONS OF THE APPLIANCE Oven fittings: Wire Shelf Grill Pan, Grill Rack, Grill Pan Handle Cover Controls *All images are for indication only; please refer to your individual unit for actual item.
-
Page 12: Installation
INSTALLATION Before you start: Please read the instructions. Ventilation Requirements Planning your installation will save you time The room containing the appliance should and effort. have an air suppły in accordance with BS5440: Part2: 1989: Prior to installation, ensure that the local ... - Page 13 INSTALLATION Clearances Anti-tilt protection No shelf or oyerhang or cooker hood should CAUTION! You must install the anti-tilt pro- be closer than a minimum of 650mm, but tection. If you do not install it, the appliance check with cooker hood manufacturer’s rec- can tilt.
- Page 14 INSTALLATION Connect to the electricity supply Gas inlet at the rear of the cooker Warmng: This appliance must be earthed. The cooker is manufactured to work with a one-phase alternating current (220- 240V~50 Hz) and is equipped with a 3 x 1,5 mm connection lead of 1.5 mm length Parallel thread...
- Page 15 INSTALLATION Surface burners Burner small medium large Type of gas gas injector diameter gas injector diameter gas injector diameter [mm] [mm] [mm] nominal thermal power nominal thermal power nominal thermal power 1,00 kW 1,80 kW 2,80 kW G20 2H 20 mbar 0,72 0,98 1,17...
- Page 16 INSTALLATION Surface burners applied do not require adjust- Oven burner ment of primary air. A correct flame has dis- Unscrew 2 screws to remove the cover of tinct internal cones of blue and green colour. oven burner. A short, humming flame or long, yellow and smoking one, without clearly outlined cones, shows improper quality of gas in the house- hold piping or a damaged or soiled burner.
- Page 17 INSTALLATION Grill burner Unscrew the screw fixing the front cover of the grill burner. A professional installer must adjust the small flame on-site in your home. The adjustment depends on the type of gas and its pressure. Gently pull down burner - be careful with thermoccuple/spark plug holder.
-
Page 18: Operation
OPERATION BEFORE FIRST USE First start – preliminary cleaning To remove residues of fat and oil accumulated during the manufacturing process and dust accumulated during storage and transport, the preliminary cleaning of the equipment should be carried out. This way our health is protected and tasty cakes and roasts are provided. - Page 19 OPERATION How to use surface burners Ignition without an ignitor light a match, press in the knob to the end and turn it Choice of cookware left to the “large flame” position Mind that the diameter of a pan base is always ...
- Page 20 OPERATION Selection of the appropriate flame Top oven The oven can be heated by oven gas burner, A correctly adjusted burner has a light blue as well as the grill gas burner. The oven flame with a clearly visible internal cone. Se- function is controlled by one knob, which lection of flame size depends on the position contains a digital scale corresponding to...
- Page 21 OPERATION Oven gas burner ignition press in the knob to the end and turn it left Note! to the position 8, The temperature control is possible at closed hold until gas is lit, oven door only. after the flame is lighted release the Turn the knob right to the stop in order to turn the oven off.
-
Page 22: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Important: nance of your cooker you can have a sig- The burner caps and leads must be reposi- nificant influence on the continuing fault-free tioned correctly so that they sit squarely onto operation of your appliance. - Page 23 CLEANING AND MAINTENANCE Replacing the halogen bulb in the oven Oven Before replacing the halogen bulb, make The oven should be cleaned after every sure the appliance is disconnected from use. When cleaning the oven the lighting the electric mains to avoid a possible should be switched on to enable you to electric shock.
- Page 24 CLEANING AND MAINTENANCE Removing the Top Oven Door Removing the inner panel 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2.
- Page 25 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Re- move the inner panel (fig. D, D1). 4. Clean the panel with warm water with some cleaning agent added. Carry out the same in reverse order to reassemble the inner glass panel.
- Page 26 TROUBLESHOOTING In the event of an emergency, you should: switch off all working units of the cooker disconnect the mains plug call the service centre some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.
-
Page 27: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker which should be put on the drying rack; before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);... - Page 28 BAKING IN THE OVEN – PRACTICAL HINTS Roasting meat cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners. use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;...
-
Page 29: Technical Data
TECHNICAL DATA Type/Model 507DGG2.43HmZpOFQW / AFG5500WH/1 Appliance category GB II2H3+ Rated Voltage 230V~ Rated Frequency 50 Hz Power 12200 W gas hob 7400 W Power top oven grill 2300 W top oven 2300 W main oven 2500 W External Dimensions (H x W x D) 500(W) x 600(D) x 900(H) mm The product meets the requirements of European standards EN 60335- 1;... -
Page 30: Product Fiche
The information in the product data sheet is given in accordance with the Commission delegated Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. AFG5500WH/1 Model identifier 507DGG2.43HmZpOFQW... -
Page 31: Product Information
Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household ovens AFG5500WH/1 Model identifier 507DGG2.43HmZpOFQW Oven type (electricity or gas) - top... - Page 32 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household gas hobs AFG5500WH/1 Model identifier 507DGG2.43HmZpOFQW Hob type (electric / gas / gas -electric)
- Page 36 Produced by Amica S.A. ul.Mickiewicza 52, 64-510 Wronki, Poland tel. +48 67 25 46 100, fax +48 67 25 40 320 www.amica.pl Serviced by The CDA Group Ltd, Harby Road, Langar, Nottingham, NG13 9HY Email: customer.care@cda.eu Tel: 01949 862012, Fax: 01949 862003...
