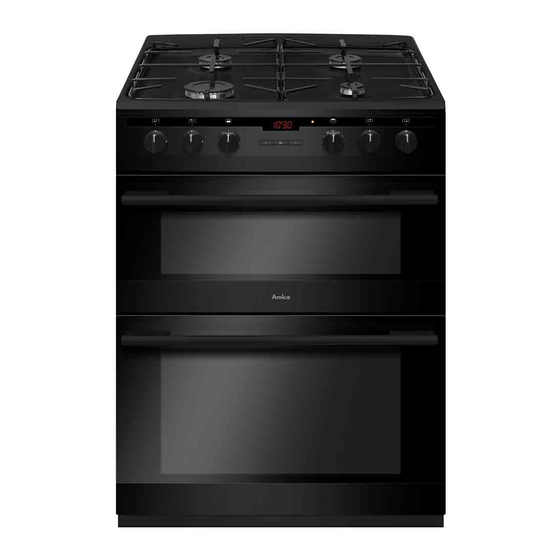

Amica AFD6450BL Instruction Manual

Gas-electric cooker double oven
Hide thumbs

Advertisement

Quick Links

Download this manual
AFD6450BL
INSTRUCTION MANUAL
GAS-ELECTRIC COOKER
DOUBLE OVEN
IO-CFS-0721 / 8500111
(03.2018 / v1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the AFD6450BL and is the answer not in the manual?

Questions and answers

Related Manuals for Amica AFD6450BL

Summary of Contents for Amica AFD6450BL

  • Page 1 AFD6450BL INSTRUCTION MANUAL GAS-ELECTRIC COOKER DOUBLE OVEN IO-CFS-0721 / 8500111 (03.2018 / v1)
  • Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ................... 10 Installation ......................... 12 Operation ........................... 16 Baking in the oven – practical hints ................24 Cleaning and maintenance ....................26 Technical data ........................32 Product Fiche ........................33...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
  • Page 5 SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. Before opening the cover, cleaning it of any dirt is recom- mended. The cooker hob surface should be cooled down before closing the cover.
  • Page 6 SAFETY INSTRUCTIONS  Do not open the cooker knobs before already having a lighted match or a gas lighter in your hand.  Do not put out a burner flame by blowing.  A glass cover may crack when heated. Switch off all the burners before lowering the cover. (Cookers with a glass cover).
  • Page 7 SAFETY INSTRUCTIONS GAS & ELECTRICAL CONNECTION MOVING THE COOKER Please refer to installation instructions for the Do not attempt to move the cooker by pulling Gas & Electrical Safety Regulations and the on the doors or handles. Open the door and Ventilation Requirements.
  • Page 8 HOW TO SAVE ENERGY Using energy in a respon- Make sure the oven door is properly sible way not only saves closed. money but also helps the Heat can leak through spillages on the door environment. So let’s save seals. Clean up any spillages immediately. energy! And this is how you Do not install the cooker in the direct can do it:...
  • Page 9 DISPOSAL OF THE APPLIANCE UNPACKING Old appliances should not sim- During transportation, protec- ply be disposed of with normal tive packaging was used to household waste, but should protect the appliance against be delivered to a collection and any damage. After unpacking, recycling centre for electric and please dispose of all elements electronic equipment.

  • Page 10: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE 3, 4 P Electronic programmer 1 Temperature control knob - main oven 2 Temperature control knob - top oven 3, 4, 5, 6 Gas burner control knobs 7 Red thermostat light - main oven 8 Red thermostat light - top oven 9 Yellow operation light 10 Large burner 11 Medium burner...
  • Page 11 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Wire Shelf Baking tray Grill Rack Sideracks *All images are for indication only; please refer to your individual unit for actual item.

  • Page 12: Installation

    INSTALLATION Before you start: Please read the instructions. Ventilation Requirements Planning your installation will save you time The room containing the appliance should and effort. have an air suppły in accordance with Prior to installation, ensure that the local BS5440: Part2: 1989: distribution conditions (nature of the gas ...
  • Page 13 INSTALLATION Clearances Anti-tilt protection No shelf or oyerhang or cooker hood should CAUTION! You must install the anti-tilt pro- be closer than a minimum of 650mm, but tection. If you do not install it, the appliance check with cooker hood manufacturer’s rec- can tilt.
  • Page 14 INSTALLATION Connect to the electricity supply Gas inlet at the rear of the cooker Warmng: This appliance must be earthed.  The cooker is manufactured to work with a one-phase alternating current (220- 240V~50 Hz) and is equipped with a 3 x 1,5 mm connection lead of 1.5 mm length Parallel thread...
  • Page 15 INSTALLATION Injector Size Table Burners small medium large Type of gas gas injector diameter gas injector diameter gas injector diameter [mm] [mm] [mm] nominal thermal power nominal thermal power nominal thermal power 1,00 kW 1,75 kW 3,00 kW G20 2H 20 mbar 0,77 0,97 1,29...

  • Page 16: Operation

    OPERATION Important! Before first use In ovens equipped with the electronic pro- First start – preliminary cleaning grammer, the time “0.00” will start flashing To remove residues of fat and oil accumulated in the display field upon connection to the during the manufacturing process and dust power supply.
  • Page 17 OPERATION Electronic programmer Timer The timer can be activated at any time, re- – functions gardless of the status of other functions. The timer can be set for from 1 minute to up to 23 OK – function selection button hours and 59 minutes.
  • Page 18 OPERATION Semi–automatic operation Automatic operation If the oven is to be switched off at a given If the oven is to be switched on for a specified time, then you should: period of time and switched off at a fixed hour then you should set the operation time and Set the oven function knob and the tem- the operation end time:...
  • Page 19 OPERATION The function AUTO is now on; the oven will Cancel settings start operating from the point when the differ- Timer and automatic function settings may ence between the set operation end time and be cancelled at any time. the operation duration time occurs (e.g. the operation time is set to 1 hour, the operation Cancel automatic function settings: end time is set to 14.00, so the oven will start...
  • Page 20 OPERATION Ignition without an ignitor How to use surface burners  light a match, Choice of cookware  press in the knob to the end and turn it left to the “large flame” position Mind that the diameter of a pan base is always ...
  • Page 21 OPERATION Selection of the appropriate flame A correctly adjusted burner has a light blue flame with a clearly visible internal cone. Se- lection of flame size depends on the position of the burner knob which has been set: large flame small flame (“economical flame”) ...
  • Page 22 OPERATION Top oven functions and operations Top and bottom heaters on, the oven door is closed. 100-250 The thermostat enables the user to set Natural convection oven (conventional). the temperature within a range from The oven can be warmed up using the bottom 100°C to 250°C.
  • Page 23 OPERATION Main oven functions and operations Convection with ring heating ele- ment 100-250 The thermostat enables the user to Oven with automatic air circulation. set the temperature within a range The oven can be warmed up using the ring from 100°C to 250°C. The oven is heating element and rotating fan.

  • Page 24: Baking In The Oven - Practical Hints

    BAKING IN THE OVEN – PRACTICAL HINTS Baking  we recommend using the accessories which were provided with your cooker;  it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
  • Page 25 BAKING IN THE OVEN – PRACTICAL HINTS Natural convection oven (conventional) Type Oven Temperature Level Time in minutes functions dish 160 - 200 2 - 3 30 - 50 160 - 180 20 - 40* 210 - 220 45 - 60 225 - 250 120 - 150 160 - 230...

  • Page 26: Cleaning And Maintenance

    CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Important: nance of your cooker you can have a sig- The burner caps and leads must be reposi- nificant influence on the continuing fault-free tioned correctly so that they sit squarely onto operation of your appliance.
  • Page 27 CLEANING AND MAINTENANCE Oven Replacement of the oven light bulb In order to avoid the possibility of an  The oven should be cleaned after every electric shock ensure that the appliance use. When cleaning the oven the lighting is switched off before replacing the bulb. should be switched on to enable you to see the surfaces better.
  • Page 28 CLEANING AND MAINTENANCE Removing the Top Oven Door Removing the inner panel 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2.
  • Page 29 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Re- move the inner panel (fig. D, D1). 4. Clean the panel with warm water with some cleaning agent added. Carry out the same in reverse order to reassemble the inner glass panel.
  • Page 30 CLEANING AND MAINTENANCE Oven is equipped with liners covered with  Oven is equipped with easily removable special self–cleaning enamel. The enamel wire shelf supports. To remove them for removes fat stains or leftover food auto- washing, pull the front catch, then tilt the matically, providing they are not dried on support and remove from the rear catch.
  • Page 31 OPERATION IN CASE OF EMERGENCY In the event of an emergency, you should:  switch off all working units of the cooker  disconnect the mains plug  call the service centre  some minor faults can be fixed by referring to the instructions given in the table below.

  • Page 32: Technical Data

    TECHNICAL DATA Model AFD6450BL Appliance category GB II2H3+ Rated Voltage 230V~ Rated Frequency 50 Hz Power 4000 W Top oven 2000 W Top heater 500 W Bottom heater 1000 W Grill 2000 W Main oven 2000 W Ring element 2000 W...

  • Page 33: Product Fiche

    Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. Model identifier AFD6450BL Energy efficiency index of top cavity (EEI cavity)
  • Page 34 Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household ovens Model identifier AFD6450BL Oven type (electricity or gas) - top electricity Oven type (electricity or gas) - main...
  • Page 35 Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household gas hobs Model identifier AFD6450BL Hob type (electric / gas / gas -electric) Number of gas burners 54,5...
  • Page 36 Amica S.A. ul.Mickiewicza 52, 64-510 Wronki, Poland tel. +48 67 25 46 100, fax +48 67 25 40 320 www.amica.pl...
