  • Page 1 PXIe-8840 Quad Core 2022-07-20...

  • Page 2: Table Of Contents

    NI PXIe-8840 Quad-Core Front Panel........

  • Page 3: Getting Started

    Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. Caution To ensure the specified EMC performance, operate this product only with shielded cables and accessories.

  • Page 4: Unpacking

    2. Remove the device from the package and inspect the device for loose components or any other sign of damage. 3. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device into your chassis.

  • Page 5: Preparing The Environment

    PXIe-8840 Quad Core Preparing the Environment Ensure the environment you are using the NI PXIe-8840 Quad-Core in meets the following specifications. Caution The operating temperature must not be exceeded, even when used in a chassis with a higher temperature range.
  • Page 6 PXIe-8840 Quad Core 1. Plug in your chassis before installing the NI PXIe-8840 Quad-Core. The power cord grounds the chassis and protects it from electrical damage while you install the module. Caution In some National Instruments chassis, you must ensure that the power LED is off.
  • Page 7 PXIe-8840 Quad Core 5. Make sure the injector/ejector handle is in its downward position. Align the NI PXIe-8840 Quad-Core with the card guides on the top and bottom of the system controller slot. Caution Do not raise the injector/ejector handle as you insert the NI PXIe-8840 Quad-Core.

  • Page 8: Labview Rt

    PXIe-8840 Quad Core Figure 2. NI PXIe-8840 Quad-Core Installed in a PXI Express Chassis 1. PXI Express Chassis 2. PXI Express Controller 3. Injector/Ejector Rail LabVIEW RT This section explains software installation and switch configuration for LabVIEW RT on your PXI Express controller.
  • Page 9 2. Open Measurement & Automation Explorer (MAX) on another computer in the same subnet and expand the Remote Systems branch. MAX lists the PXI Express controller as the controller model name followed by the MAC address (for example, NI-PXIe-8840 Quad-Core). Note The other computer must have LabVIEW, LabVIEW RT, and any desired drivers installed.
  • Page 10 If you are not using LabVIEW RT, these switches should remain in the OFF position. The controller reads these switches only after a system reset. The NI PXIe-8840 Quad-Core controller includes the following LabVIEW RT configuration switches: Switch 1—Boot LabVIEW RT: Set this switch to ON to boot LabVIEW RT.
  • Page 11 PXIe-8840 Quad Core Switch 4—Reset IP Address: Set this switch to ON to reset the IP address ■ and other TCP/IP settings to their factory defaults. Use this switch if moving the controller to a different subnet or if the current TCP/IP settings are invalid.

  • Page 12: Drivers And Software

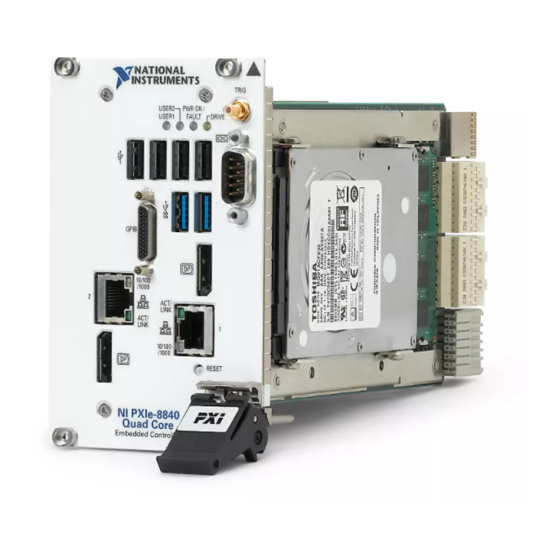

    The NI PXIe-8840 Quad-Core has the following data storage features: 2.5 in. SATA notebook internal hard drive ■ USB storage support—USB CD/DVD-ROM, mass storage device, or floppy ■ drive NI PXIe-8840 Quad-Core Front Panel The following figure shows the NI PXIe-8840 Quad-Core front panel layout. ni.com...
  • Page 13 7. Ethernet 8. Reset Button 9. GPIB 10. ExpressCard/34 (on ExpressCard Variant Only) Front Panel Connectors The following table lists various peripherals and their corresponding NI PXIe-8840 Quad-Core external connectors, bus interfaces, and functions. Peripheral External Connector Description Video DisplayPort ®...
  • Page 14 PXI Express Trigger Connectivity The SMB connector on the NI PXIe-8840 Quad-Core front panel can connect to or from any PXI Express backplane trigger line. A trigger allocation process is needed to prevent two resources from connecting to the same trigger line, resulting in the trigger being double-driven and possibly damaging the hardware.

  • Page 15: Removing The Ni Pxie-8840 Quad-Core From A Pxi Express Chassis

    5. Slide the unit out of the chassis. Cleaning Use a dry, low-velocity stream of air to clean the NI PXIe-8840 Quad-Core controller. If needed, use a soft, nonmetallic brush for cleaning around components. Make sure that the device is completely dry and free from contaminants before returning it to service.

  • Page 16: Boot Options

    Can I use the internal Serial ATA drive and an external hard drive at the same time? Yes. Refer to the BIOS Setup Utility section of the NI PXIe-8840 Quad-Core User Manual for more information. What devices can I boot from? The NI PXIe-8840 Quad-Core can boot from the following devices: The internal Serial ATA solid-state drive.

  • Page 17: Cables And Connections

    How do I plug both a PS/2 mouse and PS/2 keyboard into the controller? The NI PXIe-8840 Quad-Core has no PS/2 connector, and you need to use a USB Y- splitter cable as shown below, or a similar device, to connect both a PS/2 mouse and PS/2 keyboard.

  • Page 18: Software Driver Installation

    How do I install software from a CD? The compact size of the NI PXIe-8840 Quad-Core does not allow for an integrated USB CD/DVD-ROM drive. You have the following options: • USB CD/DVD-ROM—You can install from a USB CD/DVD-ROM using a bootable installation CD.

  • Page 19: Upgrade Information

    778492-01. How do I upgrade system memory? You can change the amount of installed RAM on the NI PXIe-8840 Quad-Core by upgrading the DDR3L SO-DIMM. Complete the following steps to upgrade the RAM. 1. Remove the NI PXIe-8840 Quad-Core from the PXI chassis.

  • Page 20: Pxi Configuration

    PXIe-8840 Quad Core Figure 6. Installing a DDR3L SO-DIMM in an NI PXIe-8840 Quad-Core Controller 1. DDR3L SO-DIMM Socket 2. DDR3L SO-DIMM Module How do I flash a new BIOS? You can download the new BIOS from ftp.ni.com/support/pxi. For more information,...

  • Page 21: What If The Controller Does Not Boot

    PXIe-8840 Quad Core What if the Controller Does Not Boot? Several problems can cause a controller not to boot. Here are some things to look for and possible solutions. Things to Notice: Which LEDs come on? The PWROK/FAULT LED should stay lit green. The ■...

  • Page 22: What If I Can't See The Video

    There are two methods that you can use to reset the CMOS. 1. First Method 1. Enter the BIOS setup program as described in the Accessing BIOS Setup Utility section of the NI PXIe-8840 Quad-Core User Manual for more information. ni.com...

  • Page 23: Worldwide Support And Services

    4. Reinstall the controller in the chassis. Figure 7. Clearing the CMOS Contents 1. Push-Button Switch SW1 Worldwide Support and Services The National Instruments website is your complete resource for technical support. At ni.com/support, you have access to everything from troubleshooting and © National Instruments...
  • Page 24 National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world. For telephone support in the United States, create your service request at ni.com/support...
