USER MANUAL

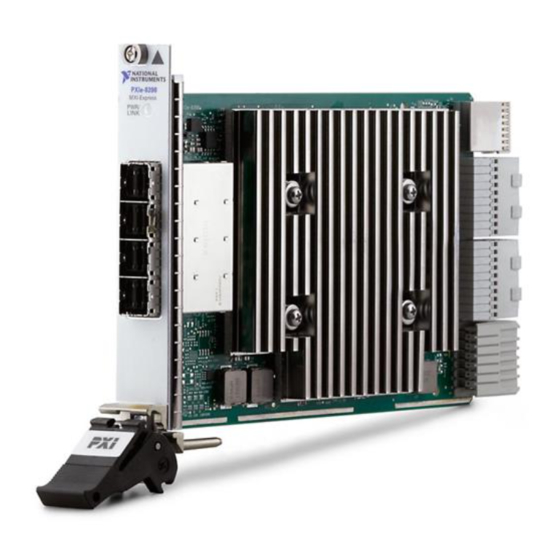

MXI-Express Gen-3 x16
MXI-Express Gen-3 x16 Multisystem eXtension Interface for PCI
Express, CompactPCI Express, and PXI Express Bus Systems
This document provides installation, configuration, and reference information for MXI-
Express Gen-3 x16 controllers.
Caution
avoid injury, loss of data, or a system crash.
Caution
in this document may impair the protection the controllers provide.
Contents
Overview................................................................................................................................... 2
Description and Features...........................................................................................................3
Functional Block Diagram........................................................................................................ 4
Basic MXI-Express Gen-3 x16 Systems...................................................................................6
Larger MXI-Express Gen-3 x16 Systems................................................................................. 7
Connection Options...................................................................................................................8
Compatibility with Host PCs.................................................................................................. 10
Installation and Configuration.................................................................................................11
Equipment Needed.......................................................................................................... 11
Unpacking............................................................................................................................... 11
Hardware Installation.............................................................................................................. 12
Installing a PCIe-8398.................................................................................................... 12
Installing the Low-Profile Bracket on the PCIe-8398 (Optional)...................................13
Installing a PXIe-8398, PXIe-8399, or PXIe-8394.........................................................14
Cabling............................................................................................................................ 16
Powering On the MXI-Express Gen-3 x16 System........................................................ 17
Powering Off the MXI-Express Gen-3 x16 System....................................................... 17
LED Indicators........................................................................................................................ 18
PXI Express Onboard LEDs........................................................................................... 19
PCIe-8398 Onboard LEDs.............................................................................................. 21
Software Installation and Configuration................................................................................. 22
This icon denotes a caution, which advises you of precautions to take to
Using the MXI-Express Gen-3 x16 controllers in a manner not described
Advertisement
Table of Contents
Related Manuals for National Instruments MXI-Express Gen-3 x16
Summary of Contents for National Instruments MXI-Express Gen-3 x16
-
Page 1: Table Of Contents
This icon denotes a caution, which advises you of precautions to take to avoid injury, loss of data, or a system crash. Caution Using the MXI-Express Gen-3 x16 controllers in a manner not described in this document may impair the protection the controllers provide. Contents Overview........................... -
Page 2: Overview
2.5 Gb/s/lane/direction of raw bandwidth Second 5.0 Gb/s/lane/direction of raw bandwidth Third 8.0 Gb/s/lane/direction of raw bandwidth Note This link is compatible with the cabled PCI Express specification developed by the PCI-SIG. 2 | ni.com | MXI-Express Gen-3 x16 User Manual... -
Page 3: Description And Features
Description and Features MXI-Express Gen-3 x16 extends PCI Express communication over a cable up to 3 m. With MXI-Express Gen-3 x16, you can do the following: • Control a PXI Express or CompactPCI Express backplane with a PCI Express-based PC. -
Page 4: Functional Block Diagram
Functional Block Diagram Figure 1. PCIe-8398 (156877x-01L) Block Diagram PCI Express PCI Express Gen-3 x16 MXI-Express Switch Gen-3 x16 PWR/LNK Status LED 4 | ni.com | MXI-Express Gen-3 x16 User Manual... - Page 5 Express lanes. The PXIe-8398 and PXIe-8399 maximize the use of all available backplane lanes for either configuration. Note National Instruments offers Gen 3 PXI Express chassis that allow the PXIe-8398 and PXIe-8399 to establish Gen 3 backplane links. MXI-Express Gen-3 x16 User Manual | © National Instruments | 5...
-
Page 6: Basic Mxi-Express Gen-3 X16 Systems
PXIe-8394 to establish Gen 3 backplane links. A chassis can support up to a x8 link. Basic MXI-Express Gen-3 x16 Systems The simplest MXI-Express Gen-3 x16 system consists of a PCIe-8398 in a PC connected to a PXIe-8398 in the controller slot of a PXI Express chassis, as shown in the following figure. -
Page 7: Larger Mxi-Express Gen-3 X16 Systems
("star" topology). This method offers the most bandwidth and lowest latency to the host for all the chassis. Figure 5. Example of a Star MXI-Express Gen-3 x16 System Expansion Topology If you are using a PC to control multiple chassis but do not have additional PCI Express slots in the PC, you can use a PXIe-8399 to daisy-chain to an additional chassis ("daisy-chain"... -
Page 8: Connection Options
PXIe-8399. The PXIe-8394 backplane connection is limited to Gen 3 x8. Figure 7. Example of a MXI-Express Gen-3 x16 System Expansion Topology Using a PXIe-8394 in Each Chassis Systems need not be exclusively star or daisy-chain. It is generally preferable to use a star topology, but you can daisy-chain or star additional chassis as needed. - Page 9 Port 1 of the PXIe-8398 and PXIe-8399 is upstream facing, meaning it is the link going toward the host. This means it is connected to a PXIe-8394, PCIe-8398, or a downstream facing port of a PXIe-8398 or PXIe-8399. MXI-Express Gen-3 x16 User Manual | © National Instruments | 9...
-
Page 10: Compatibility With Host Pcs
The BIOS of some host computers may have limited support or no support for extending the PCI Express fabric. These systems may fail to boot or fail to function correctly. For more information about host system compatibility with MXI-Express Gen-3 x16 products, refer to the NI Developer Zone document... -
Page 11: Installation And Configuration
Installation and Configuration This section explains how to unpack, install, and configure the MXI-Express Gen-3 x16 hardware and software. Equipment Needed Connecting a PC to an Expansion Chassis • Host PC with an available PCI Express Gen-3 x16 slot •... -
Page 12: Hardware Installation
PXI Express or CompactPCI Express chassis. Store the device in the antistatic envelope when not in use. Hardware Installation The following are general instructions for installing the MXI-Express Gen-3 x16 products. Consult your computer user manual or technical reference manual for further instructions and warnings. -
Page 13: Installing The Low-Profile Bracket On The Pcie-8398 (Optional)
Note that the two mounting tabs for the standard height bracket rest against the back side of the card. Set the two screws aside to re-use when installing the low-profile bracket. MXI-Express Gen-3 x16 User Manual | © National Instruments | 13... -
Page 14: Installing A Pxie-8398, Pxie-8399, Or Pxie-8394
Tighten each screw to a maximum torque of 5 in. • lb (0.565 N • m). Installing a PXIe-8398, PXIe-8399, or PXIe-8394 The following table provides information on which PXI Express MXI-Express Gen-3 x16 boards are compatible with which chassis slot types. - Page 15 Table 3. MXI-Express Gen-3 x16 PXI Express Board Slot Type Compatibility PXI Express Board PXI Express Chassis Controller Peripheral Hybrid ✓ PXIe-8398 — — ✓ PXIe-8399 — — ✓ ✓ PXIe-8394 — Note In this section, all the above models are referred to as a PXI Express board.
-
Page 16: Cabling
The following table shows the various MXI-Express x8 copper cables available from National Instruments. Table 4. National Instruments MXI-Express x8 Copper Cables Cable Length (Meters) Description Part Number MXI-Express x8 copper 785550-01 MXI-Express x8 785550-03 16 | ni.com | MXI-Express Gen-3 x16 User Manual... -
Page 17: Powering On The Mxi-Express Gen-3 X16 System
Connect the MXI-Express x8 cables to both MXI-Express Gen-3 x16 modules. The cables have no polarity, so either end may be connected to either card. Note Two x8 cables plugged into the MXI-Express Gen-3 x16 modules make the x16 link. -
Page 18: Led Indicators
LED Indicators The LEDs on MXI-Express Gen-3 x16 cards display status information about power supplies and link state. The PCIe-8398, PXIe-8398, and PXIe-8394 have one tri-color LED on the panel, indicating power and link status. The PXIe-8399 has two tri-color LEDs. -
Page 19: Pxi Express Onboard Leds
Onboard link indicators for front panel cable links 1-4 are directly behind the connectors on the back side of the board, as shown in the following figure. The LEDs represent the lanes of the port they're adjacent to. MXI-Express Gen-3 x16 User Manual | © National Instruments | 19... - Page 20 Figure 13. PXIe-8399 LEDs for Ports 5-8 LEDs for Backplane Links Onboard link indicators for the first 16 backplane lanes are on the top side of the board, as shown in the following figure. 20 | ni.com | MXI-Express Gen-3 x16 User Manual...
-
Page 21: Pcie-8398 Onboard Leds
Two of the LEDs provide link status information. The Port 0 LED reflects the status of the card edge connector and typically is solid green. Port 24 is MXI-Express Gen-3 x16 User Manual | © National Instruments | 21... -
Page 22: Software Installation And Configuration
Port 0 Software Installation and Configuration MXI-Express Gen-3 x16 is based on PCI Express technology, using PCI Express switches to enable control of a PXI Express chassis from a PC or another PXI Express chassis with an available PCI Express or PXI Express slot. This technology will be recognized as a collection of PCI-to-PCI bridges to the operating system, and has CompactPCI Express level support without any additional software. -
Page 23: Specifications
6.89 cm × 167.65 cm (2.71 in. × 6.60 in.) Maximum cable length Slot requirements One slot (PCI Express x16) Compatibility Fully compatible with the PCI Express Specification, Revision 3.0 Weight 0.147 kg (0.325 lb) typical MXI-Express Gen-3 x16 User Manual | © National Instruments | 23... - Page 24 This product is designed to meet the requirements of the following standards of safety for information technology equipment: • IEC 61010-1, EN 61010-1 • CAN/CSA-C22.2 No. 61010-1 Note For UL and other safety certifications, refer to the product label or the Online Product Certification section. 24 | ni.com | MXI-Express Gen-3 x16 User Manual...
- Page 25 For additional environmental information, refer to the Minimize Our Environmental Impact web page at ni.com/environment. This page contains the environmental regulations and directives with which NI complies, as well as other environmental information not included in this document. MXI-Express Gen-3 x16 User Manual | © National Instruments | 25...
-
Page 26: Pxie-8398 (156874X-01L) Specifications
100 mA 200 mA +12 V 1100 mA 2300 mA +5 V 200 mA 500 mA Not including the power consumed by an active cable. NI copper cables (785550-0x) are passive. 26 | ni.com | MXI-Express Gen-3 x16 User Manual... - Page 27 5 Hz to 500 Hz, 0.3 g Nonoperating 5 Hz to 500 Hz, 2.4 g (Tested in accordance with IEC-60068-2-64. Nonoperating test profile exceeds the requirements of MIL- PRF-28800F, Class 3.) MXI-Express Gen-3 x16 User Manual | © National Instruments | 27...
- Page 28 Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance information. To obtain product certifications and the DoC for this product, visit ni.com/ certification, search by model number or product line, and click the appropriate link in the Certification column. 28 | ni.com | MXI-Express Gen-3 x16 User Manual...
-
Page 29: Pxie-8399 (156874X-02L) Specifications
Fully compatible with the PXI Express Hardware Specification, Revision 1.0; PICMG CompactPCI Express EXP.0 R2.0 Specification; and the PCI Express External Cable Specification, Revision 3.0 Weight 0.45 kg (0.99 lb) typical MXI-Express Gen-3 x16 User Manual | © National Instruments | 29... - Page 30 5% to 95%, noncondensing (Tested in accordance with IEC-60068-2-56.) Caution Clean the PXIe-8399 with a soft nonmetallic brush. Make sure that the device is completely dry and free from contaminants before returning it to service. 30 | ni.com | MXI-Express Gen-3 x16 User Manual...
- Page 31 Note For EMC declarations and certifications, and additional information, refer to the Online Product Certification section. MXI-Express Gen-3 x16 User Manual | © National Instruments | 31...
-
Page 32: Pxie-8394 (156874X-04L) Specifications
These specifications are typical at 25 °C, unless otherwise stated, and are subject to change without notice. Physical Dimensions 10.7 cm × 17.5 cm (4.4 in. × 6.9 in.) Maximum cable length 32 | ni.com | MXI-Express Gen-3 x16 User Manual... - Page 33 -40 °C to 71 °C (Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2. Meets MIL-PRF-28800F Class 3 limits.) Relative humidity range 5% to 95%, noncondensing (Tested in accordance with IEC-60068-2-56.) MXI-Express Gen-3 x16 User Manual | © National Instruments | 33...
- Page 34 Note For EMC declarations and certifications, and additional information, refer to the Online Product Certification section. 34 | ni.com | MXI-Express Gen-3 x16 User Manual...
-
Page 35: Common Questions
General Hardware What connectors does MXI-Express Gen-3 x16 use? MXI-Express Gen-3 x16 uses the connector system defined in the SFF-8644 and SFF-8614 specifications. It's often referred to as Mini-SAS HD. MXI-Express Gen-3 x16 User Manual | © National Instruments | 35... -
Page 36: Mxi-Express Gen-3 X16 Upgrade Questions
• Modular cabling for flexibility in bandwidth management and fanout. Can I use an older MXI kit and MXI-Express Gen-3 x16 kit in the same multichassis PXI system? Yes. You can mix different MXI kits to connect multiple PXI and PXI Express chassis together. -
Page 37: Documentation Notice For Third Party Software
MXI-Express Gen-3 x16 is recognized as a collection of PCI-to-PCI bridges to the majority of operating systems. It should automatically have CompactPCI Express support with most systems such as Windows, Macintosh OS X, Linux, and Solaris. For full PXI Express functionality, PXI Platform Services software is required. - Page 38 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
