QuickNet-Check
QuickNet and CeraPro Heating Cable
Continuity Monitor Installation Instructions

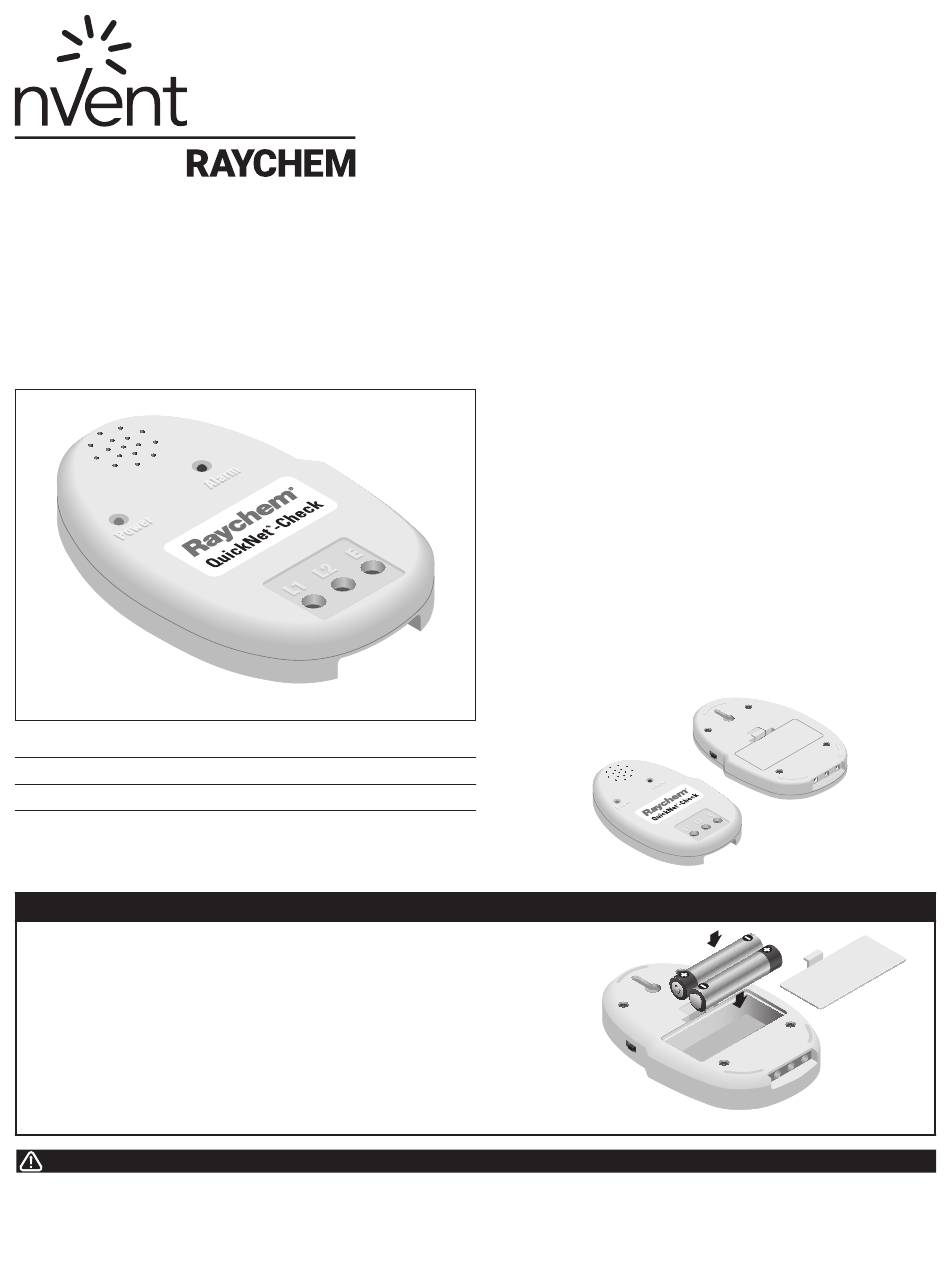

KIT CONTENTS
Item Qty
Description
A
1
QuickNet-Check monitor
INSTALLING THE BATTERIES
• Open the battery cover and insert the two (2) AAA batteries into the
compartment. Make sure the batteries are installed in the proper
orientation. See Figure 1.
• Replace the battery cover and switch the unit "ON".
• The alarm should sound and the red light should light since there is no
connection to a mat or cable. If this does not occur, please make sure that
the batteries are properly installed or replace the batteries.
• During normal use, the green light indicates that the QuickNet-Check
monitor is monitoring the mat or cable for damage. Should the green light
go out, replace the batteries before continuing work.
WARNING:
• Do not power the nVent RAYCHEM
QuickNet or CeraPro Floor Heating
System with the QuickNet-Check installed.
Doing so can damage the monitor and the
heating mat.
DESCRIPTION
The nVent RAYCHEM QuickNet-Check monitor is used to verify
the continuity of the QuickNet and CeraPro heating cables and
the integrity of their outer jackets during the installation process.
The monitor connects to the cold leads of the cable and, if the
heating cable is damaged, the alarm on the monitor will sound.
The monitor can also be re-used for subsequent installations.
TOOLS REQUIRED
• Phillips (No. 1) screwdriver
ADDITIONAL MATERIALS REQUIRED
• nVent RAYCHEM QuickNet System Installation Manual (H57704)
• nVent RAYCHEM CeraPro System Installation Manual (H58956)
• Two (2) AAA batteries
• Use of the QuickNet-Check monitor
does not replace performing the three
commissioning tests as outlined in the
QuickNet System Installation Manual
(H57704) or CeraPro System Installation
A
Front
Figure 1
Manual (H58956). The Insulation, Heating
Cable and Sensor Resistance tests must
be performed as stated in the Installation
Manual and the readings must be
recorded for the warranty to apply.
Back
