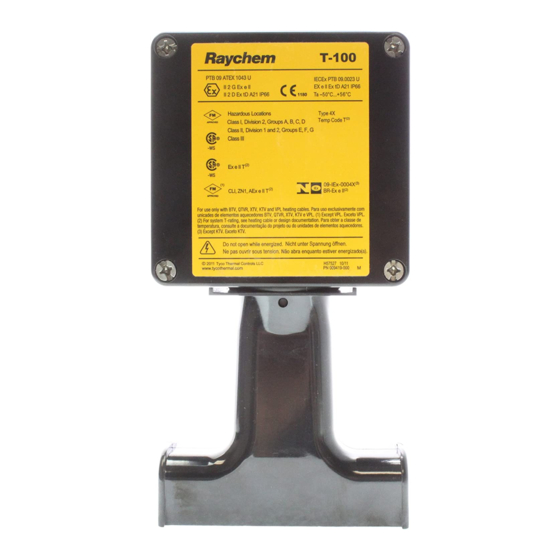

T-100
Splice and tee connection kit
Anschlusskasten für Verbindungen und T-Abzweige
Boîte de dérivation en T ou de jonction en ligne
Verbindings- en T-splitsingskit
Skjøt og T-avgreningssett.
Skarv- och T-förgreningssats
Splejsning og T-afgrening
Jatko- ja haaroituspakkaus
Kit di connessione a T e di giunzione
Kit para empalme y conexión en T
Zestaw poŁĄczeniowy i rozgałęźnik T
Набор для сращивания и разветвления
Spojovací a odbočovací krabice
Kötés és "T" csatlakoztató készlet
Spojno otcjepna garnitura

Advertisement

loading
Need help?

Need help?

Do you have a question about the T-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for nVent RAYCHEM T-100

Summary of Contents for nVent RAYCHEM T-100

  • Page 1 T-100 Splice and tee connection kit Anschlusskasten für Verbindungen und T-Abzweige Boîte de dérivation en T ou de jonction en ligne Verbindings- en T-splitsingskit Skjøt og T-avgreningssett. Skarv- och T-förgreningssats Splejsning og T-afgrening Jatko- ja haaroituspakkaus Kit di connessione a T e di giunzione Kit para empalme y conexión en T...
  • Page 2 QTVR...
  • Page 3 T-100-CT (Panduit: CT-1570) QTVR...
  • Page 4 T-100 ENGLISH PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 5 DEUTSCH PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 6 FRANÇAIS PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 7 NEDERLANDS PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 8 NORSK PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 9 SVENSKA PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 10 DANSK PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 11 SUOMI PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 12 ITALIANO PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 13 ESPAÑOL PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 14 POLSKI PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 15 РУССКИЙ PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 16 ČESKY PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 17 MAGYAR PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 18 HRVATSKI PTB 20 ATEX 1008 U II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db IECEx PTB 20.0014U ТС RU C-BE.МЮ62.В.00054/18 Ex e IIC Gb U Ex tb IIIC Db U Ta –55°C…+56°C IP66 ООО...
  • Page 19 BTV, QTVR, XTV, KTV, HTV 600 mm 24" 45° 45° 600 mm 24" 500 mm 20" nVent.com/RAYCHEM | 19...
  • Page 20 BTV, QTVR, XTV, KTV, HTV, VPL BTV, QTVR, XTV, KTV, HTV, VPL 300-450 mm 5 mm 12"-18" 0.2" 90° 20 | nVent.com/RAYCHEM...
  • Page 21 BTV, QTVR, XTV, KTV, HTV, VPL 190 mm 7.5" BTV, QTVR, XTV, KTV, HTV nVent.com/RAYCHEM | 21...
  • Page 22 BTV, QTVR, XTV, KTV 165 mm 6.5" 165 mm 180° 165 mm 180° 22 | nVent.com/RAYCHEM...
  • Page 23 BTV, QTVR, XTV, KTV, HTV BTV, QTVR and HTV KTV & XTV BTV, QTVR, XTV, KTV, HTV nVent.com/RAYCHEM | 23...
  • Page 24 165 mm 6.5" 24 | nVent.com/RAYCHEM...
  • Page 25 165 mm 6.5" 20 mm 0.8" 40 mm 1.6" nVent.com/RAYCHEM | 25...
  • Page 26 BTV, QTVR, XTV, KTV, HTV, VPL 15 mm 0.6" BTV, QTVR, XTV, KTV, HTV, VPL 37-43 mm 1.25"-1.50" 26 | nVent.com/RAYCHEM...
  • Page 27 BTV, QTVR, XTV, KTV, HTV, VPL 37-43 mm 1.25"-1.50" 120mm ≥ 180mm JBM-100 STANDOFF P000003624 JBM-SPA Part nr. D55673-000 ≥ 1" ≤ 1" (DN 25) (DN 25) nVent.com/RAYCHEM | 27...
  • Page 28 BTV, QTVR, XTV, KTV, HTV, VPL BTV, QTVR, XTV, KTV, HTV, VPL t 22 +/ -2Nm 28 | nVent.com/RAYCHEM...
  • Page 29 BTV, QTVR, XTV, KTV, HTV, VPL nVent.com/RAYCHEM | 29...
  • Page 30 BTV, QTVR, XTV, KTV, HTV, VPL ENGLISH ITALIANO Avoid skin and eye contact with sealing grease. Evitare il contatto del sigillante con occhi e pelle. Consult RAYCHEM safety datasheet VEN0058. Consultare la scheda di sicurezza VEN0058. DEUTSCH ESPAÑOL Vermeiden Sie Haut-und Au gen kon takt Evitar el contacto de la grasa de sellado con mit dem Abdichtmittel.
  • Page 31 BTV, QTVR, XTV, KTV, HTV, VPL nVent.com/RAYCHEM | 31...
  • Page 32 BTV, QTVR, XTV, KTV, HTV, VPL ENGLISH ITALIANO Remove the tubes and dispose of them in the core Togliere le guaine protettive e riporle nella busta delle sealer plastic bag. guaine sigillanti. DEUTSCH ESPAÑOL Entfernen Sie die Montage-Röhrchen und stec ken Quitar los tubos y colocarlos en la bolsa de plástico Sie sie zurück in den Plastik-Beutel.
  • Page 33 BTV, QTVR, XTV, KTV, HTV, VPL 12-13 mm 0.5" 12-13 mm 0.5" BTV, QTVR, XTV, KTV, HTV, VPL nVent.com/RAYCHEM | 33...
  • Page 34 BTV, QTVR, XTV, KTV, HTV, VPL BTV, QTVR, XTV, KTV, HTV, VPL T-100-CT (PANDUIT: CT-1570) DANSK Monter presseforbindere ved hjælp af pres se tang T-100-CT. Monter isolationsslange over presseforbinderne. SUOMI Asenna puristushylsyt puristuspihdeillä. Asenna eristystuppi puristushylsyjen päälle. ITALIANO Installare manicotto di giunzione con pinza a crimpare.
  • Page 35 BTV, QTVR, XTV, KTV, HTV, VPL BTV, QTVR, XTV, KTV, HTV, VPL nVent.com/RAYCHEM | 35...
  • Page 36 BTV, QTVR, XTV, KTV, HTV, VPL ® ENGLISH ITALIANO Install lid. τ = 1.02 to 1.47Nm Installare coperchio. τ = 1.02 to 1.47Nm Apply insulation and cladding. Applicare coibentazione e rivestimento. Weather seal the stand entry. Leave these Sigillare ermeticamente l’entrata della staffa. instructions with the end user for future reference.
  • Page 37 СВЕДЕНИЯ О ТРАНСПОРТИРОВКЕ И ХРАНЕНИИ Транспортировать в упаковке можно всеми видами крытых транспортных средств (автомобильным, железнодорожным, речным, авиационным и др.) в соответствии с действующими на данном виде транспорта правилами перевозок при температуре воздуха от  –50°С до +50°С. Транспортная упаковка предохраняет корпус от прямого  воздействия атмосферных...
  • Page 38 38 | nVent.com/RAYCHEM...
  • Page 39 nVent.com/RAYCHEM | 39...
  • Page 40 België / Belgique Italia Россия Tel. +32 16 21 35 02 Tel. +39 02 577 61 51 Тел. +7 495 926 18 85 Fax +32 16 21 36 04 Fax +39 02 577 61 55 28 Факс +97 495 926 18 86 salesbelux@nVent.com salesit@nVent.com salesru@nVent.com...
