- Page 1 Wireless Full HD Network Camera User’s Guide...
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ....................1 Overview ..........................1 Physical Details - Wireless Network Camera ..............2 Package Contents ....................... 4 CHAPTER 2 BASIC SETUP ....................5 System Requirements ......................5 Installation .......................... 5 CHAPTER 3 VIEWING LIVE VIDEO .................. 7 Overview .......................... -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction This Chapter provides information of the Wireless Network Camera's features, components and capabilities. Overview Congratulations on the purchase of your new Wireless Network Camera. This Camera is a Camera with 1080p resolution and 802.11n WiFi connectivity. Features •... -
Page 6: Physical Details - Wireless Network Camera

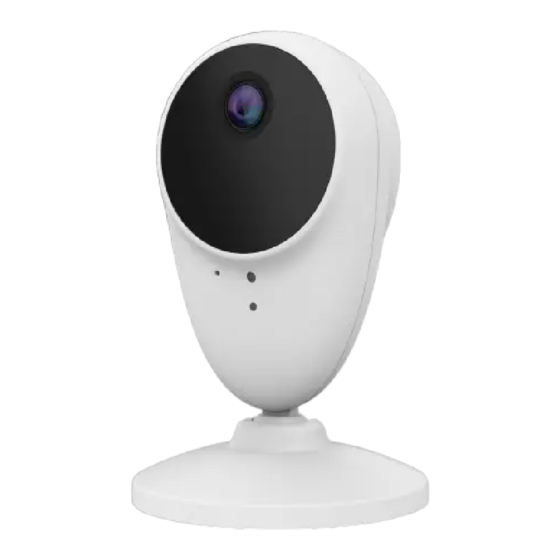

Physical Details - Wireless Network Camera Front Panel Figure 1: Front Panel Lens Ensure that the lens cover is clean. The image quality is degraded if the lens cover is dirty or smudged. IR LED The IR LED provides illumination at night or in a dark environment. - Page 7 Back Panel Figure 2: Back Panel Insert the Micro SD card into the slot, if required. Micro SD Card Push the WPS button on the camera and on your other wireless WPS/Reset Button device to perform WPS function that easily creates an encryption- secured wireless connection automatically.
-
Page 8: Package Contents
Package Contents The following items should be included in the package: If any of these items are damaged or missing, please contact your dealer immediately. Figure 3: Package Contents... -
Page 9: Chapter 2 Basic Setup
Chapter 2 Basic Setup This Chapter provides information on how to install and configure the Wireless Network Camera. System Requirements • To use the Wireless interface on the wireless model, other Wireless devices must be compliant with the IEEE802.11n, IEEE802.11b or IEEE802.11g specifications. All Wireless stations must use compatible settings. - Page 10 4. Internet Connection Press the WPS button on the camera for 3-5 seconds and on your other wireless device as well to establish a wireless connection automatically. The wireless connection is successful when the LED (green) remains on. 5. Check the LEDs The LED will turn on briefly, then start blinking.
-
Page 11: Chapter 3 Viewing Live Video
Chapter 3 Viewing Live Video This Chapter provides basic information about viewing live video. Overview After finishing setup via the Windows-based Wizard, all WLAN users can view live video using web browsers. This chapter has details of viewing live video using Internet Explorer. But many other powerful features and options are available: •... - Page 12 Figure 5: Home Screen 4. Click View Video. 5. The first time you connect to the camera, you will be prompted to install decoders. Choose "I accept the terms of the license agreement" and click "OK". 6. Note: The options can only be configured while using IE browser. Other browsers can just view the video rather than configuration.
-
Page 13: Appendix A Specifications
Appendix A Specifications Wireless Network Camera Model Wireless Full HD Network Camera Dimensions 72mm (W) x 115mm (H) x 32.1mm (D) Lens F2.0, DFOV 120° Operating Temperature 0° C to 40° C Storage Temperature -20° C to 70° C Image resolution 1080p (1920*1080), 720p (1280*720), 640*360 Video compression H.264 Main Profile... - Page 14 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
