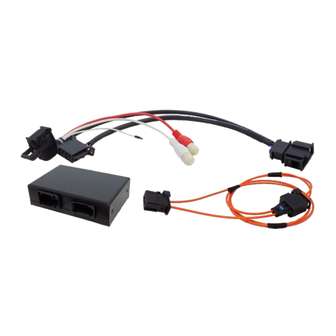

Summary of Contents for Car-Interface CI-JBTAUX-2G
Page 1
(PLAY,PAUSE,NEXT,PREV,FF,REW) and can display a tittle, album and artist name of current playing song. 2.Start Up 1. To start playing audio sound from CI-JBTAUX-2G in first step is recommended to press a CD/TV button on control panel. Next press a button which control SOURCE function.
Page 2

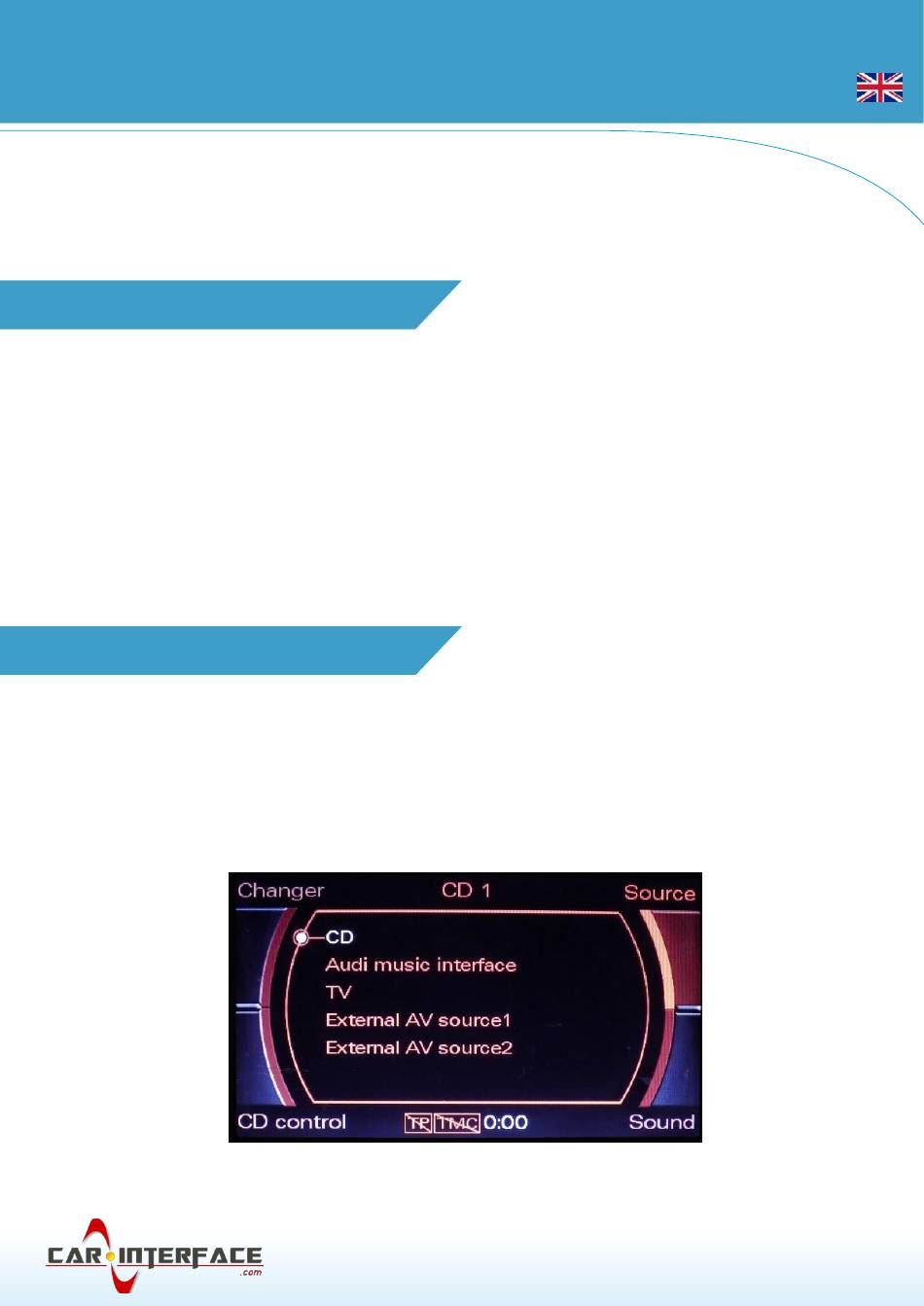

JAUX_BT and between next discs from CD changer too (if it is connected to system). pic.2 Selecting CD1 causes playing sound from additional line input which is implemented in CI-JBTAUX-2G device. Selecting CD2 causes playing sound from Bluetooth pic.2. Also the device stores last used audio source and with next startup system automatically plays sound from AUX or Bluetooth source.
Page 3
Bluetooth manual CI-JBTAUX-2G module allows pairing a new device only if Bluetooh audio source is active and other device is not paired with module in the same time. pic.3 pic.3 View of display without connected device. It is recommend to start Bluetooth in smart phone (or other device) and run search function.
Page 4
Bluetooth manual After selection of “JUNA_AUX”, it is necessary to input a PIN code 2831 pic.5 pic.5 After a pairing with device finished correctly, smart phone should start playing music automatically. Device name Song title Track time Album name Artist pic.6 A screenshot of the connected devices.
Page 5
5.Reconnect The device is automatically trying to reconnect with last paired device. This function is active after MMI system startup. If the connection is not established then this function is active only when Bluetooth is selected from CDC lable as current audio source.
