ACplus
5169-030160
5169-060160
5169-0R0160
5169-0G0160
5169-0B0160
DE
Bedienungsanleitung
EN
User manual
FR
Mode d'emploi
ES
Instrucciones de uso
IT
Istruzioni per l'uso
shop.dotlux.de --> item-no --> Downloads
01/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACplus 5169-030160 and is the answer not in the manual?

Questions and answers

Summary of Contents for DOTLUX ACplus 5169-030160

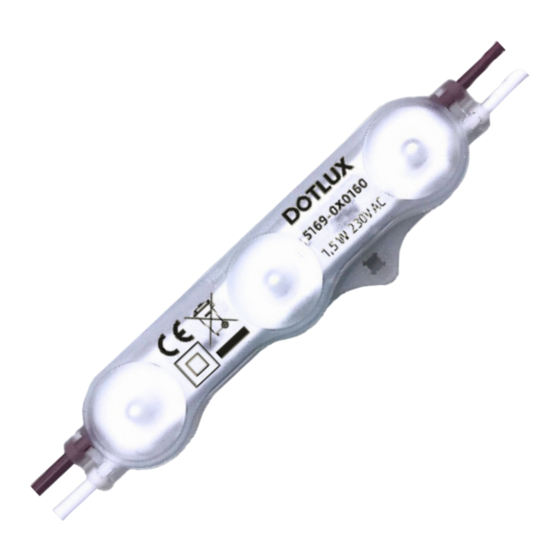

  • Page 1 ACplus 5169-030160 5169-060160 5169-0R0160 5169-0G0160 5169-0B0160 Bedienungsanleitung User manual Mode d‘emploi shop.dotlux.de --> item-no --> Downloads Instrucciones de uso Istruzioni per l‘uso 01/2022...
  • Page 2 72 mm 130 mm 18,5 mm 9 mm Anschluss connection Connexion Conexión Connessione...
  • Page 3 Verbindungen und Endpunkte isolieren Isolate connections and endpoints Isoler les connexions et les points terminaux Aislar las conexiones y los puntos finales Isolare le connessioni e gli endpoint Bitte beachten Sie, dass die Fläche, auf der das LED-Modul platziert wird, geerdet sein muss.
  • Page 4 ARTIKEL-NR. 5169-030160 5169-060160 ABMESSUNGEN MODUL 72 x 18,5 x 9,7 mm 72 x 18,5 x 9,7 mm LEISTUNGSAUFNAHME MODUL 1,5 W 1,5 W LICHTFARBE 3000 K 6000 K ABSTRAHLWINKEL 160° 160° EINGANGSSPANNUNG 220 - 240 V AC 220 - 240 V AC TEMPERATURBEREICH -20 °C –...
  • Page 5 Beachten Sie immer die Symbole auf der Verpackung und in dieser Montageanlei- Konformität tung. Hiermit erklärt DOTLUX GmbH, dass dieses Produkt den EU-Richtlinien EMC 2014/30/ Diese Anleitung setzt Fachkennt- EU, LVD 2014/35/EU, RoHS 2011/65/EU und nisse voraus, die einer abgeschlos- der Ökodesign-Richtlinie 2009/125/EG ent-...
  • Page 6 Beachten Sie für die Montage und die War- einen wichtigen Beitrag. tung die nationalen Montage- und Unfallver- hütungsvorschriften. Serviceadresse DOTLUX GmbH Arbeiten Sie niemals bei anliegender Richard-Stuecklen Str. 7, 91781 Weissenburg Spannung an der Leuchte. Achtung Tel: +49 9141 / 4051 0...
  • Page 7 Symbole Schutzart / Schutzklasse Die Leuchte hat einen Schutzleiteranschluss. Schließen Sie Schutz- den Schutzleiter (grün-gelbe Ader) an die gekennzeichnete Er- klasse I dungsschraube an. Schutz- Die Leuchte ist besonders isoliert und darf nicht an einen klasse II Schutzleiter angeschlossen werden. Schutz- Die Leuchte darf nur an Sicherheitskleinspannung angeschlos- klasse III...
  • Page 8 ITEM-NR. 5169-030160 5169-060160 DIMENSIONS MODUL 72 x 18,5 x 9,7 mm 72 x 18,5 x 9,7 mm POWER CONSUMPTION MODUL 1,5 W 1,5 W COLOR TEMPERATURE 3000 K 6000 K BEAM ANGLE 160° 160° INPUT VOLTAGE 220 - 240 V AC 220 - 240 V AC WORKING TEMPERATURE -20 °C –...
  • Page 9 This manual assumes knowledge Conformity which corresponds to a complete DOTLUX GmbH hereby declares that this training as an electrician. product complies with the EU Directives EMC 2014/30/EU, LVD 2014/35/EU, RoHS Attention! Basic safety precauti- 2011/65/EU and the Ecodesign Directive ons should always be followed.
  • Page 10 Do not install the lamp when volta- tecting our environment. ge is applied the the lamp. Caution: Danger to life! Service Address DOTLUX GmbH Electrical connections may only be Richard-Stuecklen Str. 7, 91781 Weissenburg carried out by a qualified electrici- Tel: +49 9141 / 4051 0 an.
  • Page 11 Symbols IP protection / Protection class The luminaire has a connection for a protective earth conduc- Protection tor. Connect the protective earth conductor (green-yellow class I wire) to the corresponding marked earth screw. Protection The luminaire has special insulation and must not be connected class II to a protective earth conductor.
